'Connector with a 9-pin socket and numbered green terminals, used for serial interfaces in electronic devices.'

'Connector with a 9-pin socket and numbered green terminals, used for serial interfaces in electronic devices.'

Product type

D-SUB socket

Connector type

Socket, straight

Number of pins

9

Connection

Screws

No. of rows

2

Datasheet (PDF)

Phoenix Contact

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 29.99 / piece)

€ 29.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Phoenix Contact VS-09-BU-DSUB/9-MPT-0,5 1688395 D-SUB socket 180 ° Number of pins: 9 Screws 1 pc(s)

Can be individually coded or marked with identification labels

Technical specifications

Contact inserts with screw connection
Insertion cycles 200

Product type: D-SUB socket

Connector type: Socket, straight

Number of pins: 9

Connection: Screws

Connection angle: 180°

No. of rows: 2

Content: 1 pc(s)

Manufacturer part #: 1688395

Temperature range: -20 - +80 °C

Type: VS-09-BU-DSUB/9-MPT-0,5

Type: Socket

Operating current: 5 A

Nominal voltage (details): 60 V

Nominal current (details): 5 A

Connector cross section: 0.14 - 0.5 mm²

Connection: -

Cable diameter (details): 3 to 9 mm

Operating voltage: 60 V

Documents & Downloads

Datasheet

Datasheet 743914 Phoenix Contact VS-09-BU-DSUB/9-MPT-0,5 1688395 D-SUB socket 180 ° Number of pins: 9 Screws 1 pc(s)

User & Safety Instructions

User & Safety Instructions 743914 Phoenix Contact VS-09-BU-DSUB/9-MPT-0,5 1688395 D-SUB socket 180 ° Number of pins: 9 Screws 1 pc(s)

Description

Can be coded individually; identification plate for labelling; robust design for industrial use. Consists of grommet, mounting frame, two cable glands, coding profiles, identification plate, EMC design with internal grommet and EMC shield.

Scope of delivery

Grommet
Mounting frame
two cable glands
Coding profiles
Identification labels

Description

Can be coded individually; identification plate for labelling; robust design for industrial use. Consists of grommet, mounting frame, two cable glands, coding profiles, identification plate, EMC design with internal grommet and EMC shield.

Scope of delivery

Grommet
Mounting frame
two cable glands
Coding profiles
Identification labels

Frequently Bought Together

(^*All information is plus legal VAT)

This article

Phoenix Contact VS-09-BU-DSUB/9-MPT-0,5 1688395 D-SUB socket 180 ° Number of pins: 9 Screws 1 pc(s)

Phoenix Contact VS-09-BU-DSUB/9-MPT-0,5 1688395 D-SUB socket 180 ° Number of pins: 9 Screws 1 pc(s)

Conrad Electronic

€ 29.99^*

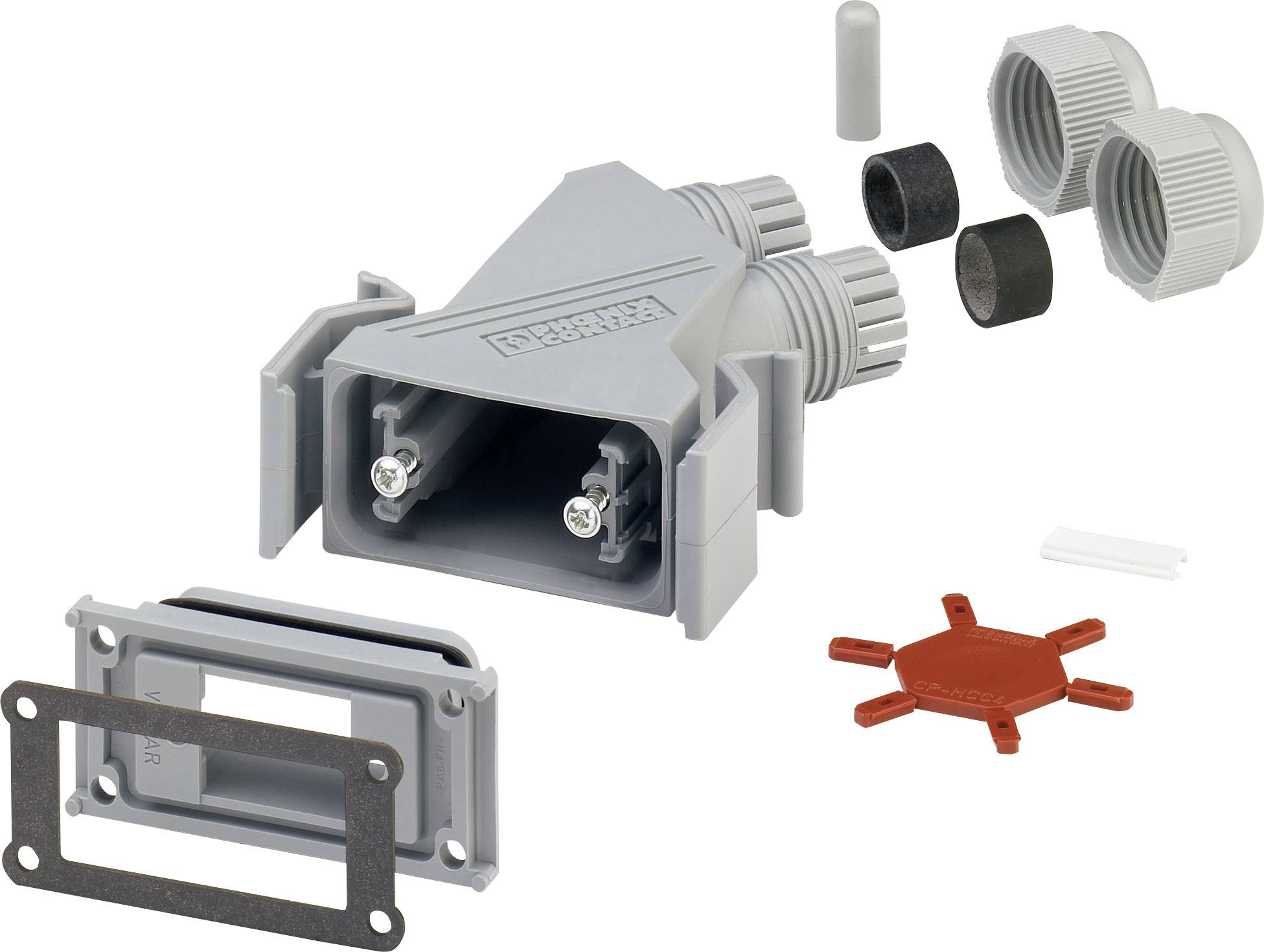

Phoenix Contact 1689145 VS-09-SET-STD IP-67 D-Sub Connector Variosub Socket, Plug -
