Pin insert 09380122651 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Number of pins
12
Type
09380122651
Manufacturer part #
09380122651
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 204.99 / piece)
€ 204.99
incl. VAT
14-day return policy included
Highlights & Details
Pin insert
Our service for you
Technical specifications
- Net weight: 281 g
- Size: 24 B
- Rated current: 100 A
- Number of contacts: 6
- Rated voltage: 690 V
- Conductor cross-section: 0.2 mm² - 2.5 mm² Control, 16 mm² - 35 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 7 Nm - 25 mm², 0.5 Nm control, 8 Nm - 35 mm², 6 Nm - 16 mm²
- Rated surge voltage: 8 kV
- Rated surge voltage control: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.5 mΩ
- Stripping length: 7.5 mm control, 13 mm - 14 mm
- Pollution degree: 3
- wire outer diameter: ≤11.4 mm
- Additional contacts: + 6 additional control contacts
- Rated current Control: 16 A
- Rated voltage Control: 400 V.
- Type
09380122651
- Product type
Pin inset
- Manufacturer part #
09380122651
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
12
- Connection
Axial screw terminal
Screws
- Total no. of pins
12 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1989528 Pin insert 09380122651 HARTING Content: 1 pc(s) Pin inset
User & Safety Instructions
User & Safety Instructions 1989528 Pin insert 09380122651 HARTING Content: 1 pc(s) Pin inset
Frequently Bought Together
(*All information is plus legal VAT)Total price:
€ 249.98*

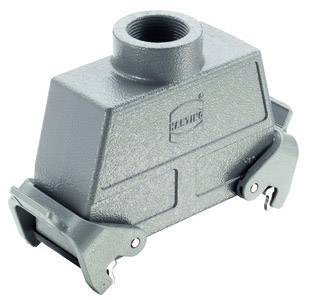

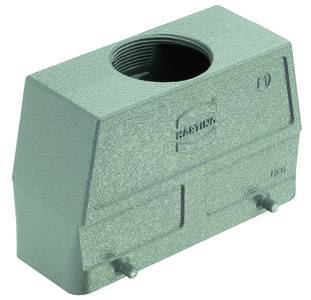

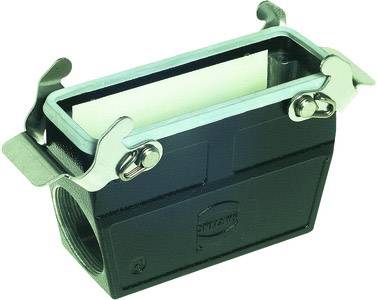

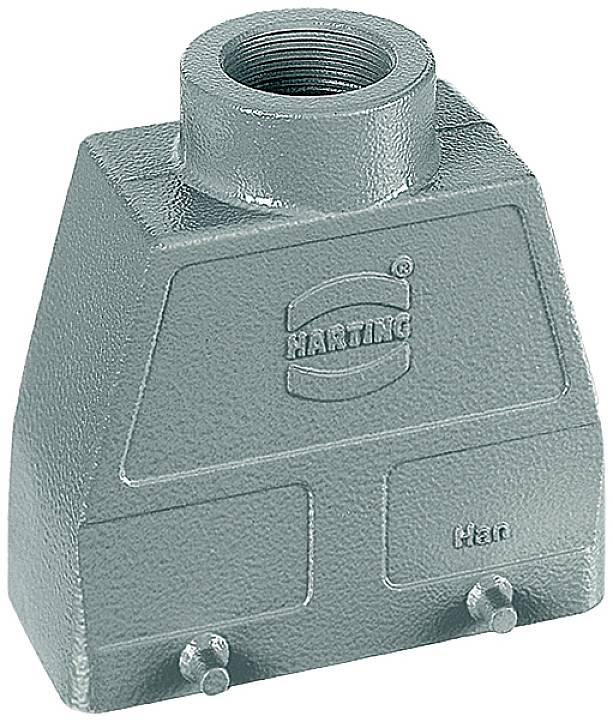

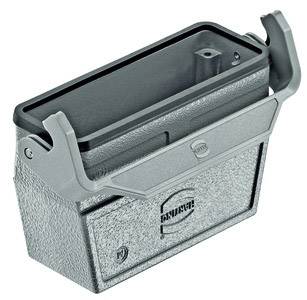

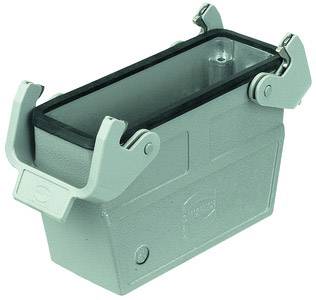

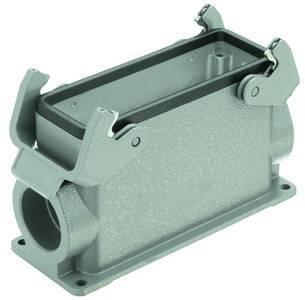

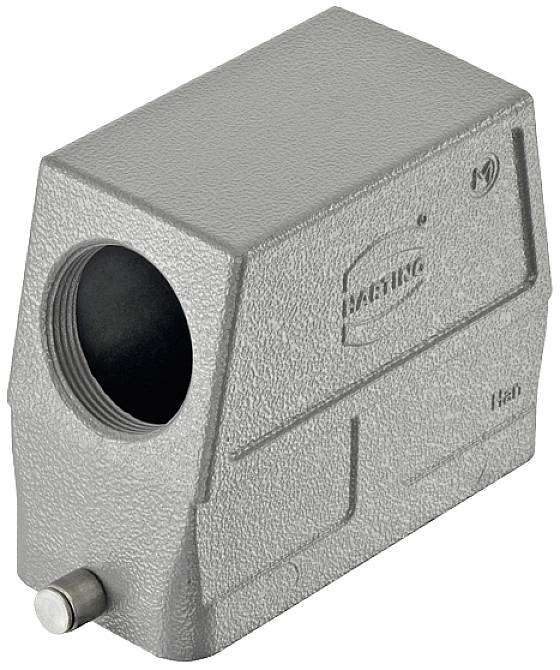

Accessories
