Pizzato Elettrica FG 60AD1DOZ FG 60AD1DOZ Safety button 250 V AC 5 A separate actuator momentary IP67 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 181.50 / piece)
€ 200.00
-9 %
€ 181.50
incl. VAT
14-day return policy included
Highlights & Details
Pizzato Elettrica FG 60AD1DOZ FG 60AD1DOZ Safety button 250 V AC 5 A separate actuator momentary IP67 1 pc(s)
Our service for you
Technical specifications
- Coil voltage: 24 V/DC/AC
- Locking force: 2500 N
- B10d — value in accordance with EN ISO 13849-1: 5 million cycles
- Packaging type
Piece
- Product type
Safety button
- Connection
Screws
- Operation type
separate actuator
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Contact type
1 maker
1 breaker
- Functions
momentary
- Actuating force
2500 N
- Factory colour
Green
- Min. temperature
-25 °C
- Max. temperature
+60 °C
IP67
- Durability
5 million cycles
- Material
Metal
- Width
40.2 mm
- Type
FG 60AD1DOZ
- Content
1 pc(s)
- Dim
(W x H x D) 40.2 x 194.7 x 46 mm
- RoHS-compliant
Yes
- Height
194.7 mm
- Depth
46 mm
- Type
1 normally open contact, 1 normally closed contact
- Switching capacity
5 A/250 V AC
- Switching voltage
250 V AC
- Switching current
5 A
- Type
FG 60AD1DOZ
- Temperature range
-25 - +80 °C
- Casing
Metal
Documents & Downloads
Datasheet
Datasheet 701340 Pizzato Elettrica FG 60AD1DOZ FG 60AD1DOZ Safety button 250 V AC 5 A separate actuator momentary IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701340 Pizzato Elettrica FG 60AD1DOZ FG 60AD1DOZ Safety button 250 V AC 5 A separate actuator momentary IP67 1 pc(s)
Description
For secure, currentless locking of panels and doors.
Features
- Including two green status LEDs.
Hints
Approvals: CE, IMQ, UL, CCC, EZU.
Frequently Bought Together
(*All information is plus legal VAT) This article
-9%
Conrad Electronic
€ 200.00
€ 181.50*
Conrad Electronic
€ 10.07*
Total price:
€ 391.57€ 373.07*
What kind of Position Switches are you looking for?

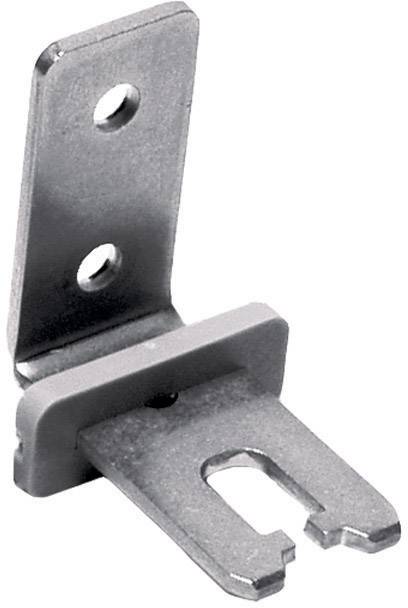

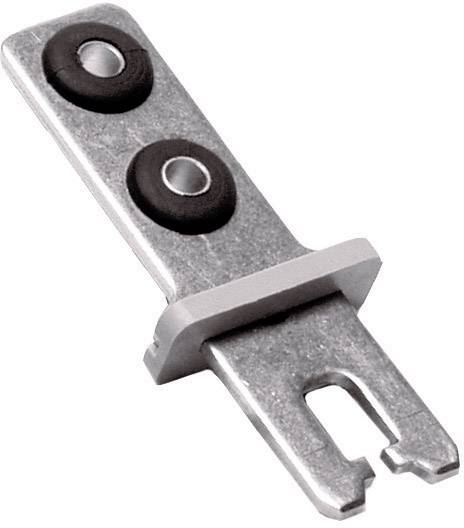

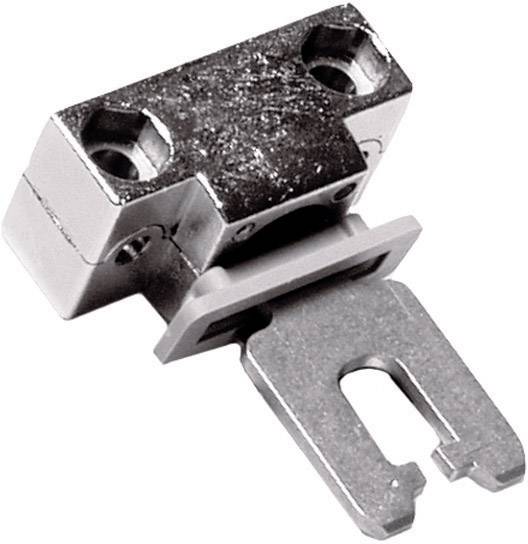

Accessories
