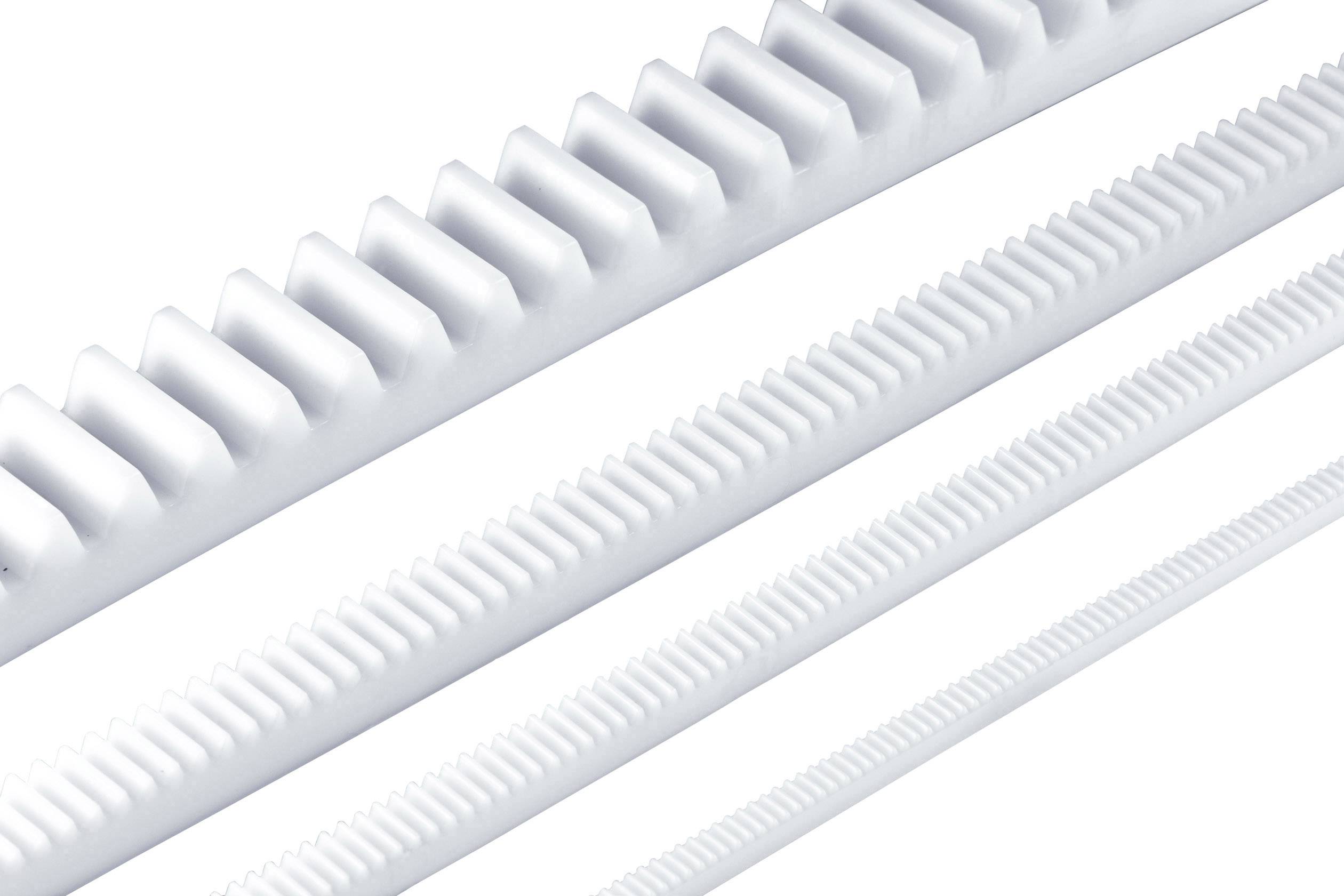

Polyacetal gear rack Reely Module Type: 1.0 (L x W x H) 250 x 9 x 9 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 50.40
€ 12.60
3
1 M = € 47.88
€ 11.97
5
1 M = € 46.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 50.40)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details
Polyacetal gear rod 250 mm x 9 mm x 9 mm
- High hardness
- Versatile use
- Machining processed
Technical specifications
- Product type
Polyacetal gear rack
- Dim
(L x W x H) 250 x 9 x 9 mm
- Length
250 mm
- Width
9 mm
- Height
9 mm
- Module Type
1.0
Documents & Downloads
Datasheet
Datasheet 1515295 Polyacetal gear rack Reely Module Type: 1.0 (L x W x H) 250 x 9 x 9 mm
User & Safety Instructions
User & Safety Instructions 1515295 Polyacetal gear rack Reely Module Type: 1.0 (L x W x H) 250 x 9 x 9 mm
Description
This text is machine translated.
Abrasion resistance
High hardness and low friction coefficient contribute to racks from Hostaform C a more favorable abrasion resistance than from other plastics - and even from some metals-made racks.
Fatigue strength under alternating flexural and tensile strength
As limit bending stress of Hostaform C were made on the standard small rod of 4 mm 11.70 kN/cm² is determined. The tensile strength is 7 kN/cm².
Influence of moisture
In contrast to other thermoplastics are the good characteristics by air, moisture or lubricating oils not affected. Gear wheels made of Hostaform C also work under water properly.
Use temperature in air
The temperature range, in the racks from Hostaform C can be used, is under consideration of level and duration of bean-chung -40°C to +40°C.
Abrasion resistance
High hardness and low friction coefficient contribute to racks from Hostaform C a more favorable abrasion resistance than from other plastics - and even from some metals-made racks.
Fatigue strength under alternating flexural and tensile strength
As limit bending stress of Hostaform C were made on the standard small rod of 4 mm 11.70 kN/cm² is determined. The tensile strength is 7 kN/cm².
Influence of moisture
In contrast to other thermoplastics are the good characteristics by air, moisture or lubricating oils not affected. Gear wheels made of Hostaform C also work under water properly.
Use temperature in air
The temperature range, in the racks from Hostaform C can be used, is under consideration of level and duration of bean-chung -40°C to +40°C.
Features
- Injection execution
- Pressure angle 20°.
- Straight-toothed.
