Power off Grey 100 A 3 makers Siemens 5TL13910
Product type
Power off
Number of pins
3
Nominal current - rounded value
100 A
Contact type
3 makers
Operating voltage
440 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 169.99 / piece)
€ 169.99
incl. VAT
14-day return policy included
Technical specifications
- Cutout depth: 70 mm
- Net weight: 321 g
- Product type
Power off
- Contact type
3 makers
- Operating voltage
440 V
- Factory colour
Grey
- Number of pins
3

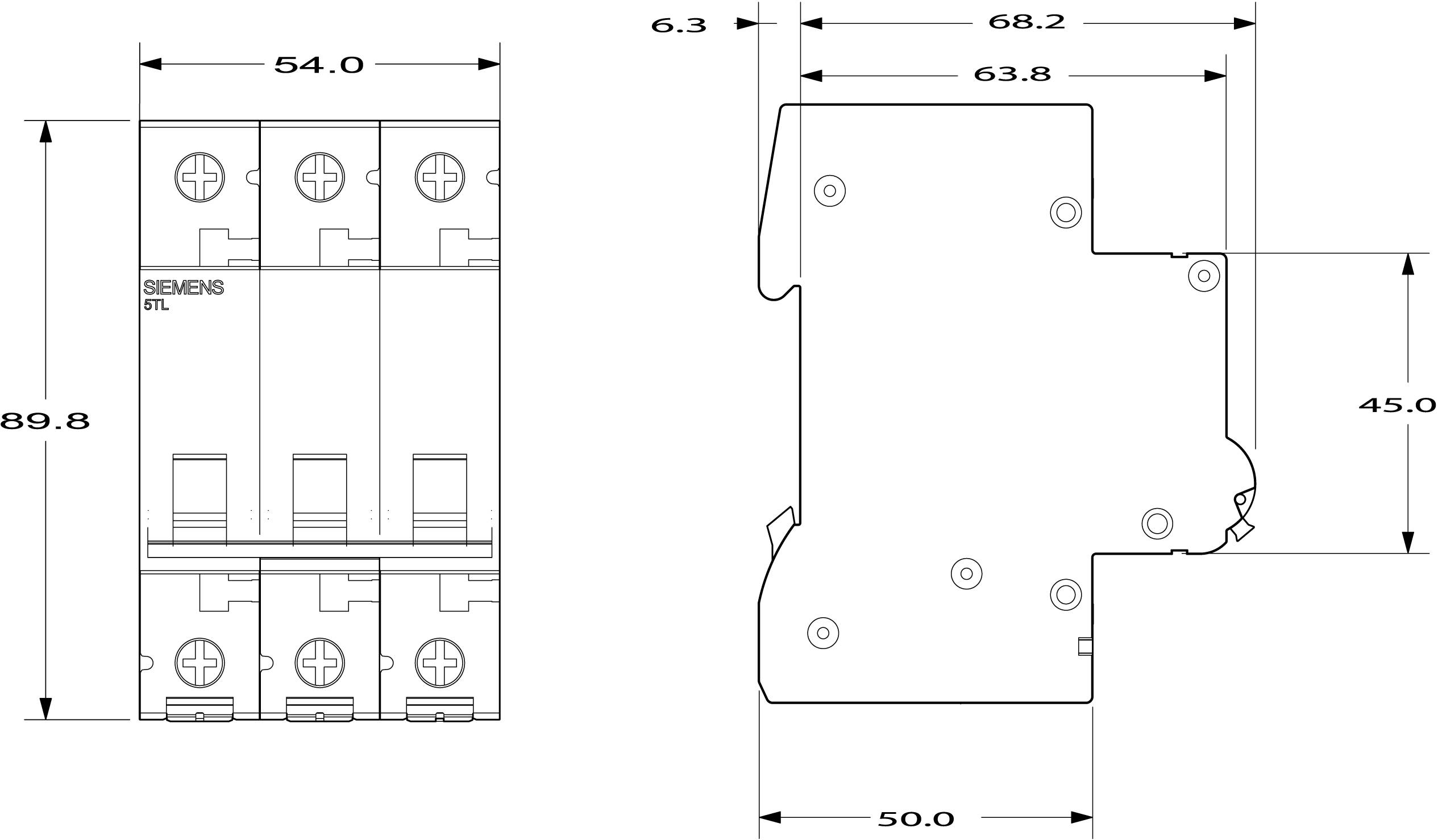

- Dim
(L x W x H) 70 x 54 x 89.8 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- No. of partitions
3
- Width
54 mm
- Height
89.8 mm
- Length
70 mm
- Depth
74.5 mm
AC
Other
FALSE
70 mm
100 A
440 V
3
Other
10 kA
0.3 A
3
Other
Other
Other
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1751225 Power off Grey 100 A 3 makers Siemens 5TL13910
User & Safety Instructions
User & Safety Instructions 1751225 Power off Grey 100 A 3 makers Siemens 5TL13910
Description
distribution wire connector cu 6 cables 2 pcs. accessory for: 3VA1 160 Connection technology for 3VA molded-case circuit breakers The connection technology of the 3VA molded case circuit breakers is designed to support uncomplicated and convenient commissioning of the 3VA molded case circuit breakers and to meet all installation requirements. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
