Power off Grey 40 A 2 makers Siemens 5TL12400
EAN:
Part number:
Item no:
Product type
Power off
Number of pins
2
Nominal current - rounded value
40 A
Contact type
2 makers
Operating voltage
440 V
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Technical specifications
- Cutout depth: 70 mm
- Net weight: 209 g
- Product type
Power off
- Contact type
2 makers
- Operating voltage
440 V
- Factory colour
Grey
- Number of pins
2

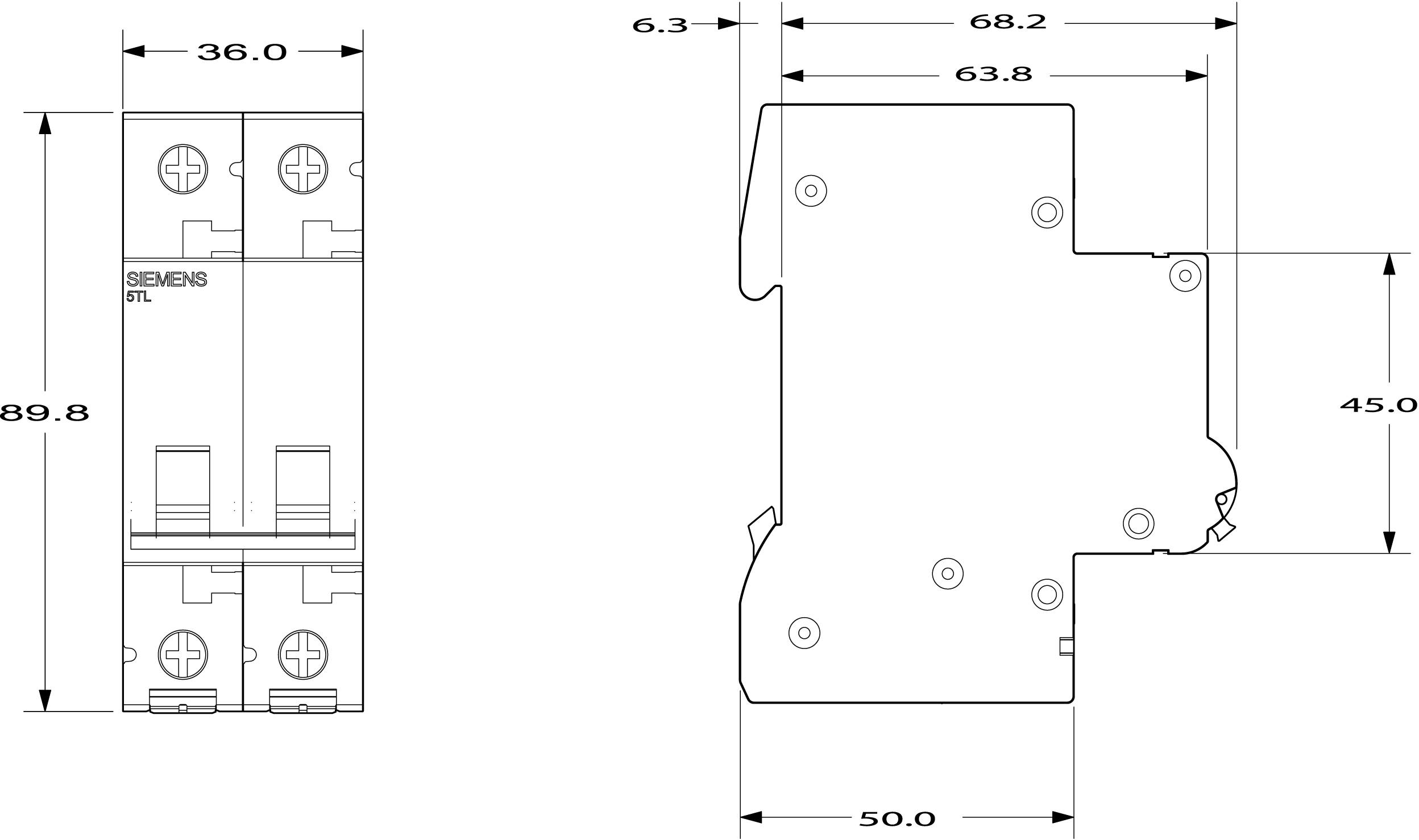

- Dim
(W x H x D) 36 x 89.8 x 74.5 mm
- Nominal current
40 A
- Nominal current - rounded value
40 A
- No. of partitions
2
- Width
36 mm
- Height
89.8 mm
- Depth
74.5 mm
AC
Other
FALSE
70 mm
40 A
440 V
2
Other
10 kA
0.12 A
2
Other
Other
Other
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1699014 Power off Grey 40 A 2 makers Siemens 5TL12400
User & Safety Instructions
User & Safety Instructions 1699014 Power off Grey 40 A 2 makers Siemens 5TL12400
Description
isolator 125A triple pole On/off switches for mounting on standard rails for controlling electrical systems. The 5TL1 On/Off switches are used for the switching of lighting, motors and other electrical devices. Rated currents range from 32 A to 125 A. The 5TL1 device versions can also be used as switch disconnectors according to EN 60947-1 and serve as main control switches for the disconnection or isolation of plants according to EN 60204-1. Whether for infrastructure or for industrial requirements, Siemens provides switchgears for all applications and every application area. The new design of the 5TL1 On/Off switches means they are optically perfectly integrated into the RCCB and MCB series. Key features of the switchgears from Siemens: 1. Increased operational safety and system availability due to separate connection and disconnection of the affected circuit. 2. Reliable safety during installation with standard reach-around and touch protection. 3. Toolless removal from the DIN rail or from the bus bar assembly by means of conveniently actuating a manual slide. 4. Clearly visible switch position indicator. 5. Can be used as switch disconnector and main switch. 6. The on/off switches comply with the provisions of EN 60947-1 and EN 60204-1. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
