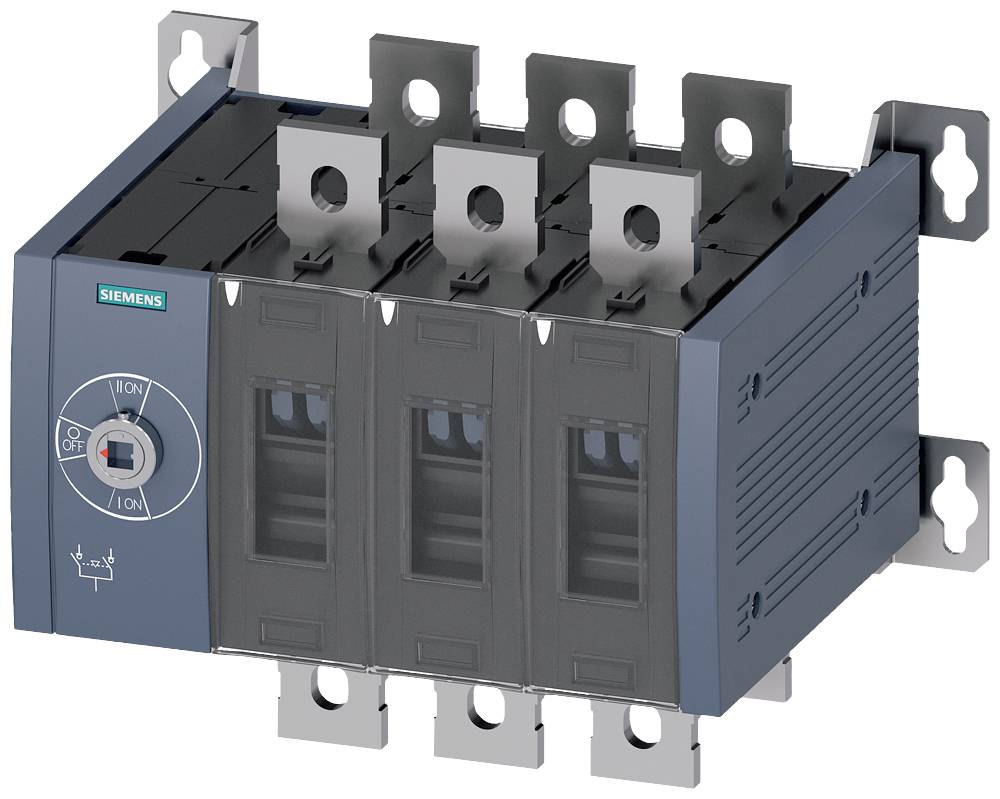

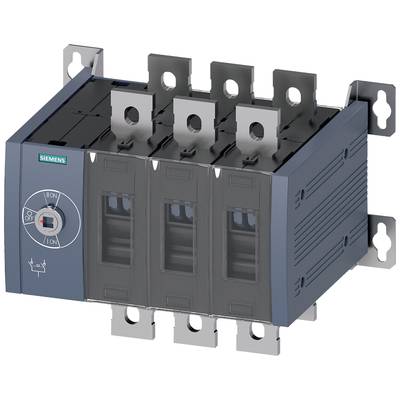

Power switch 3-pin 500 A 415 V AC Siemens 3KC03440QE000AA0
EAN:
Part number:
Item no:
Product type
Power switch
Nominal voltage
415 V AC
Number of pins
3
Nominal current - rounded value
500 A
Operating voltage
415 V AC
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 8000
- Power loss: 45 W
- Design of the electrical connection: rail connection
- Mounting type: screw fastening
- Product type
Power switch
- Operating voltage
415 V AC
- Nominal voltage
415 V AC
- Number of pins
3

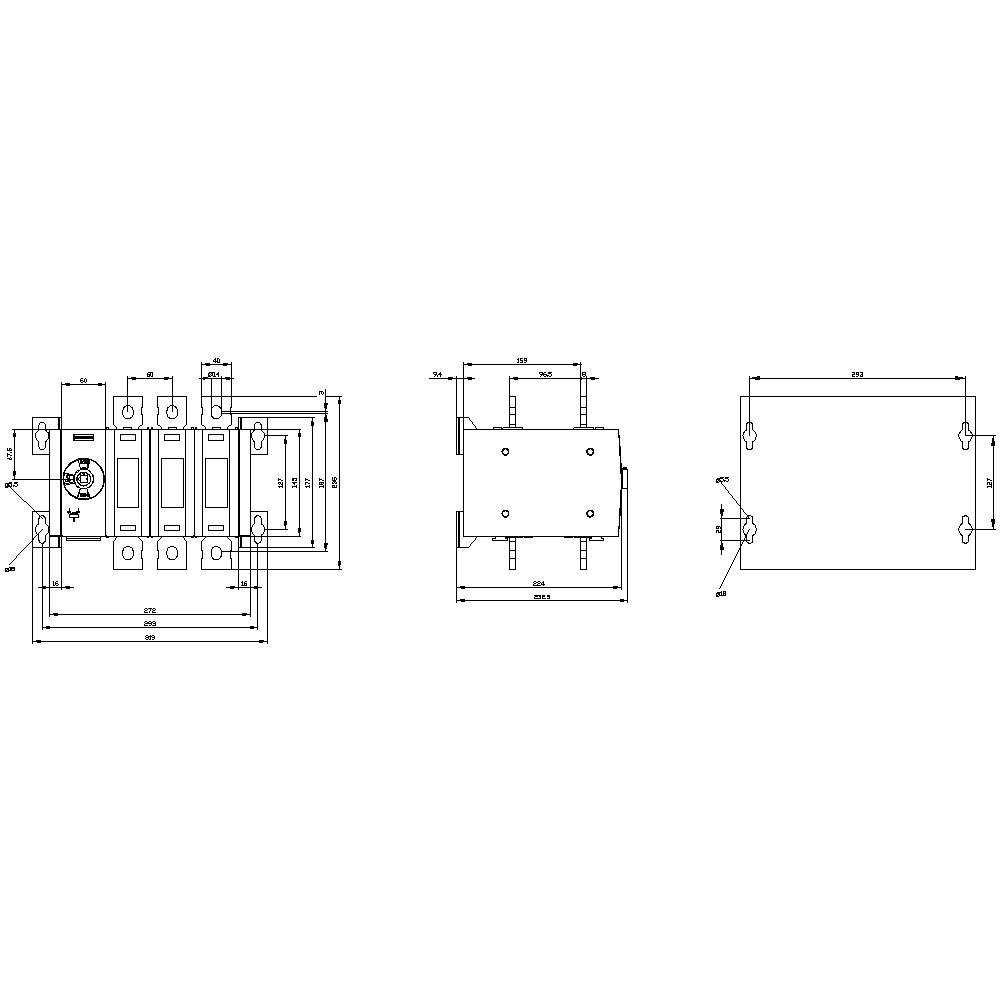

- Dim
(W x H x D) 319 x 235 x 232.5 mm
- Nominal current
500 A
- Nominal current - rounded value
500 A
- Type
Front wheel drive
- Width
319 mm
- Height
235 mm
- Depth
232.5 mm
16
16
500 A
3
IP00
0
FALSE
FALSE
Rail connection
TRUE
None
TRUE
TRUE
TRUE
280 kW
30 kA
Other
FALSE
FALSE
FALSE
FALSE
FALSE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
500 A
500
Other
Variants(All information is without VAT, plus shipping costs)
Number of pins
Product type
Auxiliary contact 3-pin Siemens 3KC98226
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 293.28*
Auxiliary contact 3-pin Siemens 3KC98325
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 289.92*
Auxiliary contact 3-pin Siemens 3KC98227
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 310.08*
Auxiliary switch 4 A 2 change-overs Siemens 3KC98031
Auxiliary switch
Minimum order quantity: 1
Multiple: 1
€ 105.03*
Auxiliary switch 3 change-overs Siemens 3KC96032
Auxiliary switch
Minimum order quantity: 1
Multiple: 1
€ 80.66*
Auxiliary contact 3-pin Siemens 3KC98321
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 247.90*
Auxiliary contact 3-pin Siemens 3KC98322
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 205.87*
Auxiliary contact 3-pin Siemens 3KC98323
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 222.69*
Auxiliary contact 3-pin Siemens 3KC98324
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 281.51*
Auxiliary contact 3-pin Siemens 3KC98326
3
Auxiliary contact
Minimum order quantity: 1
Multiple: 1
€ 293.28*
Documents & Downloads
Datasheet
Datasheet 1742816 Power switch 3-pin 500 A 415 V AC Siemens 3KC03440QE000AA0
User & Safety Instructions
User & Safety Instructions 1742816 Power switch 3-pin 500 A 415 V AC Siemens 3KC03440QE000AA0
Description
Failsafe reversing starter, Electronic switching Electronic overload protection up to 5.5 kW/400 V 4.0 A up to 12 A High-Feature incl. fan (3RW4928-8VB00) Option: 3DI/LC module PROFIenergy
