Pressol 19244561 ÖLSYS-FB-(17 075)-NEF-3:1-4 m Oil system
EAN:
Part number:
Item no:
Number
Total (€ 1,004.20 / piece)
€ 1,004.20
plus VAT.
Technical specifications
- Length of suction pipe 860 mm
- Compressed air connection: Plug nipple for Rectus coupling, type 26, NW 7.2 mm
- Connection thread: G 2'' a, socket screw connection
- Load wagon: 200 kg
- Product type
Oil system
- Content
1 pc(s)
- Length
860 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373655 Pressol 19244561 ÖLSYS-FB-(17 075)-NEF-3:1-4 m Oil system

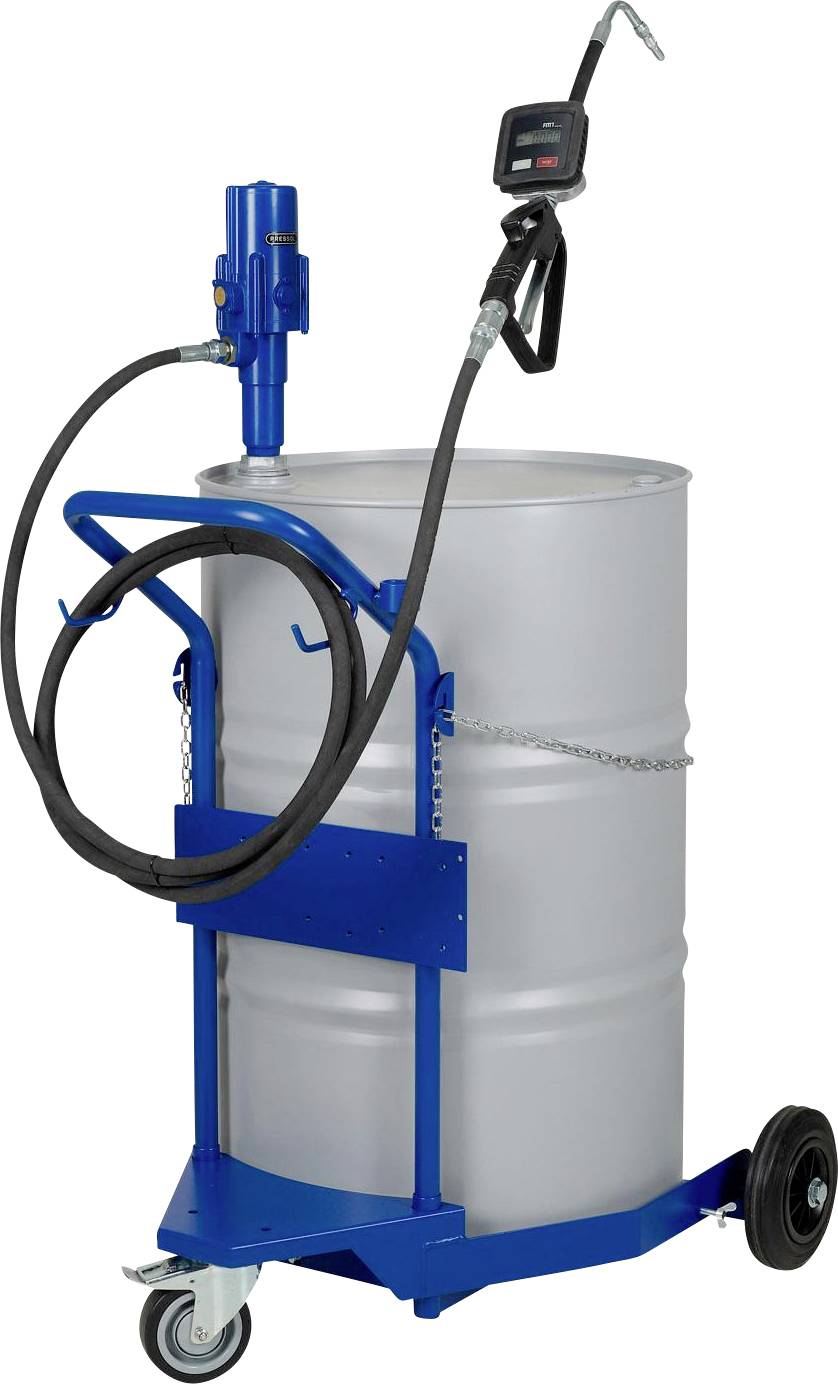

Description
· Oil system, mobile
· for 200-/220-l containers
· Pneumatic oil pump 3:1
· Plug nipple (20 062)
· Suction pipe, G 3/4'' a
· Delivery hose, 4 m, G 1/2' i/a (19 564)
· with hand flow counter, digital (19 698), outlet hose, anti-drip mouthpiece, can be closed manually, And swivel joint
· Top-class wagon with light and quiet running (17 075)
· Operate pneumatic pump with maintenance device (20 218 950)
This text is machine translated.
