Buy PULS QS40.361 Rail mounted PSU (DIN) 36 V DC 26.7 A 960 W No. of outputs:1 x Content 1 pc(s)

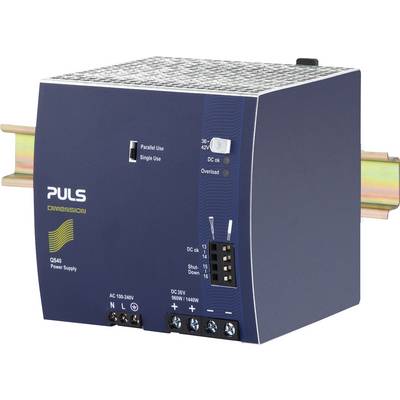

A power supply unit from PULS Dimension, Model QS40, mounted on a DIN rail. Suitable for AC 100-240V, 40A, with LEDs for status indicators.

5 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 763.87 / piece)

€

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

AC 100-240V wide-range input
Width only 110mm, weight only 1.9kg
94.6% full load efficiency and excellent partial load efficiency
50% BonusPower®, 1440W for up to 4 seconds
70A peak current for 10ms for tripping fuses
Safe Hiccup *PLUS* overload behavior
Active power factor correction (PFC)
Negligible inrush current
Full output power between -25°C and +60°C.
Load sharing for parallel operation
Internal data collection for troubleshooting
Height of the output voltage can be controlled
DC-OK relay contact
Shut-down input
ATEX and IECEx approval

Technical specifications

Nominal input voltage: 100 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V

Input voltage: AC 100-240V (-15%/+10%)

Input voltage (max.): 240 V

Max. output current: 26.7 A

Output current (max.) - rounded: 26.7 A

: 960 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 36 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 127 x 125 x 124 mm

Weight: 1900 g

Output voltage (max.): 43 V DC

Output voltage (min.): 36 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: QS40.361

Content: 1 pc(s)

MTBF: 300.000 h

Width: 125 mm

Height: 124 mm

Length: 127 mm

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: QS40.361

Efficiency: 94.6 %

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS QS40.361 Rail mounted PSU (DIN) 36 V DC 26.7 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189092

This article

960 W

Screw terminal

240 V

36 V DC

Adjustable

100 - 240 V/AC

26.7 A

100 V

PULS CP10.241-M1 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189069

240 W

Spring-loaded terminal

264 V

24 V

Adjustable

100 - 240 V/AC

10 A

85 V

PULS XT40.361 Rail mounted PSU (DIN) 36 V 26.6 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189071

960 W

Screw terminal

475 V

36 V

Fixed voltage

400 V/3AC

26.6 A

300 V

PULS XT40.481 Rail mounted PSU (DIN) 48 V 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189072

960 W

Screw terminal

475 V

48 V

Fixed voltage

400 V/3AC

20 A

300 V

PULS CS5.241-C1 Rail mounted PSU (DIN) 24 V 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2189073

120 W

Screw terminal

264 V

24 V

Adjustable

100 - 240 V/AC

5 A

85 V

PULS XT40.482 Rail mounted PSU (DIN) 48 V 20 A 40 W No. of outputs:1 x Content 1 pc(s)

Item no:2189074

40 W

Screw terminal

565 V

48 V

Fixed voltage

20 A

360 V

PULS CS10.242 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189077

240 W

Screw terminal

264 V

24 V

Adjustable

100 - 240 V/AC

10 A

85 V

PULS QS10.301 Rail mounted PSU (DIN) 30 V 8.6 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189078

240 W

Spring-loaded terminal

276 V

30 V

Adjustable

100 - 240 V/AC

8.6 A

85 V

PULS XT40.241 Rail mounted PSU (DIN) 24.1 V 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189081

960 W

Screw terminal

475 V

24.1 V

Fixed voltage

400 V/3AC

40 A

300 V

PULS ML50.111 Rail mounted PSU (DIN) 24 V 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:2189083

50 W

264 V

24 V

110 - 240 V/AC

2.1 A

85 V

Description

The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.

This text is machine translated.
