Buy Quadrios 19011CA084 Strand LiFY 1 x 0.14 mm² Blue, Brown, Grey, Red, Black, White, Yellow-green 70 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

PVC Switch Cable Set with 7 differently coloured cables in a green box by Quadrios. Colours: black, red, blue, yellow-green, brown, grey, white.

PVC Switch Cable Set with 7 differently coloured cables in a green box by Quadrios. Colours: black, red, blue, yellow-green, brown, grey, white.

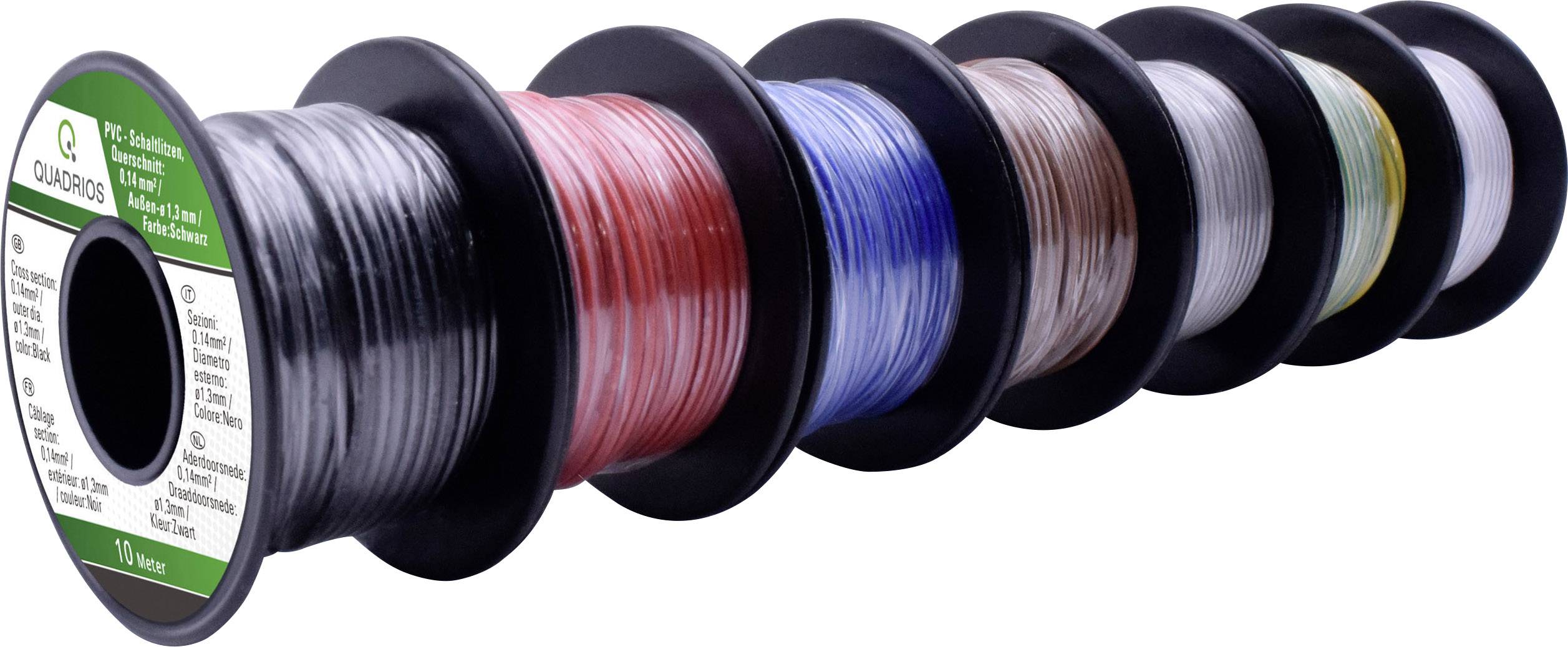

Six reels arranged side by side. Each reel contains wire wound in the colours Black, Red, Blue, Brown, Grey and White.

1/2

Quadrios

Product type

Strand

No. of leads

1 x

Cross section (each core)

0.14 mm²

Cable type

LiFY

Outside Ø

1.3 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

27 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 0.44)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by TRU COMPONENTS

TRU COMPONENTS TC-12112348 Strand 0.14 mm² Black, White, Red, Blue, Brown, Grey, Yellow-green 1 Set

Fast track dispatch on Thu 29 Oct

€ 19.99

1 m = € 0.29

incl. VAT plus

Technical specifications

Product type: Strand

No. of leads: 1 x

Content: 70 m

Cross section (each core): 0.14 mm²

Insulation material: PVC

Cable features: Flexible

Cable type: LiFY

Outside Ø: 1.3 mm

Nominal voltage: 300 V

Packaged: Yes

Halogen-free: No

Manufacturer part #: 19011CA084

Factory colour: Blue
Brown
Grey
Red
Black
White
Yellow-green

Core layout: 28 x 0.08 mm

Material (details): Copper

Sold per metre: No

Test voltage: 2 kV

Cross section: 1 x 0.14 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): 0 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -15 °C

Type: 19011CA084

Documents & Downloads

Datasheet

Datasheet 2201409 Quadrios 19011CA084 Strand LiFY 1 x 0.14 mm² Blue, Brown, Grey, Red, Black, White, Yellow-green 70 m

User & Safety Instructions

User & Safety Instructions 2201409 Quadrios 19011CA084 Strand LiFY 1 x 0.14 mm² Blue, Brown, Grey, Red, Black, White, Yellow-green 70 m

Description

The 7-piece stranded wire dispenser range includes flexible copper strands on sturdy plastic coils in the most common cross-sections as well as colors and must not be missing in any electronics, DIY or modeling workshop!

This text is machine translated.

Scope of delivery

7 coils (10 meters each)

Description

The 7-piece stranded wire dispenser range includes flexible copper strands on sturdy plastic coils in the most common cross-sections as well as colors and must not be missing in any electronics, DIY or modeling workshop!

This text is machine translated.

Scope of delivery

7 coils (10 meters each)
