Quadrios 23T033 Pliers set

In laboratories, workshops, development offices, or also for hobby, leisure and education: This high-quality set of pliers is always well equipped.

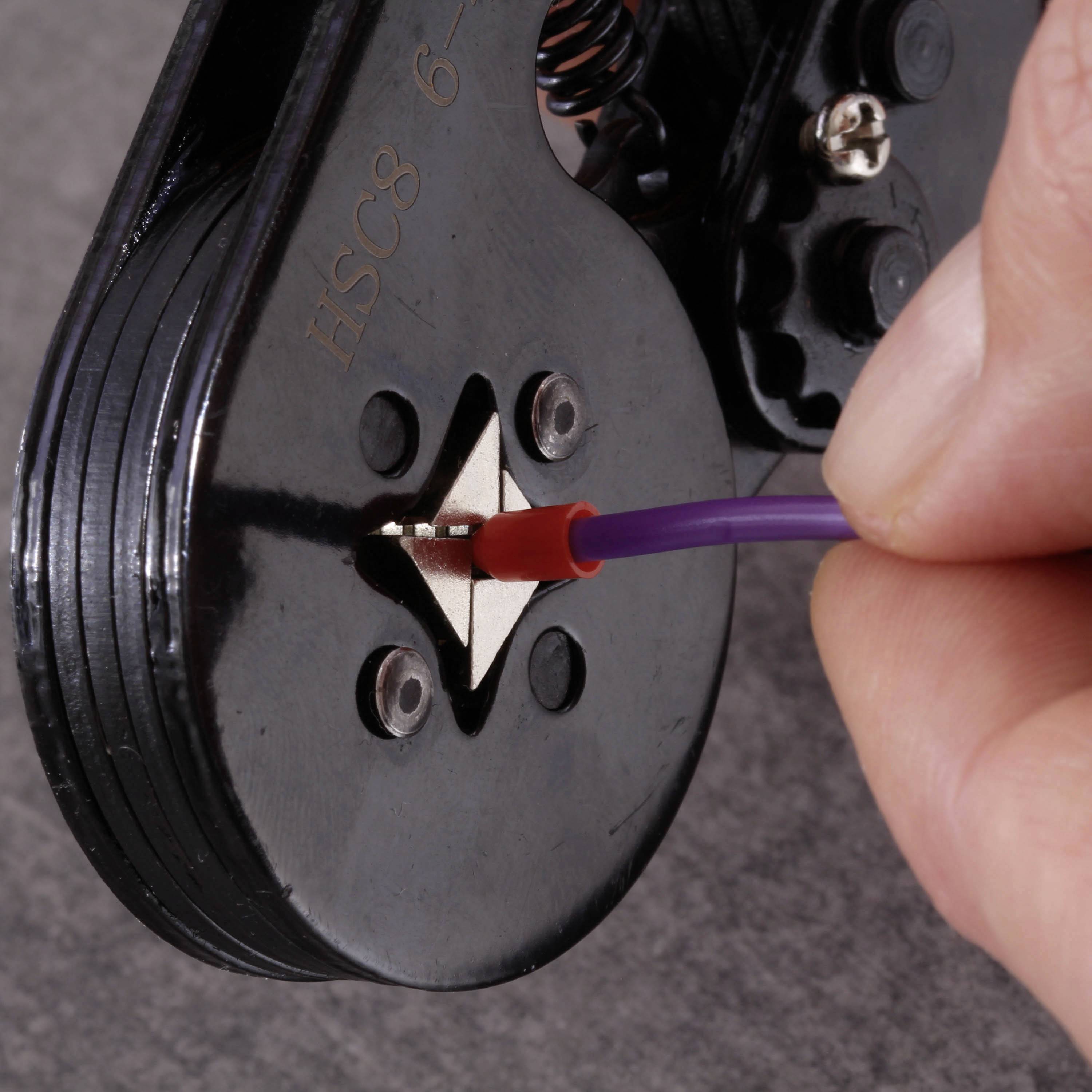

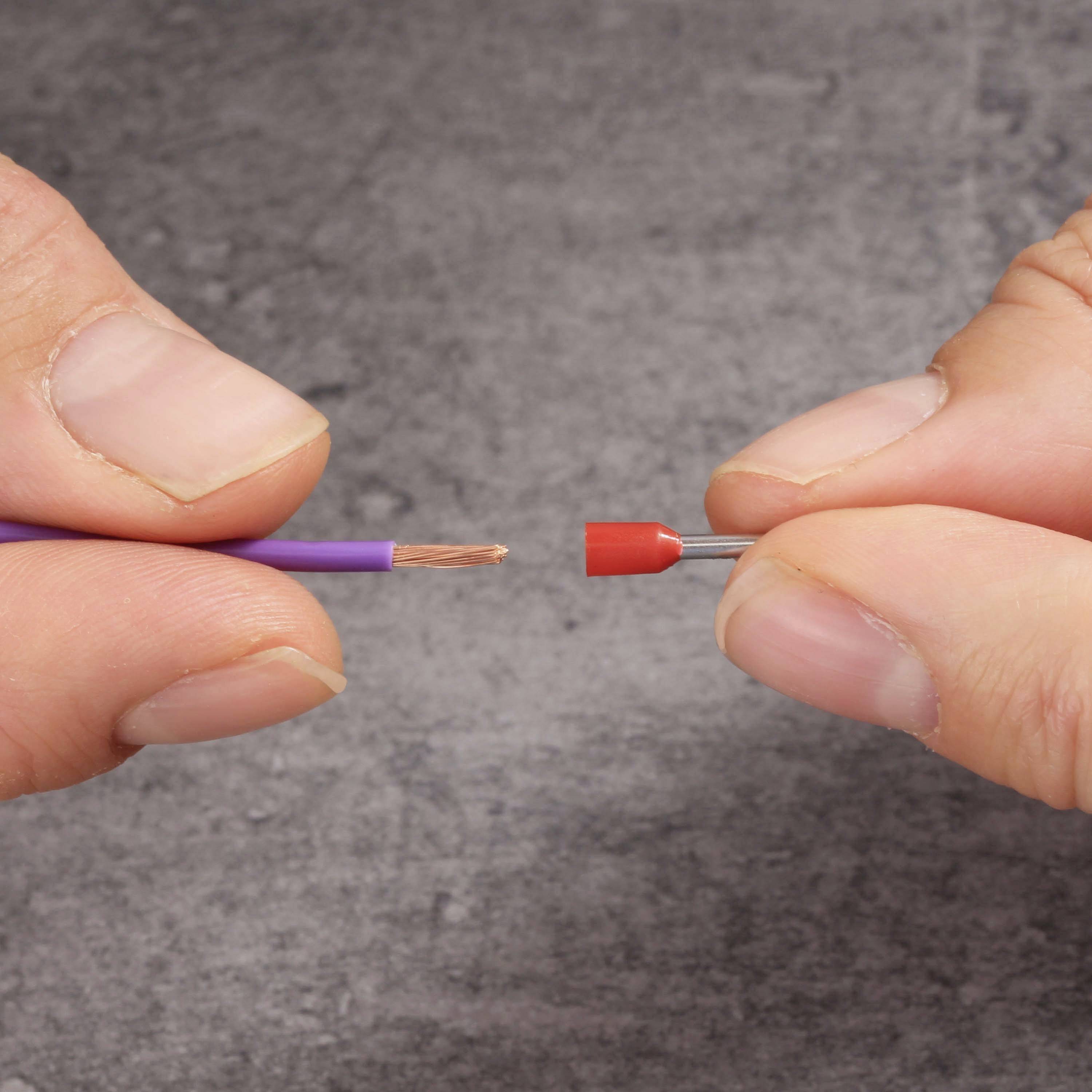

The crimping pliers for wire end sleeves have an automatic adjustment to the sleeve diameters in a wide range of applications between 0.25 and 10 mm² conductor cross-section of the wire – with every new crimping procedure. The square clamp provides a secure contact with a strong joint and a consistently high quality during the crimping process. The automatic press mechanism is optimally calibrated at the factory, but can be fine-tuned to individual requirements. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a quick-locking safety lock and a low weight of only 363 g for fatigue-free working.

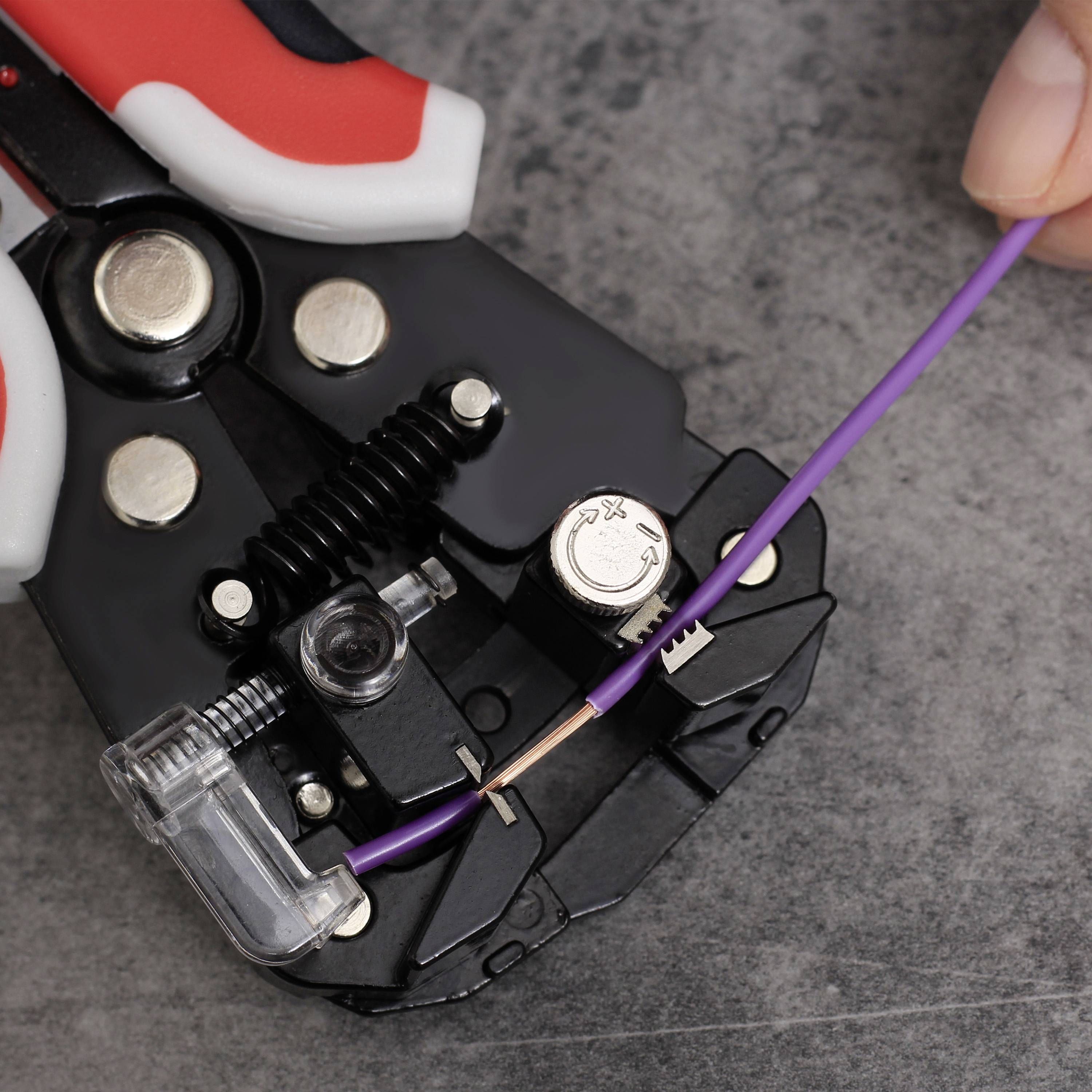

The automatic wire stripper has automatic adjustment to the respective wire diameter in a wide range of applications between 0.25 and 6 qmm of conductor cross-section - with every stripping process anew. The automatic cutting unit (jaw pressure) is optimally calibrated by the factory, but can be fine-adjusted to individual requirements - for this purpose the silver rotary wheel is used. A fixed or recurring stripping length can be preset with the movable, transparent limiter; when not used, it remains in a neutral position. The ergonomic grip sits comfortably in the hand and allows a good grip. The comparatively low weight of only approx. 312 g for stability is ideal for long-term use and prevents fatigue symptoms.

These pliers have clever additional functions in addition to stripping and can offer the following functions with the special recesses in the handle:

• Cutter for cutting small wires and cables

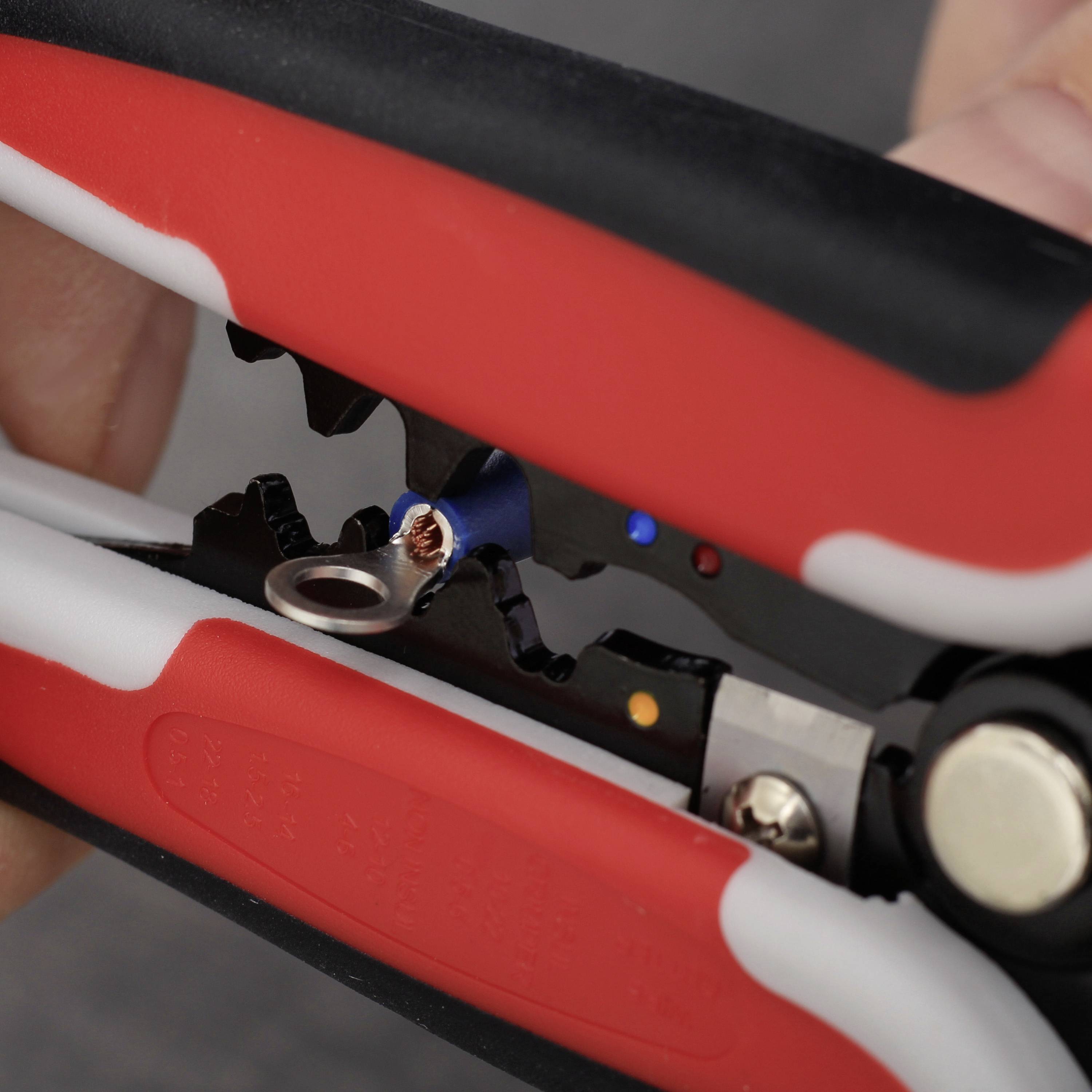

• Crimping tool function for non-insulated cable shoes 0.5 - 6 mm²
• Crimping tool function for insulated cable shoes 0.5 - 6 mm²

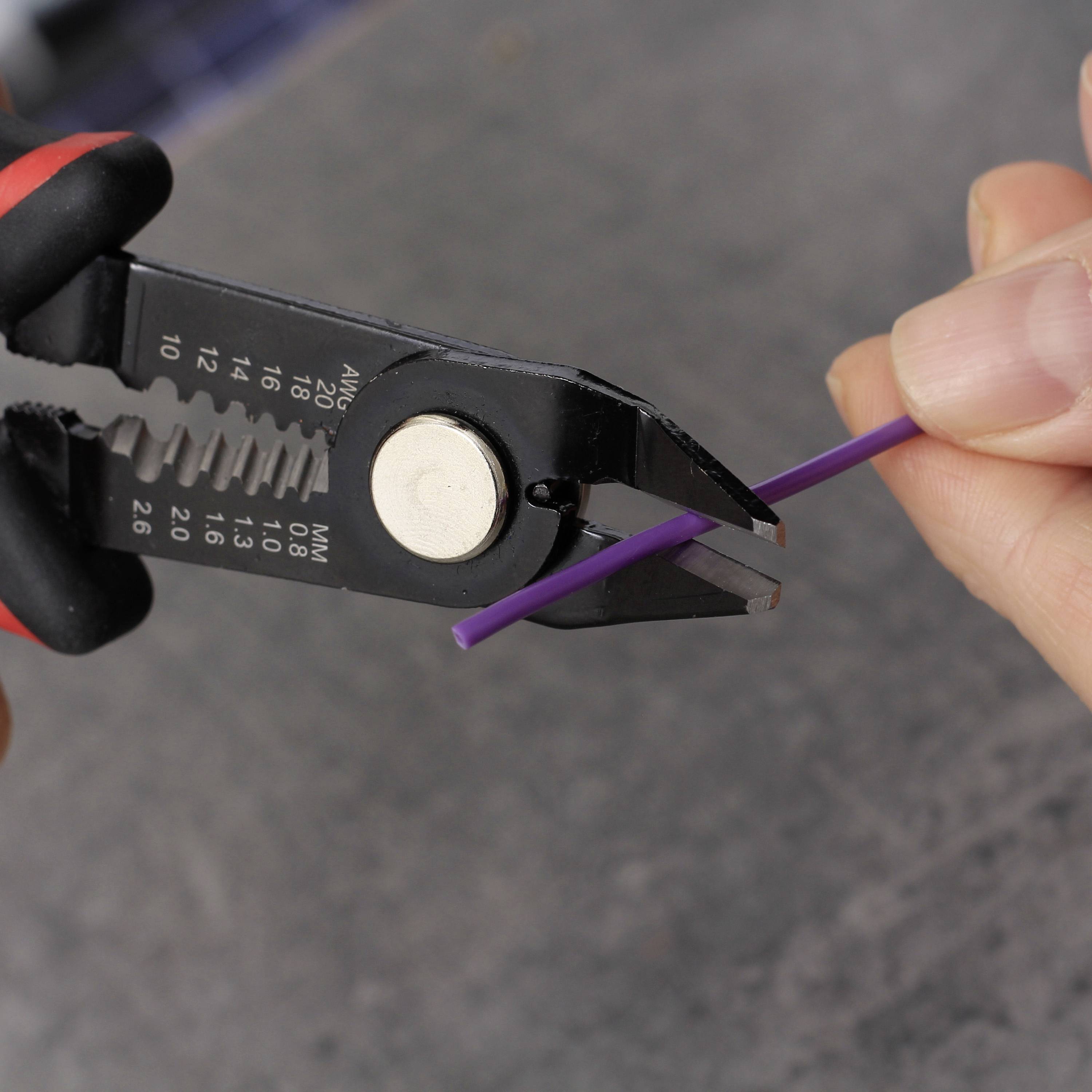

The side cutter is sharp and cut and designed for fine work. The length of the blade is approx. 14 mm. A blunt tip increases guiding primarily on printed circuit boards and in difficult to reach areas.
As an additional function the pliers have 6 cutouts for quick stripping of rigid cables or stranded wires in the common cross sections of 0.75 to 6 mm² or AWG 20 - 10, WAS cable diameters from approx. 0.8 to 2.6 mm correspond. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a locking handle, in order to hold them as compact as possible when not in use and to protect the blade or unoccupied objects that could be transported with it. The spring mechanism is invisibly integrated in the joint. Its low weight of just 113 g guarantees you'll work effortlessly.

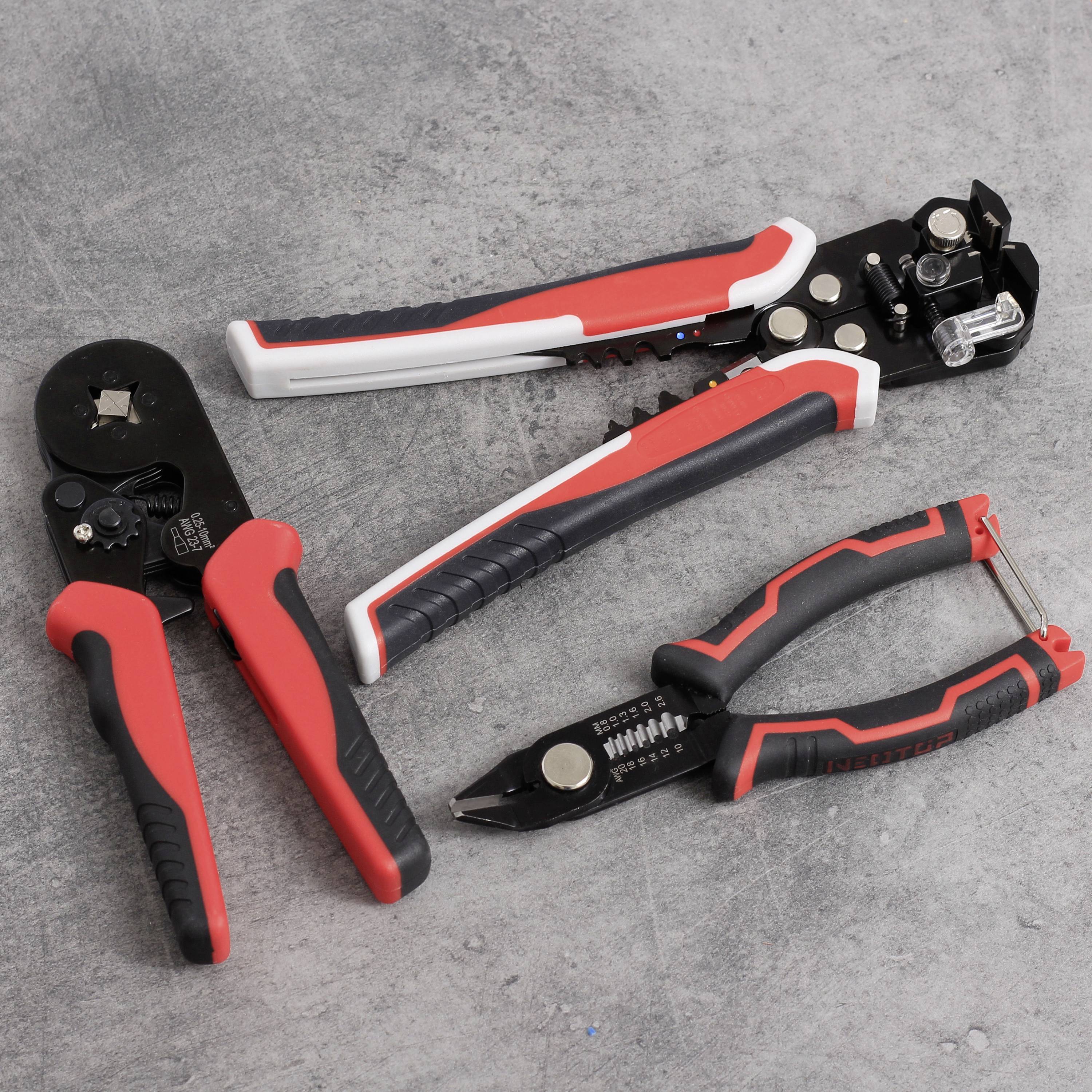

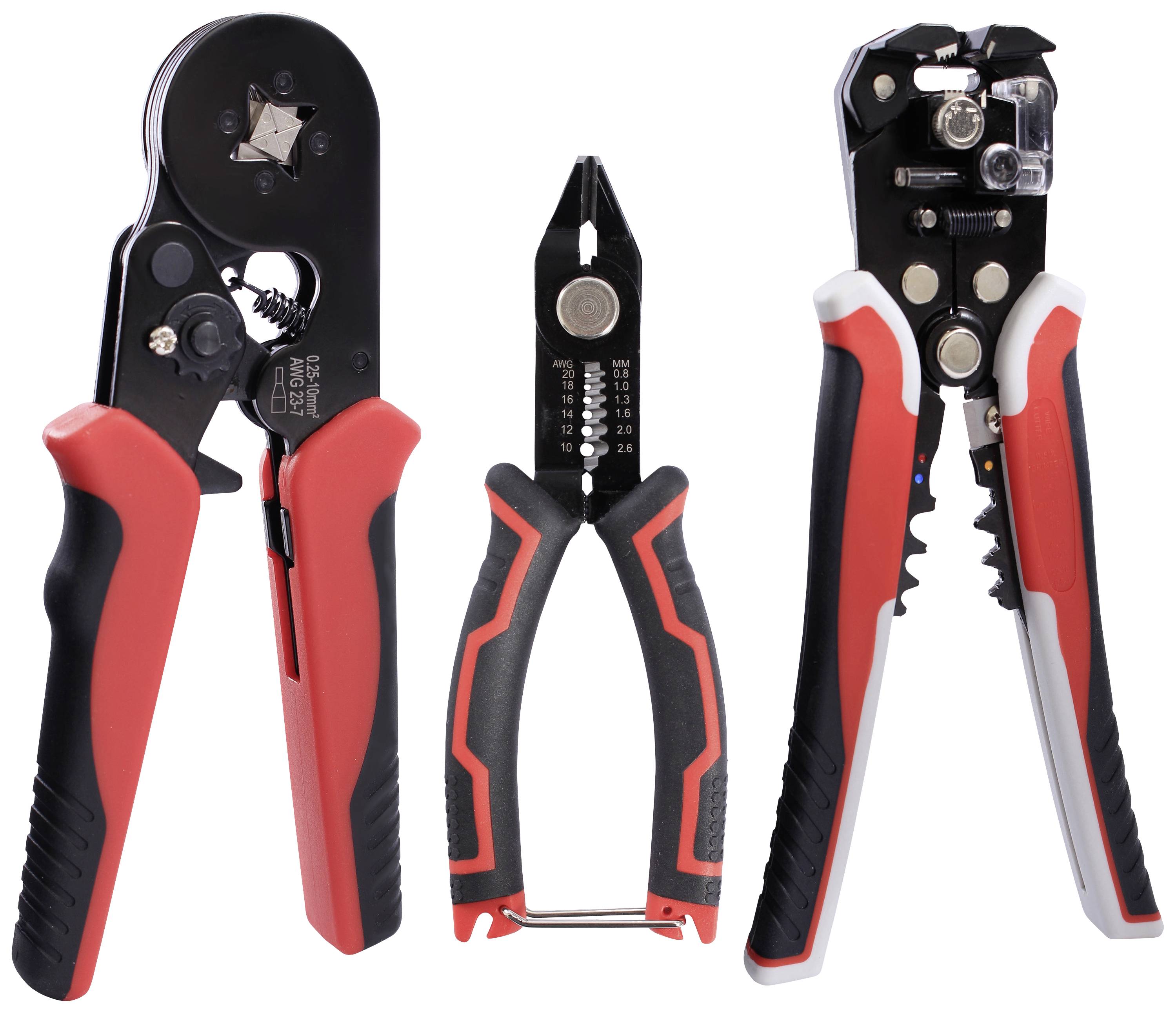

Range of delivery: Automatic crimping pliers with square press claw and ergonomic grip • Auto multi-function wire stripping pliers • Side-cutting pliers with stripping function.

This text is machine translated.
