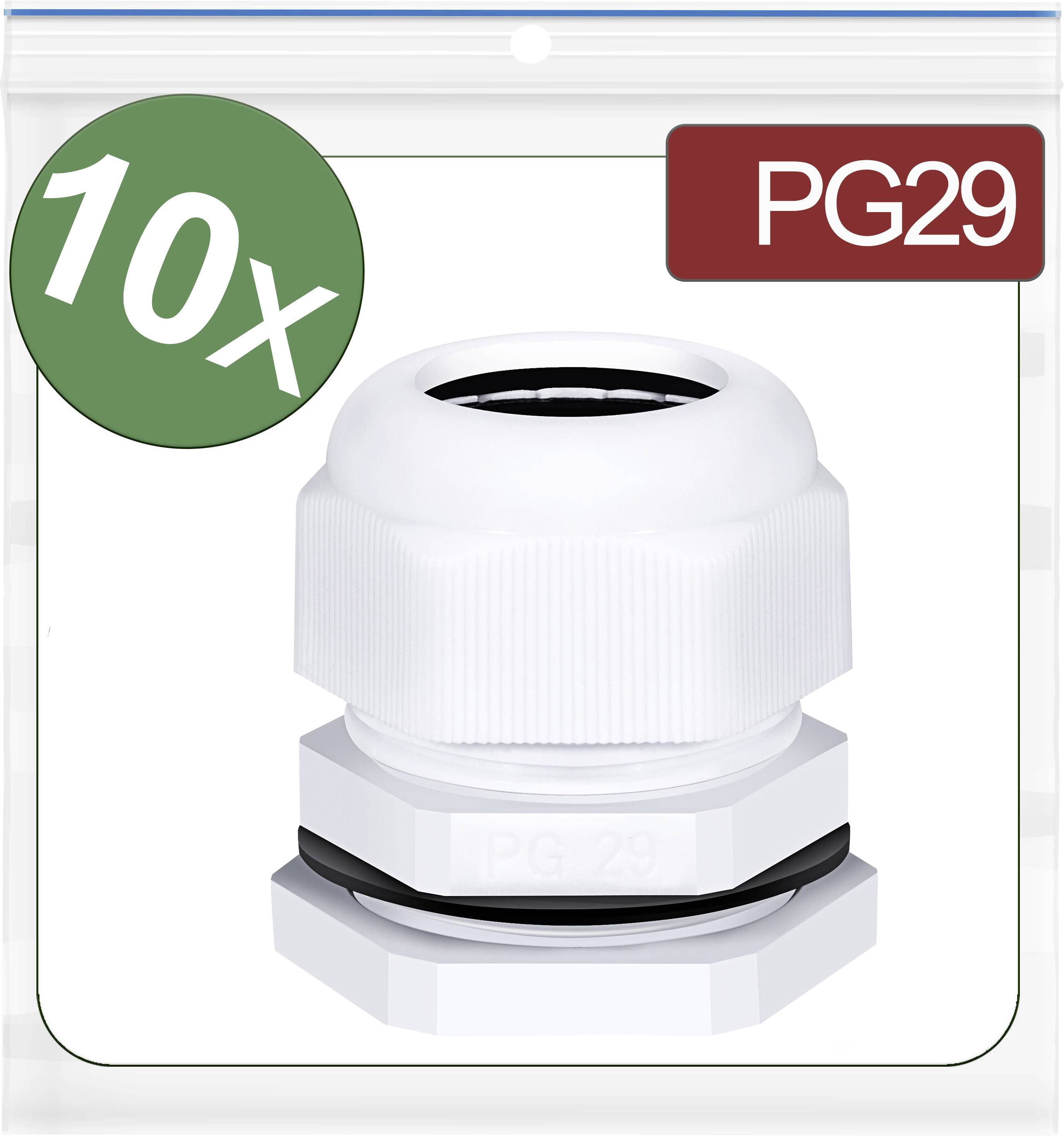

Name: Quadrios 24CA412 Cable gland PG29 Polyamide White 10 pc(s)
Brand: Quadrios
SKU: 3362081
Availability: InStock

Product type

Cable gland

External thread

PG29

Material

Polyamide

Clamp Ø

18 mm

Terminal Ø (max.)

25 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

10 Set(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 9.99 / piece)

€ 9.99

incl. VAT

Only 10 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cable glands PG29 white 10 pcs

PG cable fittings made of polyamide
Colour white
Set with 10 cable glands

Our service for you

Technical specifications

Manufacturer color: White
Min. Temperature: -20°C.
Max. Temperature 80°C.
Material: Polyamide
External thread: PG29
Protection class: IP68
Clamp-Ø (min.) 18 mm
Clamp-Ø (max.) 25 mm
Thread length 12.5 mm

Product type: Cable gland

Factory colour: White

External thread: PG29

Material: Polyamide

Clamp Ø: 18 mm

Terminal Ø (max.): 25 mm

Thread length: 12.5 mm

Min. temperature: -20 °C

Max. temperature: 80 °C

: IP68

Content: 10 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 24CA412

Type: 24CA412

Documents & Downloads

Datasheet

Datasheet 3362081 Quadrios 24CA412 Cable gland PG29 Polyamide White 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3362081 Quadrios 24CA412 Cable gland PG29 Polyamide White 10 pc(s)

Description

Cable fittings in PG version (steel reinforced duct thread according to DIN40430) enable safe installation and execution of cables from housings or machines. They protect the transition from the interior to the external area against dirt, dust and humidity and at the same time form a strain relief for the cable. The polyamide 6.6 design is very resistant to external influences and can cover a large operating temperature range.

This text is machine translated.
