Name: QuickCool 5032-00045C Insulating washer (L x W) 40.5 mm x 26.2 mm Suitable for TO 3A 1 pc(s)
Brand: QuickCool
SKU: 180974
Availability: InStock

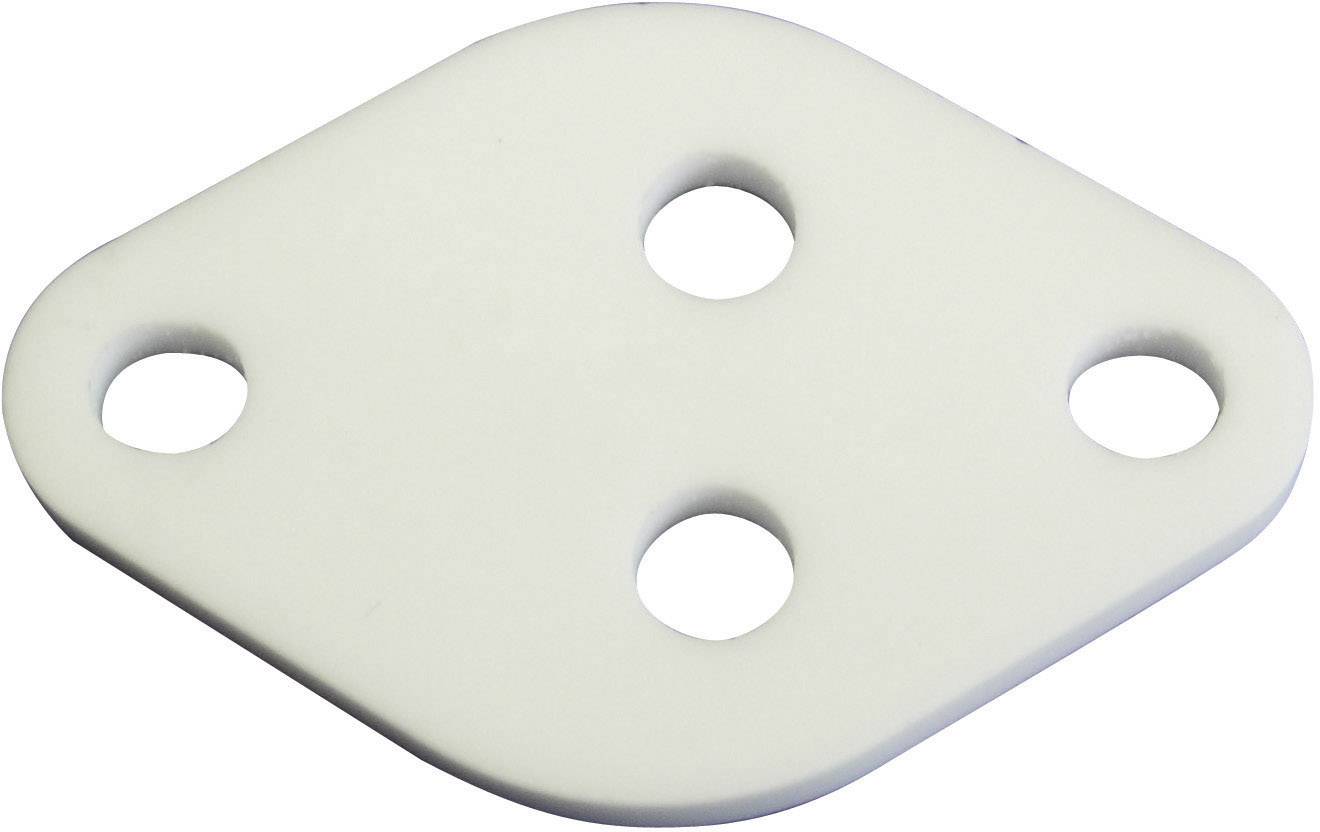

White, flat plate with four round holes at the corners, used as a fixing element or connecting part.

Product type

Insulating washer

Suitable for

TO 3A

Material thickness

3 mm

Length

40.5 mm

Width

26.2 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

717 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.73 / piece)

€ 3.65

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

QuickCool 5032-00045C Insulating washer (L x W) 40.5 mm x 26.2 mm Suitable for TO 3A 1 pc(s)

Our service for you

Technical specifications

Electric strength: > 10 kV/mm

Product type: Insulating washer

Type: 5032-00045C

Suitable for: TO 3A

Material thickness: 3 mm

Length: 40.5 mm

Width: 26.2 mm

Dim: (L x W) 40.5 mm x 26.2 mm

Material: Ceramic

Thermal conductivity: 25 W/mK

Dielectric strength: 10000 kV/m

Content: 1 pc(s)

RoHS-compliant: Yes

Material (details): Ceramic

Thickness: 3 mm

Documents & Downloads

Datasheet

Datasheet 180974 QuickCool 5032-00045C Insulating washer (L x W) 40.5 mm x 26.2 mm Suitable for TO 3A 1 pc(s)

Description

Ceramics is due to its low-inductance property as an insulator for high-frequency, electromagnetic radiation. This allows others to prevent a heat sink in RF transistors as unintentional "antenna" works, or causes NF-power semiconductors an oscillation due to crosstalk. Very high electrical insulation properties.
