Name: QUICKON-ONE cable connector Pins: 4 + PE 3 QUICKON nuts included 20 A 1405401 Phoenix Contact 1 pc(s)
Brand: Phoenix Contact
SKU: 556358
Availability: BackOrder

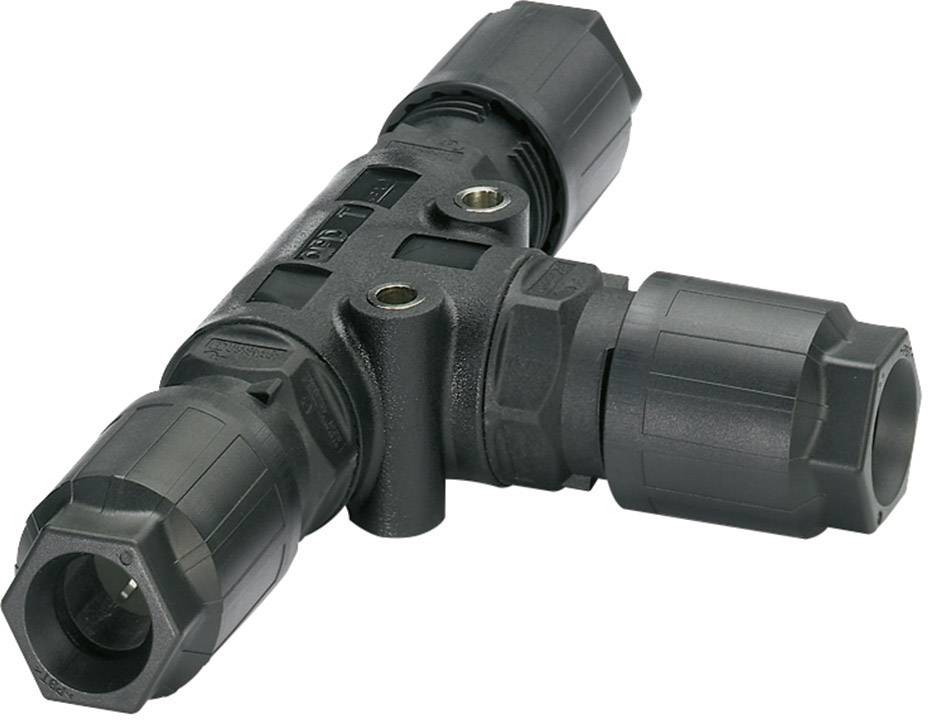

A black T-shaped electrical cable connector, suitable for outdoor use; robust design with three connection pieces.

'Instructions for Installing Cable Connectors: 1. Strip cable insulation, 2. Open connector, 3. Insert cable, 4. Close connector.'

1/2

Product type

Bullet connector splitter

Connector type

T splitter

Total no. of pins

4 + PE

Connection

Cut & Clip

Content

1 pc(s)

Datasheet (PDF)

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

QUICKON-ONE cable connector

QPD T 4PE 3X6-11 BK

Technical specifications

According to UL 94 PA VO
UL/CSA

Type: QPD T 4PE 3X6-11 BK

Product type: Bullet connector splitter

Connector type: T splitter

Total no. of pins: 4 + PE

Connection: Cut & Clip

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +80 °C

Nominal current: 16 A

Min. temperature: -25 °C

Nominal current - rounded value: 16 A

Seal: Screw locking

Leading contact (PE): Yes

Nominal voltage: 400 V

Contact material: CuZn, tin-plated

Cable Ø (max.): 11 mm

Cable Ø up to: 6 mm

Case material: PA

: 16 - 14

Connection angle: 180°

Manufacturer part #: 1405401

Cable Ø range: 6 - 11 mm

Number of pins: 4

max. cross section: 2.5 mm²

Min. cross section: 1 mm²

Cross-section range: 1 - 2.5 mm²

Feature: 3 QUICKON nuts

: IP68
IP69K

Series: QUICKON

Type: 3 QUICKON nuts included

Nominal voltage (details): 690 V

Nominal current (details): 20 A

Contamination level: 3

Cross section: 1 - 2.5 mm²

Pins: 4 + PE

Cable diameter: 6 - 11 mm

Temperature range: -25 + 80 °C

Standards: following UL 94 PA VO · UL-/ CSA

: 105

: 35 mm

: 20 A

: 690 V

: 5

: 175 m

: Other

: Silver-plated

: FALSE

: 6 kV

: 0.003 mΩ

: IP66

: Black

UKCA: yes
