Reely Standard servo D3614 Digital servo Gear box material: Plastic Connector system: JR

Black digital servo motor model D3644 from REELY, visible from the side with cross arm, and cable.
Black servo motor module with four-arm lever, long three-coloured connection cable and connector; model number 'D3614'.

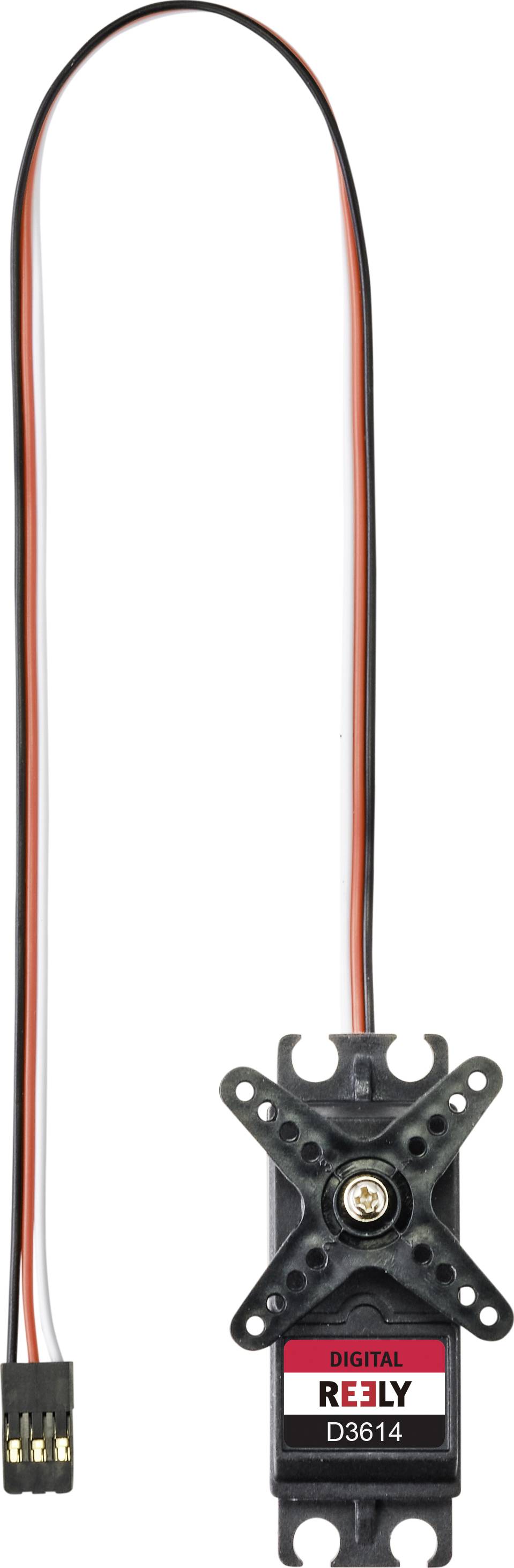

A black, digital servo with a long, three-coloured cable and four-arm mounting cross. Labelled 'DIGITAL REELY D3614'.
A servo motor set with rotary arm components, screws and cables, suitable for model making and robotics applications.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Digital Servo D3614

  • Waterproof
  • Plastic gear
  • This text is machine translated.

Technical specifications

Product type

Standard servo

Dim

(L x W x H) 40.7 x 20.2 x 36.6 mm

Length

40.7 mm

Width

20.2 mm

Height

36.6 mm

Weight

50 g

Servo torque (4.8 V)

30 Ncm

Servo torque at 6 V

36 Ncm

Actuation time at 4.8 V

0.16 s

Actuation time at 6 V

0.14 s

Gear box

Plastic

Servo technology

Digital servo

Connector system

JR

Operating voltage

4.8 - 6 V DC

Max. operating voltage

6 V DC

Min. operating voltage

4.8 V DC

Manufacturer part #

RE-7165947

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2388649 Reely Standard servo D3614 Digital servo Gear box material: Plastic Connector system: JR

User & Safety Instructions

User & Safety Instructions 2388649 Reely Standard servo D3614 Digital servo Gear box material: Plastic Connector system: JR

Description

The requirements for servos are as diverse as the hobby model construction itself. For one model, they must be small and light, for the other model they cannot be strong enough. How good that we can offer the suitable servo for almost every application and also at the well-known favorable Conrad price.

This text is machine translated.

Scope of delivery

  • Servo
  • 4x servo arm
  • short screw
  • 4x long screw
  • 4x rubber protector
  • 4x metal protection
