Name: Renegade RXA1800 1-channel headstage 1800 W Volume/bass/treble settings Compatible with: Universal
Brand: Renegade
SKU: 2799391
Availability: SoldOut

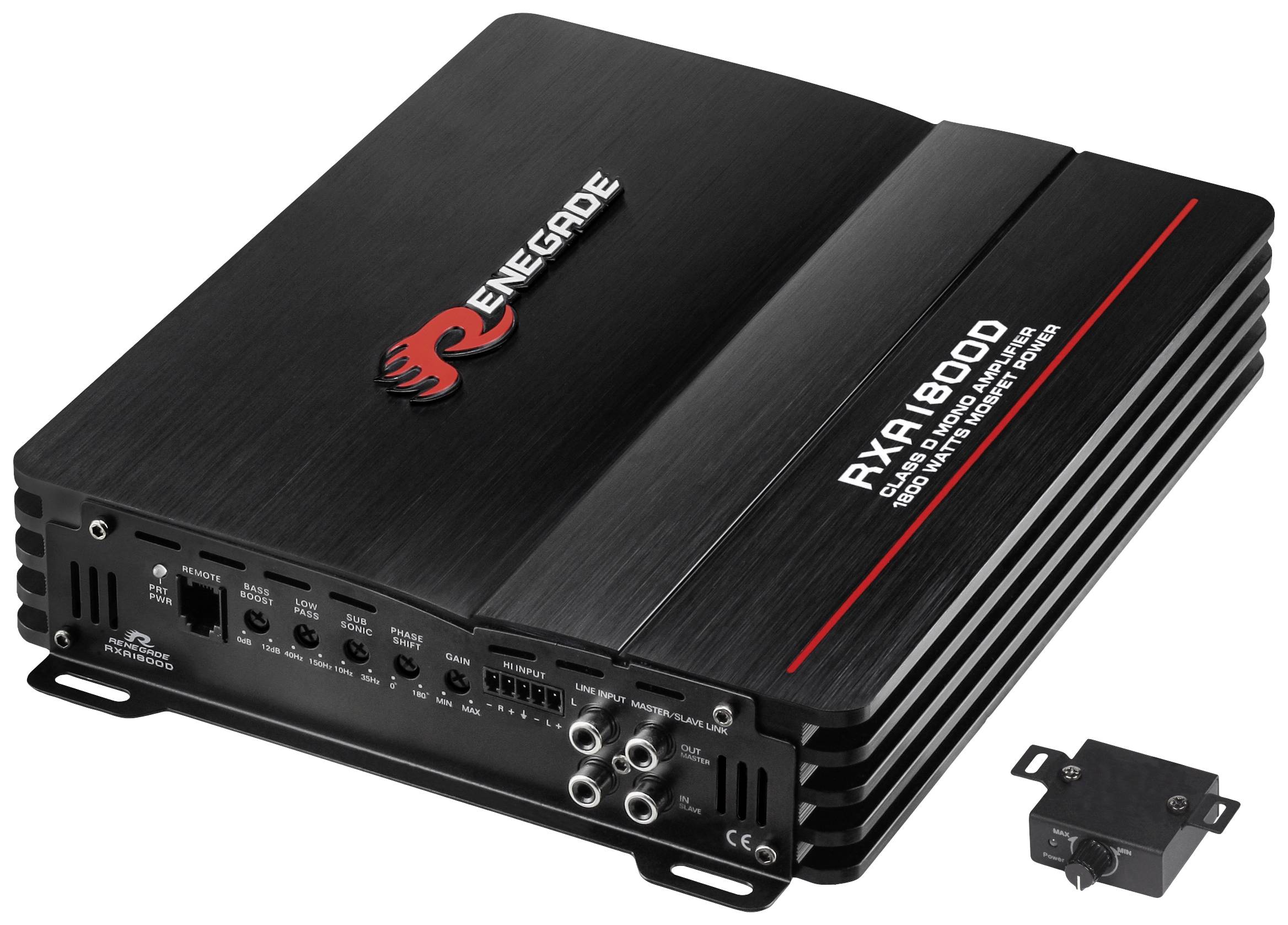

Black car amplifier with 'Renegade' inscription, model 'RXA1000D'. Multiple connections and small remote control module visible.

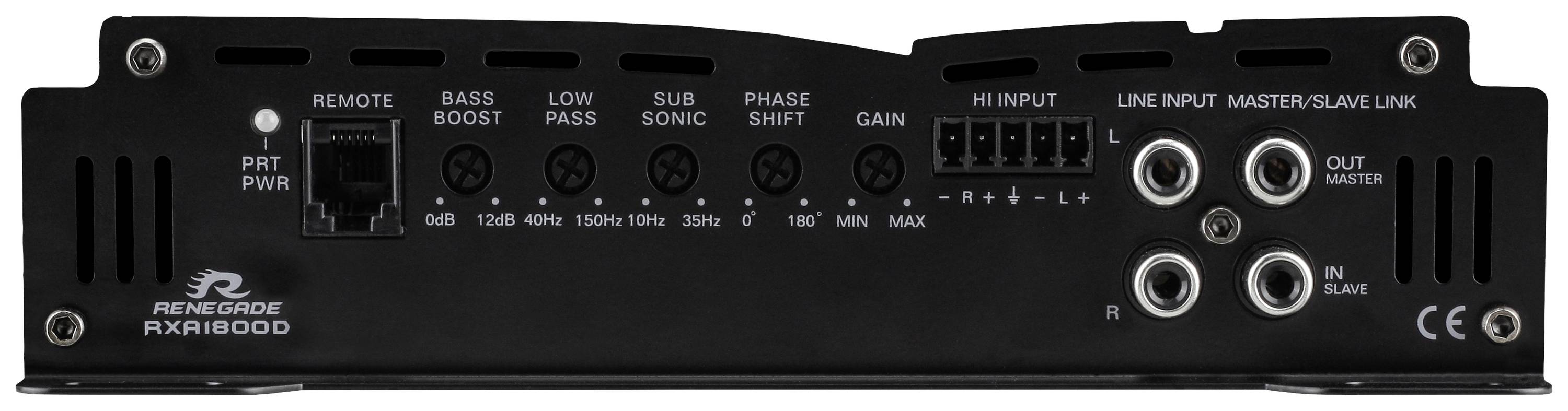

Back of an amplifier with connections and controls for bass boost, low-pass filter, subsonic, phase shift, and volume.

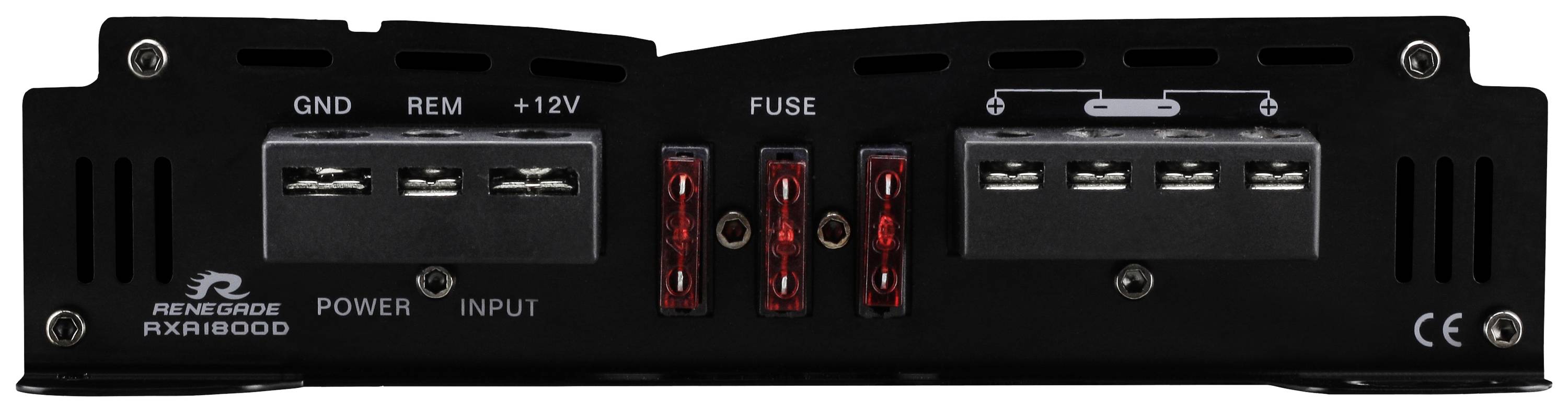

Rear view of a black amplifier with 'Renegade RXA1800D' label, featuring multiple connections for GND, REM, +12V, four fuses, and CE marking.

1/3

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Renegade monoblock RXA1800D

MOSFET power supplyRCA inputs and outputsHigh level inputs1 Ω stability

Technical specifications

Product type: 1-channel headstage

Features: Volume/bass/treble settings

Impedance: 1 Ω

Impedance constant to: 1 Ω

Frequency range: 40 - 150 Hz

Total audio power (music): 1800 W

Power per channel (music): 1200 W

Power per channel (RMS): 600 W

Factory colour: Black

Width: 220 mm

Height: 48 mm

Depth: 270 mm

Dim: (W x H x D) 220 x 48 x 270 mm

Compatible with: Universal

Compatible with: Universal

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2799391 Renegade RXA1800 1-channel headstage 1800 W Volume/bass/treble settings Compatible with: Universal

Description

Class D mono amplifier

This text is machine translated.

Features

Low-pass filter 40 - 150 HzSubsonic filter 10 - 35 HzBass Boost 0 - 12 dBMaster/slave functionBass-level remote control1 x 300 Watt RMS @ 4 Ω1 x 450 Watt RMS @ 2 Ω1 x 600 Watt RMS @ 1 ΩMax. 1 x 600 Watt @ 4 ΩMax. 1 x 900 Watt @ 2 ΩMax. 1 x 1200 Watt @ 1 Ω220 x 48 x 240/270 mm
