Renkforce RF-4724344 RF-CAP-800 Wi-Fi access point 3.2 GBit/s 5 GHz

1/7
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Total (€ 129.99 / piece)
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

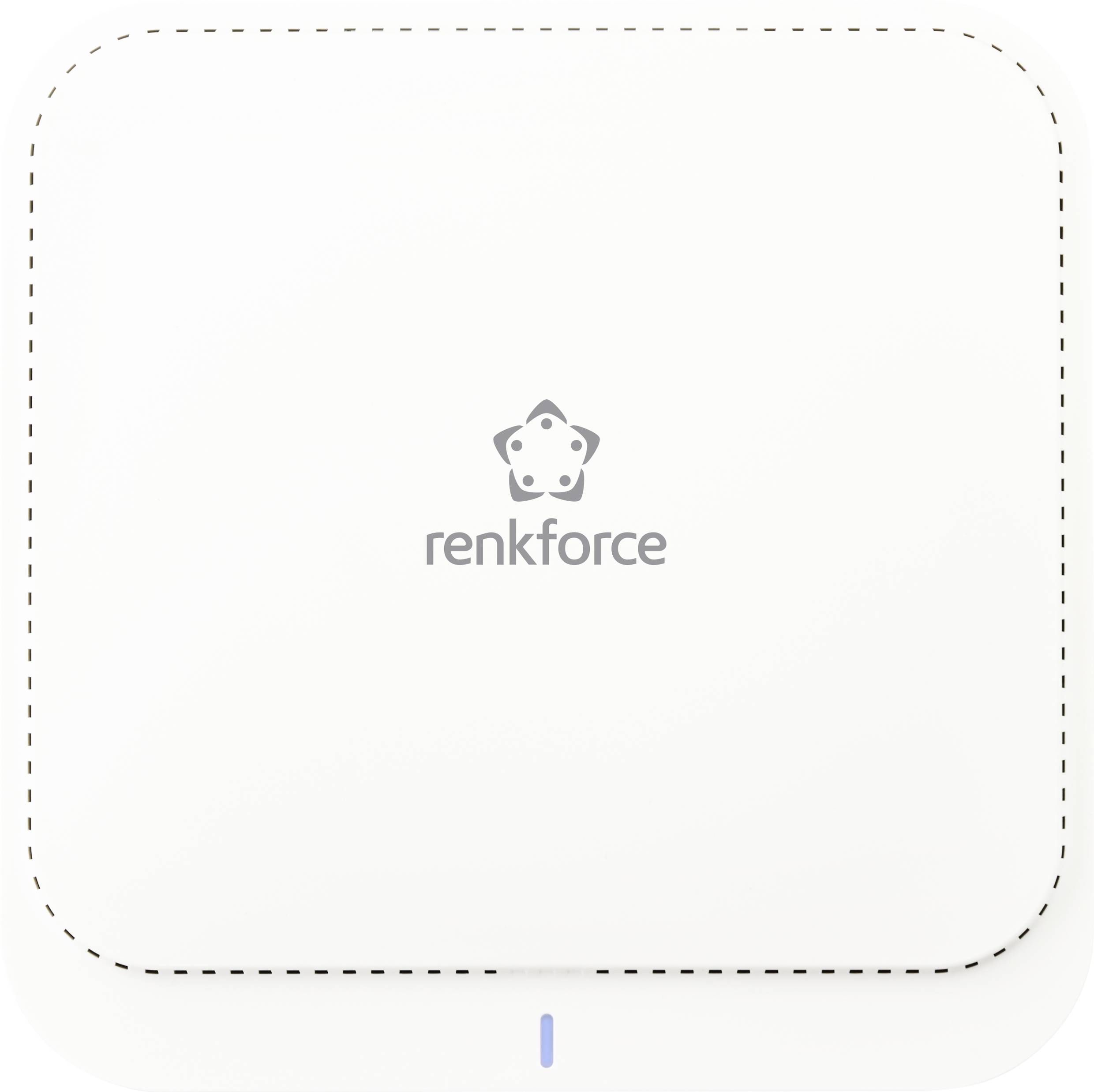

Renkforce RF-CAP-800 WiFi 6 3657 Mbps wireless ceiling access point

  • "Dual Band with WiFi 6 802.11ax, up to 3657 Mbps data rate
  • Equipped with 2.5G WAN & LAN ports
  • Supports MU-MIMO and DL/UL-OFDMA modulation
  • Multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time
  • With QSDK driver, supports seamless roaming, OFDMA and DL/UL-OFDMA (37 users in 5.8G, 18 users in 2.4G)
  • Suitable for use in high density access environments such as university campuses, concert venues, and gyms"

Technical specifications

Product type

Wi-Fi access point

Type

RF-CAP-800

Dual Band compatibility

2.4 GHz and 5 GHz

Wi-Fi standard

IEEE802.11ax

Wi-Fi frequency band

5 GHz

Wi-Fi speed 2.4 GHz

1.2 GBit/s

Wi-Fi transmission rate (max.)

3.2 GBit/s

Wi-Fi speed 5 GHz

2.4 GBit/s

Antenna type

4x built-in

LAN data transfer rate

2.5 GBit/s

Interfaces

Wi-Fi 6 (IEEE 802.11ax)

No. of LAN ports

1 x

No. of Gigabit LANs

1 x

Power supply (LOV)

Power over Ethernet (PoE)

Width

198 mm

Height

38 mm

Depth

198 mm

PoE

IEEE 802.3at (25.5 W)

Plastic free packaging

Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362172 Renkforce RF-4724344 RF-CAP-800 Wi-Fi access point 3.2 GBit/s 5 GHz

Description


The oasis in the Internet desert

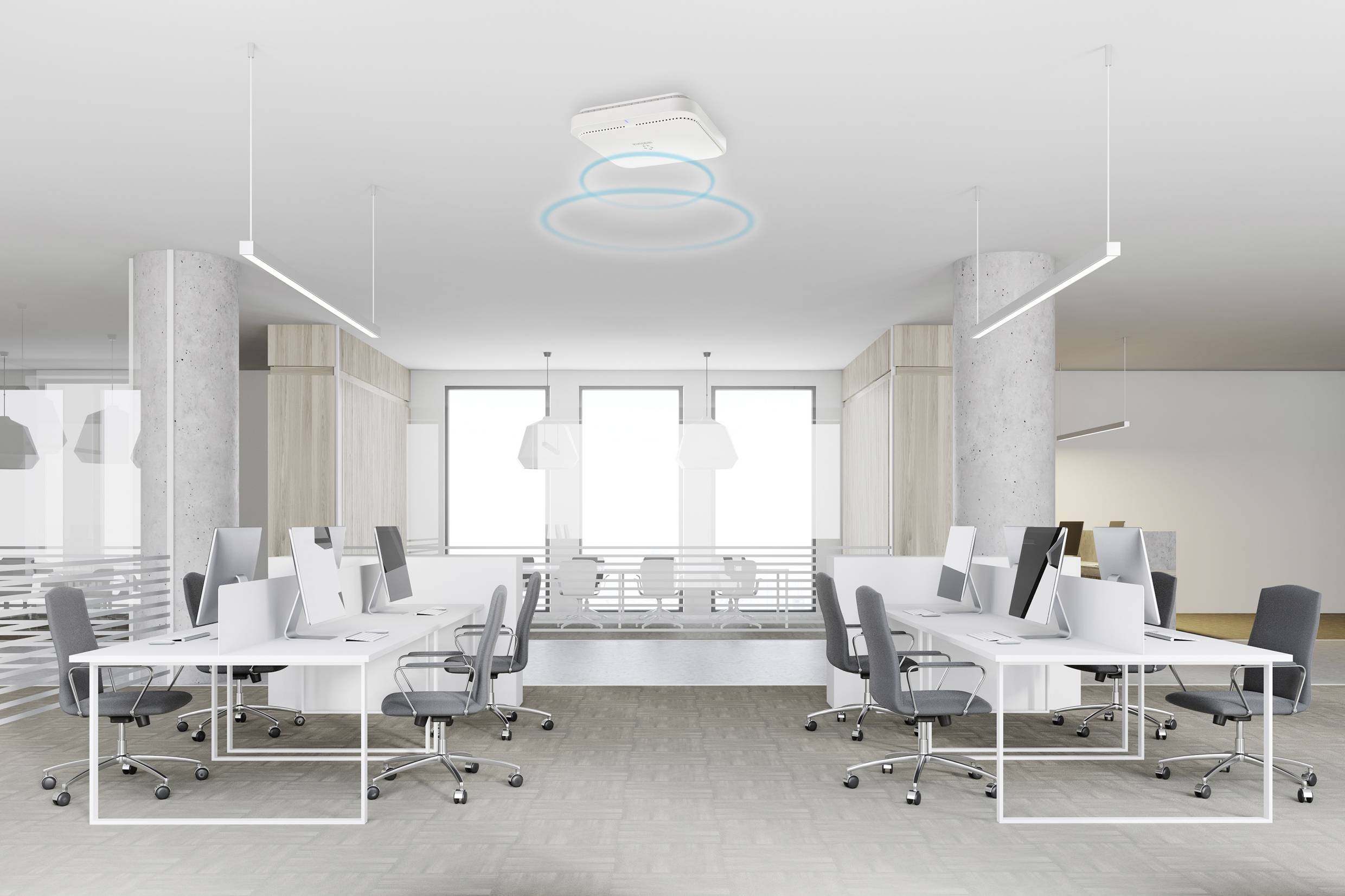

At the airport, in shopping centers, on campus or in the open-plan office: Wherever many people access a free hotspot at the same time, we experience the undesirable deterioration of the Internet. The new standard WiFi 6 now promises to help with MU-MIMO and DL/UL-OFDMA modulation. What was like specifications from space travel sounds is nothing more than "multi-user multiple-input, multiple-output technology" - it increases network capacity so that several users can simultaneously download more data both high and low. Download (DL) and Upload (UL) are accelerated by OFDMA by dividing the transferred data into small packets that can be sent faster as compressed information bits. The Renkforce RF-CAP-800 takes advantage of this: As a router - with dual band and a data rate of up to 3657 Mbps - it uses this technology to provide wireless high-speed Internet in environments with high access density in the 5 GHz band up to 37 and in the 2.4 GHz band up to 18 users.

This text is machine translated.

Features

  • "Complies with IEEE 802.11ax/ac/b/g/n, IEEE 802.3az standard
  • Supports active IEEE 802.3at 48V PoE standard
  • Supports seamless roaming, OFDMA,1024-QAM
  • Flash: NOR-8MB AND NAND-256 MB, DDR: 256 MB (16bit)*2=1 GB, max. up to 2 GB,

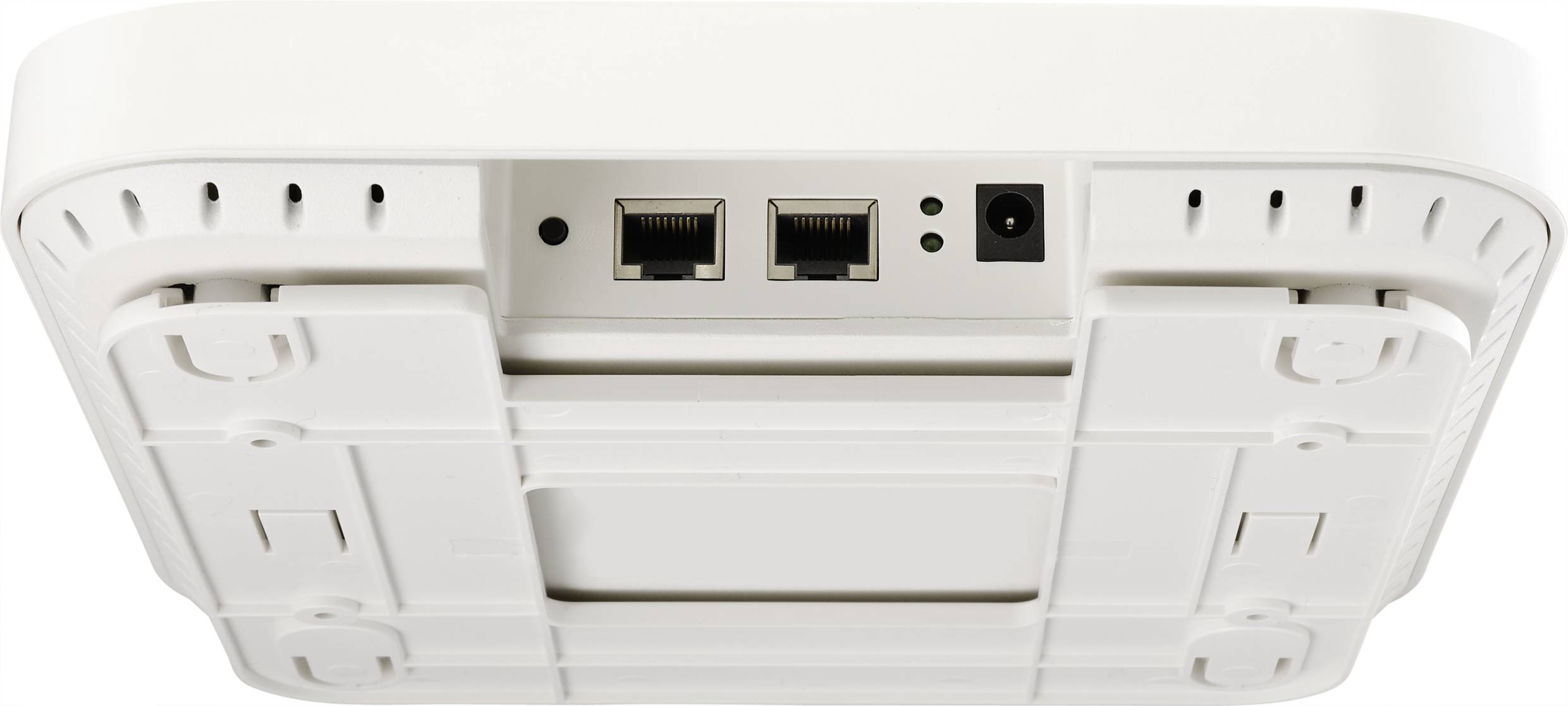

  • 1x 10/100 /1000/2500Mbps RJ45 WAN Port, 1x 10/100 / 1000/2500 Mbps RJ45 LAN port
  • With power amplifier and FEM, built-in 3dBi MIMO antenna"

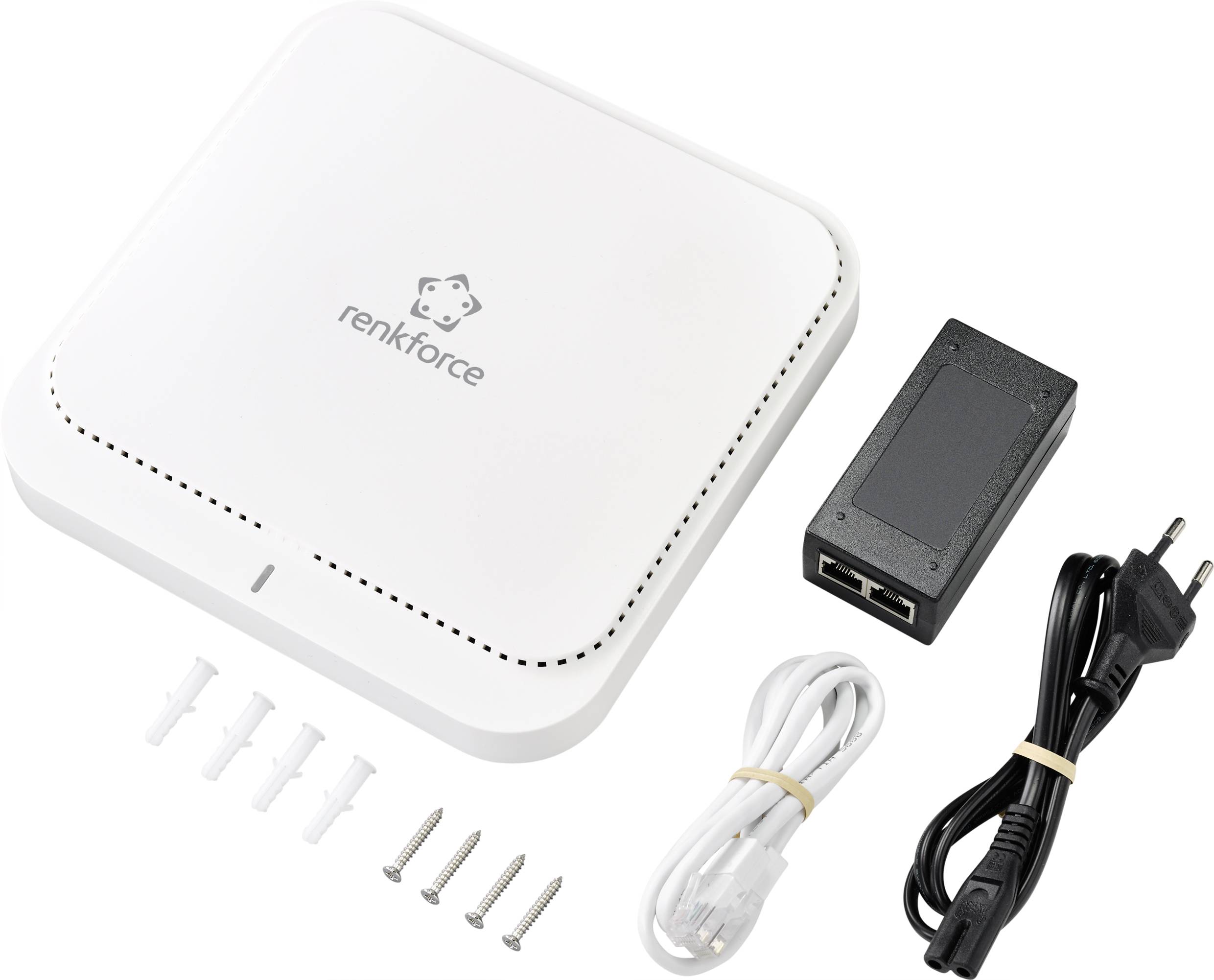

Scope of delivery

  • WiFi 6 3657Mbps wireless ceiling access point
  • Mounting bracket
  • 4x installation screws
  • CAT 6 Ethernet cable
  • Power adapter cable
  • PoE power adapter
  • User manual
