Buy Rhodius 300463 Abrasive fibre disc Diameter 125 mm Grit size=36 25 pc(s)

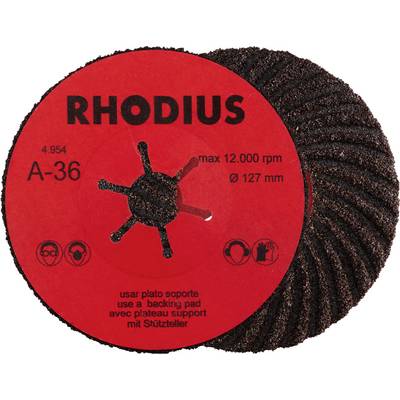

'RHODIUS' grinding disc with a maximum speed of 12,000 rpm and a diameter of 127 mm, requires support plate.

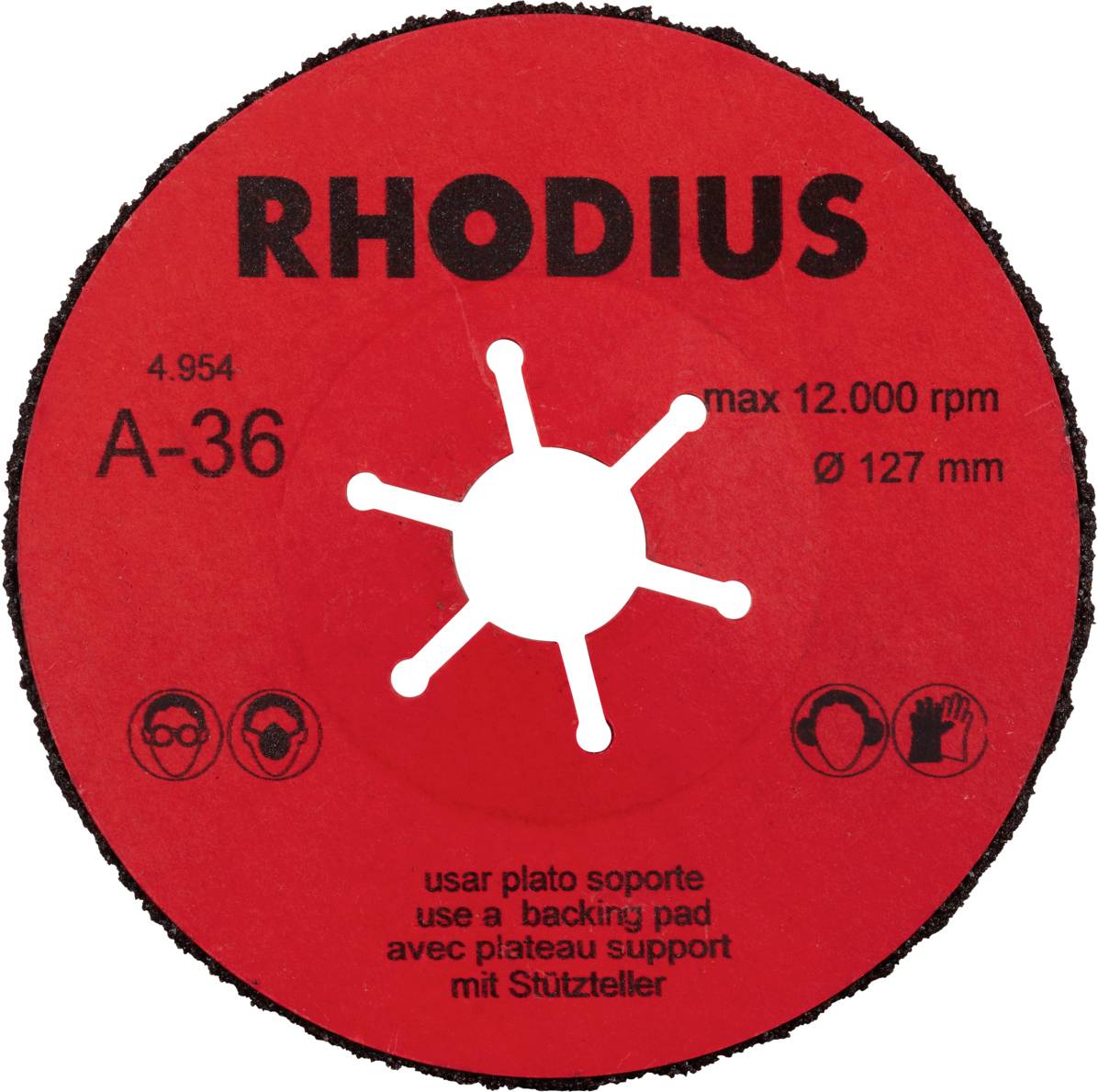

'RHODIUS A-36' grinding disc, max. 12,000 rpm, Ø 127 mm, with support element. Safety symbols shown below.

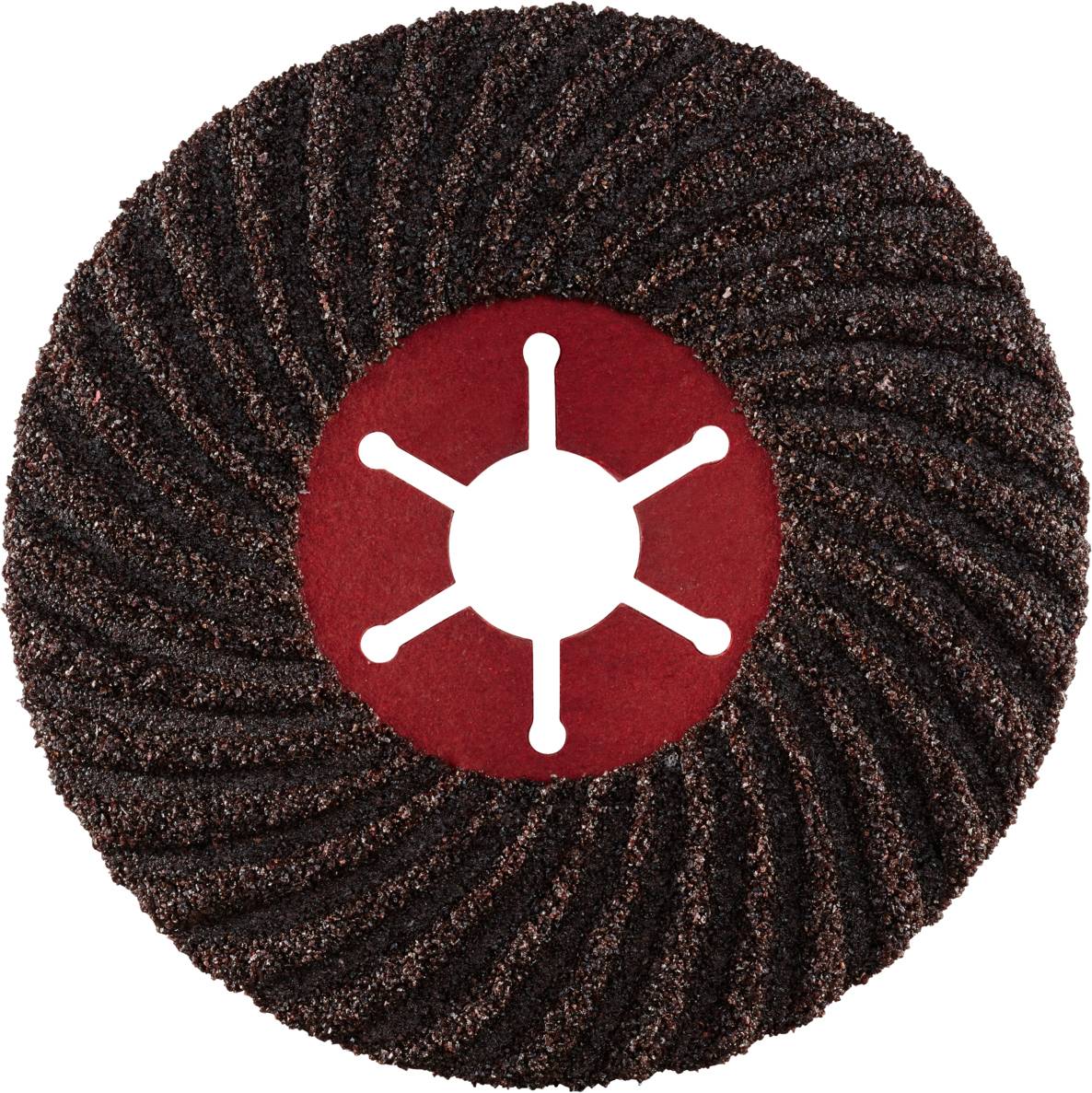

A circular grinding disc with a textured surface and a red centre featuring a white symbol in the centre.

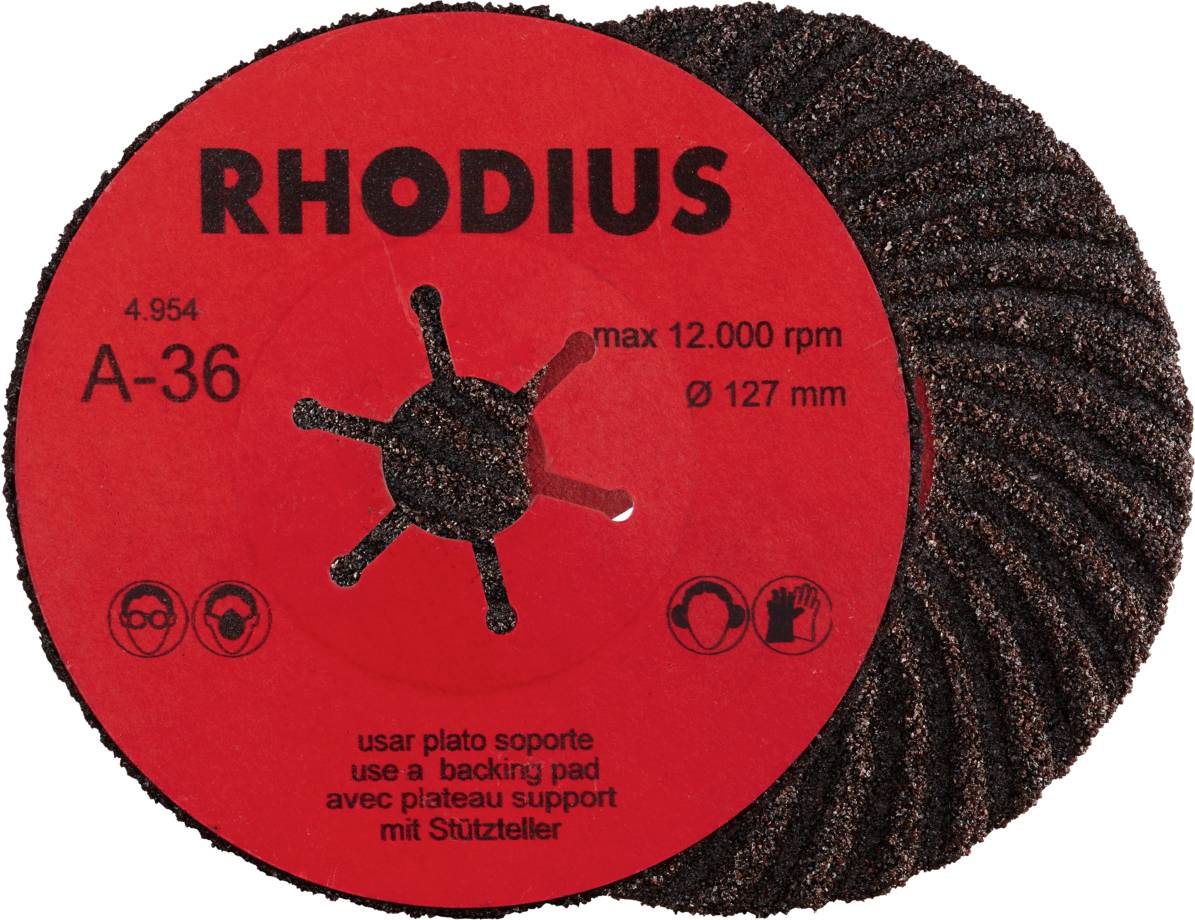

Grinding disc with red paper label, inscription: 'Rhodius A-36, max 12,000 rpm, Ø 127 mm', safety usage symbols.

1/4

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 2.69 / piece)

€ 67.22

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Rhodius SFA, 25 pieces fiber disc 125 x 22.23 mm, grain 36, Proline, for steel

Semi-flexible grinding disc for use on suitable supporting plate RH ST.
For the processing of steel
Especially long life
Combines the advantages of fiberglass and grinding wheels

Technical specifications

Grain type: Aluminium oxide
Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 62.5 mm
Eurohole Y 51,385 mm
Quality level: Proline

Product type: Abrasive fibre disc

(Ø): 125 mm

Grit size: 36

Material: Corundum

Material suitability: Steel

Content: 25 pc(s)

Type: Disc

Rotational speed (max.): 12250 U/min

Depth: 4 mm

Height: 125 mm

Width: 125 mm

Weight: 0.095 kg

Documents & Downloads

Datasheet

Datasheet 3408638 Rhodius 300463 Abrasive fibre disc Diameter 125 mm Grit size=36 25 pc(s)

User & Safety Instructions

User & Safety Instructions 3408638 Rhodius 300463 Abrasive fibre disc Diameter 125 mm Grit size=36 25 pc(s)

Description

Machine suitability: This fiber disc may only be used with a suitable support plate, for example the Rhodius RH ST. Ensure that the respective diameter of the support plate is used. Material suitability: The Rhodius semi-flexible roughing disk SFA with high quality aluminum oxide (corundum) was specifically developed for the machining of steel (black steel also called structural steel, St37, S235JR, 1.0037 or carbon steel). Quality: The SFA provides the user with a tool that meets the high quality requirements in industry and trade. Application: The disc is iron-and sulfur-free. Dimension: This semi-flexible grinding disc is available in diameters of 125 mm and 180 mm and, depending on the version, with grain sizes 16, 24 and 36 FEPA.

This text is machine translated.
