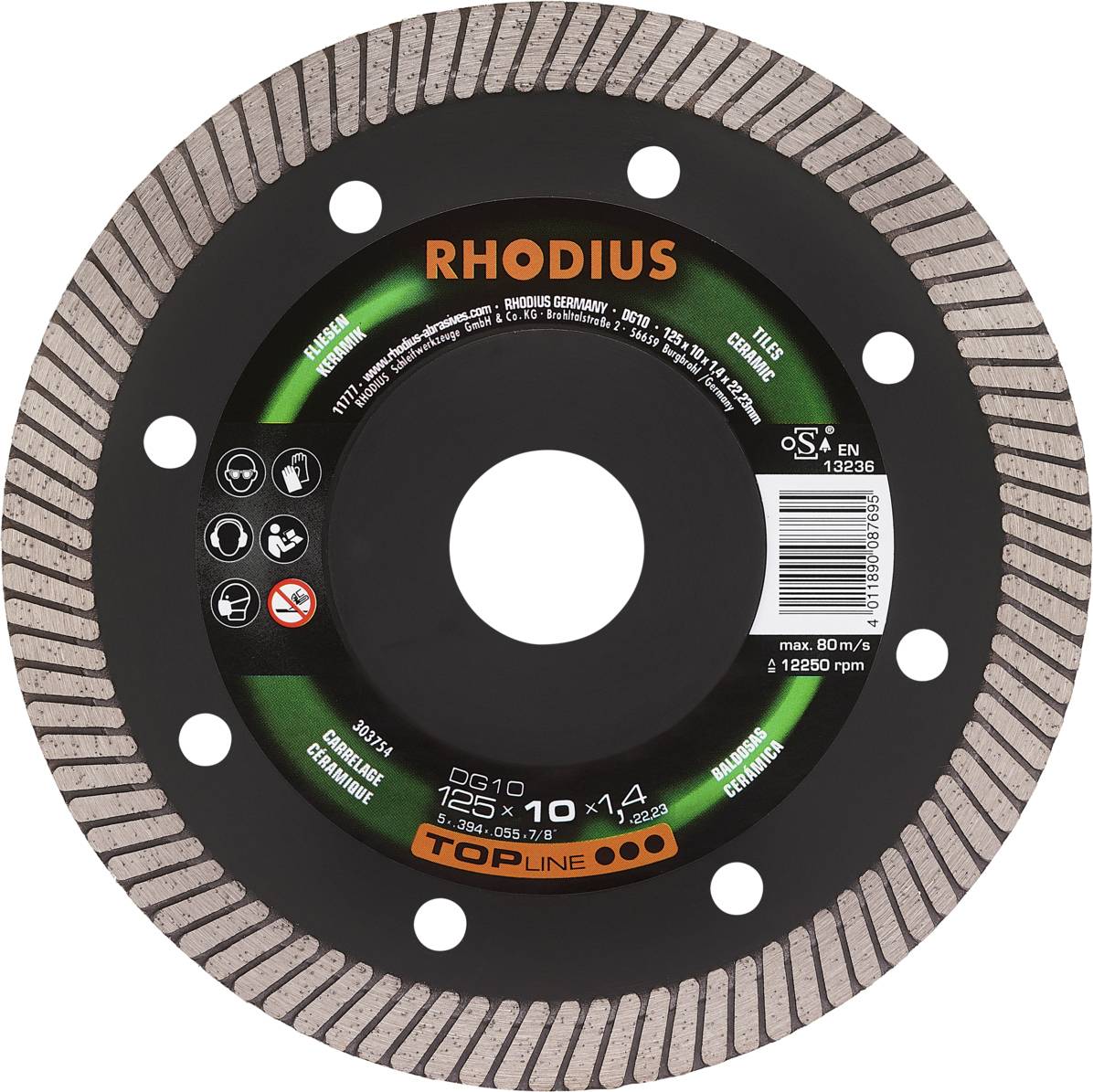

Rhodius DG10 303754 Diamond cutting disc 1 pc(s) Tiles, Ceramic

Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 31.99 / piece)
€ 31.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Rhodius DG10, diamond cutting disc 125 x 10.0 x 1.4 x 22.23 mm, straight, Topline, for tiles/ceramics

  • The extra-thin DG10 was developed especially for dry cutting and offers a Maximum of performance and precision in a wide range of applications. It scores with a closed turbo-cutting edge. This enables extremely short separation times and very clean cutting edges. At the same time, the dust development in the dry section of the DG10 could be reduced again.
  • Low dust production
  • Closed turbo-cutting edge enables a high cutting speed
  • Low cutting width for precise cutting and clean cutting edges
  • Wide range of applications
  • Designed for dry cut

Technical specifications

  • Working speed 80 m/s.
  • Suitable for machines: Freehand angle grinder
  • Eurohole X 67.5 mm
  • Eurohole Y 7.5 mm
  • Quality level: Topline
Product type

Diamond cutting disc

Features

Diamond

Content

1 pc(s)

Rotational speed (max.)

12250 U/min

Material suitability

Tiles

Ceramic

Dim

(W x H x D) 135 x 165 x 12 mm

Depth

12 mm

Height

165 mm

Width

135 mm

Weight

0.105 kg

Documents & Downloads

Datasheet

Datasheet 3407546 Rhodius DG10 303754 Diamond cutting disc 1 pc(s) Tiles, Ceramic

User & Safety Instructions

User & Safety Instructions 3407546 Rhodius DG10 303754 Diamond cutting disc 1 pc(s) Tiles, Ceramic

Description

Machine suitability: The DG10 diamond cutting disc is suitable for manual use as well as for stationary use: For angle grinders and table saws (depending on diameter). It can play its full strengths on machines of all power classes and especially on high-performance machines. Material suitability: The DG10 has been specifically developed for the machining of porcelain, ceramic or porcelain and glazed tiles.This Rhodius quality tool is also very suitable for machining granite, hard-burned tiles and marble. Construction and production: The DG10 has a turbo cutting edge. The combination of clean cutting edge and short separation time is thus possible. The tool is tested according to EN13236 and OSA and can be used in wet cut and also in dry cut. Thanks to the high-quality industrial diamonds and a very high diamond concentration the DG10 is especially powerful. The disc is sintered directly. Quality: The DG10 gives the user the best Rhodius tool in his category. Rhodius Topline products stand for the highest level of performance and quality. Dimensions: This diamond cutting disc is available in diameters from 115 mm to 350 mm.

This text is machine translated.

Scope of delivery

  • 1 pieces DG10 125 x 10.0 x 1.4 x 22.23 mm
