Name: Rohde & Schwarz R&S®NGC101-G Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 100 W No. of outputs 1 x
Brand: Rohde & Schwarz
SKU: 3130867
Availability: InStock

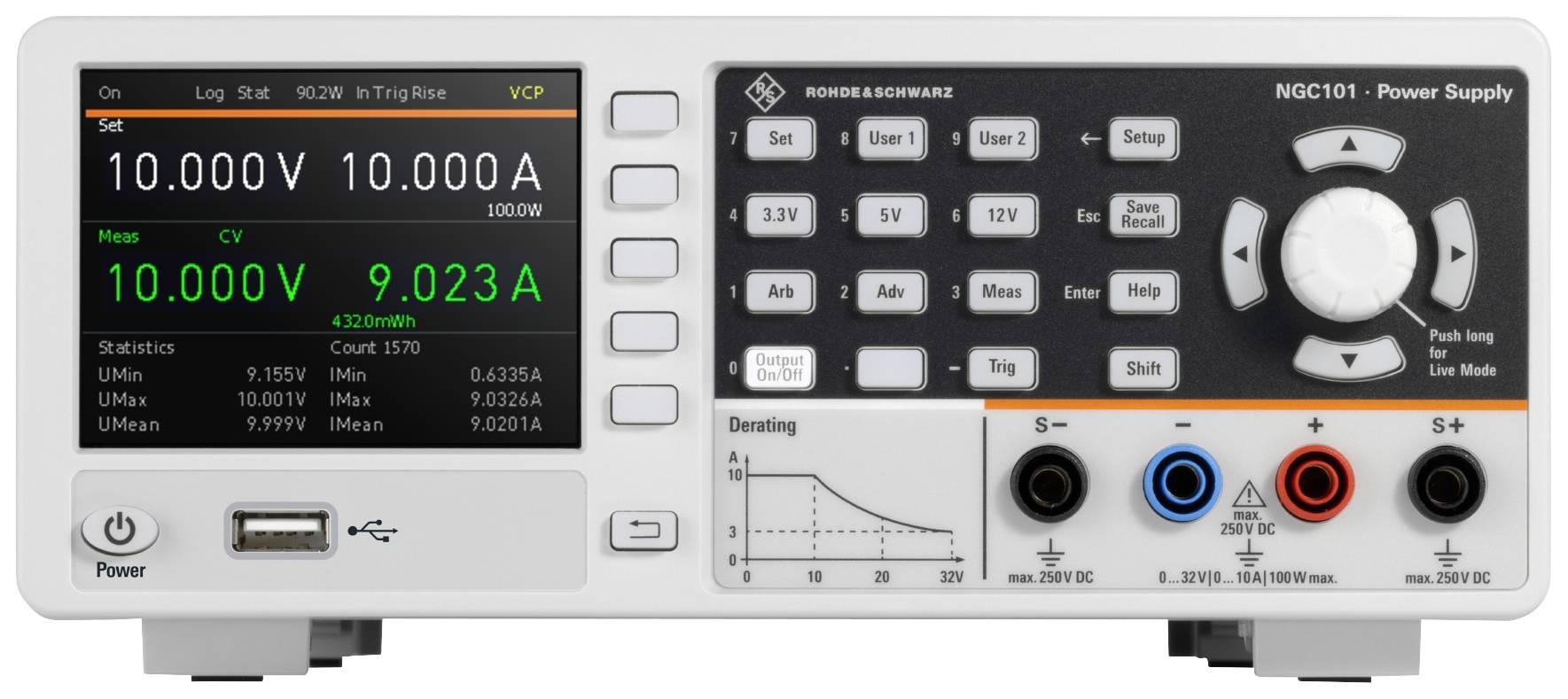

Electronic laboratory power supply with digital display shows 10.00V and 9.023A. Buttons and connections for control and measurement visible.

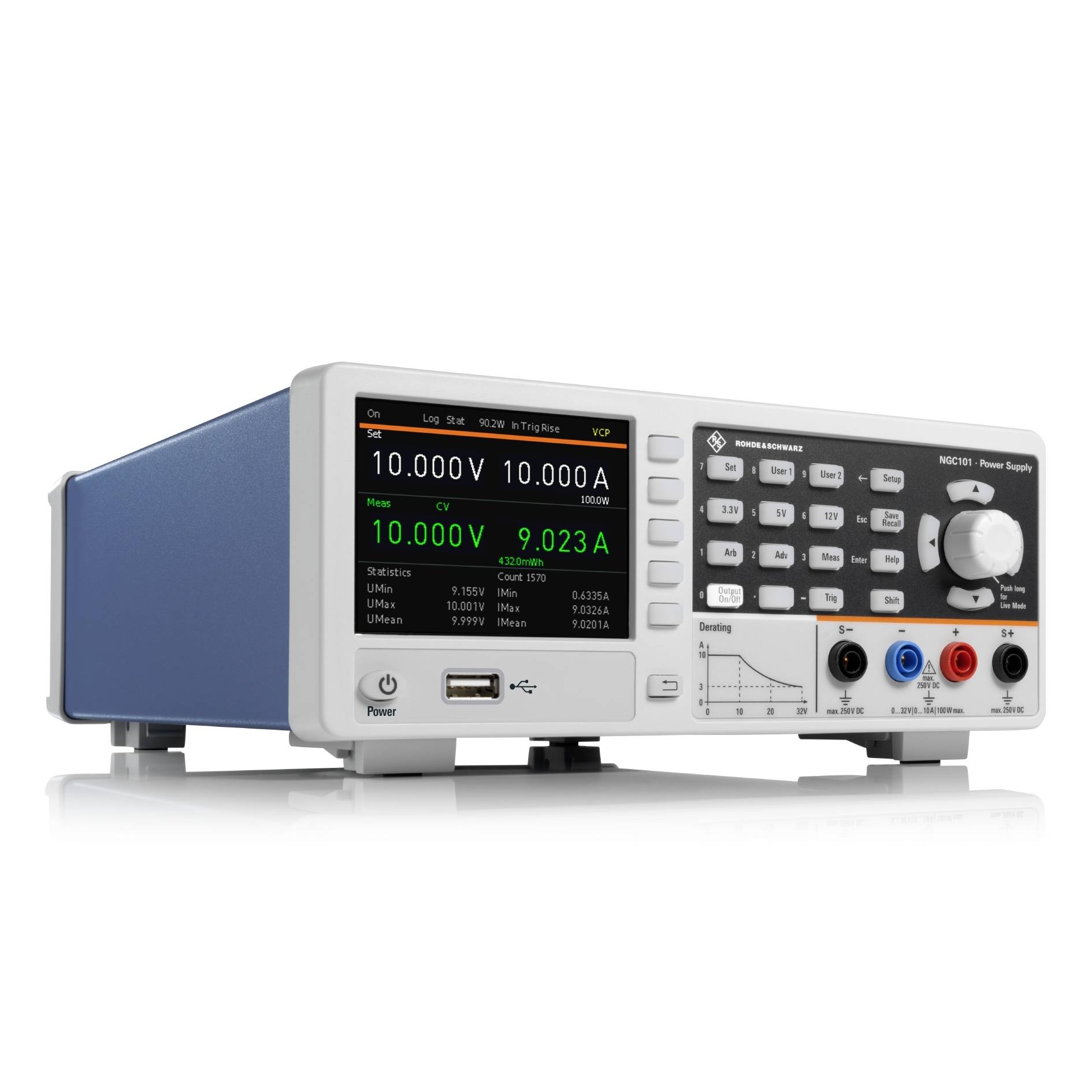

A laboratory power supply with a digital display shows 10,000 volts and 9.023 amperes. It has input controls and connections on the front panel.

Electronic device with digital display shows readings of 10,000 V and 9.023 A. It has multiple buttons and rotary controls.

The image shows the rear panel of an NGC101 power supply unit with connections, switches, and labels. Visible are an Ethernet port and a power connection.

1/4

Datasheet (PDF)

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,559.00 / piece)

€ 1,559.00

incl. VAT

Only 1 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Rohde & Schwarz NGC101-G 1-CH DC power supply 100 W, 32 V, 10 A inc. GPIB

No. of outputs 1 x
32 (max.) / 10 A (max.)
100 W

Technical specifications

Type: R&S®NGC101-G

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 100 W

Technology: Linear regulated PSU

Dim: (L x W x H) 291 x 222 x 97 mm

: Manufacturer's standards (no certificate)

Weight: 2.7 kg

Output voltage (max.): 32 V

Max. output current: 10 A

Width: 222 mm

Height: 97 mm

Length: 291 mm

Documents & Downloads

Datasheet

Datasheet 3130867 Rohde & Schwarz R&S®NGC101-G Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 100 W No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3130867 Rohde & Schwarz R&S®NGC101-G Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 100 W No. of outputs 1 x

Description

The feature-rich R&S®NGC100 family consists of three models, all with a maximum total power of up to 100 W and a continuous voltage range from 0 V to 32 V. The single-channel R&S®NGC101 delivers a maximum of 10 A, the two-channel R&S®NGC102 a maximum of 5 A and the three-channel R&S®NGC103 a maximum of 3 A per channel. The outputs are galvanically isolated, floating and protected against overload and short circuit. The electrically equivalent outputs of the two- and three-channel models make it possible for the user to switch several outputs in parallel or in series, in order to increase the voltage or current to up to 96 V or 10 A. The synchronization of the outputs, the performance of curve shape tests and the recording of data for detailed analyzes are a breeze with the R&S®NGC100 power supply series. An intuitive operating concept navigates the user quickly through the menus. All R&S®NGC100 power supplies have remote sense connectors, an external trigger input, an analog control interface, a USB and a LAN interface.

This text is machine translated.
