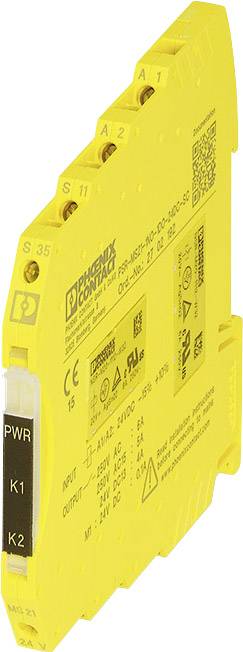

Safety relay PSRmini Phoenix Contact
EAN:
Part number:
Item no:
Product type
Safety relay
Connector
Screw terminals
Operating voltage
24 V DC
Type
PSR-MS21-1NO-1DO-24DC-SC
Contact type
1 maker
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 138.66
-12 %
€ 121.84
plus VAT.
14-day return policy included
Highlights & Details
Safety relay PSRmini
- 1 digital signal output
Technical specifications
- Product type
Safety relay
- Type
PSR-MS21-1NO-1DO-24DC-SC
- Connector
Screw terminals
- Operating voltage
24 V DC
- Contact type
1 maker
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
6 A
IP20
- Depth
102.5 mm
- Width
6.8 mm
- Height
93.1 mm
- Dim
(W x H x D) 6.8 x 93.1 x 102.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1573041 Safety relay PSRmini Phoenix Contact
User & Safety Instructions
User & Safety Instructions 1573041 Safety relay PSRmini Phoenix Contact
Description
Safety relay for fail-safe controls SILCL 3, category 4, PL e, 1-channel operation, automatic start.
