Schneider Electric Actuator electromechanical
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 339.00 / piece)
€ 339.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Actuator
- Operation type
electromechanical
- Stroke
7.5 mm
- Locking force
120 N
- Content
1 pc(s)
24 V
Radiator valve
TRUE
FALSE
FALSE
TRUE
None
FALSE
IP21
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3342550 Schneider Electric Actuator electromechanical
User & Safety Instructions
User & Safety Instructions 3342550 Schneider Electric Actuator electromechanical
Information
Information 3342550 Schneider Electric Actuator electromechanical
Repairability/durability data sheet 3342550 Schneider Electric Actuator electromechanical
Conformity certificate
Conformity certificate 3342550 Schneider Electric Actuator electromechanical
Conformity certificate 3342550 Schneider Electric Actuator electromechanical
Conformity certificate 3342550 Schneider Electric Actuator electromechanical
Conformity certificate 3342550 Schneider Electric Actuator electromechanical
Description

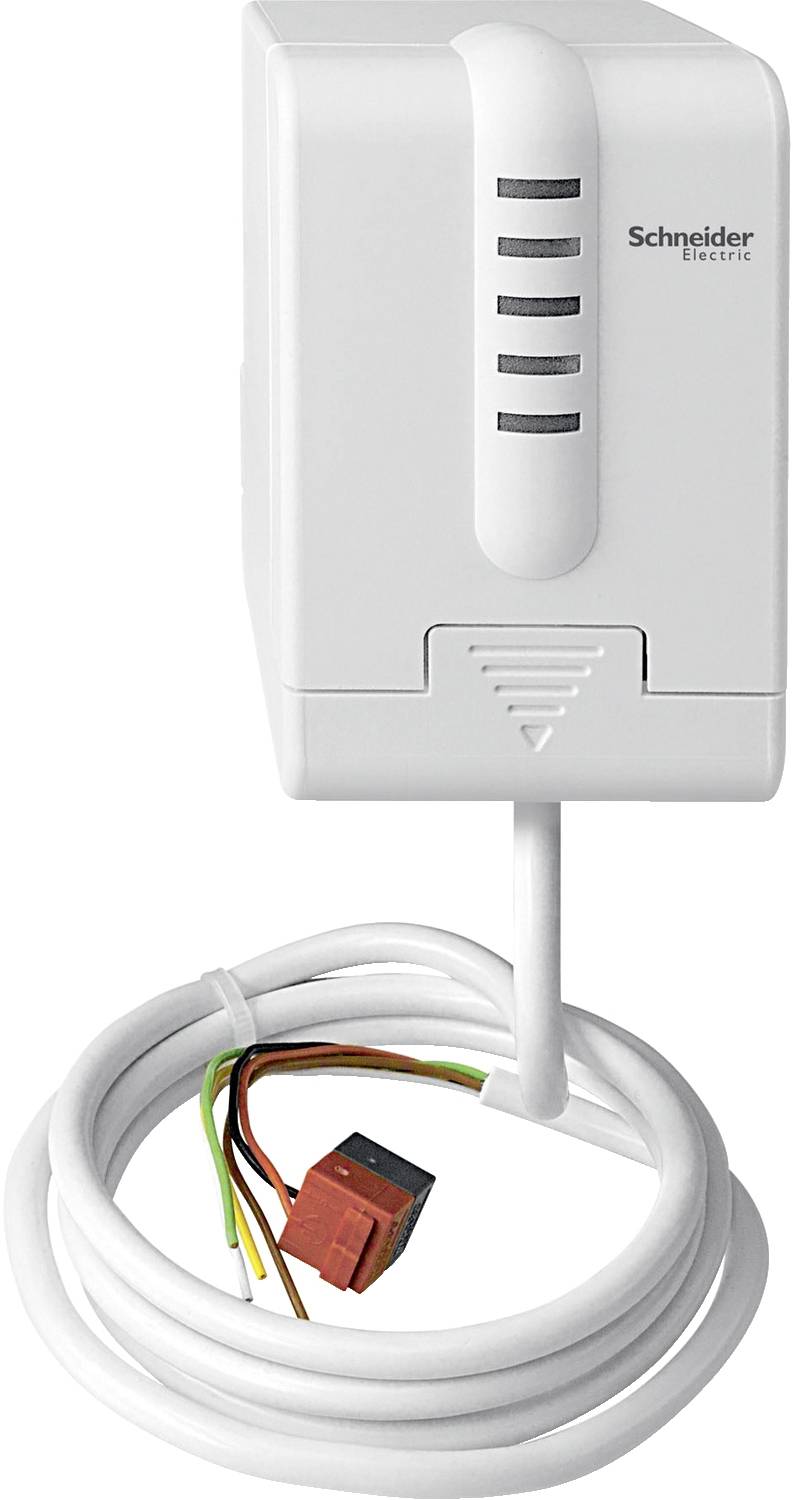

KNX valve operating mechanism with status LED and 2 inputs. EMO actuator for heating valves The device has 2 inputs for e.g. window contacts or presence detectors. Valve stroke display via red LEDs. With automatic valve lift detection. The valve operating mechanism can be connected directly to the KNX. A separate power supply is not required. With integrated bus coupler. Power consumption maximum 10 mA Stroke: Max. 7.5 mm Positioning force 120 N. Protection class IP 21 Protection class III according to EN 60730. Installation: Snapped onto the valve adapter. Dimensions (H x W x D) 82 x 50 x 65 mm. Contents: With 2 valve adapters (VA10/VA78).
This text is machine translated.
This text is machine translated.
