Name: Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW
Brand: Schneider Electric
SKU: 3754677
Availability: BackOrder

Schneider Electric variable frequency drive with green front panel, digital display, and red stop and green run buttons mounted on a metal bracket.

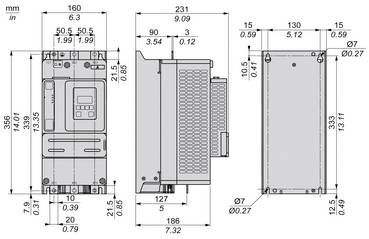

Technical dimension drawing of a rectangular industrial electrical device shown front, side, and rear views with measurements in mm and inches.

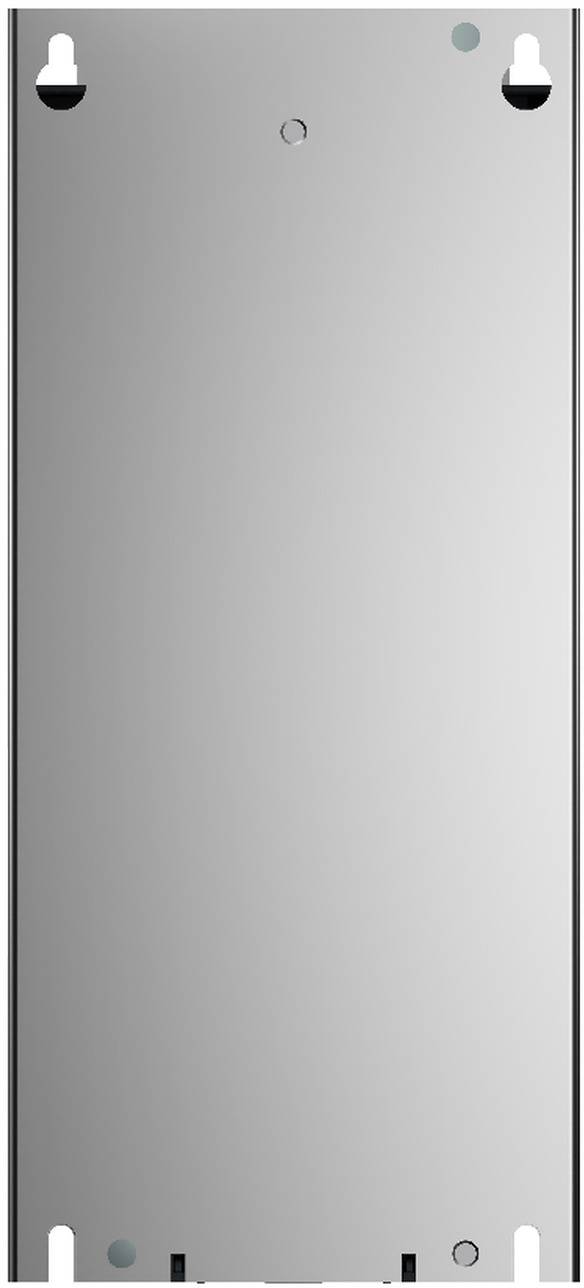

Blank gray rectangular board or panel with mounting holes and clips at the corners and bottom<br>

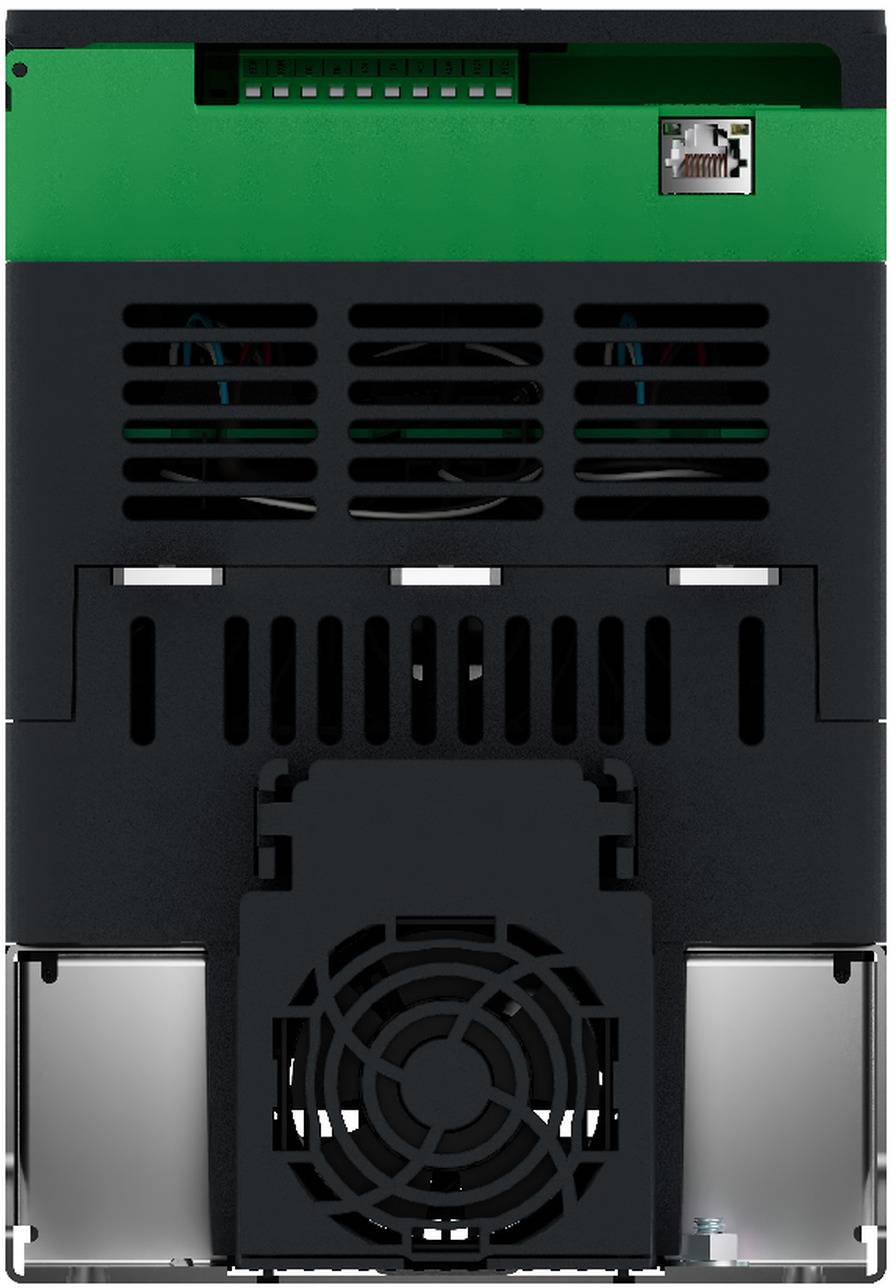

Back view of a green and black electronic device, showing ventilation slots, Ethernet port, and a cooling fan grille.<br>

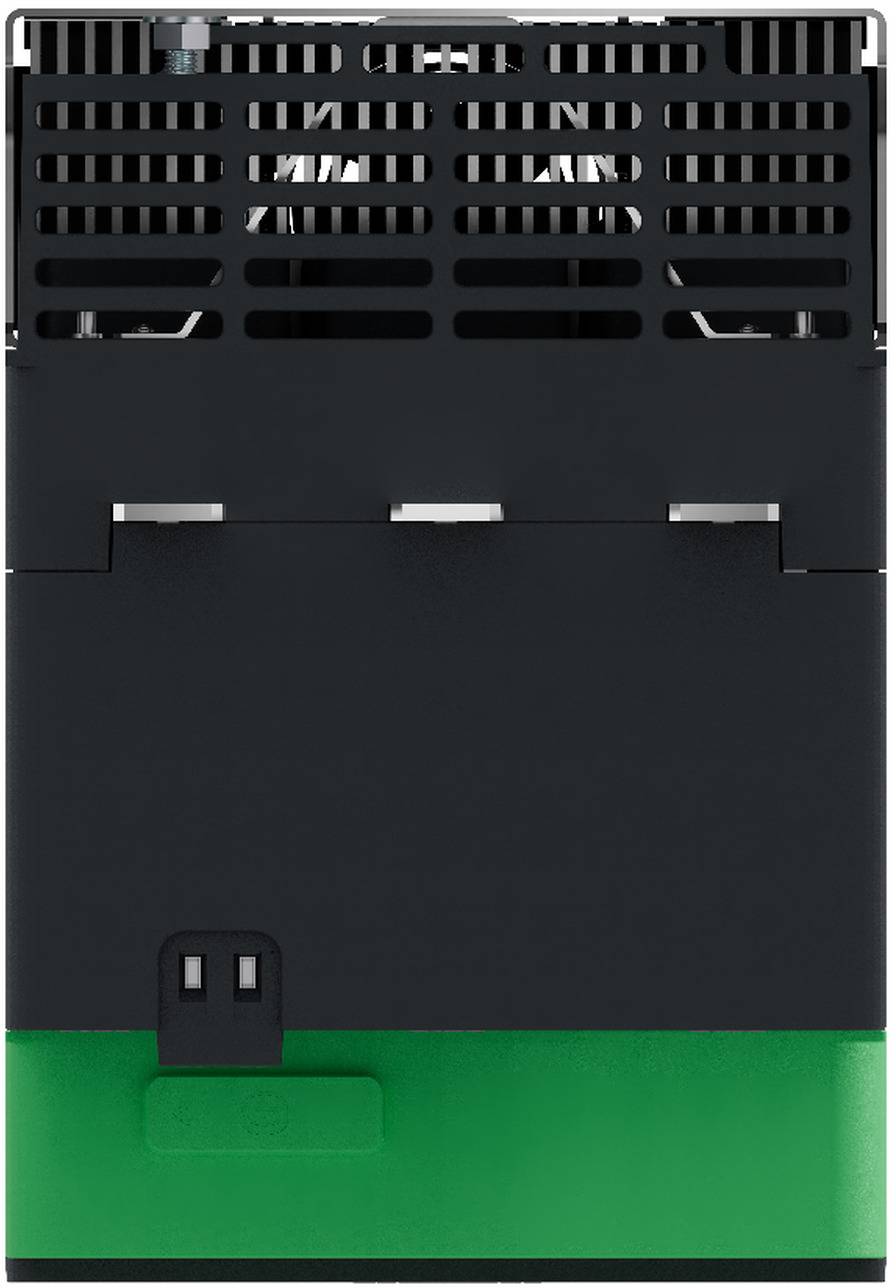

Close-up of a black and green electronic device housing with top vents and a small connector port near the bottom.

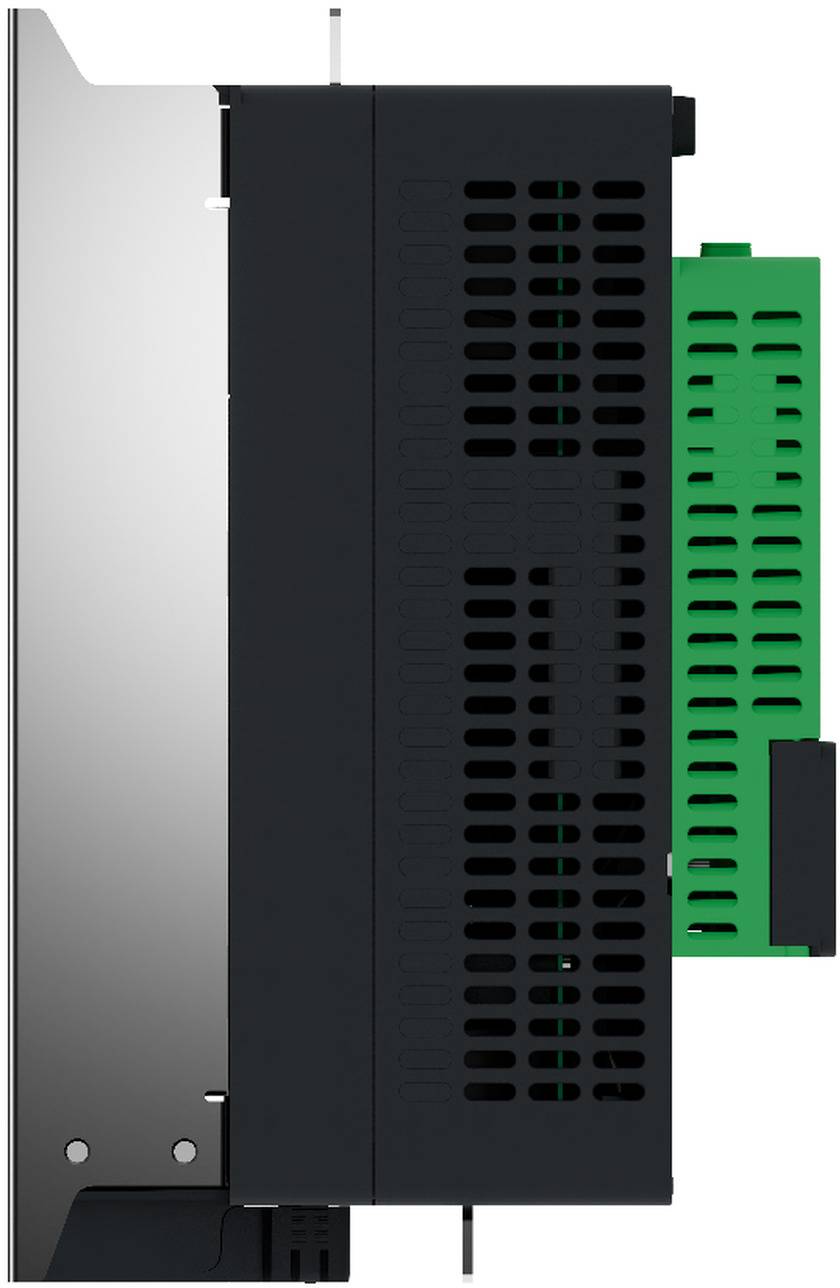

Side view of a black and silver electronic module with ventilation slots and a green circuit board protruding on the right.

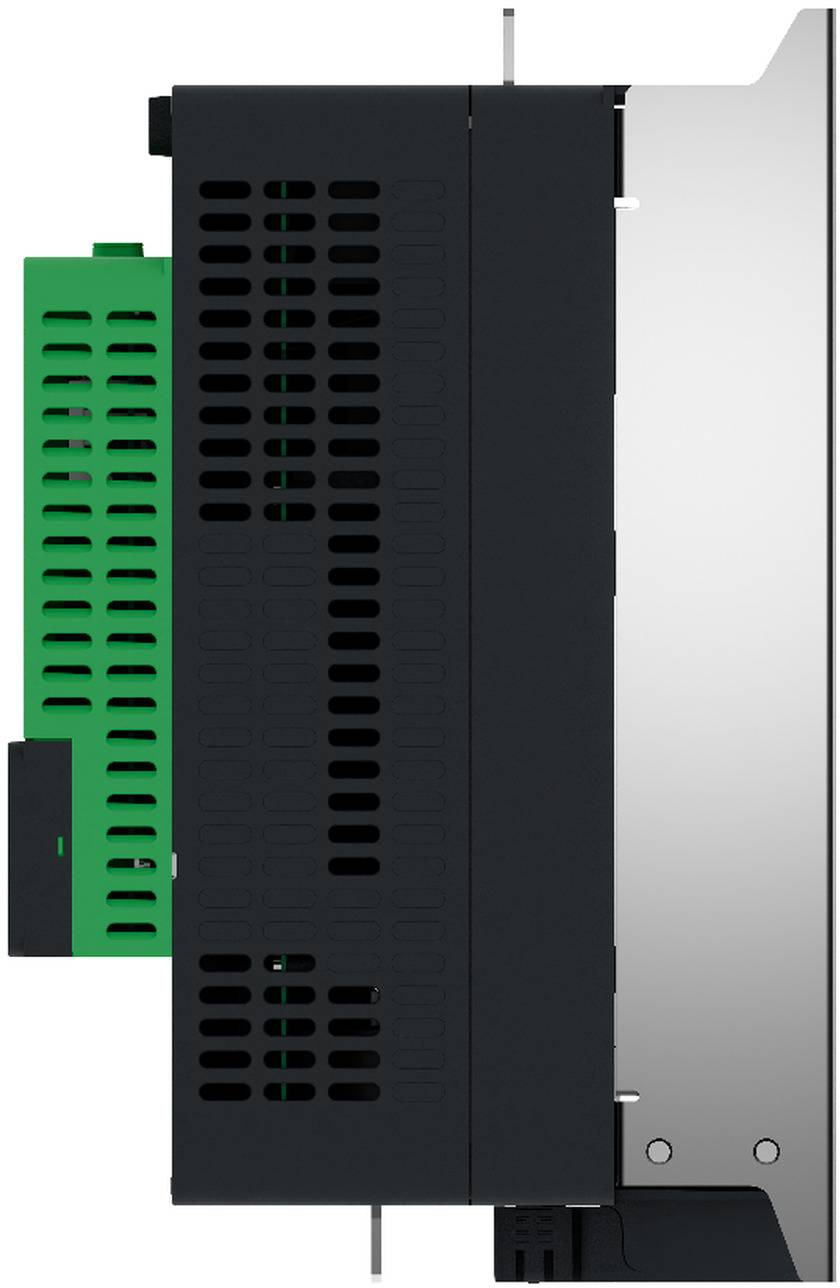

Side view of a black and green industrial electronics module mounted beside a silver metal panel, with vent slots and connectors visible.

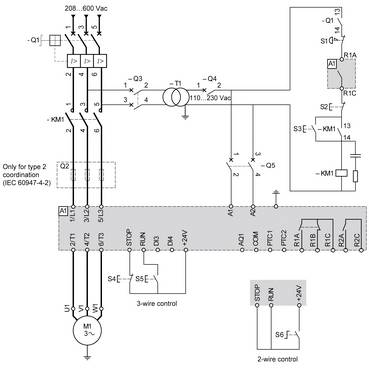

Electrical motor starter wiring diagram showing a 3-phase motor, contactors, transformer, overload relay, and 2-wire/3-wire control circuits.<br>

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,455.00 / piece)

€ 1,455.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Tripping class CLASS 10
Rated operating current Ie at 40 °C Tu:140 A.
Rated power 3-phase motor, standard circuit, at 230 V: 37 kW
Rated power 3-phase motor, standard circuit, at 400 V: 75 kW
Rated control supply voltage AC 50 Hz: 110-230 V
Rated control supply voltage AC 60 Hz: 110-230 V
Rated control supply voltage DC 24-24 V
Rated ambient temperature without derating: 40°C.
Torque control: Yes
Function: One rotation direction
Integrated overload protection of the motor: Yes
Internal bridging: Yes
With display: Yes
Protection class (NEMA): Other
Type of voltage for activation: AC

Motor voltage: 208 bis 600 V

Product type: Soft starter

Motor power at 230 V: 37 kW

Motor power at 400 V: 75 kW

Manufacturer part #: ATS430C14S6

Type: ATS430C14S6

Max. temperature: 40 °C

: IP00

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Motor power at 230 V

Motor power at 400 V

Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW

Item no:3754677

Dispatches on Wed 4 Nov

Conrad Electronic

This article

37 kW

75 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,455.00^*

Schneider Electric ATS430C11S6 Soft starter Motor power at 400 V 55 kW Motor power at 230 V 30 kW

Item no:3754674

Dispatches on Wed 4 Nov

Conrad Electronic

30 kW

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,265.00^*

Schneider Electric ATS430C17S6 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW

Item no:3754680

Dispatches on Wed 4 Nov

Conrad Electronic

45 kW

90 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,679.00^*

Schneider Electric ATS430C21S6 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 55 kW

Item no:3754683

Dispatches on Wed 4 Nov

Conrad Electronic

55 kW

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,989.00^*

Schneider Electric ATS430C25S6 Soft starter Motor power at 400 V 132 kW Motor power at 230 V 75 kW

Item no:3754685

Dispatches on Wed 4 Nov

Conrad Electronic

75 kW

132 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,295.00^*

Schneider Electric ATS430C32S6 Soft starter Motor power at 400 V 160 kW Motor power at 230 V 90 kW

Item no:3754687

Dispatches on Wed 4 Nov

Conrad Electronic

90 kW

160 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,645.00^*

Schneider Electric ATS430C41S6 Soft starter Motor power at 400 V 220 kW Motor power at 230 V 110 kW

Item no:3754689

Dispatches on Wed 4 Nov

Conrad Electronic

110 kW

220 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,369.00^*

Schneider Electric ATS430C48S6 Soft starter Motor power at 400 V 250 kW Motor power at 230 V 132 kW

Item no:3756410

Dispatches on Wed 4 Nov

Conrad Electronic

132 kW

250 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,109.00^*

Schneider Electric ATS430C59S6 Soft starter Motor power at 400 V 315 kW Motor power at 230 V 160 kW

Item no:3754691

Dispatches on Wed 4 Nov

Conrad Electronic

160 kW

315 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,949.00^*

Schneider Electric ATS430D17S6 Soft starter Motor power at 400 V 9 kW Motor power at 230 V 4 kW

Item no:3754694

Dispatches on Wed 4 Nov

Conrad Electronic

4 kW

9 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Documents & Downloads

Datasheet

Datasheet 3754677 Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW

User & Safety Instructions

User & Safety Instructions 3754677 Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW

Description

The ATS430 is designed to gently start and stop asynchronous motors from 208 to 600V. With an efficiency of 99.5% and special application functions the ATS430 enables an advanced motor control. Cybersecurity and health monitoring best practices increase uptime, reduce operational costs, and simplify project planning. The ATS430 enables a measurement of power and energy, with an accuracy of over 95%. The Altivar ATS430 soft starter meets the requirements of applications such as pumps, fans, compressors, conveyor belts, mixers, Cutting machines, grinding machines and crushers. Complies with IEC/EN 60947-4-2 and certifications cULus, UKCA, RCM, CCC, EAC. There are many accessories available, such as an IP65 mounting kit to attach the graphics display to the control cabinet door and communication modules to extend connectivity to other protocols. The packaging is made from recycled cardboard and contains less disposable plastic. The ATS430 soft starters must be mounted vertically in a housing. The built-in and innovative features of the ATS430 improve the competitiveness, operational resilience and sustainability of the equipment.
