Name: Schneider Electric ATS430D47S6 Soft starter Motor power at 400 V 30 kW Motor power at 230 V 11 kW
Brand: Schneider Electric
SKU: 3754698
Availability: BackOrder

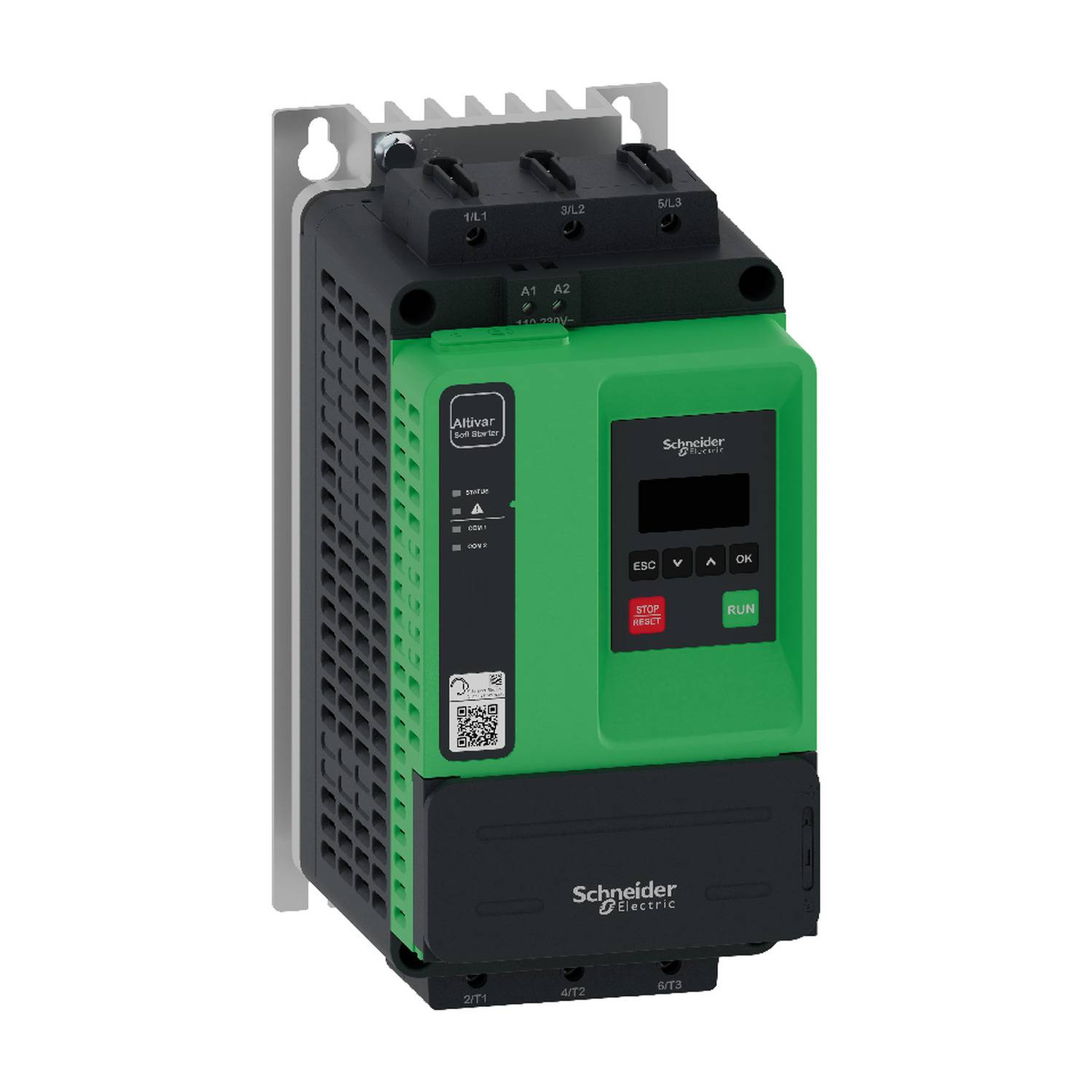

Green-and-black Schneider Electric Altivar soft starter with front control panel and mounting bracket, shown on a white background.

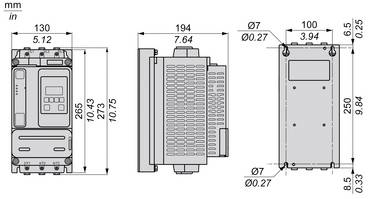

Technical dimension drawing of a rectangular electronic device shown in front, side, and rear views with measurements in mm and inches.

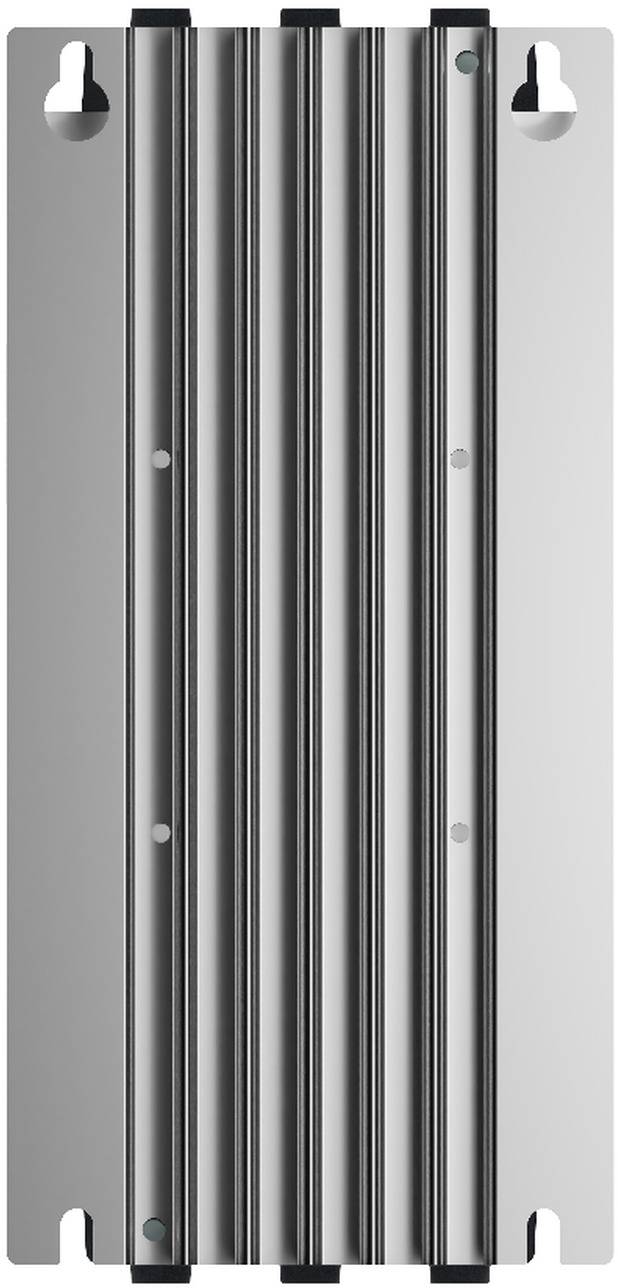

Three vertical metallic rails or slats mounted on a rectangular silver panel with screw holes at the top and bottom.<br>

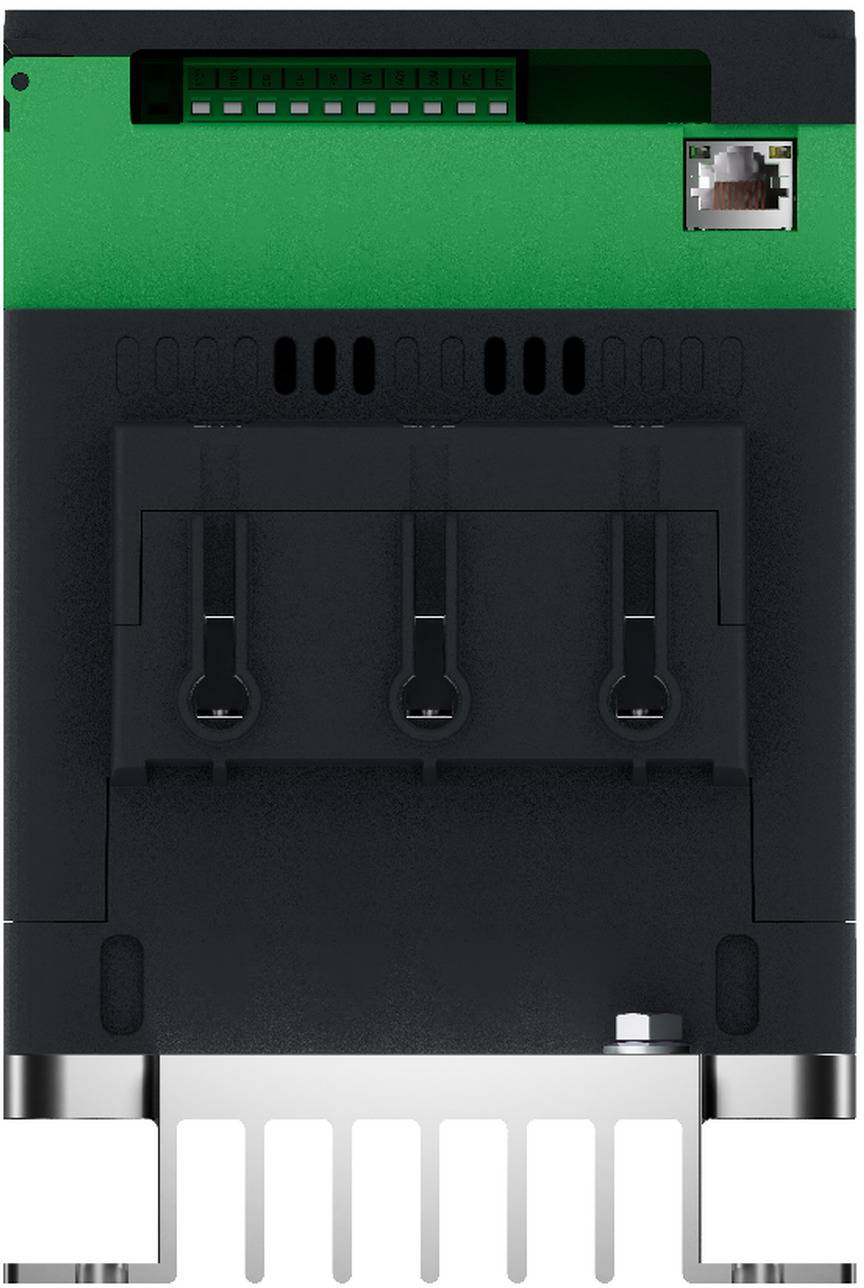

Rear view of a black and green electronic device with a top connector port, small side module, and a row of metal contact pins at the bottom.

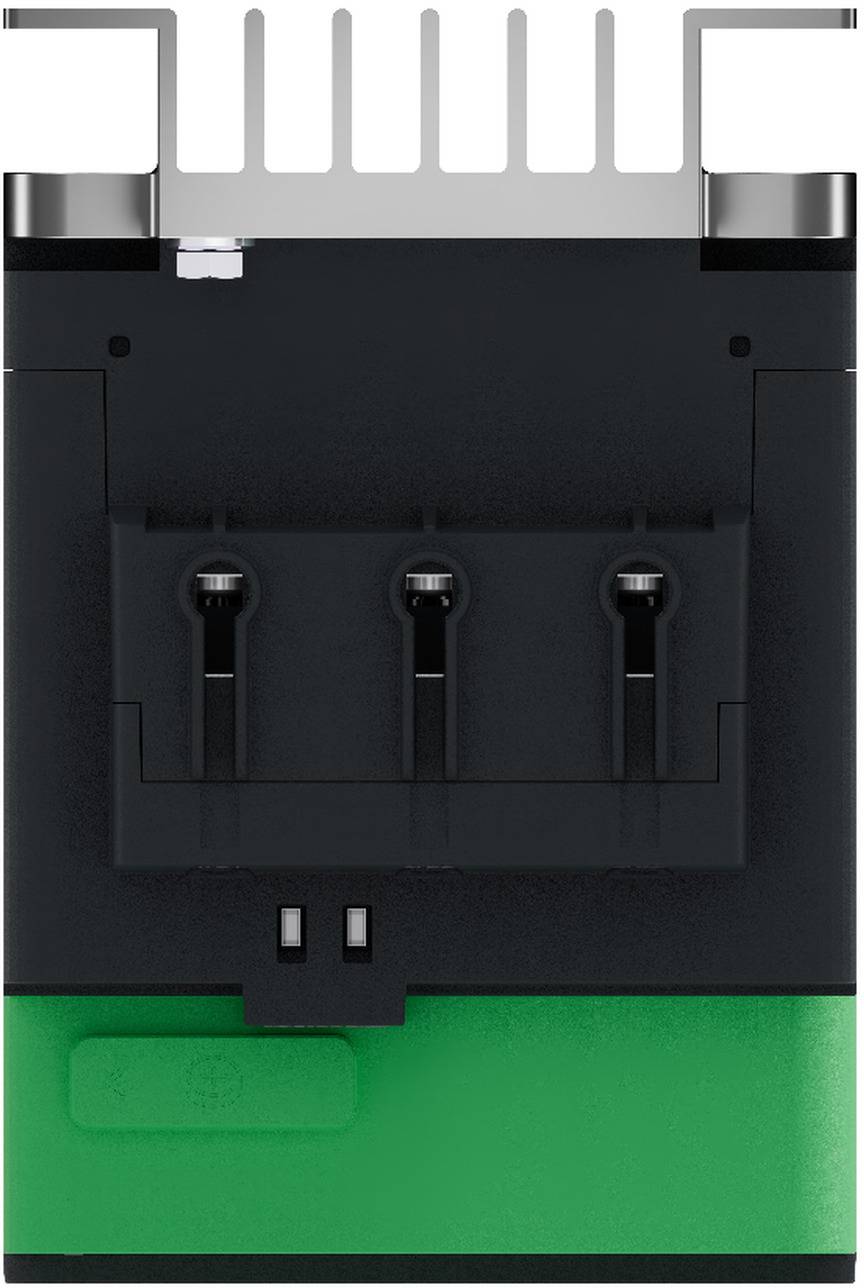

Black electronic module with metal connector pins on top and a green base, shown front view against a white background.

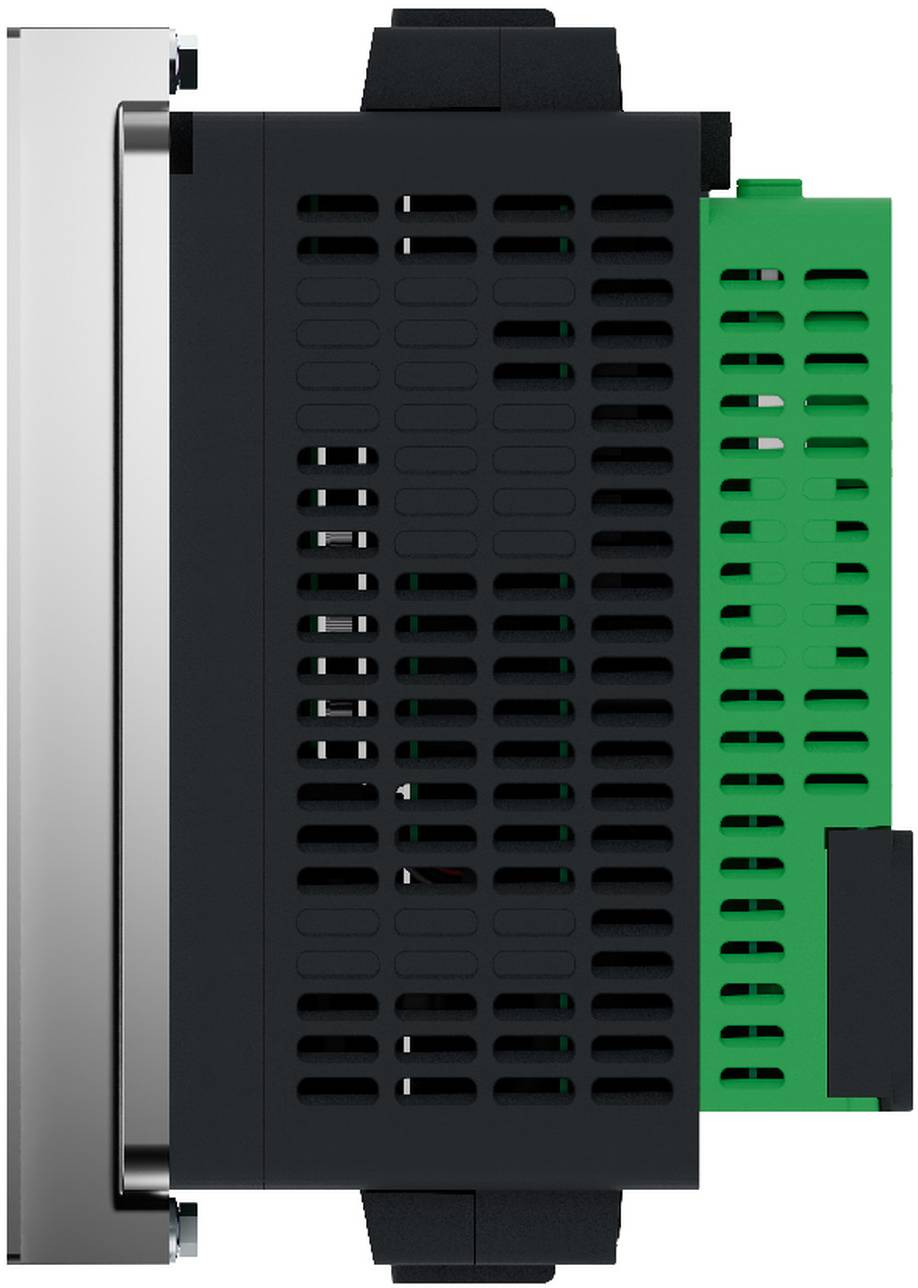

Close-up of a black and green electronic module with vent slots, shown against a white background.

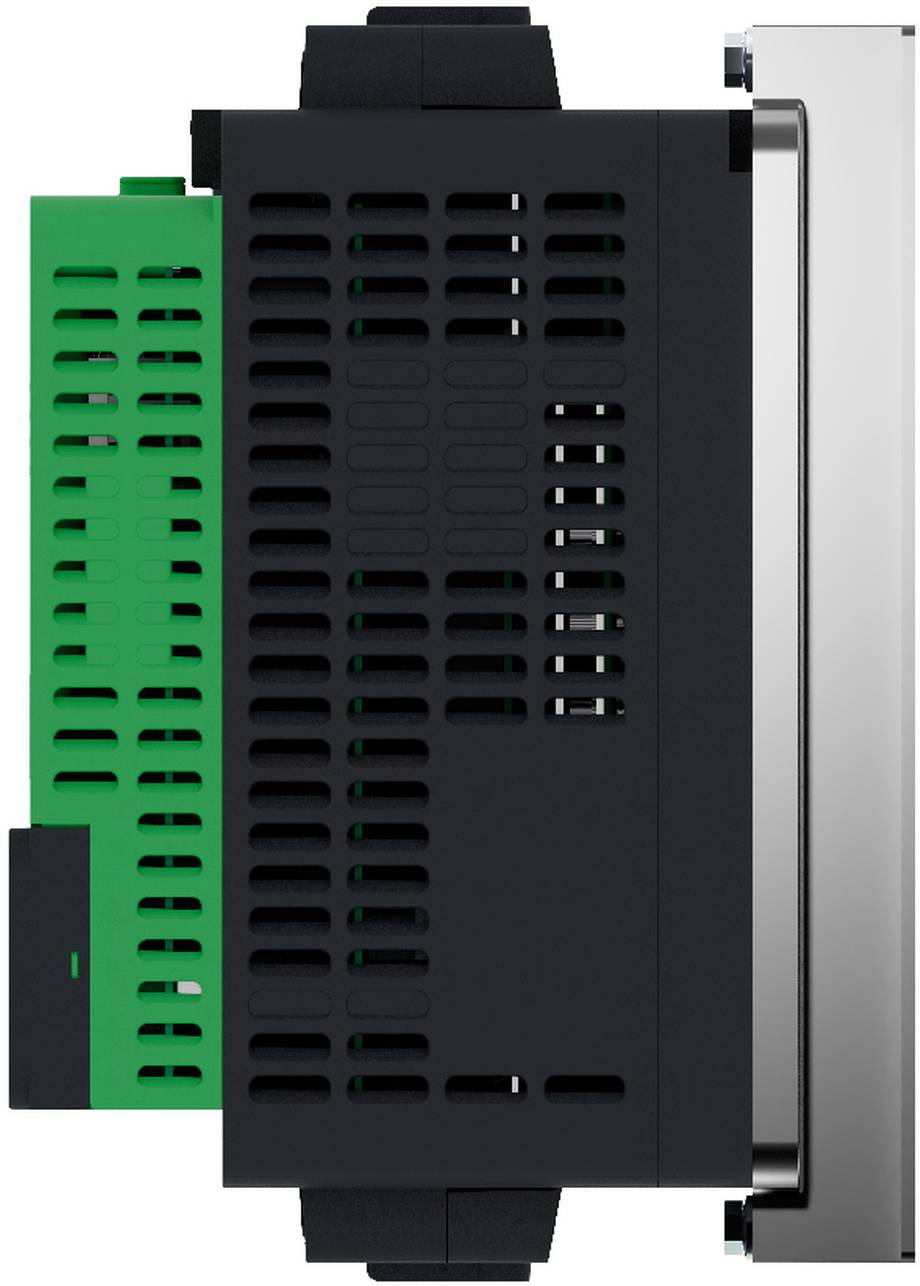

Front view of a black industrial electronic module with ventilation slots, attached to a green side component and a silver mounting bracket.

1/7

Datasheet (PDF)

Dispatches on Wed 21 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 765.00 / piece)

€ 765.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Tripping class CLASS 10
Rated operating current Ie at 40 °C Tu:47 A.
Rated power 3-phase motor, standard circuit, at 230 V: 11 kW
Rated power 3-phase motor, standard circuit, at 400 V: 22 kW
Rated control supply voltage AC 50 Hz: 110-230 V
Rated control supply voltage AC 60 Hz: 110-230 V
Rated control supply voltage DC 24-24 V
Rated ambient temperature without derating: 40°C.
Torque control: Yes
Function: One rotation direction
Integrated overload protection of the motor: Yes
Internal bridging: Yes
With display: Yes
Protection class (NEMA): Other
Type of voltage for activation: AC

Motor voltage: 208 bis 600 V

Product type: Soft starter

Motor power at 230 V: 11 kW

Motor power at 400 V: 30 kW

Manufacturer part #: ATS430D47S6

Type: ATS430D47S6

Motor power at 230V / 400V: 22 kW

Dim: (W x H x D) 130 x 265 x 194 mm

Width: 130 mm

Height: 265 mm

Depth: 194 mm

Max. temperature: 40 °C

: IP20

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Motor power at 400 V

Motor power at 230 V

Schneider Electric ATS430D47S6 Soft starter Motor power at 400 V 30 kW Motor power at 230 V 11 kW

Item no:3754698

Dispatches on Wed 21 Oct

Conrad Electronic

This article

30 kW

11 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 765.00^*

Schneider Electric ATS430C11S6 Soft starter Motor power at 400 V 55 kW Motor power at 230 V 30 kW

Item no:3754674

Dispatches on Tue 27 Oct

Conrad Electronic

55 kW

30 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,265.00^*

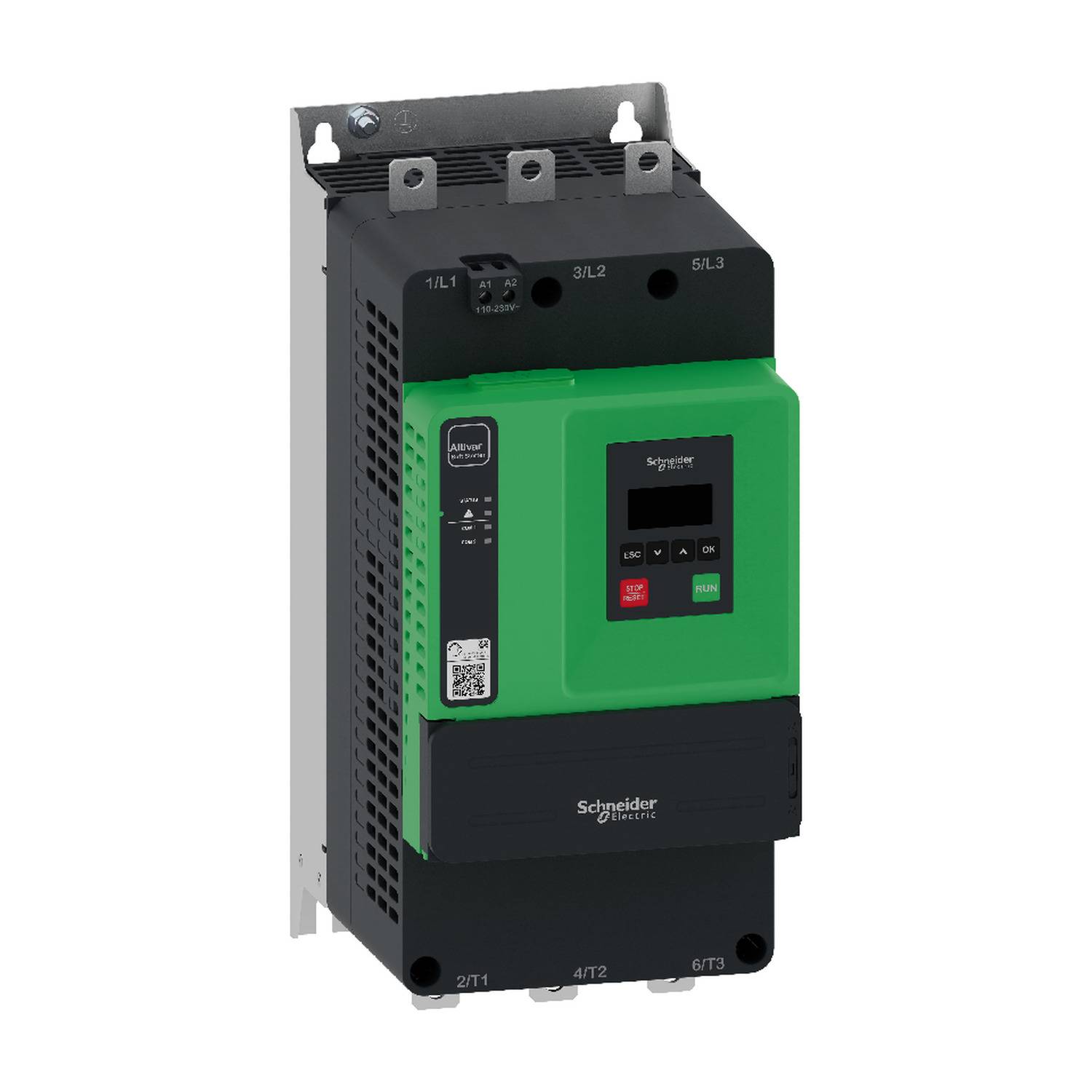

Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW

Item no:3754677

Dispatches on Tue 27 Oct

Conrad Electronic

75 kW

37 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,455.00^*

Schneider Electric ATS430C17S6 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW

Item no:3754680

Dispatches on Tue 27 Oct

Conrad Electronic

90 kW

45 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,679.00^*

Schneider Electric ATS430C21S6 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 55 kW

Item no:3754683

Dispatches on Tue 27 Oct

Conrad Electronic

110 kW

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,989.00^*

Schneider Electric ATS430C25S6 Soft starter Motor power at 400 V 132 kW Motor power at 230 V 75 kW

Item no:3754685

Dispatches on Tue 27 Oct

Conrad Electronic

132 kW

75 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,295.00^*

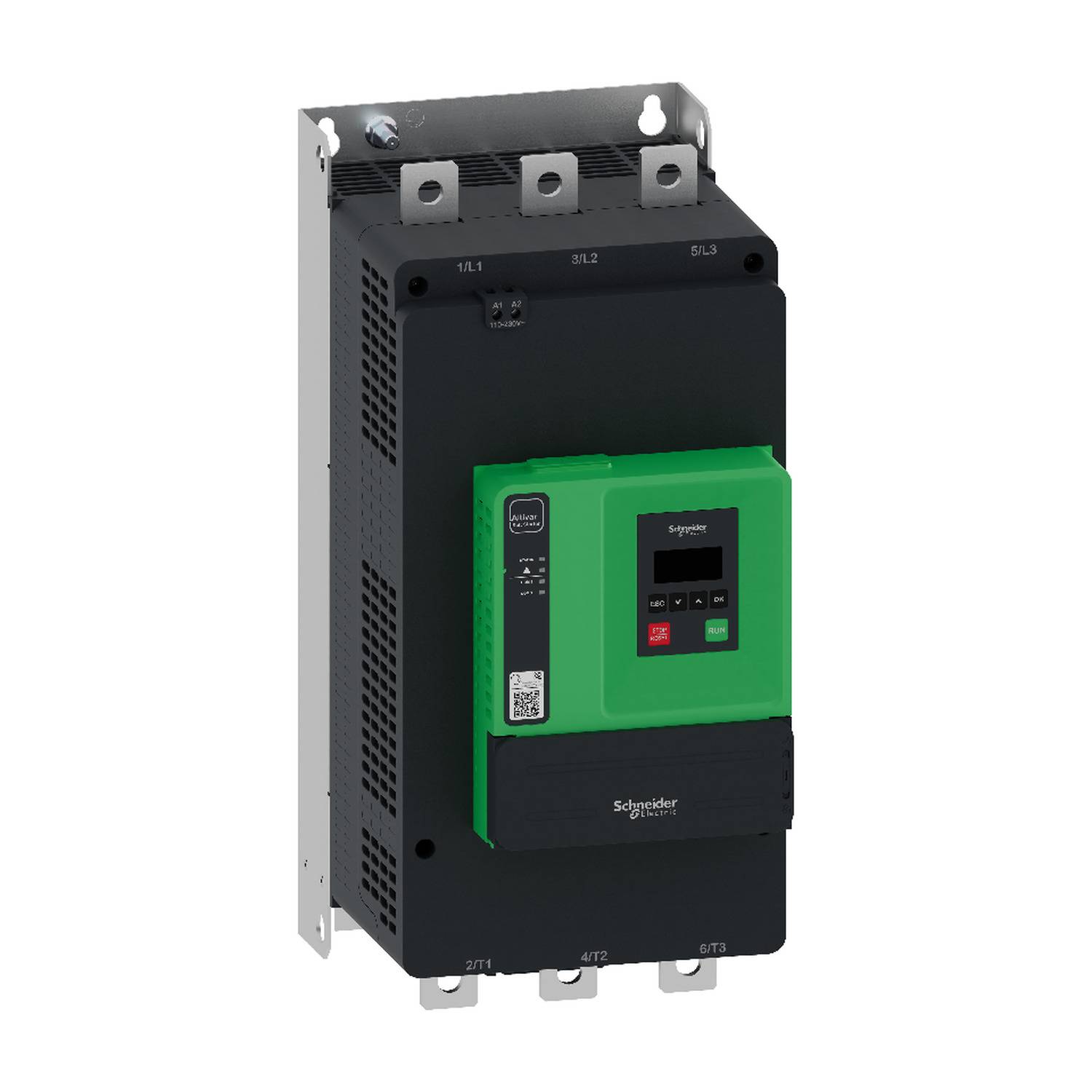

Schneider Electric ATS430C32S6 Soft starter Motor power at 400 V 160 kW Motor power at 230 V 90 kW

Item no:3754687

Dispatches on Tue 27 Oct

Conrad Electronic

160 kW

90 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,645.00^*

Schneider Electric ATS430C41S6 Soft starter Motor power at 400 V 220 kW Motor power at 230 V 110 kW

Item no:3754689

Dispatches on Tue 27 Oct

Conrad Electronic

220 kW

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,369.00^*

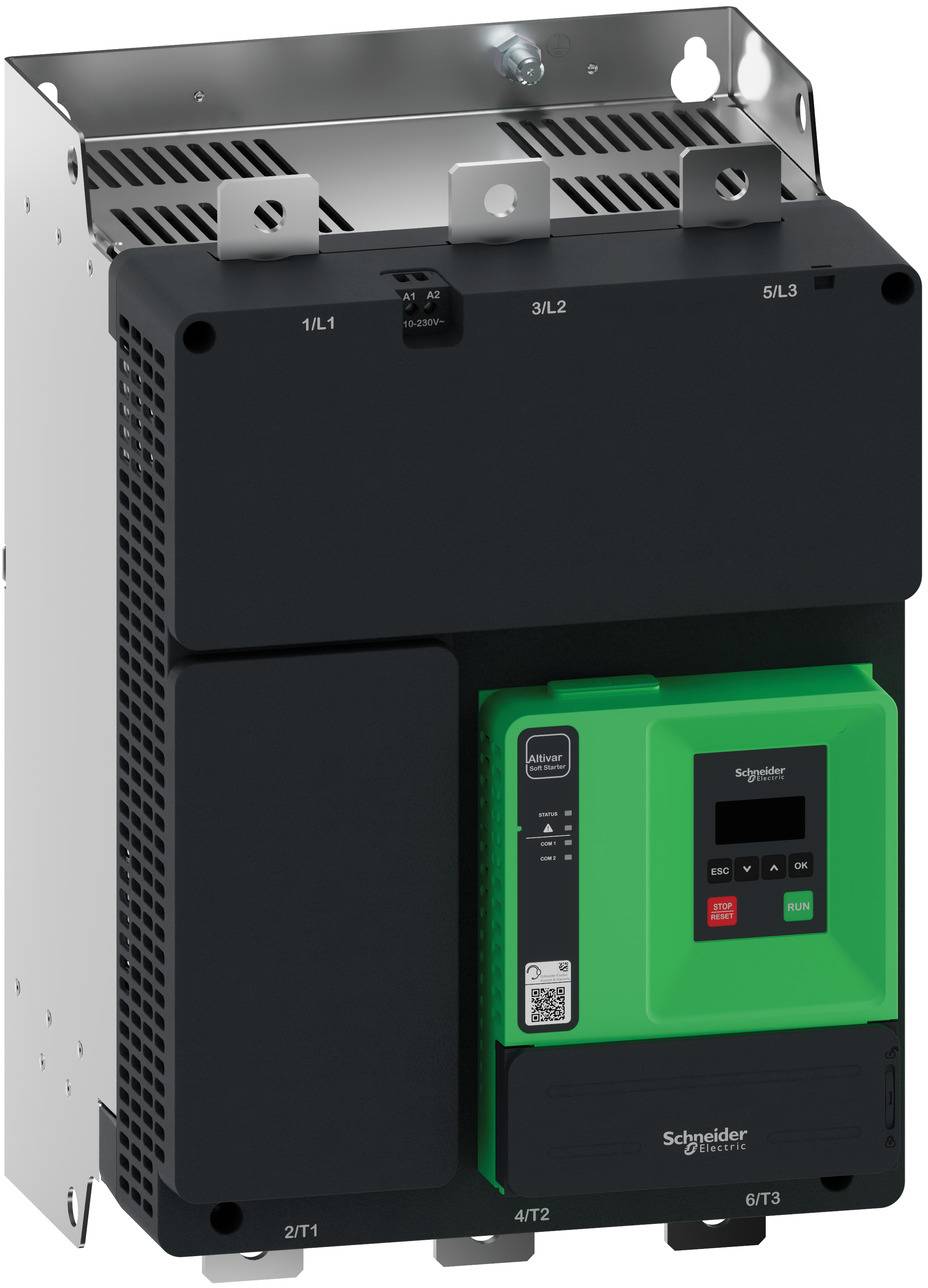

Schneider Electric ATS430C48S6 Soft starter Motor power at 400 V 250 kW Motor power at 230 V 132 kW

Item no:3756410

Dispatches on Tue 27 Oct

Conrad Electronic

250 kW

132 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,109.00^*

Schneider Electric ATS430C59S6 Soft starter Motor power at 400 V 315 kW Motor power at 230 V 160 kW

Item no:3754691

Dispatches on Tue 27 Oct

Conrad Electronic

315 kW

160 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,949.00^*

Documents & Downloads

Datasheet

Datasheet 3754698 Schneider Electric ATS430D47S6 Soft starter Motor power at 400 V 30 kW Motor power at 230 V 11 kW

User & Safety Instructions

User & Safety Instructions 3754698 Schneider Electric ATS430D47S6 Soft starter Motor power at 400 V 30 kW Motor power at 230 V 11 kW

Description

The ATS430 is designed to gently start and stop asynchronous motors from 208 to 600V. With an efficiency of 99.5% and special application functions the ATS430 enables an advanced motor control. Cybersecurity and health monitoring best practices increase uptime, reduce operational costs, and simplify project planning. The ATS430 enables a measurement of power and energy, with an accuracy of over 95%. The Altivar ATS430 soft starter meets the requirements of applications such as pumps, fans, compressors, conveyor belts, mixers, Cutting machines, grinding machines and crushers. Complies with IEC/EN 60947-4-2 and certifications cULus, UKCA, RCM, CCC, EAC. There are many accessories available, such as an IP65 mounting kit to attach the graphics display to the control cabinet door and communication modules to extend connectivity to other protocols. The packaging is made from recycled cardboard and contains less disposable plastic. The ATS430 soft starters must be mounted vertically in a housing. The built-in and innovative features of the ATS430 improve the competitiveness, operational resilience and sustainability of the equipment.

This text is machine translated.
