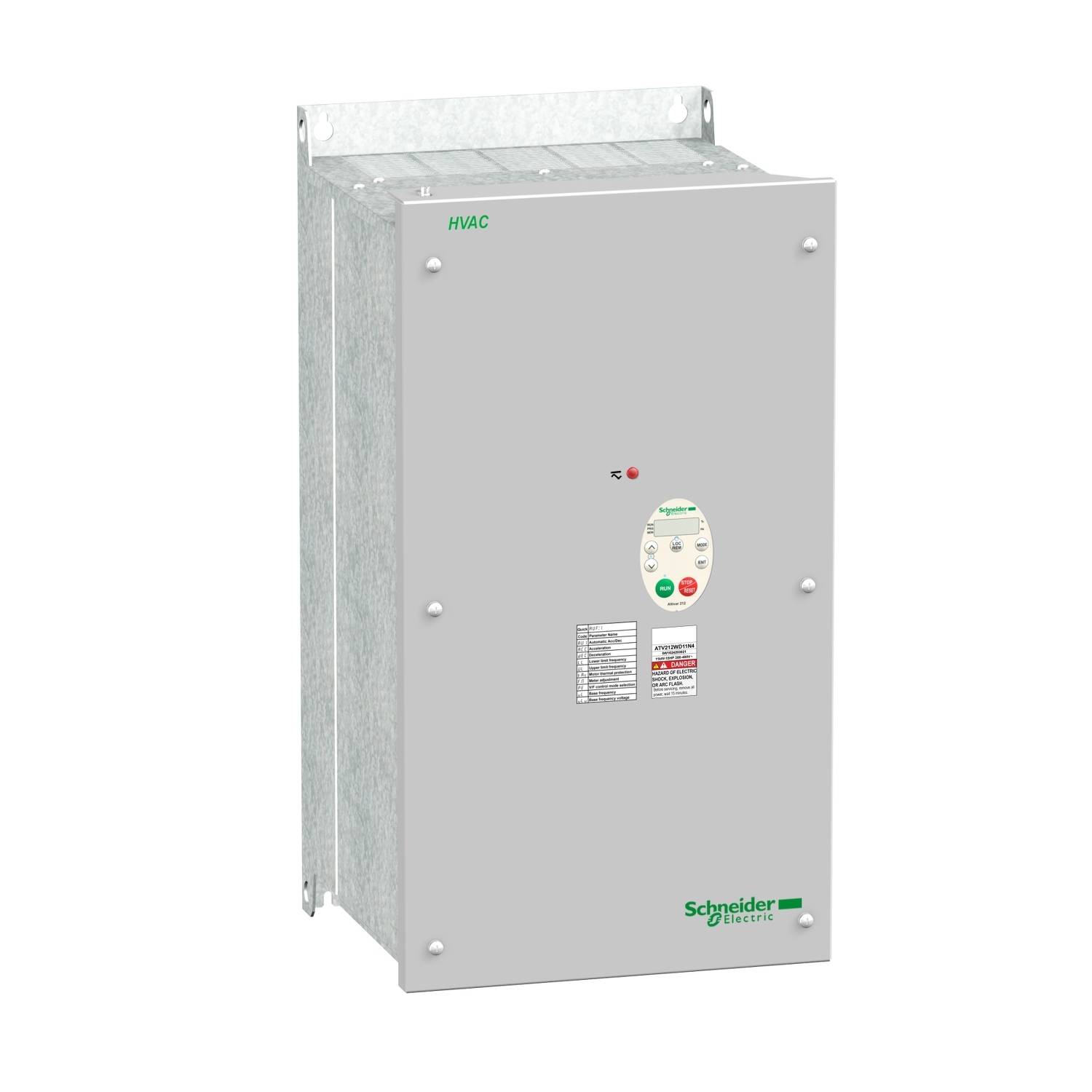

Schneider Electric Frequency inverter ATV212WD11N4C 11 kW 3-phase

This frequency converter Altivar 212 can feed 3-phase asynchronous motors. Its protection class is IP55 and it has a built-in EMC filter. It works with a nominal power of up to 11 kW / 15 PS and a nominal voltage of 380 V up to 480 V AC. Its design is based on eco-energy with a reduction of power consumption of up to 70% as compared to a conventional control system. Thanks to the technology for reducing the cable heating the Altivar 212 drive offers an immediate, trouble-free operation. It also avoids additional options such as a line reactor or a DC reactor for eliminating harmonic currents. It weighs 36.5 kg and has the following dimensions: 290 mm wide, 560 mm high, 315 mm deep. It has been specially developed for the most common fluid management applications in tertiary sector buildings (HVAC) such as heating, ventilation, air conditioning and pumps. It complies with the international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (interference resistance as well as conducted and radiated EMC emissions). It is also UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor reactors that increase the maximum cable lengths between the drive and the motor and limit faults in the motor terminals. It is designed for vertical position (+/- 10°) on a plate using 4 mounting holes. The Altivar 212 converter can be easily adapted to all building management systems thanks to its numerous functions and the standard integrated communication protocols Modbus, METASYS N2, Apogee FLN P1 and BACnet. It is environmentally friendly and meets the requirements of RoHS, WEEE, etc., concerning the protection of the environment.
