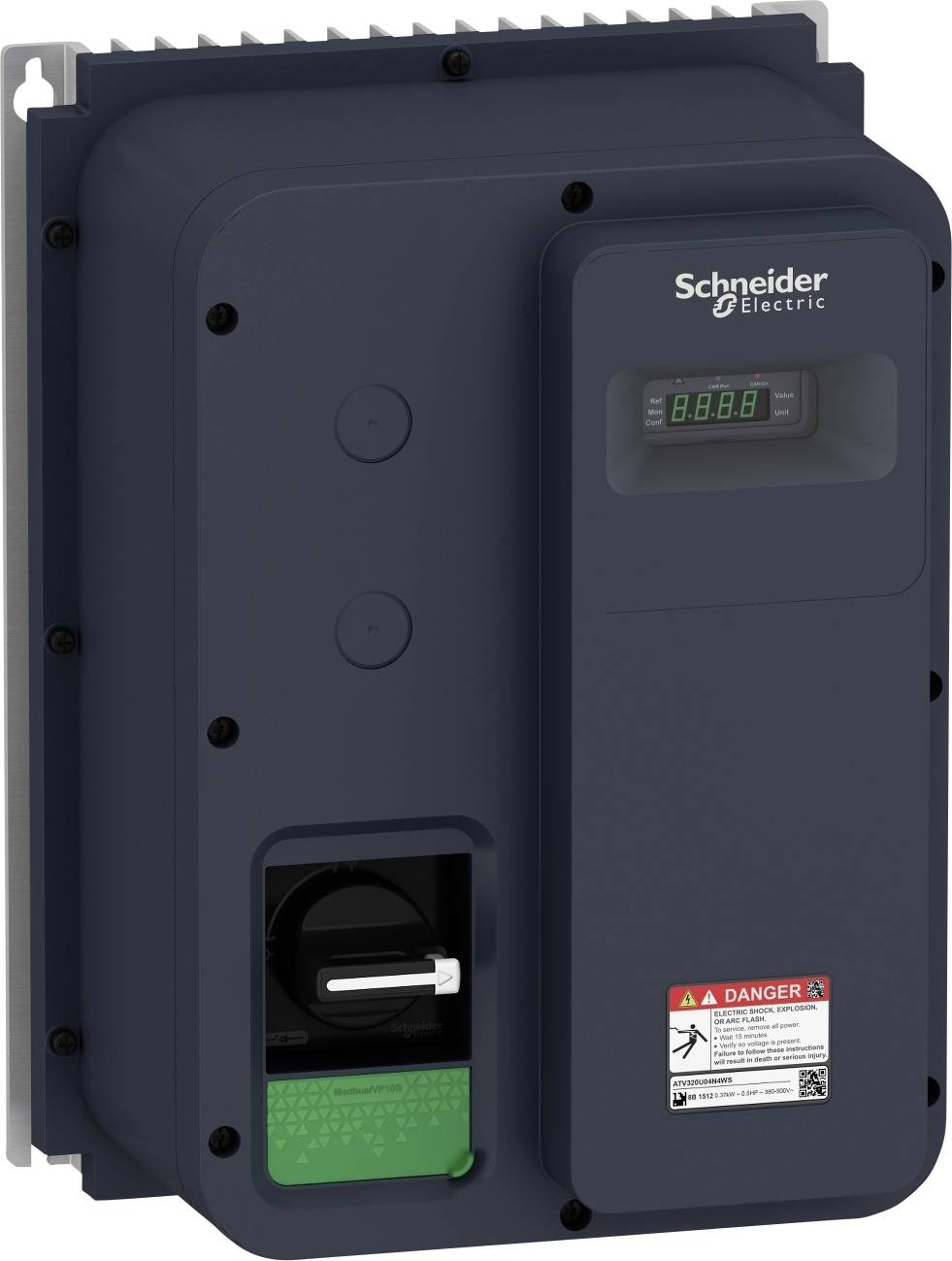

Image similar
Schneider Electric Frequency inverter ATV320U07N4WS 0.75 kW 3-phase 380 V, 500 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus. Serial; CANopen
- Nominal auxiliary voltage [UH,nom]: 380 - 500 V -15 - +10 %
- Number of digital inputs: 7
- Number of analogue inputs: 3
- Number of analogue outputs: 1
- Number of logic outputs: 3
- Rated clock frequency 4 kHz
- Apparent power 2.4 kVA at 500 V (high overload)
- Operating ambient temperature -10…40 °C without load reduction; 40…60 °C with
- Input voltage
380 V
500 V
- Product type
Frequency inverter
- Output rating (max.)
0.75 kW
- Max. frequency
0.599 kHz
- Network
3-phase
- Frequency range
0.599 kHz (max)
- Nominal current
3.6 A
- Depth
200 mm
- Height
340 mm
- Width
250 mm
IP65
- Type
ATV320U07N4WS
- Filter class
C2
- Dim
(W x H x D) 250 x 340 x 200 mm
- Manufacturer part #
ATV320U07N4WS
- Weight
6.3 kg
- UKCA
yes
