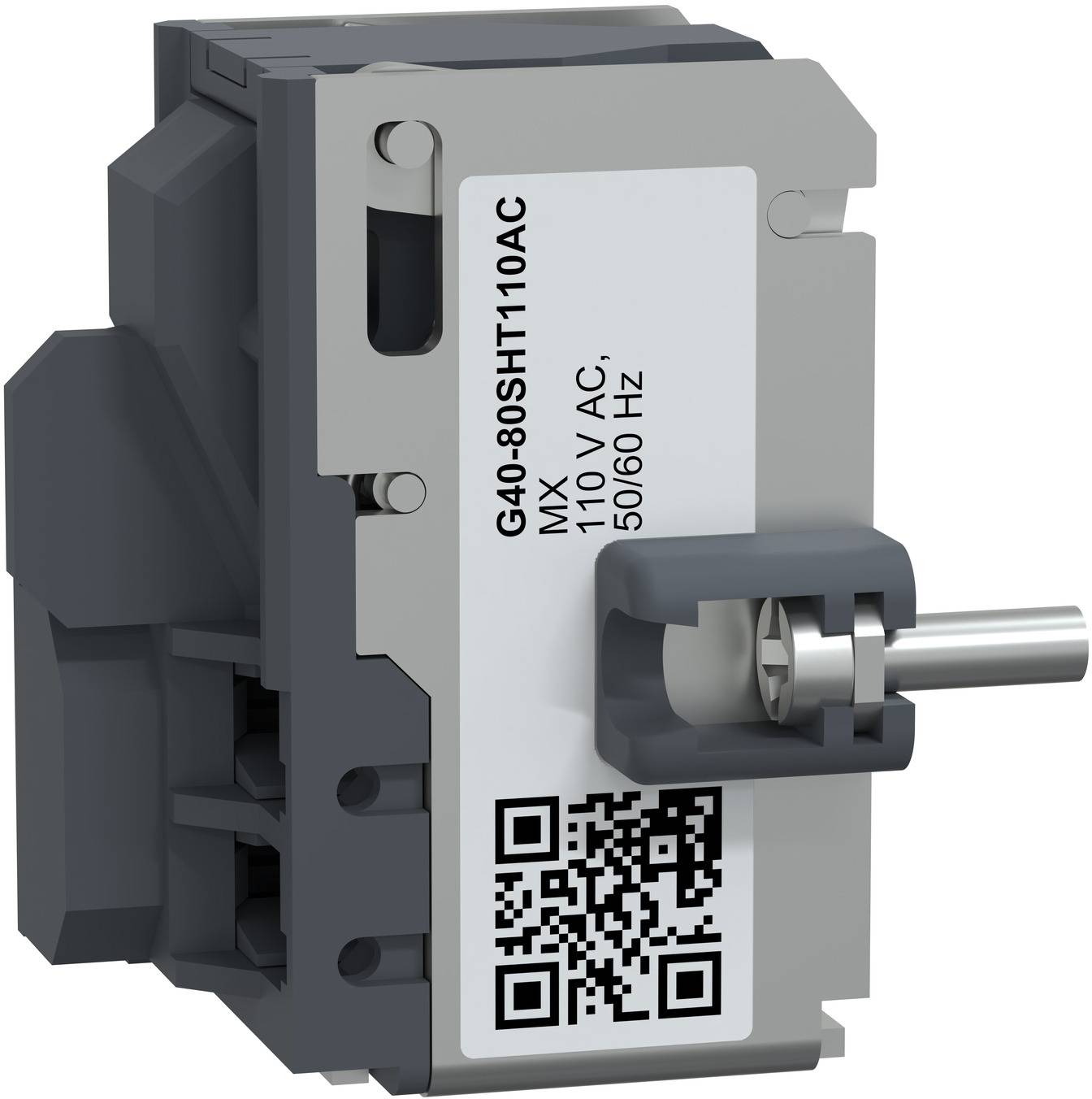

Industrial electrical relay module labeled 'G40-80SHT110AC, MX, 110 V AC, 50/60 Hz' with QR code and protruding shaft.<br>

Industrial electrical relay module labeled 'G40-80SHT110AC, MX, 110 V AC, 50/60 Hz' with QR code and protruding shaft.<br>

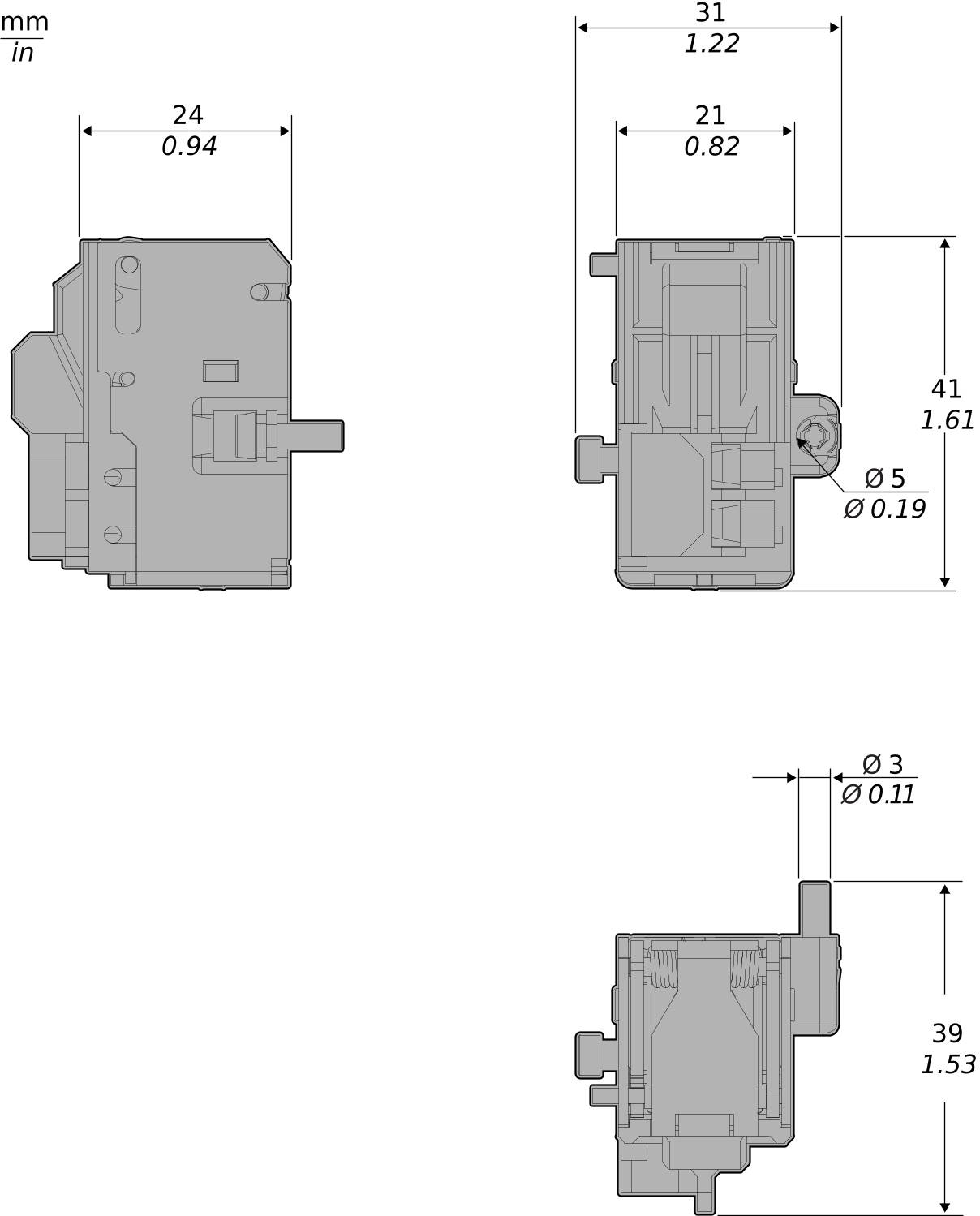

Technical dimensioned drawing of a small mechanical component shown in three views, with measurements in mm and in, including overall size and hole diameters.

1/2

Schneider Electric

Product type

Shunt trip release

Content

1 pc(s)

Type

G40-80SHT110AC

UKCA

not relevant

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 86.71 / piece)

€ 86.71

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of contacts as N/O contacts: 0
Number of contacts as changer: 0
Number of contacts as NC contacts: 0
Design of the electrical connection: Other
Rated control supply voltage AC 50 Hz: 110-110 V
Rated control supply voltage AC 60 Hz: 110-110 V
Suitable for load switch: Yes
Suitable for circuit breakers: Yes
Suitable for motor circuit breaker: No.
Suitable for overload relay: No.
Power consumption 5 W
Type of voltage for activation: AC

Product type: Shunt trip release

Content: 1 pc(s)

Type: G40-80SHT110AC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3754746 Schneider Electric G40-80SHT110AC G40-80SHT110AC Shunt trip release 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754746 Schneider Electric G40-80SHT110AC G40-80SHT110AC Shunt trip release 1 pc(s)

Description

This electrical auxiliary device is a working current release (MX) for the new EasyPact Solar MCCB 400 and 800. EasyCompact Solar MCCB offers good value for money for simple applications and provides reliable electrical protection for your applications. The rated operating voltage Un is 110VAC 50/60Hz. The MX trigger switches off the circuit breaker when its supply voltage is above 70% of its rated operating voltage. The maximum response time is 18 ms. The power consumption is 5.69VA at 110VAC 50/60Hz. The EasyCompact Solar MCCB 400 and EasyCompact Solar MCCB 800 are certified according to IEC 60947-1 and IEC 60947-2. The EasyPact Solar MCCB range benefits from the quality assurance of Schneider Electric.

This text is machine translated.

Description

This electrical auxiliary device is a working current release (MX) for the new EasyPact Solar MCCB 400 and 800. EasyCompact Solar MCCB offers good value for money for simple applications and provides reliable electrical protection for your applications. The rated operating voltage Un is 110VAC 50/60Hz. The MX trigger switches off the circuit breaker when its supply voltage is above 70% of its rated operating voltage. The maximum response time is 18 ms. The power consumption is 5.69VA at 110VAC 50/60Hz. The EasyCompact Solar MCCB 400 and EasyCompact Solar MCCB 800 are certified according to IEC 60947-1 and IEC 60947-2. The EasyPact Solar MCCB range benefits from the quality assurance of Schneider Electric.

This text is machine translated.
