Name: Schneider Electric LC1E160B5 Electrical contactor 3 makers 80 kW Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3755055
Availability: BackOrder

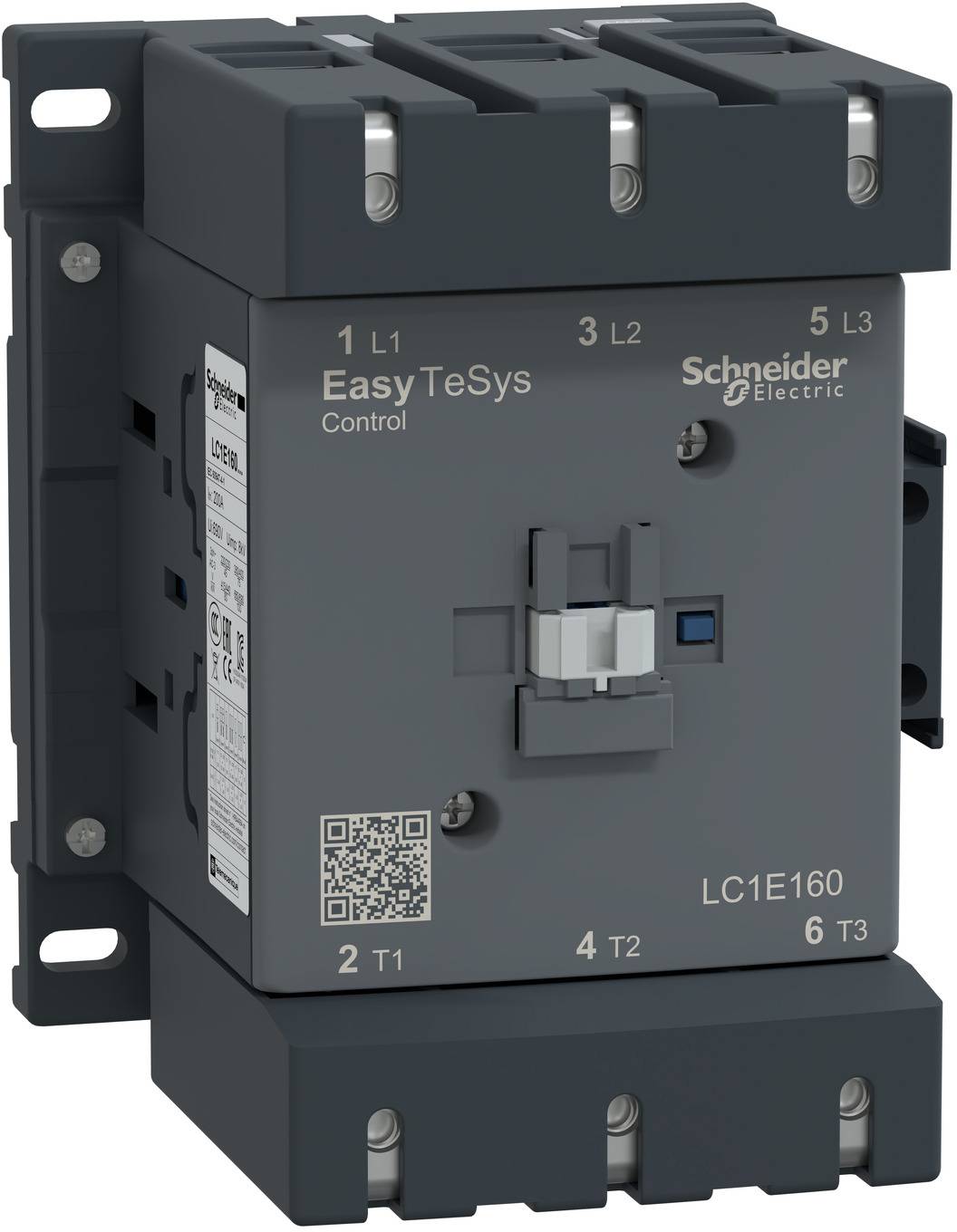

Schneider Electric Easy TeSys Control three-pole contactor, model LC1E160, with labeled terminals and QR code.

Product type

Electrical contactor

No. of pins

3-pin

Power

80 kW

Connection

Screw terminal

Packaging type

Piece

Datasheet (PDF)

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 705.00 / piece)

€ 705.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 75 kW
Rated operating current Ie at AC-1, 400 V:200 A.
Rated operating current Ie at AC-3, 400 V:160 A.
Rated control supply voltage AC 50 Hz: 24-24 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Piece

Product type: Electrical contactor

Type: LC1E160B5

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 160 A

: 80 kW

Connection: Screw terminal

Width: 120 mm

Height: 158 mm

Depth: 132 mm

Dim: (W x H x D) 120 x 158 x 132 mm

Content: 1 pc(s)

UKCA: not relevant
