Name: Schneider Electric LC1E160Q5 Electrical contactor 3 makers 80 kW + auxiliary contact Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3754962
Availability: BackOrder

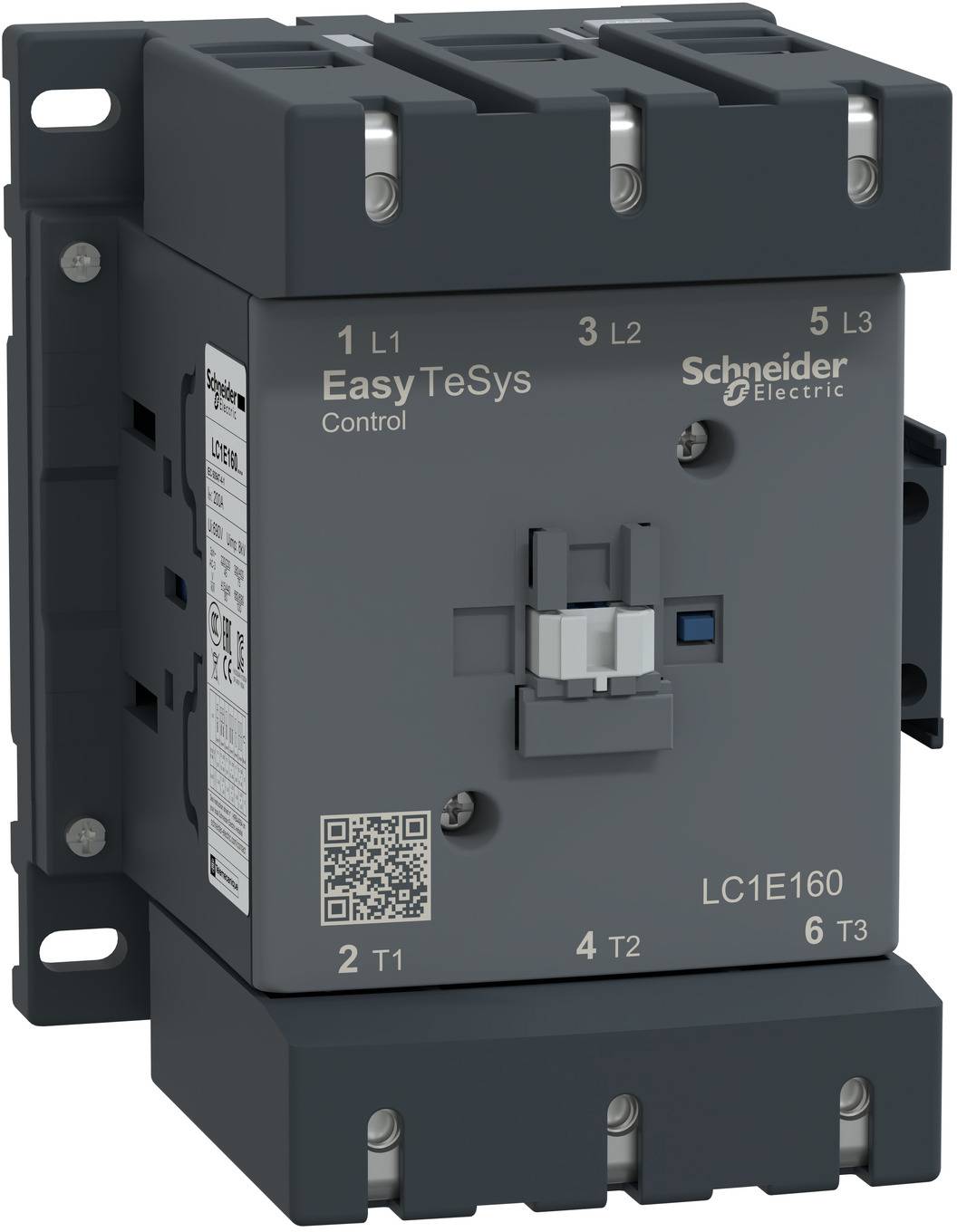

A Schneider Electric EasyTeSys Control contactor with three power terminals, shown front view on a white background.<br>

Product type

Electrical contactor

No. of pins

3-pin

Power

80 kW

Connection

Screw terminal

Packaging type

Piece

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 705.00 / piece)

€ 705.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 75 kW
Rated operating current Ie at AC-1, 400 V:200 A.
Rated operating current Ie at AC-3, 400 V:160 A.
Rated control supply voltage AC 50 Hz: 380-380 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Piece

Product type: Electrical contactor

Type: LC1E160Q5

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 maker

Control voltage (min.): 380 V AC

Control voltage (max.): 380 V AC

Control voltage range: 380 - 380 V AC

Switching voltage (min.): 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 200 A

: 80 kW

Features: + auxiliary contact

Connection: Screw terminal

Width: 120 mm

Height: 158 mm

Depth: 132 mm

Dim: (W x H x D) 120 x 158 x 132 mm

Content: 1 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

No. of pins

Packaging type

Power

Schneider Electric LC1E0601B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755153

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Piece

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601F5 Electrical contactor 3 makers 2200 W Single 1 pc(s)

Item no:3755155

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Single

2200 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755157

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Piece

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601M5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755160

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Piece

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601N5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755163

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Single

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601U5 Electrical contactor 1 breaker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755165

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Single

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755167

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Piece

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact 1 pc(s)

Item no:3755169

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610M5 Electrical contactor 1 maker 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755171

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Piece

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Schneider Electric LC1E0610M7 Electrical contactor 1 maker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755173

Dispatches on Wed 4 Nov

Conrad Electronic

3-pin

Single

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Documents & Downloads

Datasheet

Datasheet 3754962 Schneider Electric LC1E160Q5 Electrical contactor 3 makers 80 kW + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754962 Schneider Electric LC1E160Q5 Electrical contactor 3 makers 80 kW + auxiliary contact Piece 1 pc(s)

Description

Easy TeSys Control contactor 3-pin for motor applications up to 160A 80kW 440V. :IT offers a 380V 50Hz AC coil, 3NO built-in auxiliary contacts, power and control connections via screw terminals. 120mm width for standard operating rates up to 1200 cycles per hour. It provides standard reliability and long life with an electrical life of 0.8 MIO. Cycles AC-3 and a mechanical life of 4 MIO. Cycles. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
