Name: Schneider Electric LC1E200Q5 Electrical contactor 3 makers 90 kW Single 1 pc(s)
Brand: Schneider Electric
SKU: 3756719
Availability: BackOrder

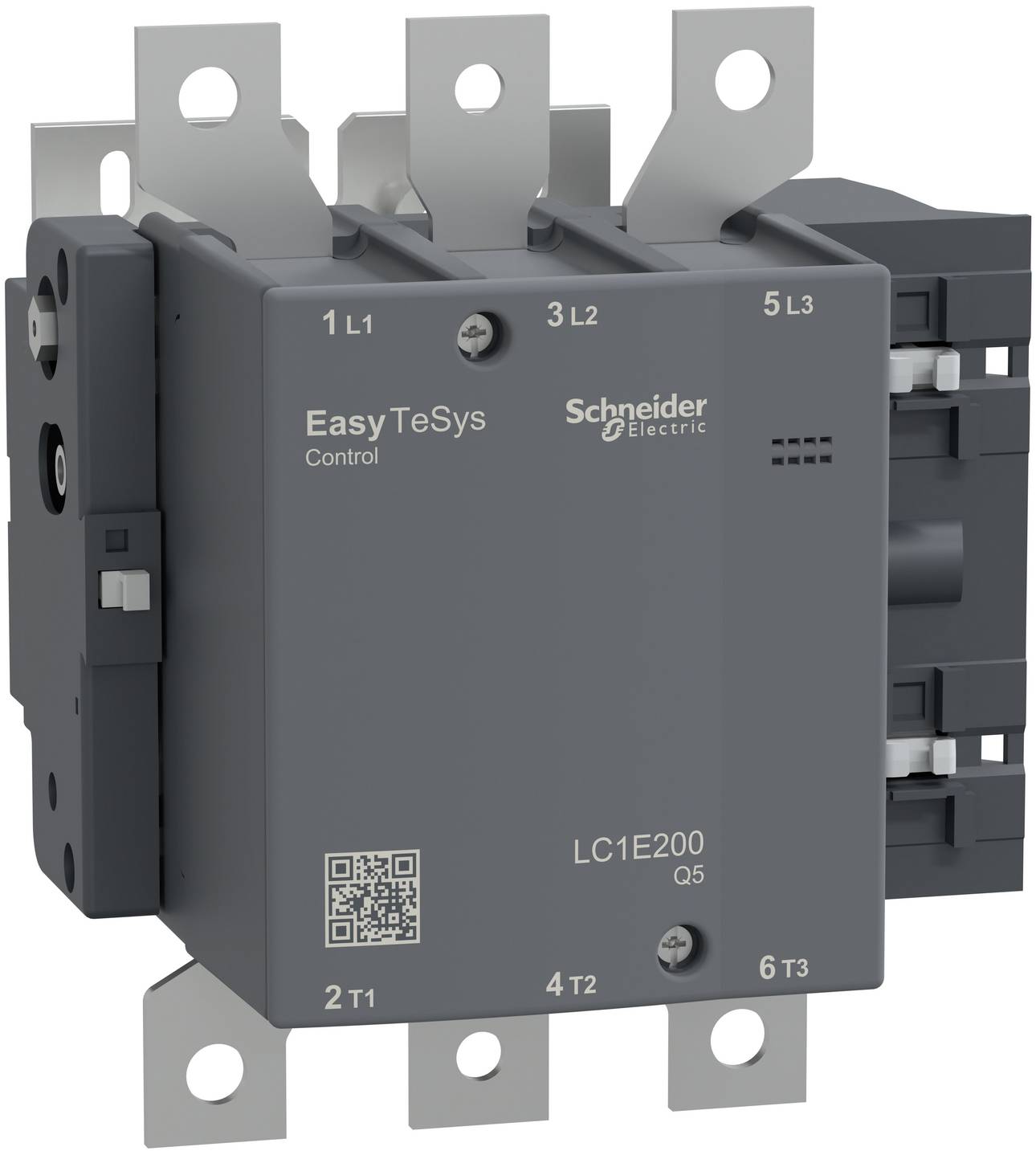

Schneider Electric EasyTeSys Control contactor with three top and bottom terminals, shown front view on a white background.

Product type

Electrical contactor

No. of pins

3-pin

Power

90 kW

Packaging type

Single

Type

LC1E200Q5

Datasheet (PDF)

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 945.00 / piece)

€ 945.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 90 kW
Rated operating current Ie at AC-1, 400 V:250 A.
Rated operating current Ie at AC-3, 400 V:200 A.
Rated control supply voltage AC 50 Hz: 380-380 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Single

Product type: Electrical contactor

Type: LC1E200Q5

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 380 V AC

Control voltage (max.): 380 V AC

Control voltage range: 380 - 380 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 200 A

: 90 kW

Mounting type: DIN rail

Min. temperature: -5 °C

Max. temperature: 55 °C

Width: 168.5 mm

Height: 174 mm

Depth: 181 mm

Dim: (W x H x D) 168.5 x 174 x 181 mm

Content: 1 pc(s)

UKCA: not relevant
