Name: Schneider Electric LC1E2501B5 Electrical contactor 3 makers 11 kW + auxiliary contact Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3754965
Availability: BackOrder

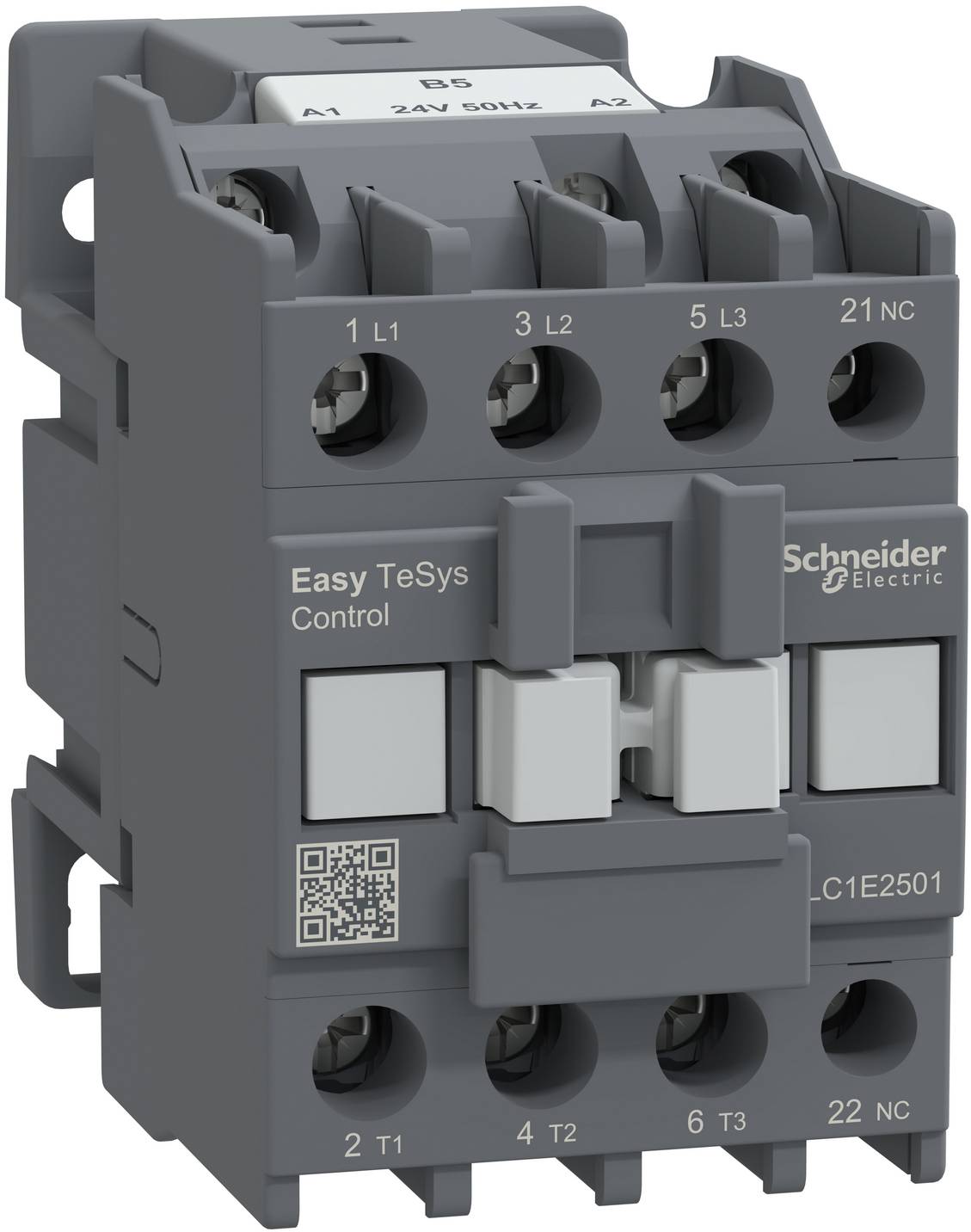

Schneider Electric Easy TeSys Control contactor, a gray industrial electrical switch with labeled terminals and QR code.<br>

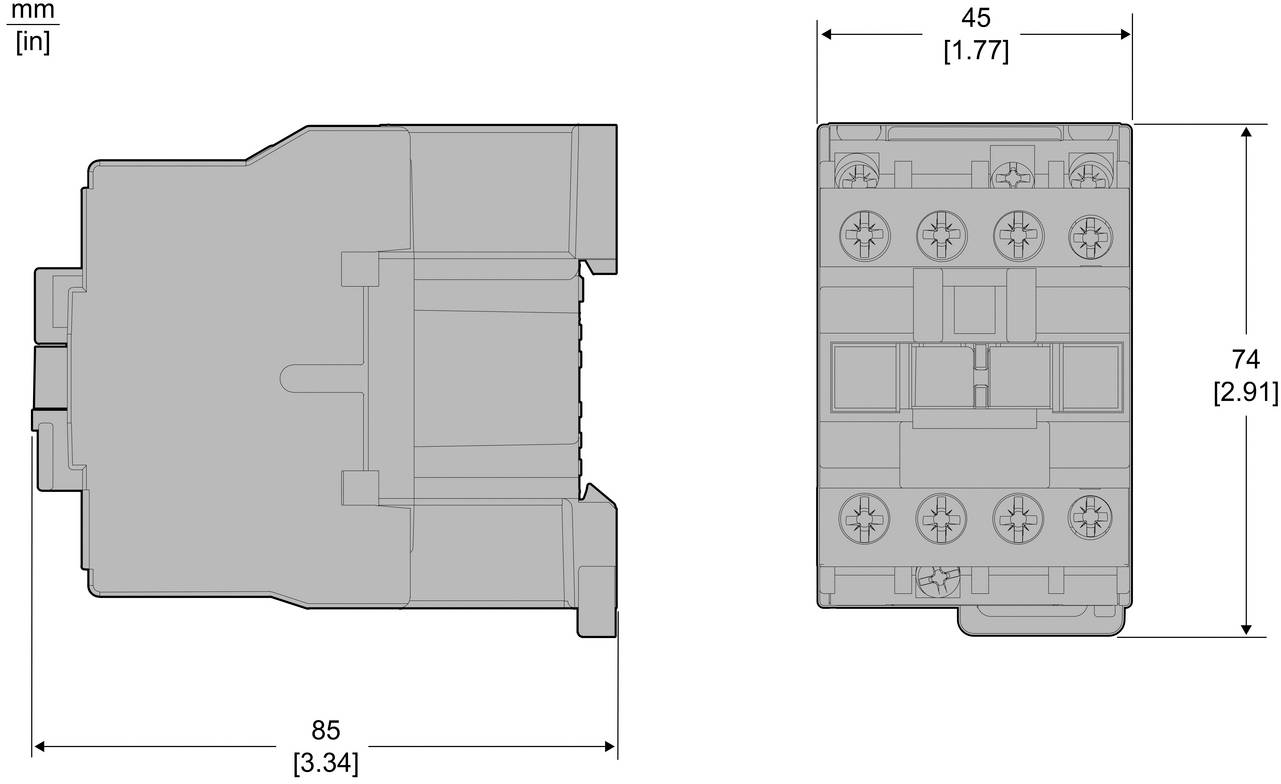

Technical dimension drawing of a rectangular electrical module, showing front and side views with overall size 85 mm by 74 mm and width 45 mm.

1/2

Product type

Electrical contactor

No. of pins

3-pin

Power

11 kW

Connection

Screw terminal

Packaging type

Piece

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 87.99 / piece)

€ 87.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 0
Number of auxiliary contacts as NC contacts: 1
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 11 kW
Rated operating current Ie at AC-1, 400 V:36 A.
Rated operating current Ie at AC-3, 400 V:25 A.
Rated control supply voltage AC 50 Hz: 24-24 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Piece

Product type: Electrical contactor

Type: LC1E2501B5

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 breaker

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Switching voltage (min.): 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 36 A

: 11 kW

Features: + auxiliary contact

Mounting type: DIN rail

Connection: Screw terminal

Min. temperature: -5 °C

Max. temperature: 55 °C

Width: 45 mm

Height: 74 mm

Depth: 85 mm

Dim: (W x H x D) 45 x 74 x 85 mm

Content: 1 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

No. of pins

Power

Packaging type

Schneider Electric LC1E0601B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755153

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601F5 Electrical contactor 3 makers 2200 W Single 1 pc(s)

Item no:3755155

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2200 W

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755157

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601M5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755160

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601N5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755163

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601U5 Electrical contactor 1 breaker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755165

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755167

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact 1 pc(s)

Item no:3755169

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610M5 Electrical contactor 1 maker 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755171

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Schneider Electric LC1E0610M7 Electrical contactor 1 maker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755173

Dispatches on Wed 11 Nov

Conrad Electronic

3-pin

2.2 kW

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Documents & Downloads

Datasheet

Datasheet 3754965 Schneider Electric LC1E2501B5 Electrical contactor 3 makers 11 kW + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754965 Schneider Electric LC1E2501B5 Electrical contactor 3 makers 11 kW + auxiliary contact Piece 1 pc(s)

Description

Easy TeSys Control contactor 3-pin for motor applications up to 25A 11 kW 440V. It offers a 24 V 50 Hz AC coil, 1NC built-in auxiliary contacts, power and control connections through screw terminals. 45.5mm width for standard operating rates up to 1800 cycles per hour. It offers standard reliability and long life with 1.2 MIO. Cycles of electrical life AC-3 and 10 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
