Name: Schneider Electric LC1E250N5 Electrical contactor 3 makers 132 kW Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3755086
Availability: BackOrder

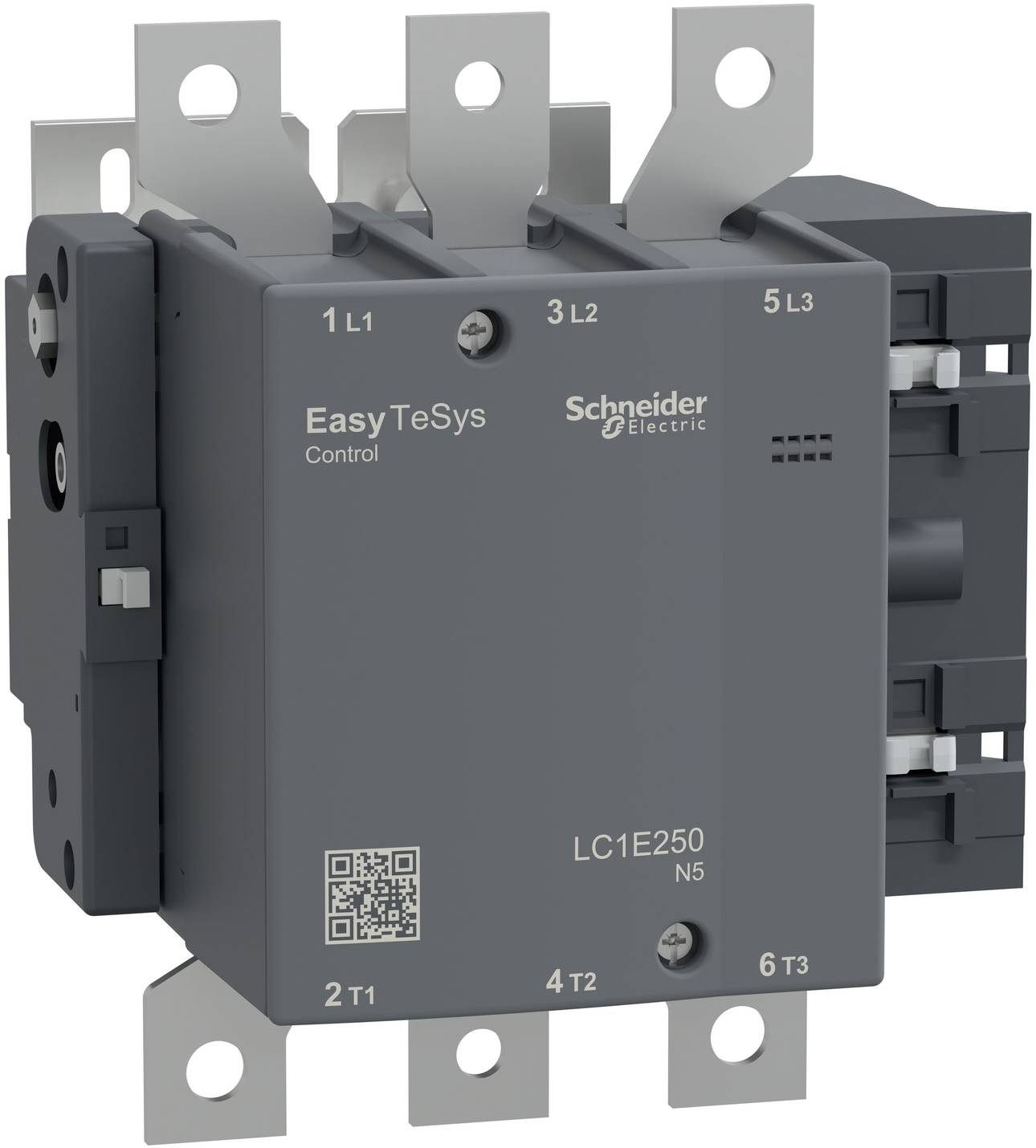

Schneider Electric EasyTeSys Control LC1E250 N5 contactor with three top terminals and three bottom terminals, shown on a white background.

Product type

Electrical contactor

No. of pins

3-pin

Power

132 kW

Connection

Bolt fixings

Packaging type

Piece

Datasheet (PDF)

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,189.00 / piece)

€ 1,189.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Bolt connection
Number of auxiliary contacts as NO contacts: 0
Number of auxiliary contacts as NC contacts: 0
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 132 kW
Rated operating current Ie at AC-1, 400 V:300 A.
Rated operating current Ie at AC-3, 400 V:250 A.
Rated control supply voltage AC 50 Hz: 415-415 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Piece

Product type: Electrical contactor

Type: LC1E250N5

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 415 V AC

Control voltage (max.): 415 V AC

Control voltage range: 415 - 415 V AC

Switching voltage (min.): 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 300 A

: 132 kW

Mounting type: DIN rail

Connection: Bolt fixings

Min. temperature: -5 °C

Max. temperature: 55 °C

Width: 168.5 mm

Height: 197 mm

Depth: 181 mm

Dim: (W x H x D) 168.5 x 197 x 181 mm

Content: 1 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Power

No. of pins

Packaging type

Schneider Electric LC1E0601B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755153

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601F5 Electrical contactor 3 makers 2200 W Single 1 pc(s)

Item no:3755155

Dispatches on Wed 4 Nov

Conrad Electronic

2200 W

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755157

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601M5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755160

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601N5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755163

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601U5 Electrical contactor 1 breaker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755165

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755167

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact 1 pc(s)

Item no:3755169

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610M5 Electrical contactor 1 maker 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755171

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Schneider Electric LC1E0610M7 Electrical contactor 1 maker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755173

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Documents & Downloads

Datasheet

Datasheet 3755086 Schneider Electric LC1E250N5 Electrical contactor 3 makers 132 kW Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3755086 Schneider Electric LC1E250N5 Electrical contactor 3 makers 132 kW Piece 1 pc(s)

Description

Easy TeSys Control contactor 3-pin for motor applications up to 250A 140kW 440V. It offers a 415V 50Hz AC coil, without built-in auxiliary contacts, power and control connections through screw terminals. 168.5mm width for standard operating rates up to 1200 cycles per hour. It provides standard reliability and long life with an electrical life of 0.7 MIO. Cycles AC-3 and a mechanical life of 5 MIO. Cycles. It can be used at operating temperatures from -5°C to 55°C and can be mounted on DIN rails, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.

This text is machine translated.
