Name: Schneider Electric LC1E50B5 Electrical contactor 3 makers 30 kW Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3755020
Availability: BackOrder

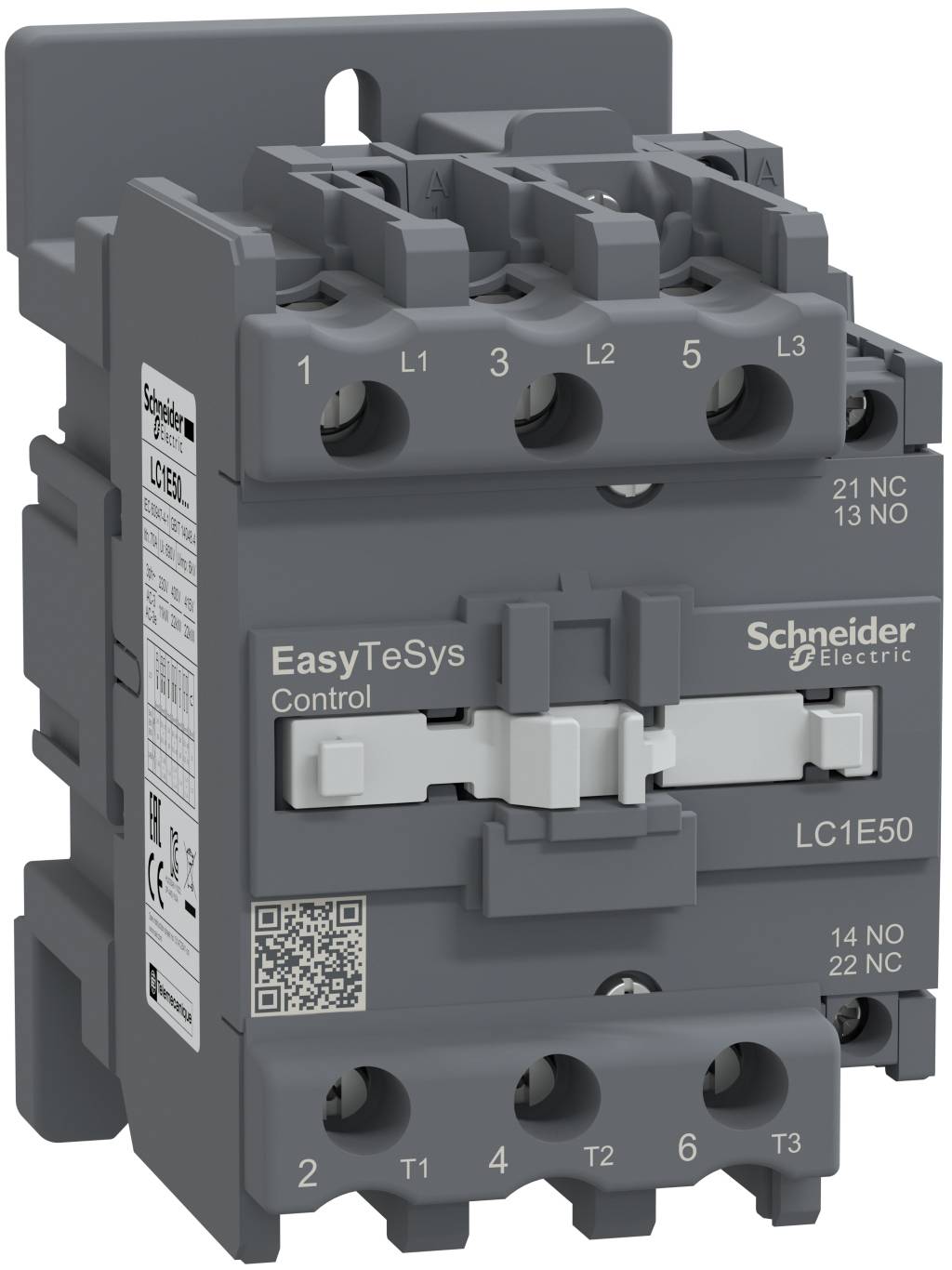

Schneider Electric EasyTeSys Control contactor, a gray electrical switching device with labeled terminals and QR code.

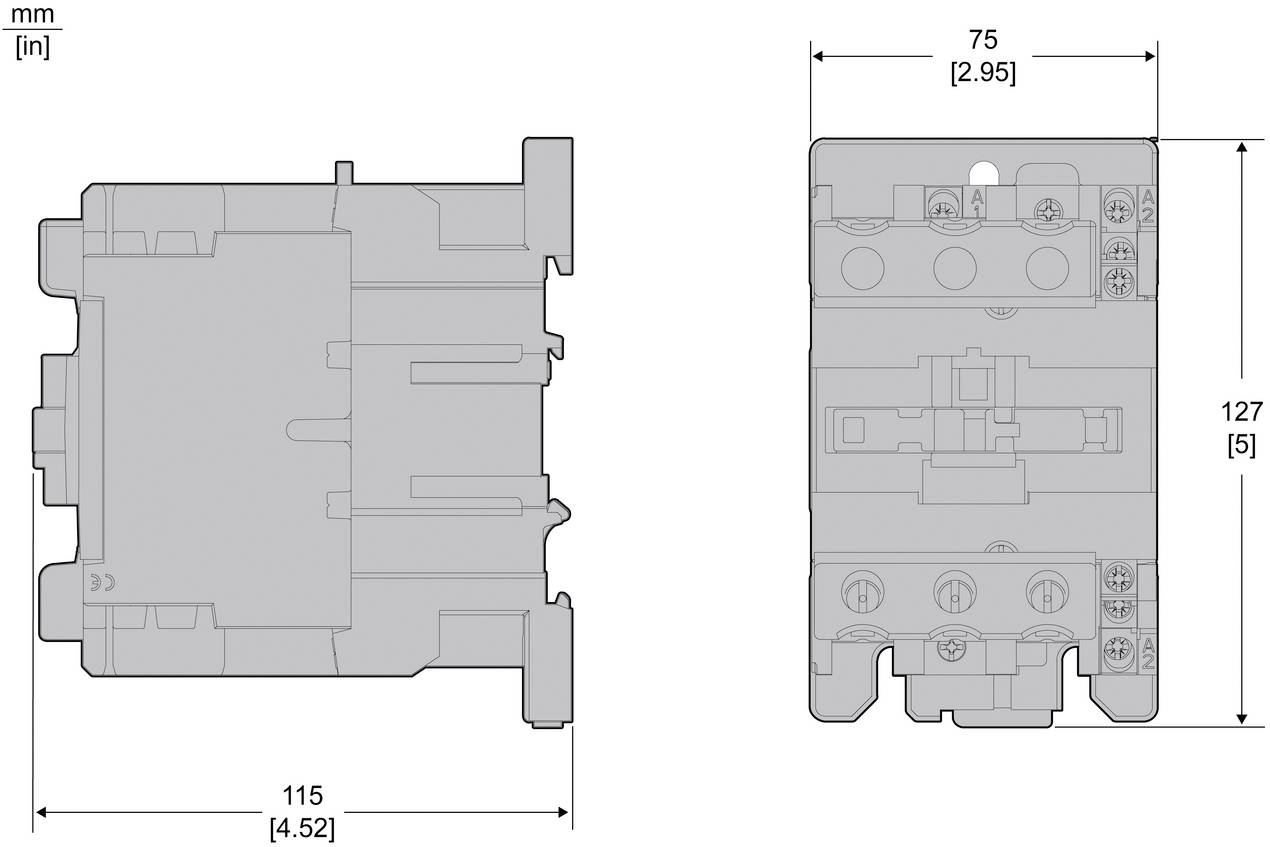

Technical drawing of an electrical component showing side and front views with dimensions: 115 mm wide, 127 mm tall, 75 mm deep.

1/2

Product type

Electrical contactor

No. of pins

3-pin

Power

30 kW

Packaging type

Piece

Type

LC1E50B5

Datasheet (PDF)

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as NC contacts: 1
Number of NO contacts as main contacts: 3
Number of NC contacts as main contacts: 0
Rated operating power at AC-3, 400 V: 22 kW
Rated operating current Ie at AC-1, 400 V:70 A.
Rated operating current Ie at AC-3, 400 V:50 A.
Rated control supply voltage AC 50 Hz: 24-24 V
Operating voltage AC 50 Hz: 690-690 V
Operating voltage AC 60 Hz: 690-690 V
Suitable for series installation: No.
Type of voltage for activation: AC

Packaging type: Piece

Product type: Electrical contactor

Type: LC1E50B5

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 70 A

: 30 kW

Mounting type: DIN rail

Min. temperature: -5 °C

Max. temperature: 55 °C

Width: 75 mm

Height: 127 mm

Depth: 114 mm

Dim: (W x H x D) 75 x 127 x 114 mm

Content: 1 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Power

No. of pins

Packaging type

Schneider Electric LC1E0601B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755153

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601F5 Electrical contactor 3 makers 2200 W Single 1 pc(s)

Item no:3755155

Dispatches on Wed 4 Nov

Conrad Electronic

2200 W

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755157

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1E0601M5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755160

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601N5 Electrical contactor 3 makers 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755163

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0601U5 Electrical contactor 1 breaker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755165

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610B7 Electrical contactor 3 makers 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755167

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610F7 Electrical contactor 3 makers 2.2 kW + auxiliary contact 1 pc(s)

Item no:3755169

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Schneider Electric LC1E0610M5 Electrical contactor 1 maker 2.2 kW + auxiliary contact Piece 1 pc(s)

Item no:3755171

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Schneider Electric LC1E0610M7 Electrical contactor 1 maker 2.2 kW + auxiliary contact Single 1 pc(s)

Item no:3755173

Dispatches on Wed 4 Nov

Conrad Electronic

2.2 kW

3-pin

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Documents & Downloads

Datasheet

Datasheet 3755020 Schneider Electric LC1E50B5 Electrical contactor 3 makers 30 kW Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3755020 Schneider Electric LC1E50B5 Electrical contactor 3 makers 30 kW Piece 1 pc(s)

Description

Easy TeSys Control contactor 3-pin for motor applications up to 50A 30 kW 440V. It offers a 24 V 50 Hz AC coil, without integrated auxiliary contacts, power and control connections through screw terminals. 75mm width for standard operating rates up to 1200 cycles per hour. It offers standard reliability and long life with 0.9 MIO. Cycles of electrical life AC-3 and 5 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.

This text is machine translated.
