Name: Schneider Electric SSR SSP1A4125BDT 125 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
Brand: Schneider Electric
SKU: 2923775
Availability: BackOrder

A solid-state relay from Schneider Electric, rectangular, with four screw mountings and a central connection area.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

660 V AC

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: SSR

Type: SSP1A4125BDT

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 48 V AC

Switching voltage (max.): 660 V AC

Current load (max.): 125 A

Output voltage (min.): 48 V AC

Output voltage (max.): 660 V AC

Max. output current: 125 A

Width: 45 mm

Height: 59 mm

Depth: 35 mm

Content: 1 pc(s)

: 1

: FALSE

: 125 A

: 125 A

: AC/DC

: 125 A

: 125 A

: 125 A

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2923775 Schneider Electric SSR SSP1A4125BDT 125 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2923775 Schneider Electric SSR SSP1A4125BDT 125 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

Information

Information 2923775 Schneider Electric SSR SSP1A4125BDT 125 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)

What kind of Solid State Relays are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Schneider Electric SSRHP05 SSRHP05 Accessories set + thread 1 pc(s) Piece

Conrad Electronic

€ 77.99^*

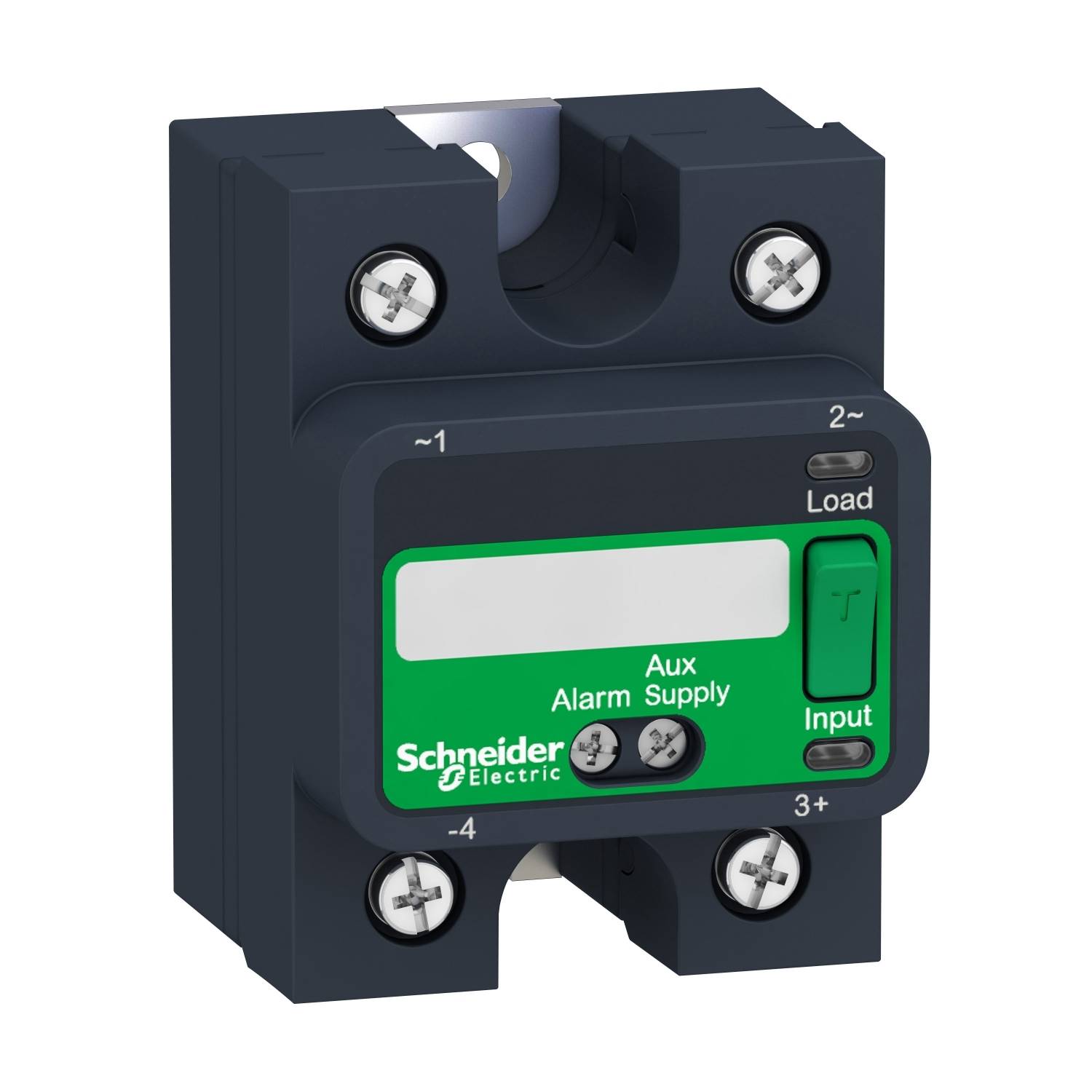

Schneider Electric SSR SSP1A4125BDS 125 A Switching voltage (max.): 300 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 134.99^*

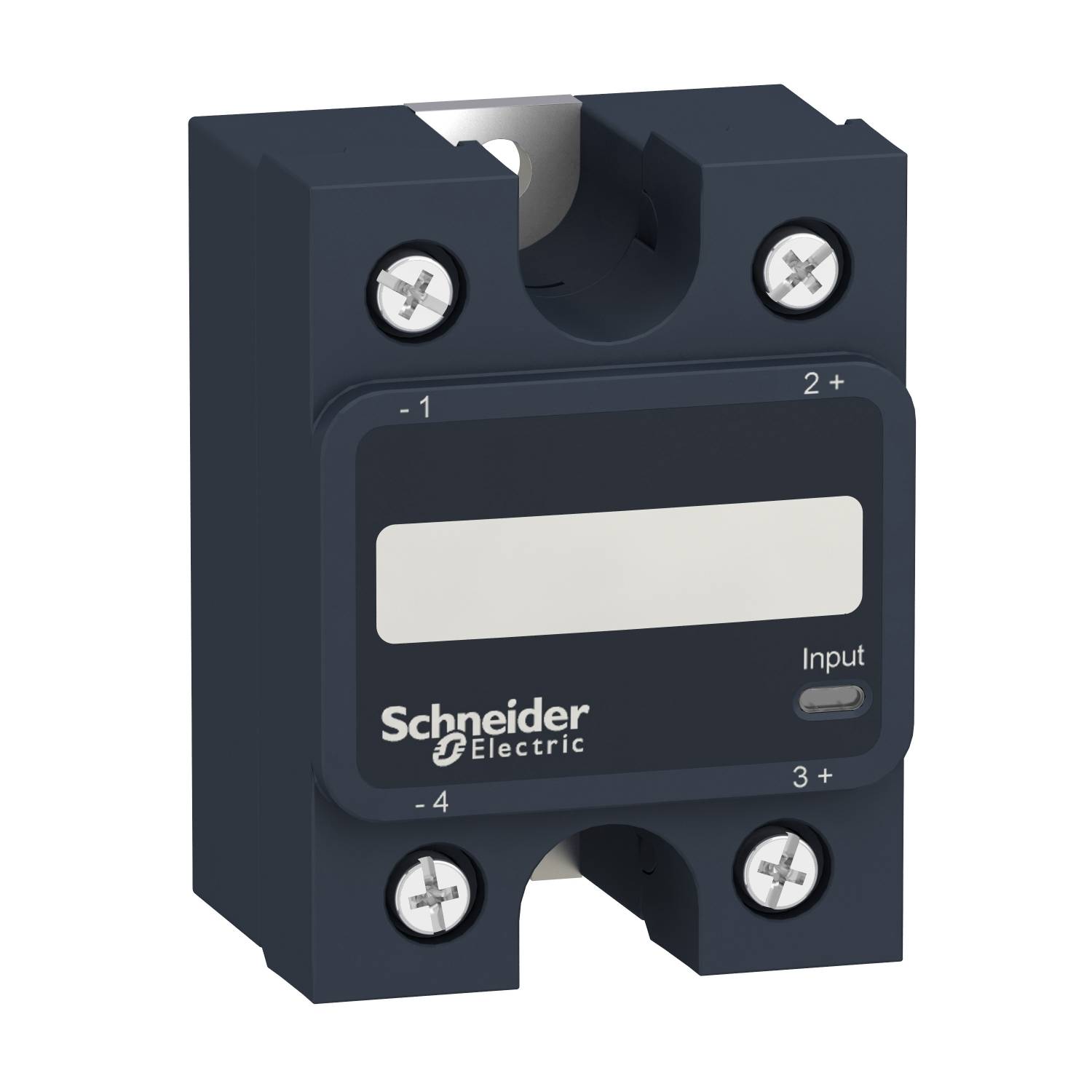

Schneider Electric SSR SSP1A4125M7T 125 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
