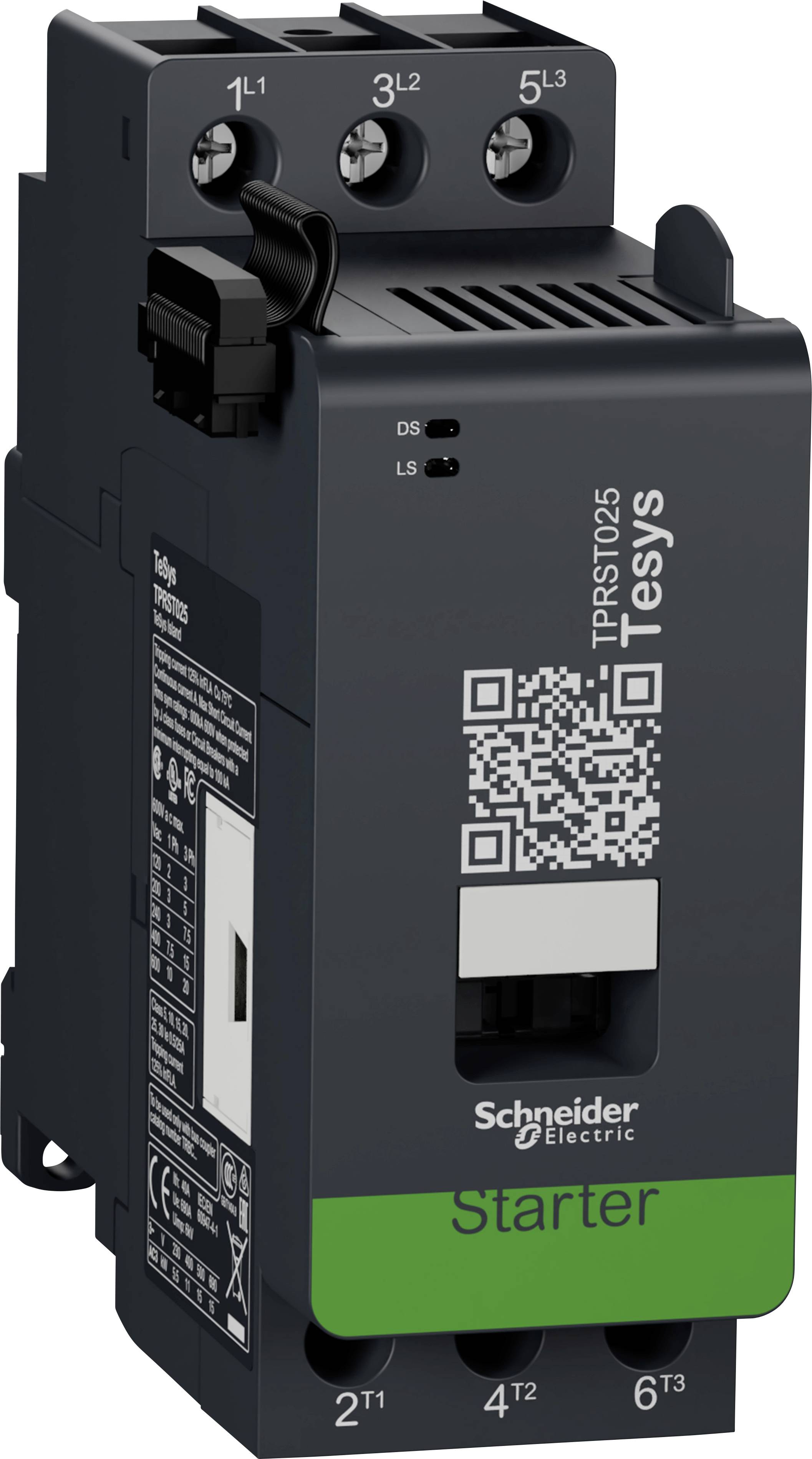

Schneider Electric TeSys-island TPRST025 Power base 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 199.99 / piece)
€ 199.99
incl. VAT
14-day return policy included
Highlights & Details
Direct starter 25 A 11 kW, TeSys island standard load outlet
- Digital multifunctional load management solution up to 80A
Technical specifications
- Function available: Detection of the voltage applied
- Electrical line and load protection Power and energy monitoring when connected to the TPRVM voltage module
- Product compatibility: TPRBC Bus Coupler
- TPRVM voltage interface module
- Motor power (kW): 5.5 kW at 230 V 50 Hz (AC-3
- 11 KW at 380-415 V 50 Hz (AC-3)
- 11 KW at 440 V 50 Hz (AC-3)
- 15 KW at 500 V 50 Hz (AC-3)
- 15 kW at 690 V 50 Hz (AC-3)
- Rated operating voltage UE: <=480 V AC 47–63 Hz
- <= 690 V AC 47–63 Hz
- Rated operating current IE 25 A 50 °C) at <= 440 V AC-3
- 30 A 50 °C) AT <= 440 V AC-1
- More conventional
- Thermal current in free air (Ith): 30 A at < 50 °C.
- Adjustment range for therm. Protection 0.5…25 A.
- PRODUCT CERTIFICATIONS: EAC; CSA; CCC; UL
- Terminals - Terminals: Terminals with screw terminals 1.5 - 6 mm² (AWG 16-AWG 8)
- Product type
Power base
- Operating voltage
24 V DC
- Current consumption
160 mA
- Type
TeSys-island
- Display
No
- Manufacturer part #
TPRST025
- Dim
(W x D) 45 mm x 115 mm
- Max. permanent current
25 A
- Extensible
Yes
- Fitting type (details)
Top-hat rail
- Width
45 mm
- Depth
115 mm
IP20
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2362638 Schneider Electric TeSys-island TPRST025 Power base 24 V DC
Description
TeSys island is an innovative load management solution that makes machines smarter and more reliable while reducing time-to-market so OEMs can move forward in their Industry 4.0 journey. TeSys island is designed to switch, protect and manage motors and other electrical consumers up to 80 Ampere (AC3) in an electrical cabinet. TeSys island's digital approach was designed to simplify application selection and system configuration, and reduce engineering overhead, enabling faster machine installation. TeSys island provides the user with access to device-related data for system diagnostics. In addition, TeSys island can be easily integrated into third-party automation systems and supports all major field buses.
· The system manages motors and other electrical consumers up to 80A/37kW/50PS.
· up to 20 modules / 1 meter at one Bus coupler
· One-click mounting on DIN rail and no control wiring required
· No additional wiring required, thanks to internal AUX bus
· No mechanical settings / settings required
· Digital & Analogue I/OS available
· International conforming to standards
· Only 21 commercial references for the entire system, including 5 standard motor starters and 5 functional safety motor starters.
· Power monitoring at load level
· Integrated Cybersecurity in the system (Achilles Level 2 & Safety to cat 4)Safety Stop TUV certified (Stop 0 and 1 with wiring categories 1 to 3, suitable for PLE (Performance Level) and SIL Level 3) open connectivity through Ethernet IP and Modbus TCP field buses
Uses:
Optimized and powerful machines installed in:
· Packaging
· Material transport
· Food & enjoyment
· Material processing
· Optimized and powerful machines installed in:
· Small pumps: Especially in the food & pleasure, manufacturing and logistics segments
This text is machine translated.
System requirements
- Direct start device connected to an automation controller via a bus coupler. Only functional if connected to a Com Unit.
