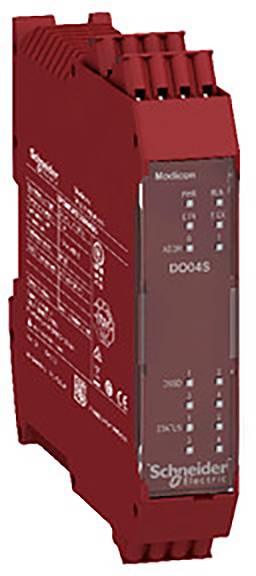

Schneider Electric XPSMCMDO0004SG XPSMCMDO0004SG Expansion

With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module has 4 safe digital semiconductor outputs for PL e or SIL3, each individually controllable. These outputs are designed for switching loads of up to 400 mA. In addition, 4 status outputs are available, which can also be used as safety outputs up to PL c or SIL1. For connection to the internal bus, the required rear-wall bus connector is included in the package. The module has removable spring terminals. This module can only be used with the CPU version 2 or higher. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
