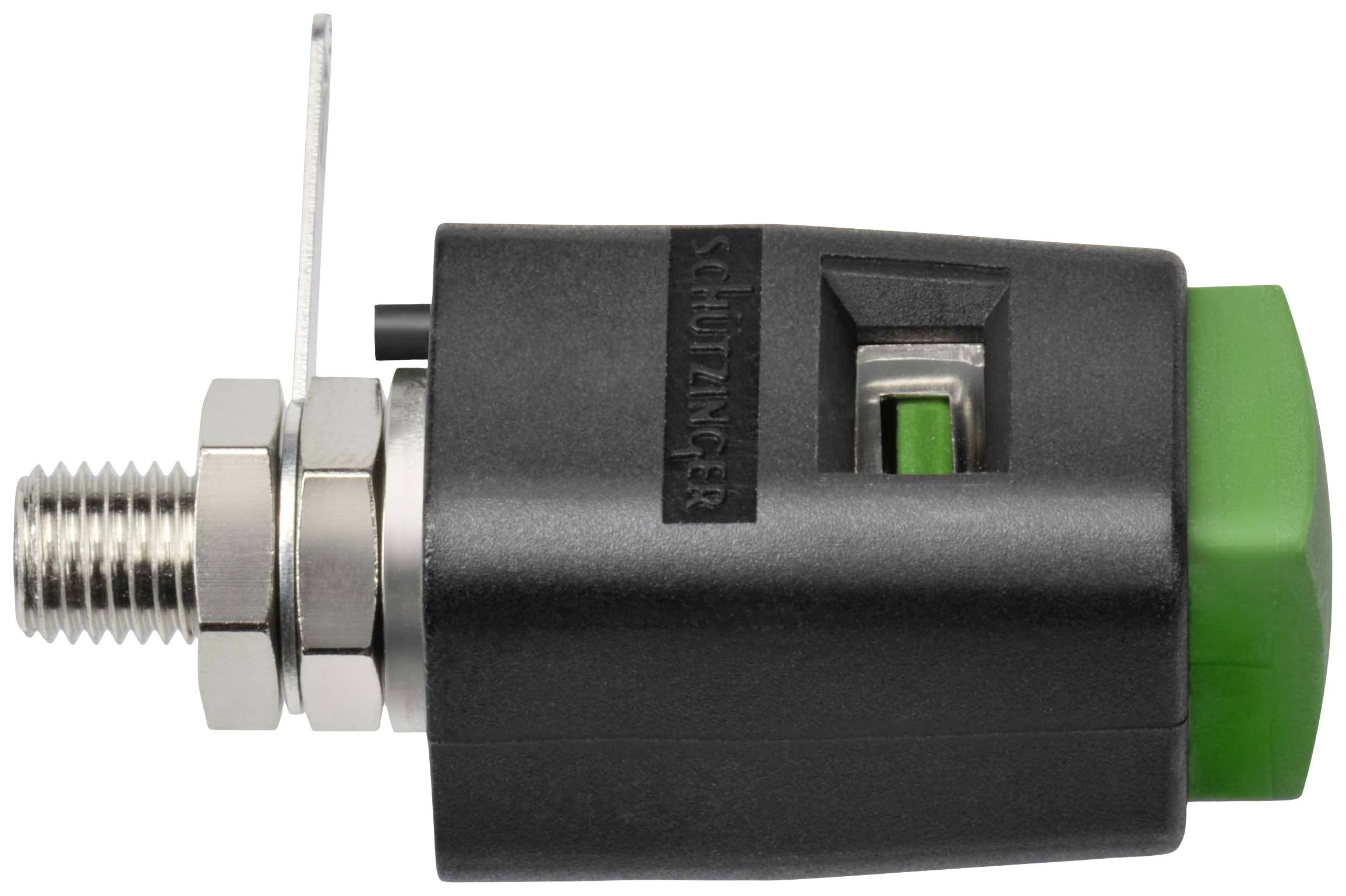

Schützinger Safety quick-fit terminal Green 16 A 1 pc(s) Piece
Packaging type
Piece
Product type
Safety quick-fit terminal
Connection
Solder tag
Ring terminal
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.49 / piece)
€ 5.49
incl. VAT
Only 7 Piece(s) available
Highlights & Details
Safety quick-release clips SDK 504 / GN
- Green
- 16 A
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- Insulation parts PA 6.6 (polyamide)
- Front panel thickness 0.8 mm - 5 mm
- Front insertion window 6.5 mm x 4 mm
- Rear insertion window 8.0 mm x 4 mm
- Pressure spring force 20 N
- Colour: green.
- Connection: Soldering lug or cable lug
- Constant resistance 4) 5 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 16 A.
- Operating temperature from - 25 °C to + 90 °C.
- Tightening torque of fixing nut 120 Ncm
- Packaging type
Piece
- Product type
Safety quick-fit terminal
- Connection
Solder tag
Ring terminal
- Factory colour
Green
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Manufacturer part #
SDK 504 / GN
- Type
SDK 504 / GN
- Insulation material
PA 6.6
- Nominal voltage
30 V AC
60 V DC
- Temperature range
From - 25 °C to + 90 °C
- Contact material
Nickel plated
- UKCA
yes
