Buy Schützinger SDK 801 / SW Safety quick-fit terminal Black 16 A 1 pc(s) Piece

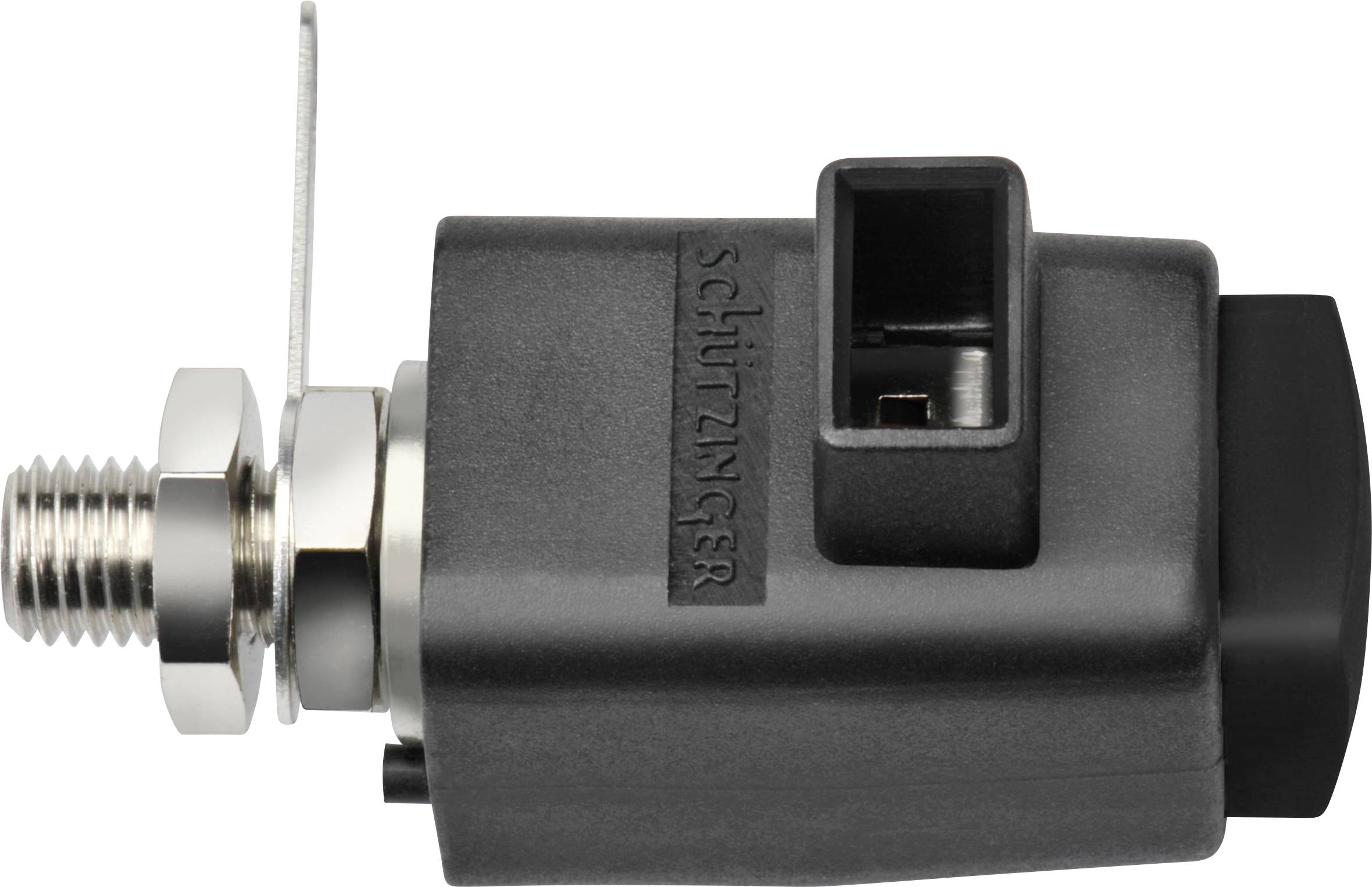

A black socket connector from Schützinger with metal threading and mounting plate, side view. Suitable for specialised electronic applications.

Image similar

Packaging type

Piece

Nominal current - rounded value

16 A

Content

1 pc(s)

Connection

Soldering

Jack connector

Product type

Safety quick-fit terminal

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

49 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Report legal concerns

Highlights & Details

Black
16 A

Our service for you

Technical specifications

Contact parts: Nickel-plated
Terminal: Solder lug or cable lug
Spring force 20.0
Contact resistance: 5 mΩ
Maximum torque fixing nut, Ncm: 120 Ncm
Plate thickness of 0.8 mm
Panel thickness up to 5 mm
Operating temperature: -25 °C.
Operating temperature up to +90 °C.

Packaging type: Piece

Nominal current: 16 A

Nominal current - rounded value: 16 A

Manufacturer part #: SDK 801 / SW

Type: SDK 801 / SW

Content: 1 pc(s)

Factory colour: Black

Connection: Soldering
Jack connector

Material (details): PA 6.6

Nominal voltage: 300 V

RoHS-compliant: Yes

Product type: Safety quick-fit terminal

Documents & Downloads

Datasheet

Datasheet 2358183 Schützinger SDK 801 / SW Safety quick-fit terminal Black 16 A 1 pc(s) Piece
