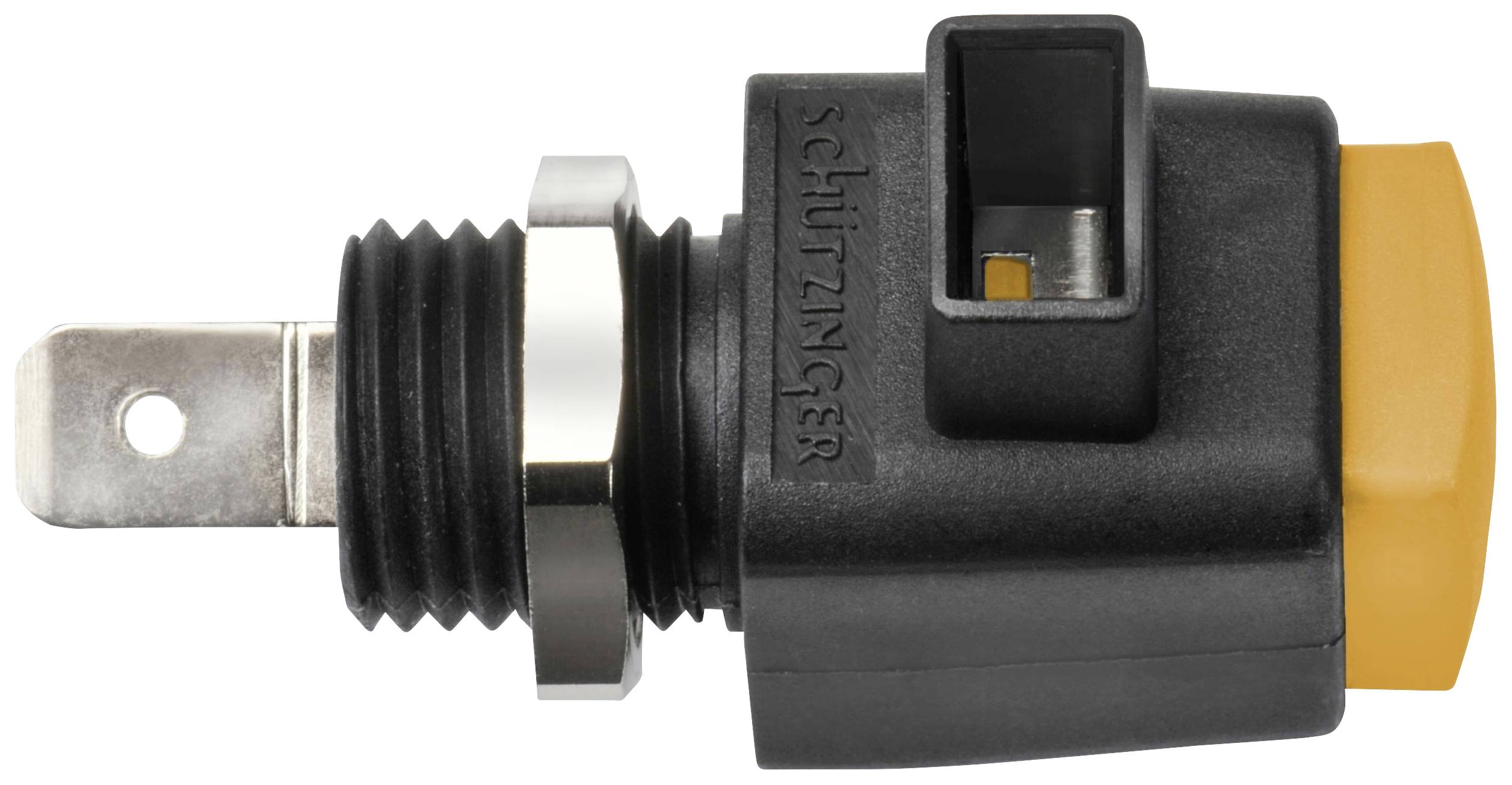

Schützinger Spring-loaded terminal Orange 16 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Nominal current - rounded value
16 A
Content
1 pc(s)
Connection
CEE 7/16 CEE plug
Product type
Spring-loaded terminal
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Highlights & Details
Rapid-pressure terminal ESD 798 / OR
- Orange
- 16 A
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- Insulation parts PA 6.6 (polyamide)
- Front panel thickness 0.8 mm - 7 mm
- Plug-in window 8 mm x 4 mm
- Spade connector 6.3 mm x 0.8 mm
- Grip sleeves 20 N
- Colour orange.
- Connection: FSH 6.3 x 0.8 or soldering
- Constant resistance 4) 5 mΩ
- Dimensioning voltage 2) 300 V CAT II.
- Rated current2) 16 A.
- Operating temperature from - 25 °C to + 90 °C.
- Tightening torque of fixing nut 45 Ncm
- Packaging type
Piece
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Dim
(Ø) 4 mm
- Manufacturer part #
ESD 798 / OR
- Type
ESD 798 / OR
- Content
1 pc(s)
- Factory colour
Orange
- (Ø)
4 mm
- Connection
CEE 7/16 CEE plug
- Nominal voltage
300 V
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Temperature range
From - 25 °C to + 90 °C
- Product type
Spring-loaded terminal
Documents & Downloads
Datasheet
Datasheet 2899673 Schützinger Spring-loaded terminal Orange 16 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2899673 Schützinger Spring-loaded terminal Orange 16 A 1 pc(s) Piece
