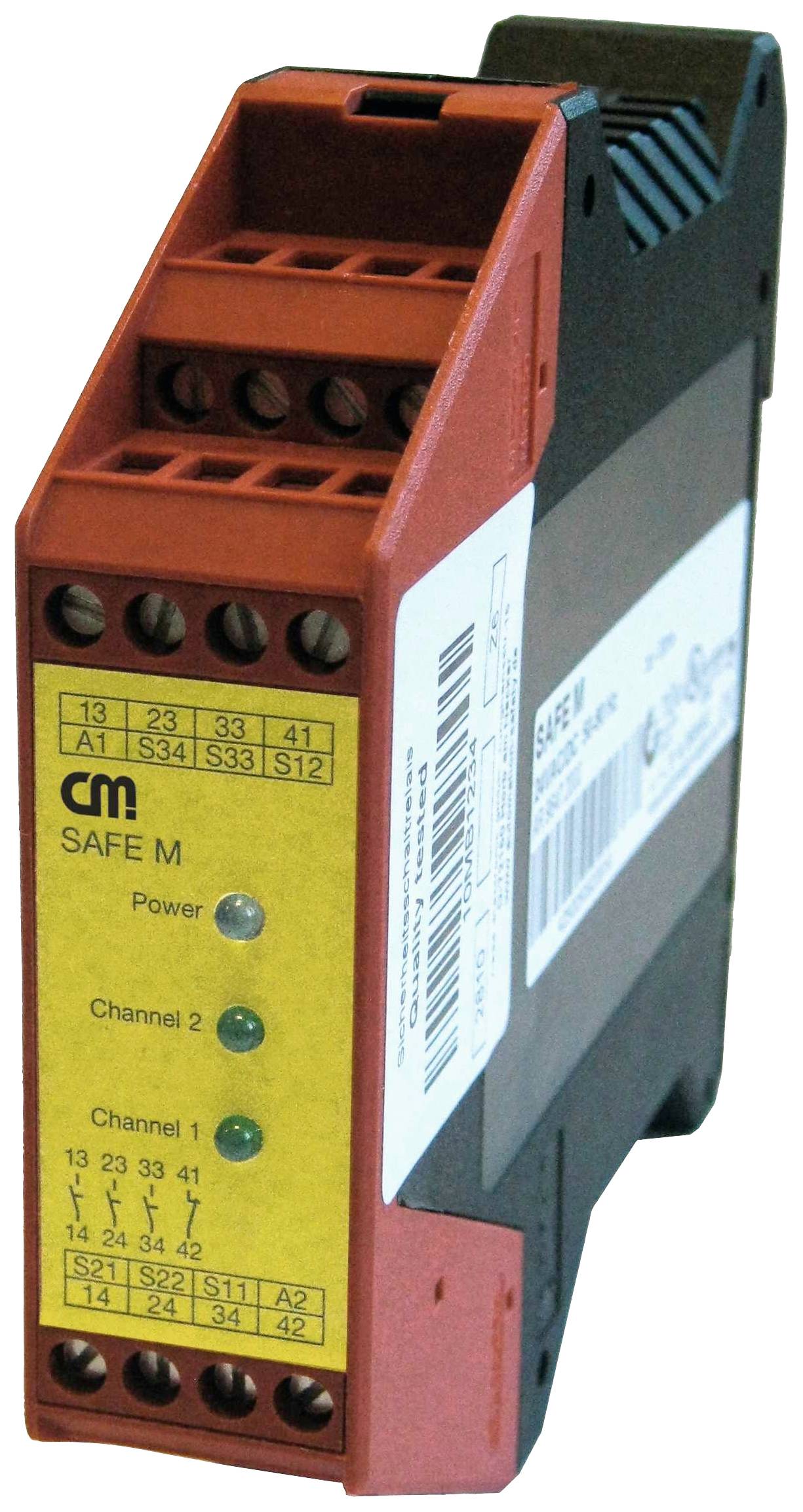

Serial device SAFE M.1 CM Manufactory Operating voltage: 24 V DC/AC 3 makers, 1 breaker LED indicator 1 pc(s)
EAN:
Part number:
Item no:
Product type
Serial device
Operating voltage
24 V DC/AC
Type
SAFE M.1
Contact type
3 makers
1 breaker
Switching voltage (max.)
24 V DC
230 V AC
Number
Total (€ 142.85 / piece)
€ 193.28
-26 %
€ 142.85
plus VAT.
Highlights & Details
SERIAL DEVICE 24 V AC/DC SAFE M.1
- Optical LED on/off indicator and power monitoring.
- Cross-circuit protection
- Without autostart
Technical specifications
- Safety category: 3
- Performance level: PL e
- Type (general): Safety relay
- Certification: TUV/UL/cUL
- Product type
Serial device
- Type
SAFE M.1
- Operating voltage
24 V DC/AC
- Contact type
3 makers
1 breaker
- Switching voltage (max.)
24 V DC
230 V AC
- Switching current (max.)
5 A
- Max. switching capacity
1200 VA
- Performance level
PL e
- Safety rating
3
- Certification (sensors)
TÜV
- Features
LED indicator
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+55 °C
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2226797 Serial device SAFE M.1 CM Manufactory Operating voltage: 24 V DC/AC 3 makers, 1 breaker LED indicator 1 pc(s)
Conformity certificate
Conformity certificate 2226797 Serial device SAFE M.1 CM Manufactory Operating voltage: 24 V DC/AC 3 makers, 1 breaker LED indicator 1 pc(s)
Description
The mat device for 4-wire mats according to the short-circuit principle is available in addition to the direct current supply also with alternating voltage supply.
