Name: Shelly 4-Channel Decoupler 230V Shelly Actuator Wi-Fi, Bluetooth
Brand: Shelly
SKU: 3594359
Availability: BackOrder

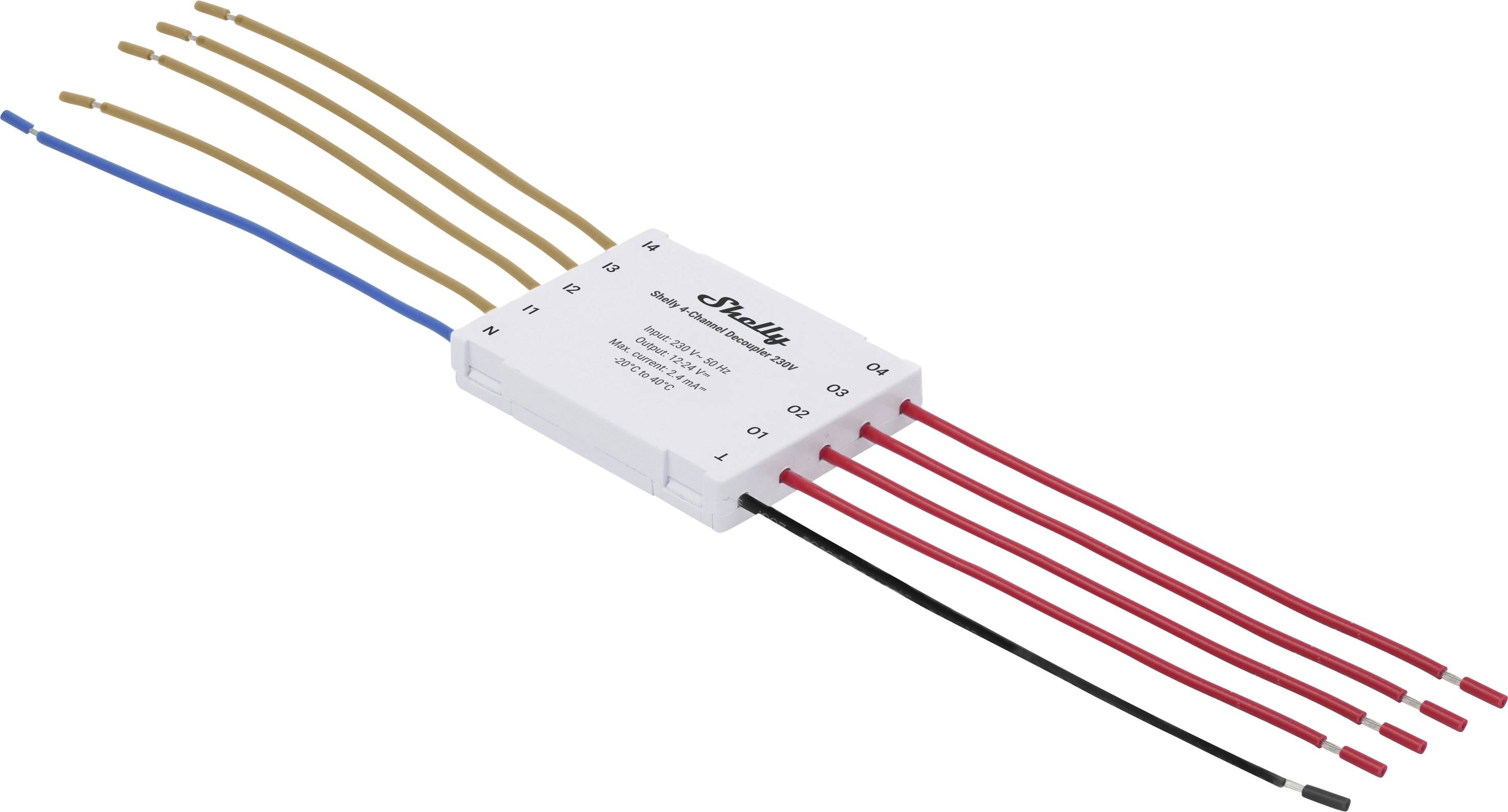

A white electronic driver with four red, one black, and one blue wire on one side, and three brown wires on the other side, labeled Sinolite.

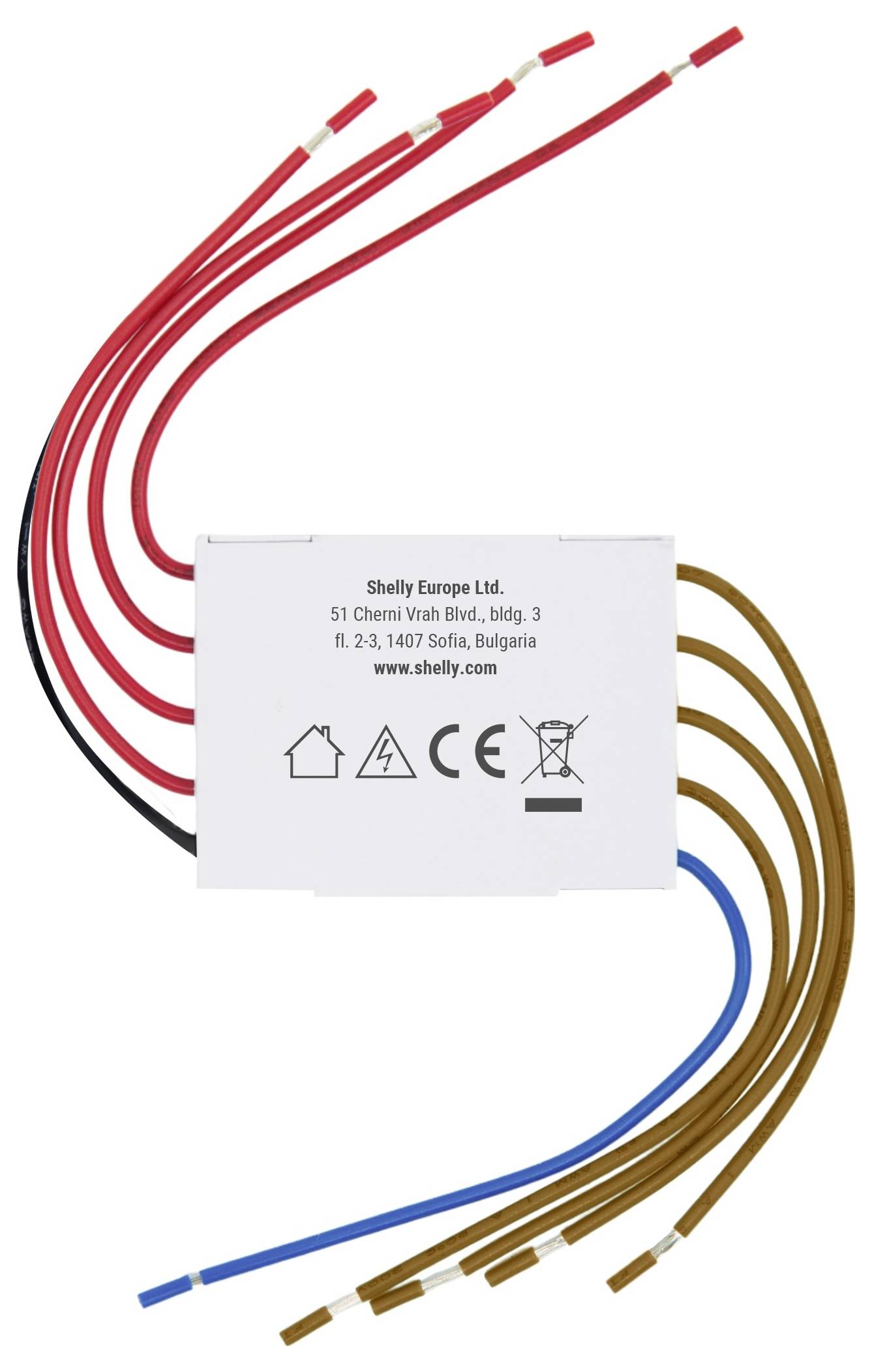

A small electronic device with several red, black, blue, and brown wires extending from it, marked with electrical safety icons.

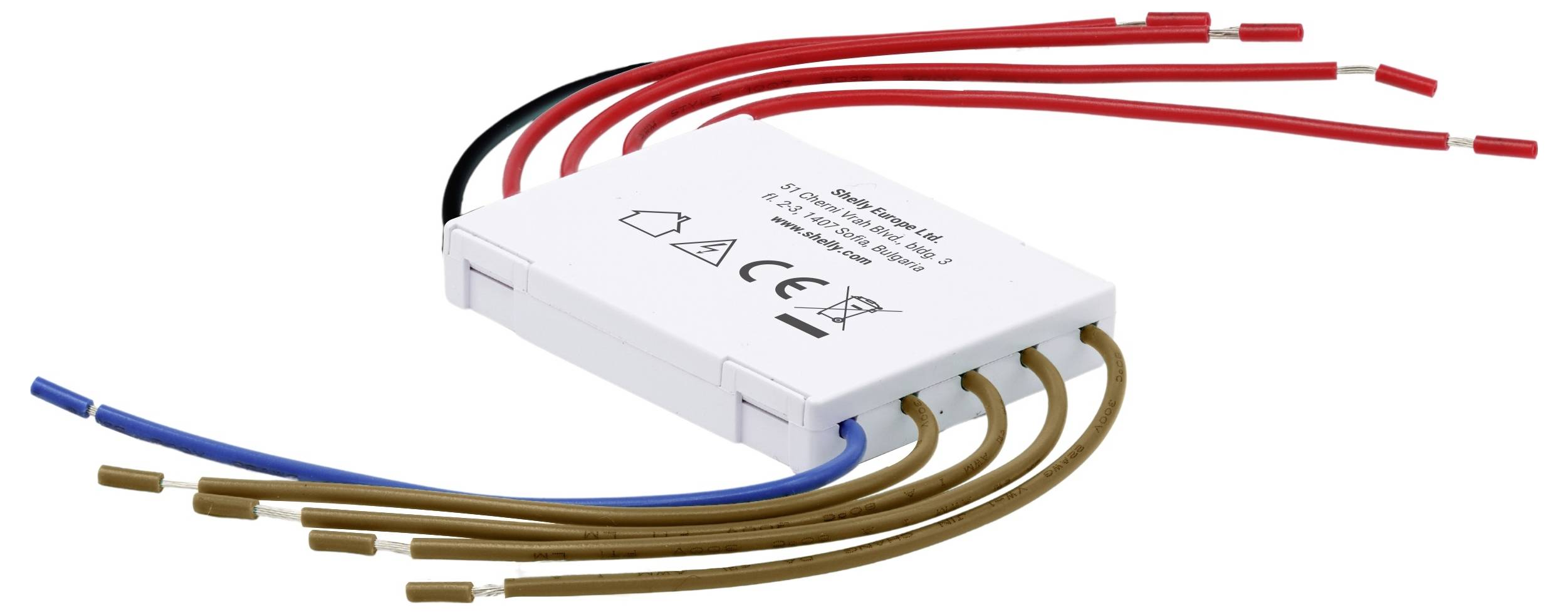

A compact electronic component with multiple colored wires extending from it, used for electrical connections and wiring applications.

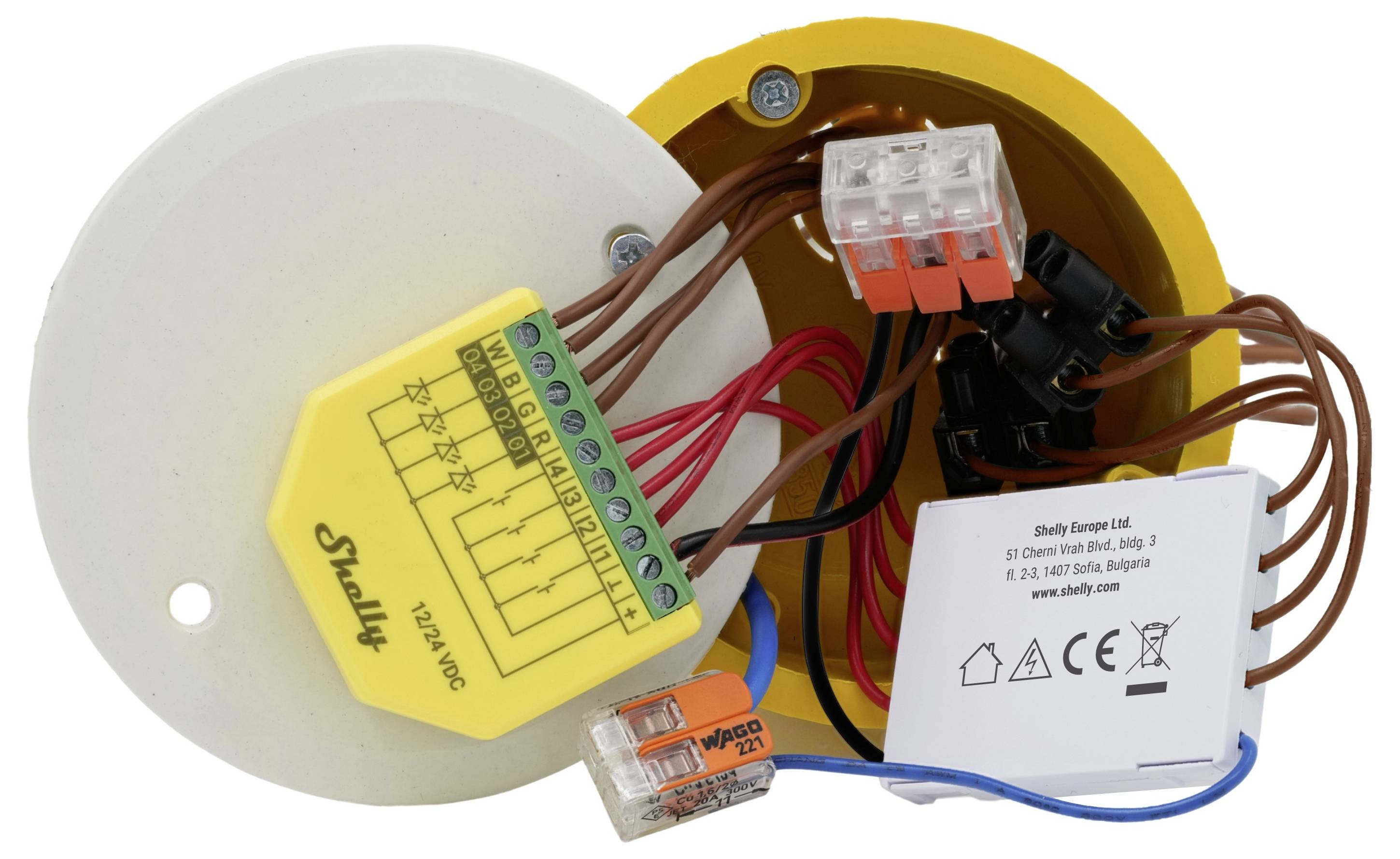

'Electrical circuitry and components including a Shelly device, connector blocks, and wiring within a yellow circular enclosure.'

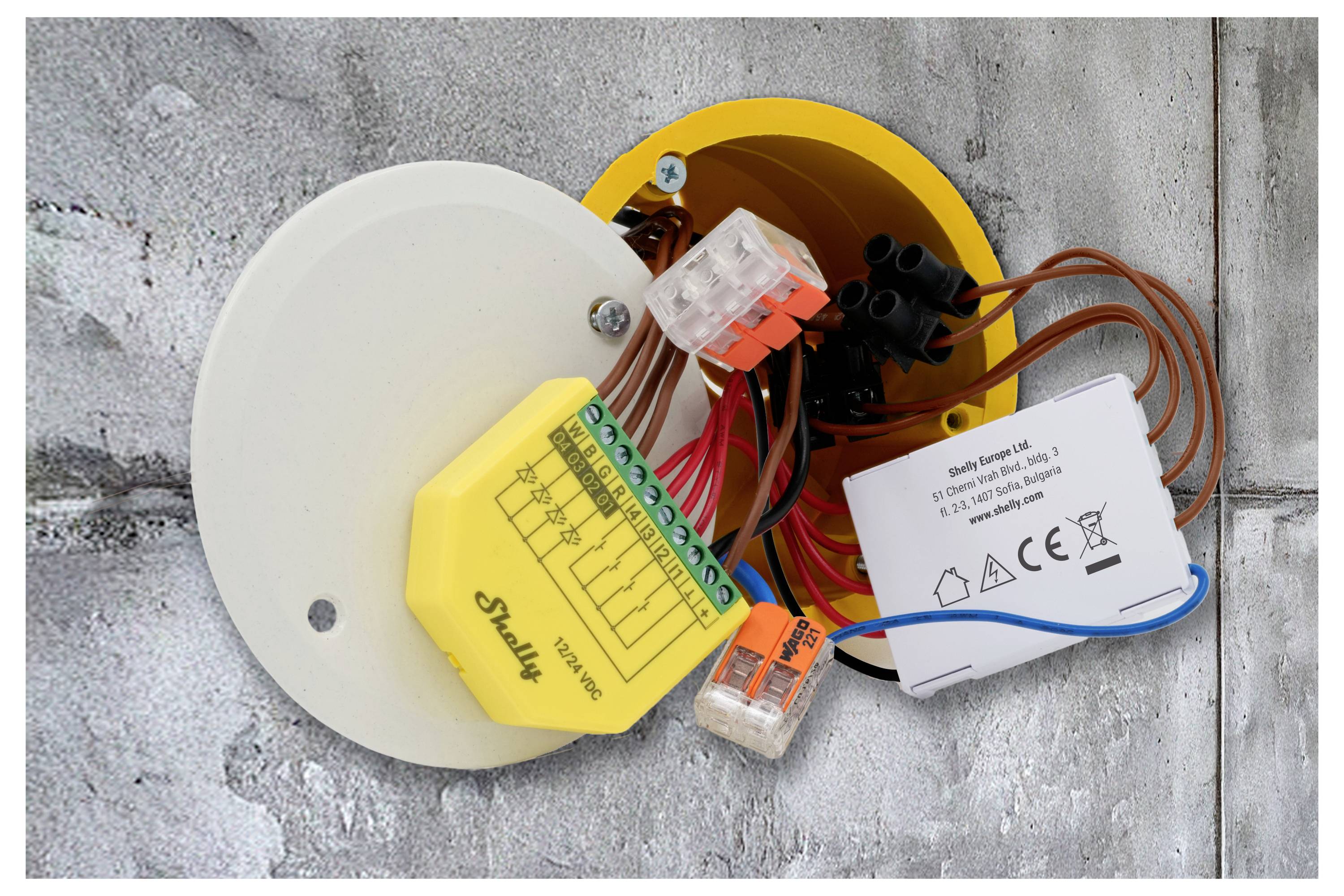

Electrical wiring junction box with exposed connections and circuit labels, mounted on a concrete wall.

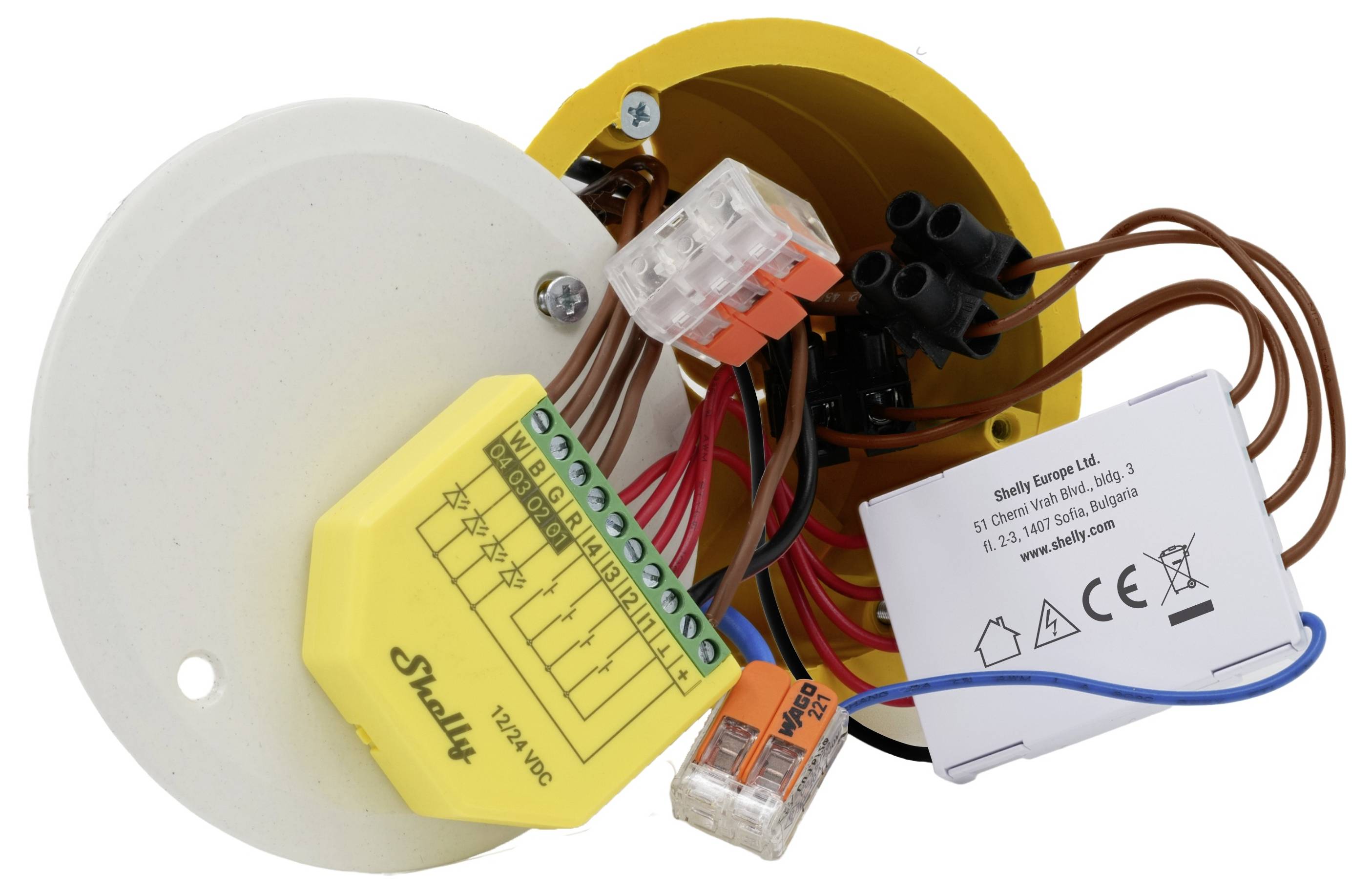

Electrical junction box with wiring components, terminal blocks, and a capacitor, used for connecting and organizing electrical circuits.

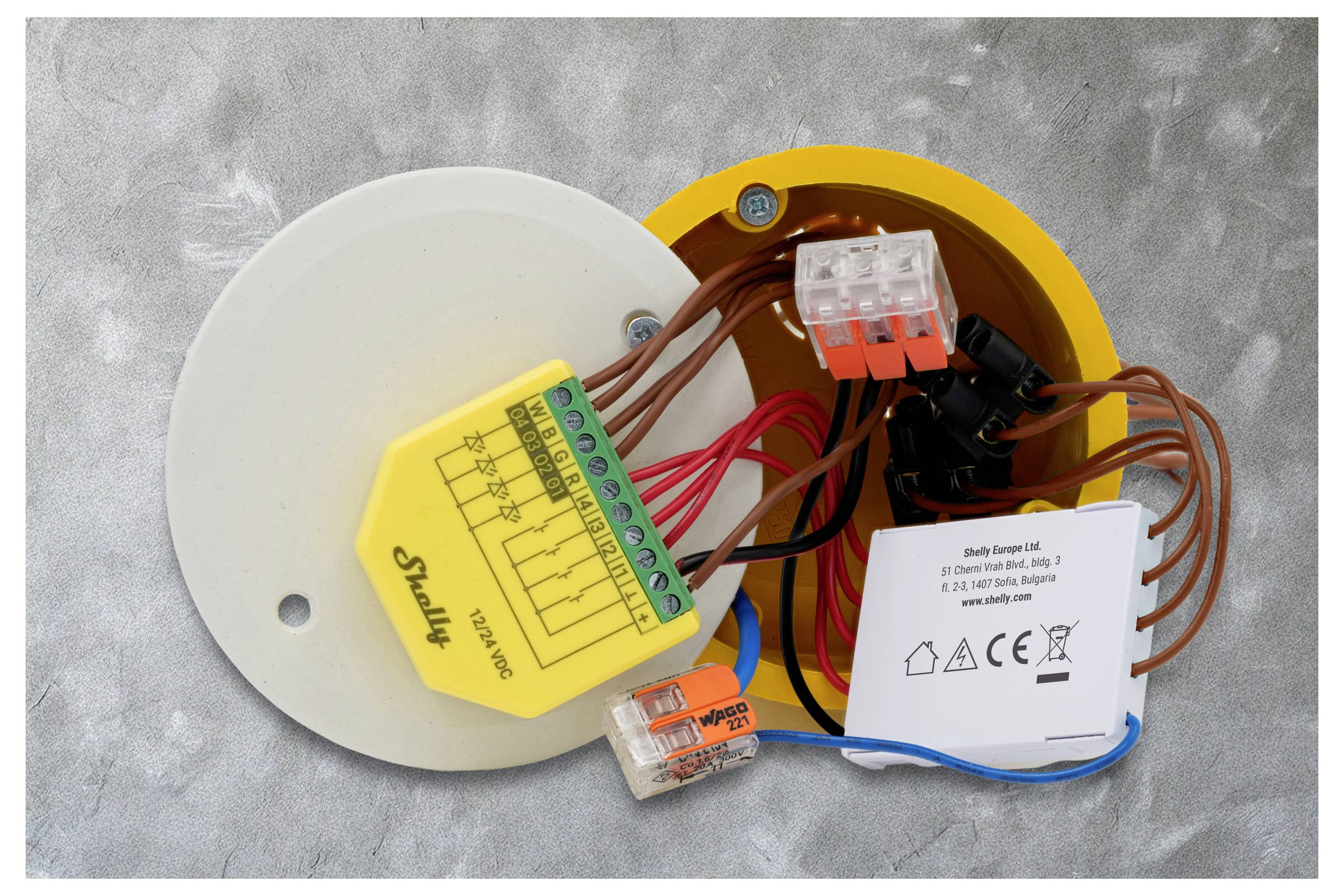

A ceiling wiring junction box with visible electrical connections and wires. Labels indicate wiring specifications and safety certifications.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

4-channel decoder 230 V

AC-to-DC signal conversion: Trips DC inputs with standard AC signals for safe and reliable operation.
Isolated and control DC loads: Protect your connected Smart devices by isolating high AC voltages from their DC inputs.
Multiple device compatibility: Works with Shelly Plus RGBW PM, Shelly Pro RGBW PM, Shelly Plus Uni and Shelly Plus Add-On.
Supports specialized switches: Designed for use with external and specialized controls such as buttons, relays and potentiometers.

Technical specifications

Overheating protection is present
Operating temperature range: -20 °C to 40 °C
Supports Multi-Click (up to 3 actions per button)
Scripting capability (Shelly OS)
Webhooks (URL-Actions)

Product type: Actuator

Series: Shelly

: Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi
Bluetooth

Used at: Indoors

: IP20

Power supply (LOV): mains-powered

Operating voltage: 110 V AC
240 V AC

Data transfer (Smart Home): Wireless

Channels: 4

Frequency: 2.4 GHz

: 50 m

Mounting type: Flush mount

Factory colour: White

Width: 44 mm

Height: 34 mm

Depth: 7 mm

Weight: 25

: n.rel.

Dim: (W x H x D) 44 x 34 x 7 mm

Hub: Not required

Data exchange: Bidirectional (bi)

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3594359 Shelly 4-Channel Decoupler 230V Shelly Actuator Wi-Fi, Bluetooth

User & Safety Instructions

User & Safety Instructions 3594359 Shelly 4-Channel Decoupler 230V Shelly Actuator Wi-Fi, Bluetooth

Description

Triggers DC inputs with an AC signal. Ideal for isolating and controlling DC loads with existing AC switches.
Compatible with: Shelly Plus RGBW PM, Shelly Pro RGBW PM, Shelly Plus Uni, Shelly Plus Add-On

This text is machine translated.
