Name: Shelly 1-Channel Decoupler 230V Shelly Actuator Bluetooth, Wi-Fi
Brand: Shelly
SKU: 3594358
Availability: BackOrder

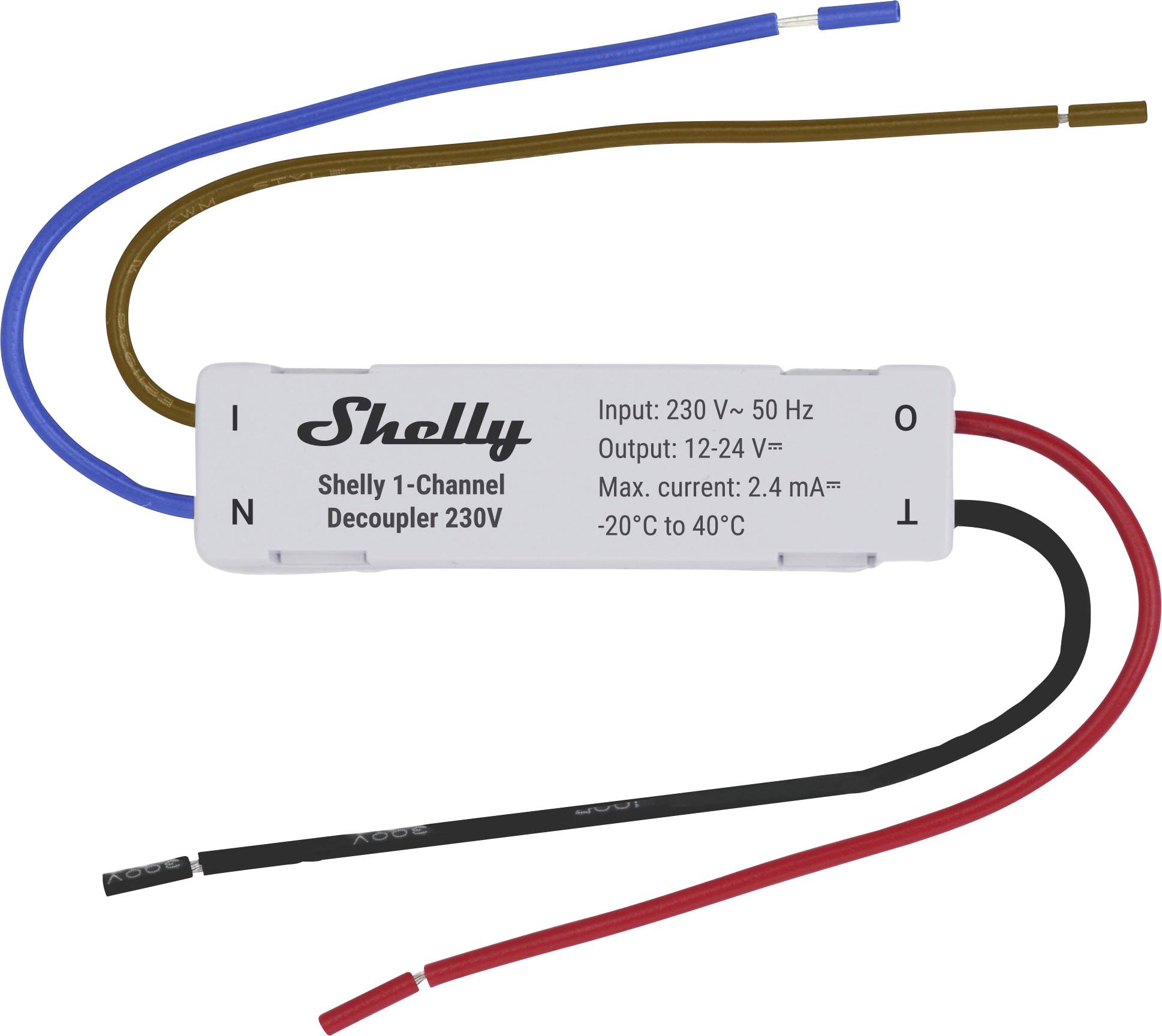

A "Shelly 1-Channel Decoupler 230V" with four wires, labeled as input and output, showing input of 230V-50Hz, output of 12-24V, and a maximum current of 2.4mA.

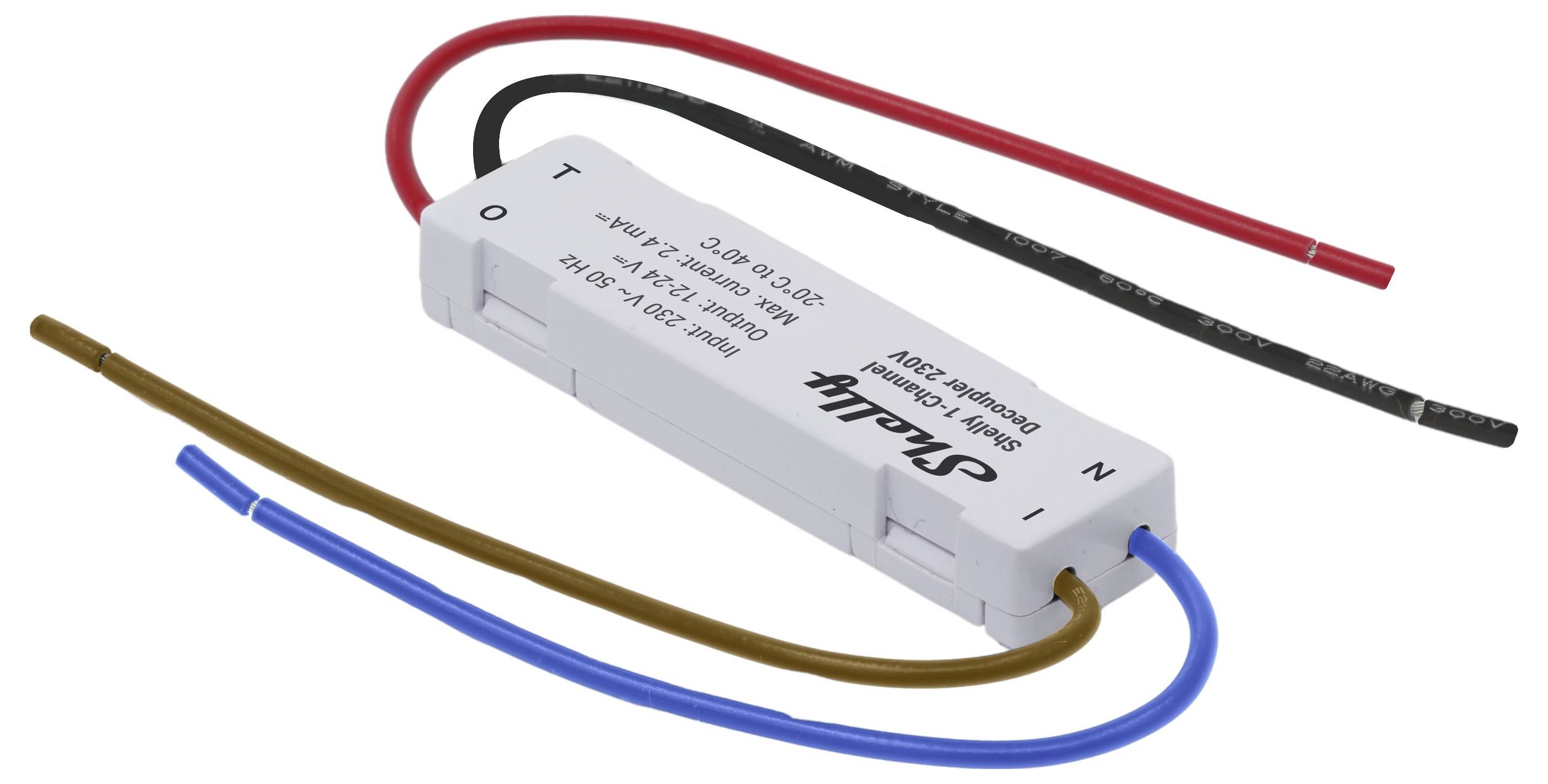

A white rectangular electronic component with wires connected to it. The component has input and output labels and technical specifications.

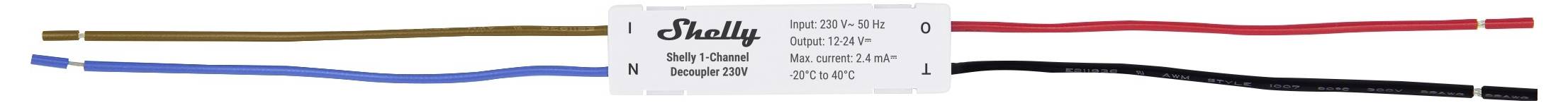

A four-wire ceiling fan remote receiver with labeled wires: brown, red, blue, and black, each indicating specific connections.

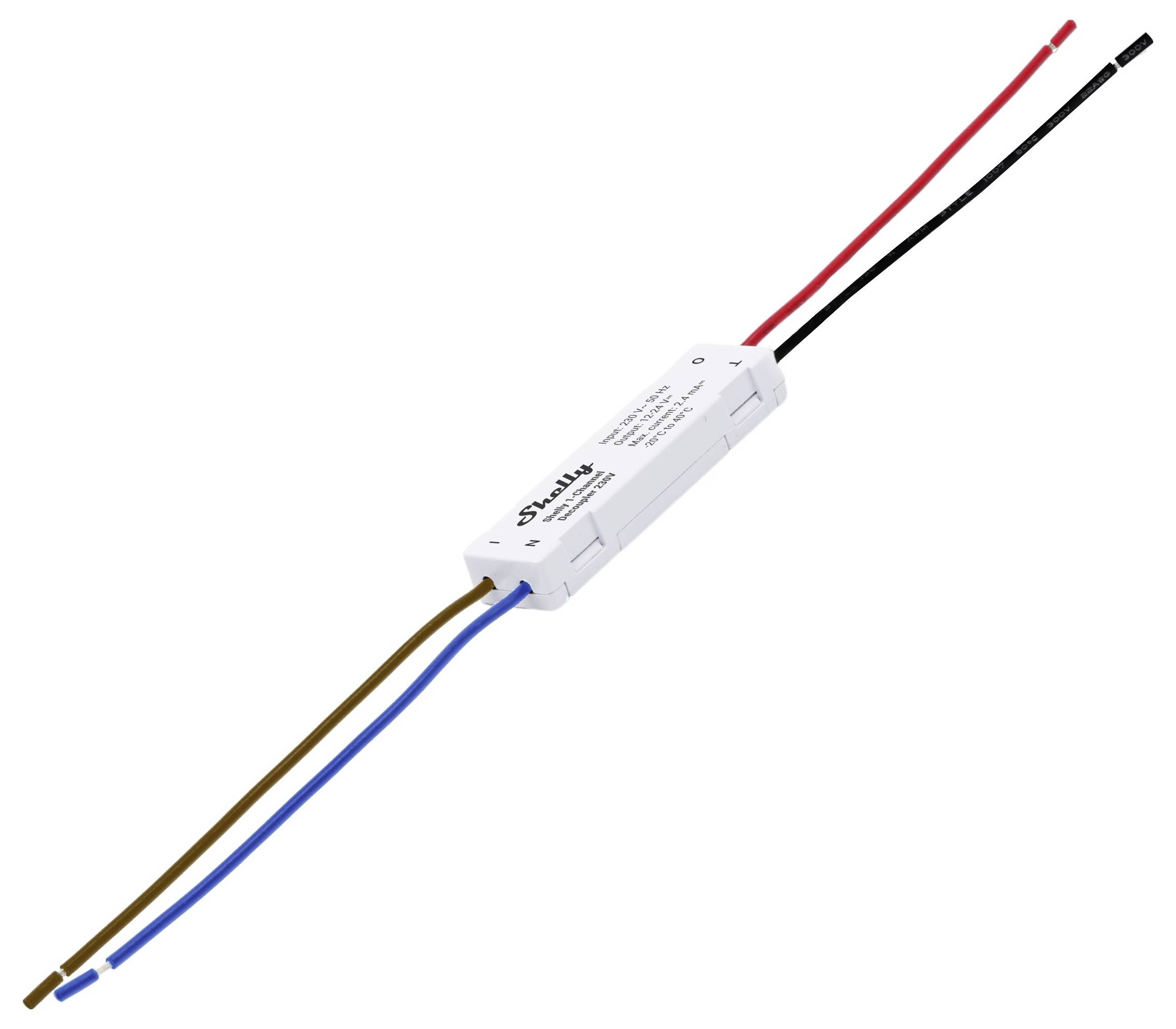

A small white electronic transformer with two pairs of colored wires: red and black on one side, brown and blue on the other.

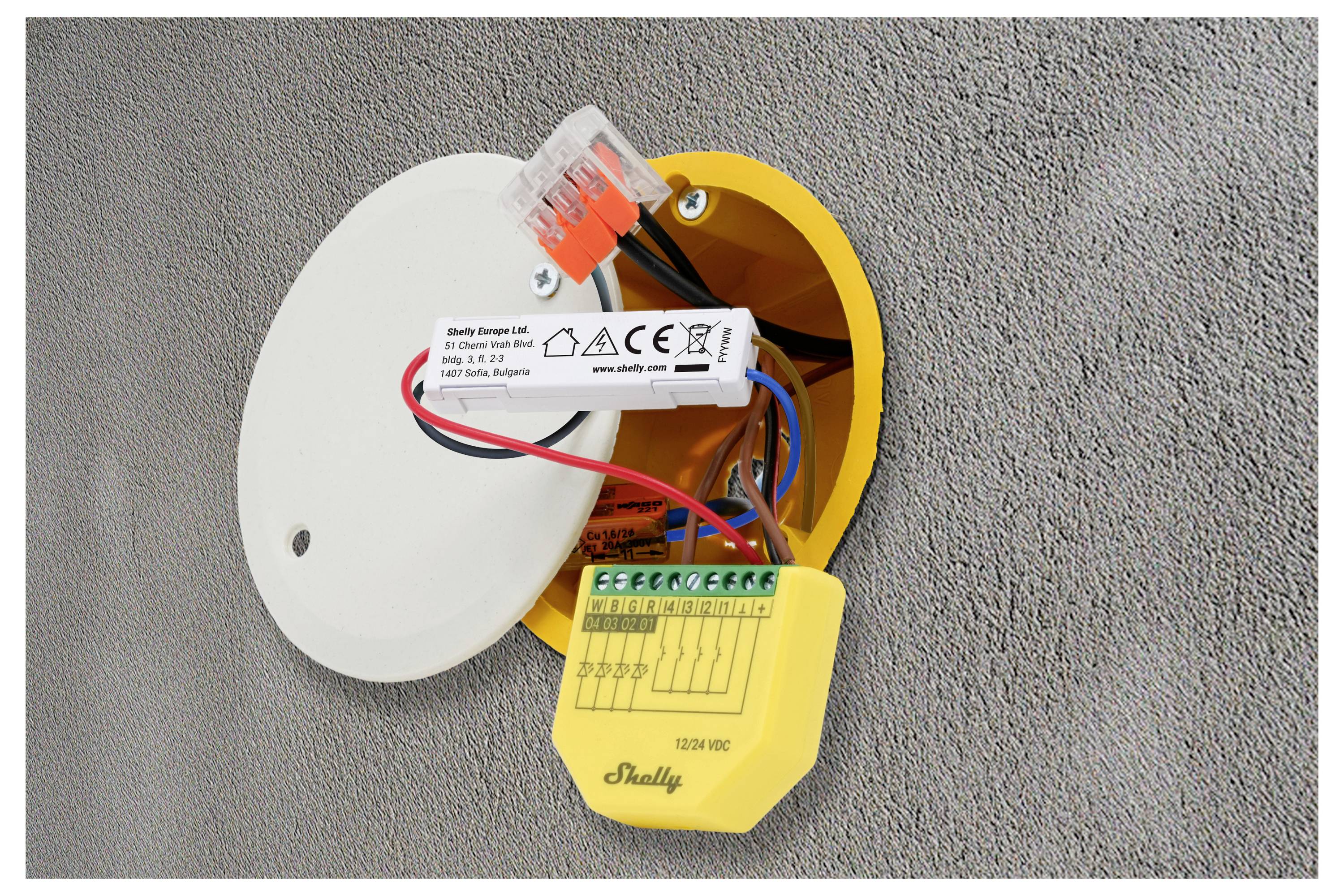

An open electrical junction box in a wall with exposed wiring and components. The setup includes a white cover, terminal blocks, and labels.

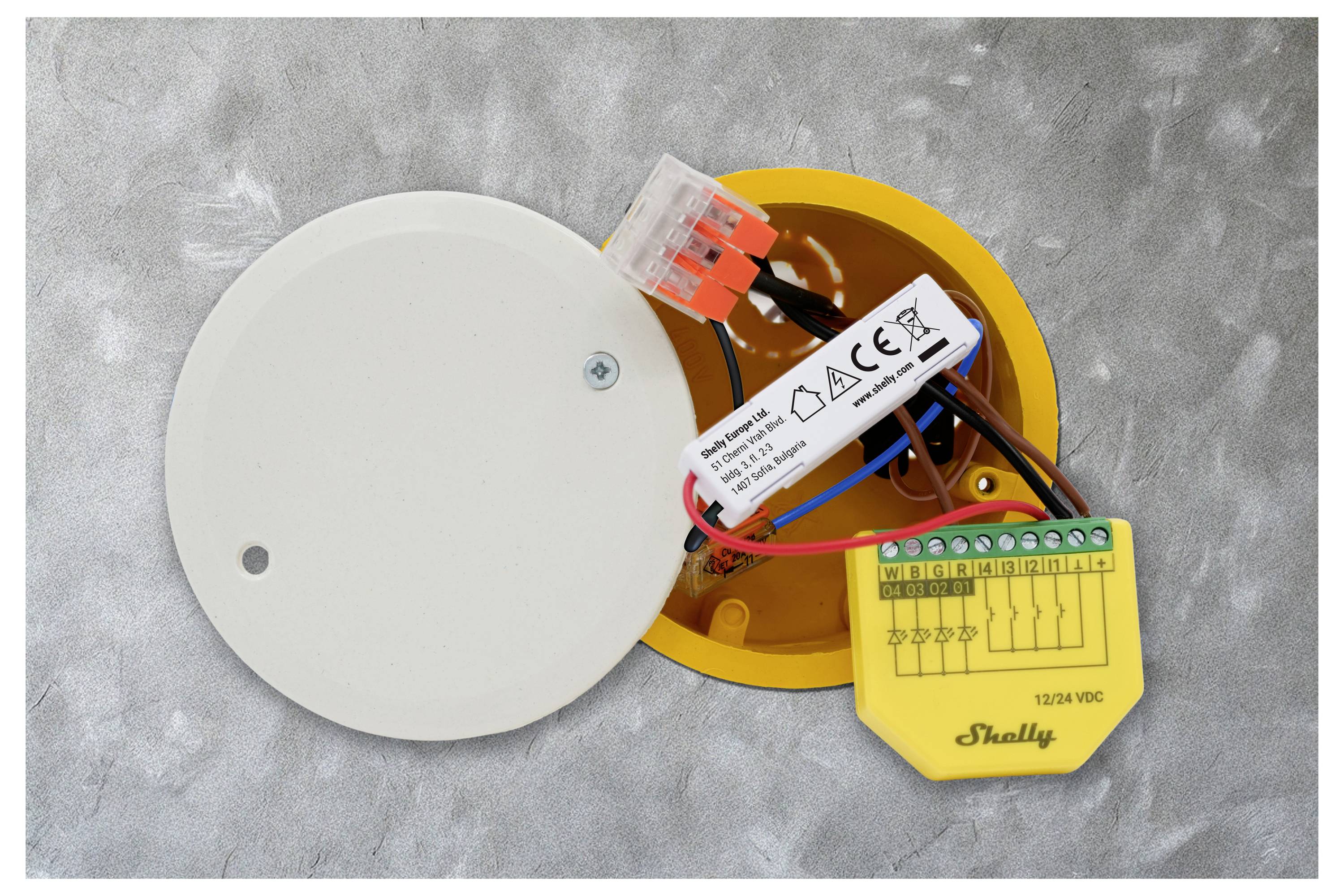

An open electrical junction box showing internal wiring and a Shelly smart relay device with visible connection terminals and labels.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.49 / piece)

€ 4.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

1-channel decoder 230 V

Common usage types:
Wiring is necessary
-Accessory

Technical specifications

Potential-free contact (Decoppled Mode capability)
Scripting (MJS)
Overheating protection

Product type: Actuator

Series: Shelly

: Alexa
Google Home

Transfer Standard (Smart Home): Bluetooth
Wi-Fi

Max. switching capacity: 3500 W

Used at: Indoors

: IP20

Power supply (LOV): mains-powered

Operating voltage: 110 V AC
240 V AC

Channels: 1

Frequency: 2.4 GHz

: 50 m

Mounting type: Flush mount

Factory colour: White

Width: 13 mm

Height: 48 mm

Depth: 7 mm

Weight: 27 g

: n.rel.

Dim: (W x H x D) 13 x 48 x 7 mm

Hub: Not required

Data exchange: Bidirectional (bi)

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3594358 Shelly 1-Channel Decoupler 230V Shelly Actuator Bluetooth, Wi-Fi

User & Safety Instructions

User & Safety Instructions 3594358 Shelly 1-Channel Decoupler 230V Shelly Actuator Bluetooth, Wi-Fi

Description

Triggers DC inputs with an AC signal. Ideal for isolating and controlling DC loads with existing AC switches.
Compatible with: Shelly Plus RGBW PM, Shelly Pro RGBW PM, Shelly Plus Uni, Shelly Plus Add-On

This text is machine translated.

Features

- AC-to-DC signal conversion: Triggers DC inputs with standard AC signals for safe and reliable operation.
- Isolated and control DC loads: Protect your connected Smart devices by isolating high AC voltages from their DC inputs.
- Compatible with multiple devices: Works with Shelly Plus RGBW PM, Shelly Pro RGBW PM, Shelly Plus Uni and Shelly Plus Add-On.
- Supports specialized switches: Designed for use with external and specialized controls such as buttons, relays and potentiometers.

Description

Features

- AC-to-DC signal conversion: Triggers DC inputs with standard AC signals for safe and reliable operation.
- Isolated and control DC loads: Protect your connected Smart devices by isolating high AC voltages from their DC inputs.
- Compatible with multiple devices: Works with Shelly Plus RGBW PM, Shelly Pro RGBW PM, Shelly Plus Uni and Shelly Plus Add-On.
- Supports specialized switches: Designed for use with external and specialized controls such as buttons, relays and potentiometers.
