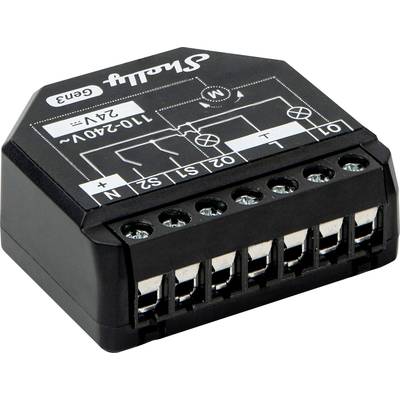

Shelly Shelly 2PM Gen3 Actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Shelly 2PM Gen3 Smart switch actuator
- WLAN operation
- Connect the Shelly 2PM Gen3 easily to your WLAN network - without an additional HUB!
- Bluetooth
- Quickly add devices or use the Shelly 2PM Gen3 as a Bluetooth gateway.
- Performance measurement
- Two precisely integrated energy meters allow you to monitor the power consumption of each channel.
- Lamellar angle control
- Control the inclination of the louvers of your blinds with the Shelly 2PM Gen3, in order to adjust the incidence of light in a room exactly.
- Smart schedules
- Create individual schedules according to your schedule or control your lighting based on the sunrise or sunset.
- Smart scenes
- Combine the Shelly 2PM Gen3 with other devices and set up custom scenes for different applications.
Technical specifications
- Power supply AC 110-240 V ±10%, 50/60 Hz
- Maximum load: 2 x 10 A (max. 18 A total)
- Power supply: DC 24 V
- WLAN protocol 802.11 b/g/n
- BLUETOOTH protocol: 4.2
- Product type
Actuator
Alexa
Google Home
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
2
- Frequency
2.4 GHz
30 m
- Mounting type
Flush mount
- Factory colour
Black
- Width
42 mm
- Height
37 mm
- Depth
16 mm
- Weight
27 g
n.rel.
- Dim
(W x H x D) 42 x 37 x 16 mm
- Hub
Not required
- Features
Test function
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3340284 Shelly Shelly 2PM Gen3 Actuator Bluetooth, Wi-Fi
Description
Automatic curtains in the bedroom
Program the Shelly 2PM Gen3 so that it opens your bedroom curtains at a predetermined time in the morning. So you will be woken up gently when the curtains open slowly, and start the day perfectly.
Control two lights with one device
The Shelly 2PM Gen3 allows two lights to be controlled in the same phase with just one device. The power consumption of each light is measured separately to ensure efficient lighting. Control the lights via the manual switch, the APP, your Smart home system or with your voice!
Energy management
Keep track of your energy consumption with the current measurement function for each channel. Monitor the consumption of the connected devices in real time and use the data to specifically identify potential savings and reduce your energy costs.
This text is machine translated.
Program the Shelly 2PM Gen3 so that it opens your bedroom curtains at a predetermined time in the morning. So you will be woken up gently when the curtains open slowly, and start the day perfectly.
Control two lights with one device
The Shelly 2PM Gen3 allows two lights to be controlled in the same phase with just one device. The power consumption of each light is measured separately to ensure efficient lighting. Control the lights via the manual switch, the APP, your Smart home system or with your voice!
Energy management
Keep track of your energy consumption with the current measurement function for each channel. Monitor the consumption of the connected devices in real time and use the data to specifically identify potential savings and reduce your energy costs.
This text is machine translated.
Features
- Wi-Fi Operation - Connects to your Wi-Fi network. No HUB required!
- Bluetooth – quickly and easily add devices via Bluetooth connection with the Shelly Cloud APP
- Two channels on the same phase
- Power measurement on each channel
- Shutter control – automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors and other bi-directional motors
- Leaf Angle Control - Use the switch for your blinds and control the angle of the leaves to adjust how much light appears in a room.
- New processor – ESP Shelly C38F chip with increased storage capacity of 8 MB
- Improved terminal durability
- Virtual Components
- WLAN repeater & Bluetooth gateway
- Supports scripting, web-hooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
- Simple control via the Shelly Smart Control APP, different house automation protocols, platforms and voice wizards
- Supports KNXnet/IP communication
- Scripting, schedules, and web hooks
- Simple control via the Shelly APP, different protocols and platforms as well as voice wizards
- Compatibility: Alexa, Google home, home automation system such as home assistant, IObroker, etc.
- Internal temperature sensor
- Voltmeter (AC)
- Ammeter (AC)
- Overheating protection: Yes (AC)
- Overvoltage protection: Yes (AC)
- Overcurrent protection: Yes (AC)
- Overload protection
- Obstacle detection: Yes (blind mode)
- Safety switch: Yes (blind mode).
System requirements
- Z-wave, iOS, Android, HUAWEI, MQTT
