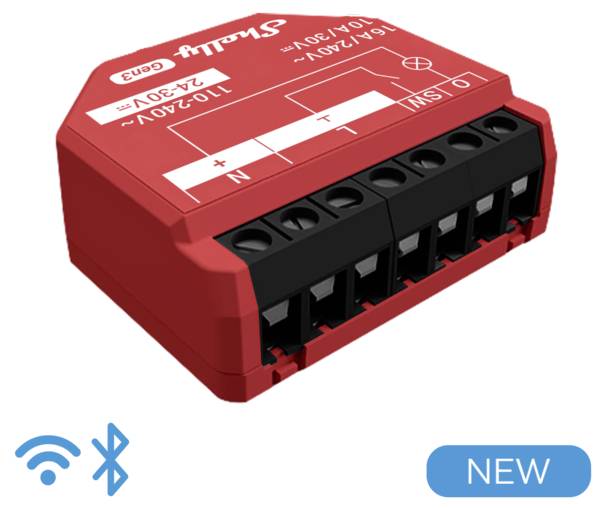

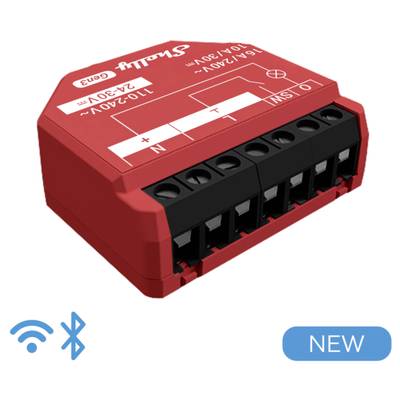

Shelly Shelly 1PM Gen3 Actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
Shelly flush-mounted "1PM Gen3" relay max. 16 A, 1 channel, WLAN, BT
- WLAN and Bluetooth controlled
- Shelly Smart control APP
- Maximum 16 A
Technical specifications
- Wi-Fi protocol 802.11 b/g/n
- Wi-Fi coverage: Up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- Bluetooth protocol: 4.2
- Bluetooth range: Up to 30 m outdoors, up to 10 m indoors (depending on local conditions)
- Product type
Actuator
Alexa
Google Home
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
2.4 GHz
50 m
- Mounting type
Flush mount
- Factory colour
Red
- Width
42 mm
- Height
38 mm
- Depth
17 mm
n.rel.
- Dim
(W x H x D) 42 x 38 x 17 mm
- Hub
Not required
- Features
Test function
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3308355 Shelly Shelly 1PM Gen3 Actuator Bluetooth, Wi-Fi
User & Safety Instructions 3308355 Shelly Shelly 1PM Gen3 Actuator Bluetooth, Wi-Fi
Description
The Shelly Dimmer 0/1-10V PM Gen3 is suitable for controlling 0/1-10V dimmers and allows precise dimming with power measurement. It can be retrofitted and used with any conventional switch that you have at home.
This text is machine translated.
This text is machine translated.
Features
- Supports 0-10V and 1-10V drivers (lamps, motors, valves, etc.)
- Shelly Plus add-on compatible: Supports the connection with the sensor interface for measuring different data (humidity, temperature, etc.)
- Dimming mode with one or two buttons (use with conventional switches)
- Adjustable thresholds and offsets for temperature, humidity and light, when the dimmer is used with the Shelly Plus add-on
- Power measurement: Precise monitoring of energy consumption. Voltage (V), current (A) and consumption (W) information is displayed
- Protection: Overcurrent/voltage/performance protection
- Night mode: Automatically sets the brightness of the lights to a low level during night hours
- WLAN range extender & BLE gateway
- Equipped with a new processor and larger flash memory - ESP Shelly
- No hub required! Simple control using the Shelly Smart Control APP, most platforms and protocols, and voice wizards
- Use it with Alexa, Home Assistant or your preferred automation platform.
System requirements
- Wi-Fi, iOS, Android, HUAWEI, MQTT
