Name: Shelly Dimmer Gen3 Shelly Dimmer actuator Wi-Fi, Bluetooth
Brand: Shelly
SKU: 3730868
Availability: BackOrder

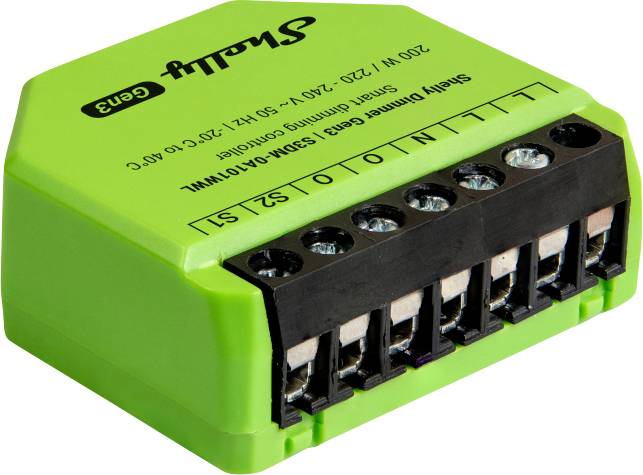

A green Shelly device with multiple wiring ports labeled L, N, 0, 1, S1, and S2, used for smart lighting and automation.

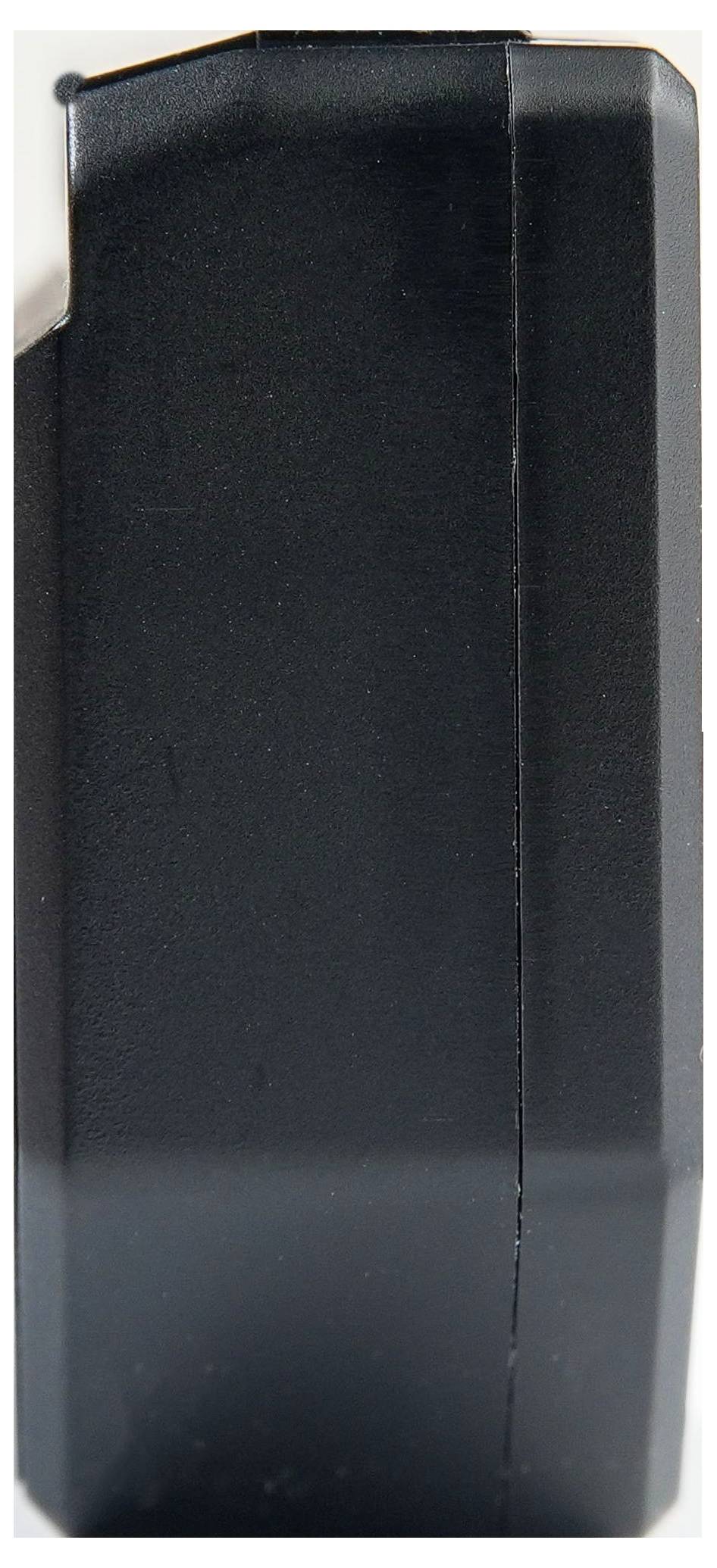

A close-up view of a black, rectangular electronic device from the side, showing its smooth, featureless surface and angular design.

'Smart dimmer switch showing wiring connections: L, N, O, S1, S2. Model Shelly Dimmer Gen 2, 150W-400W.'

An electrical switch with exposed wiring, mounted on a wooden surface. The switch is labeled 'Shelly Pro' and appears to be in installation.

'Shelly Dimmer Gen 3 smart dimming controller installed in a wall socket, displaying wiring connections against a wooden surface.'

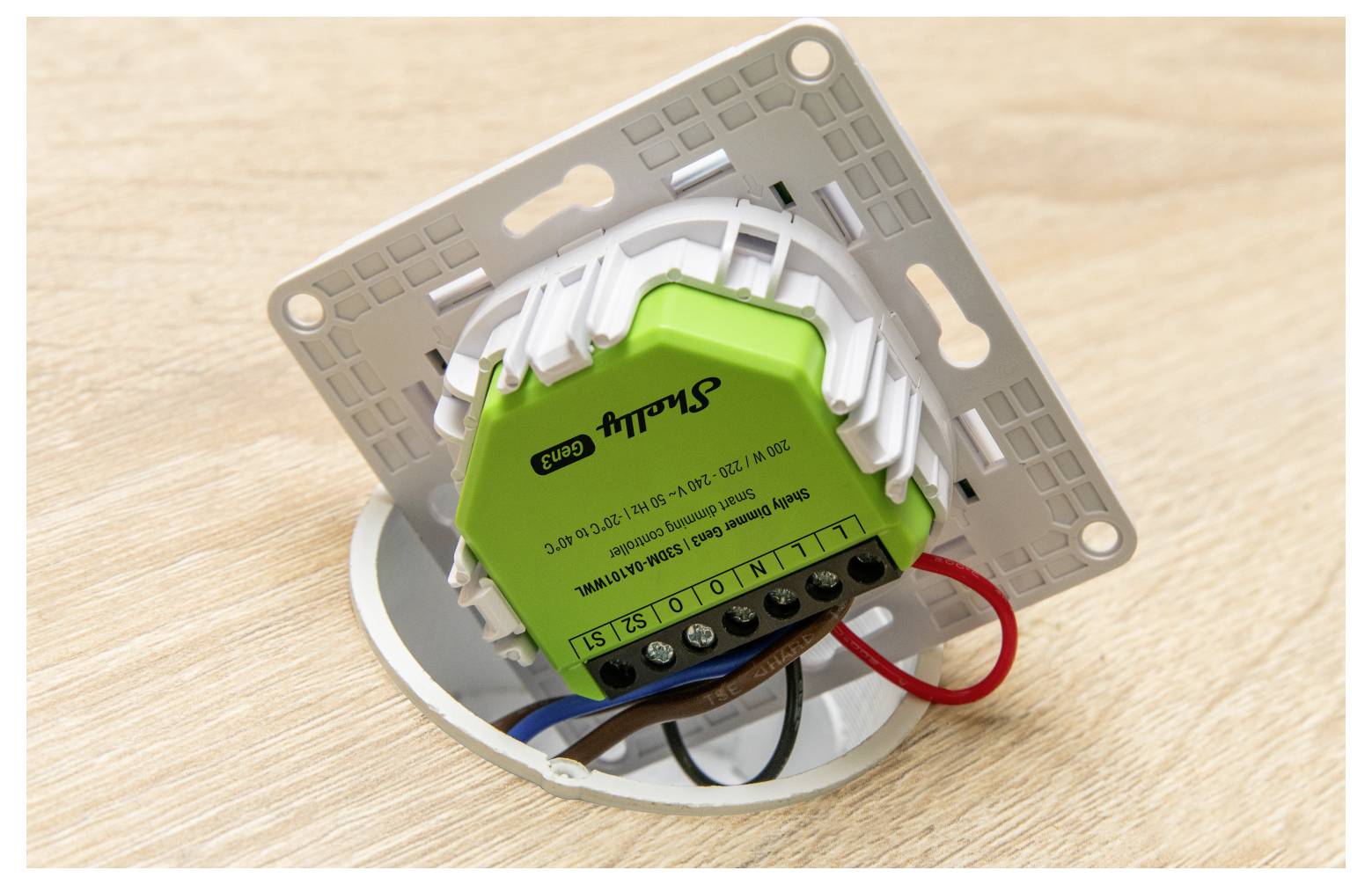

A green smart switch module with wiring connected, mounted on a rectangular wall plate, placed on a wooden surface.

The image shows a green Shelly Dimmer Gen3 smart dimming controller, detailing compliance symbols and manufacturer address in Sofia, Bulgaria.

Green Shelly Dimmer Gen3 device with terminal block on top. Text reads: '200 W / 220 - 240 V ~ 50 Hz | -20°C to 40°C Smart dimming controller'.

Green Shelly Gen3 Smart Dimmer Controller, labeled 'S3DM-0A101WWL', with connection ports for electricity management, 200W, 220-240V.

Green Shelly Dimmer Gen3 device with multiple terminals labeled 'L', 'N', and 'O'. Text includes 'Smart dimming controller'.

A green Shelly 1PM smart relay is installed inside an electrical box, visible against a wooden surface, showing its wiring connections.

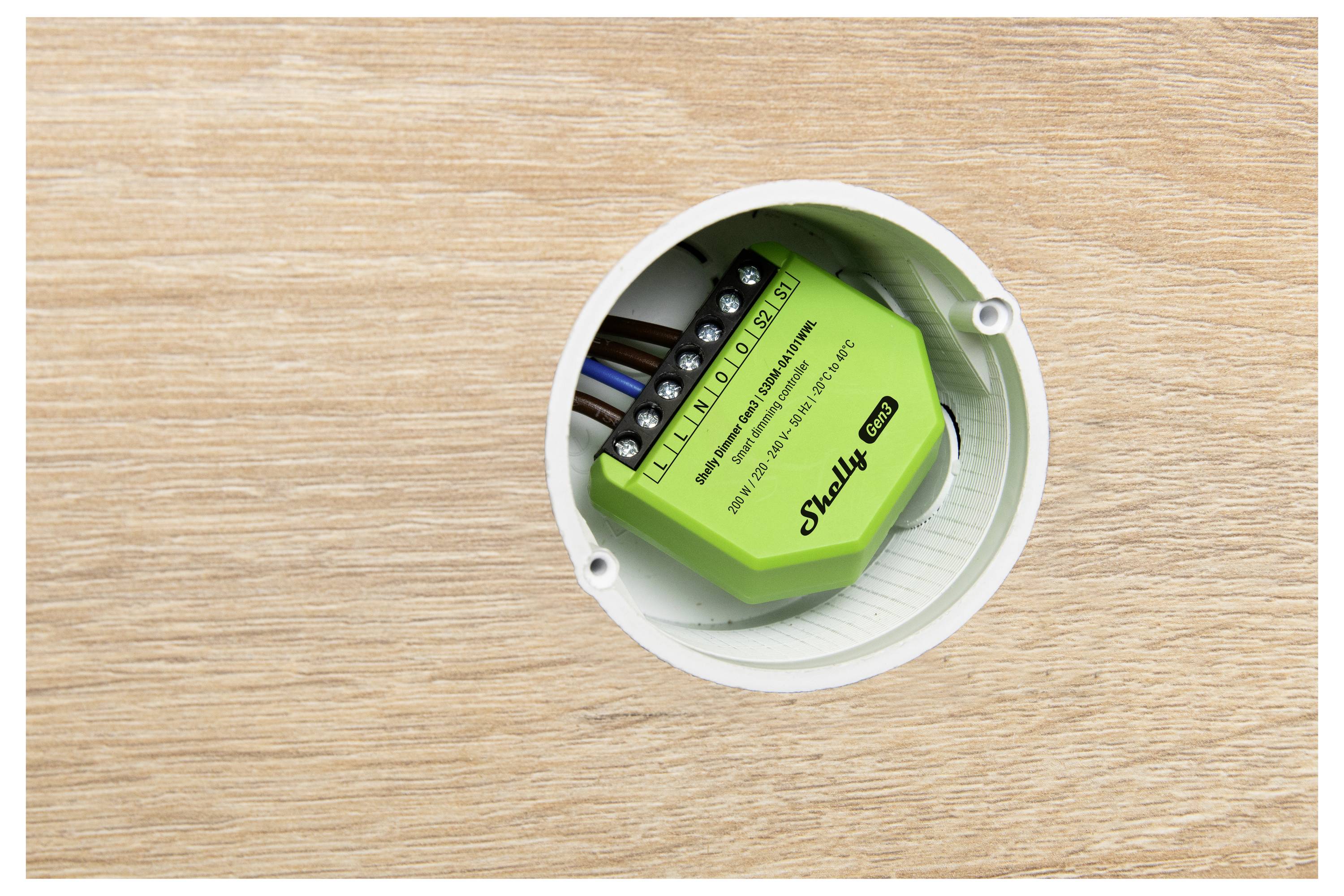

A small, round, green electronic device labeled 'Shelly' installed in a circular wall socket, with visible wiring connections.

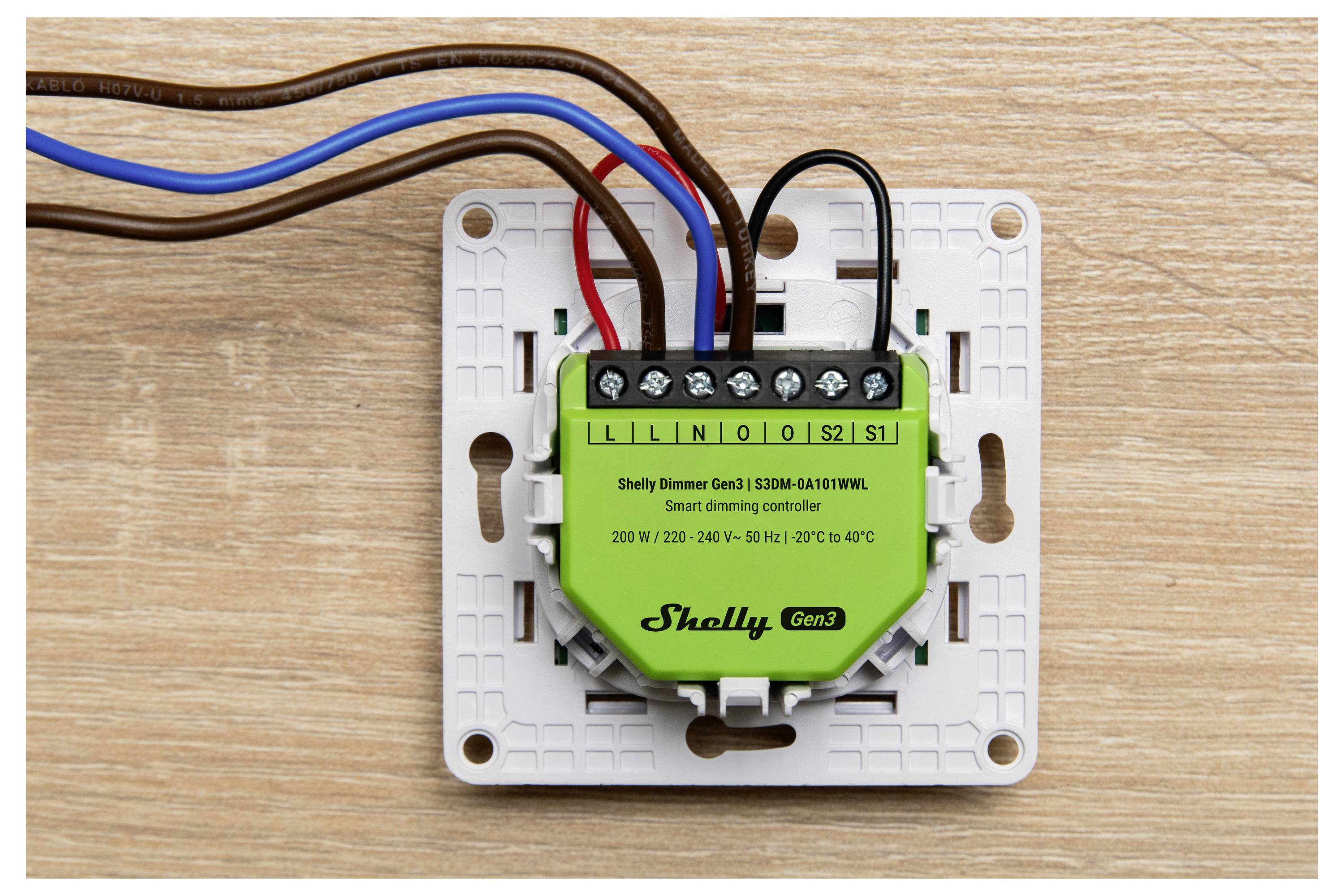

'Smart dimmer device with four connected wires on a wooden surface, labeled Shelly Dimmer Gen 3, for 200W-2000W, 230-240V, 50/60Hz use.'

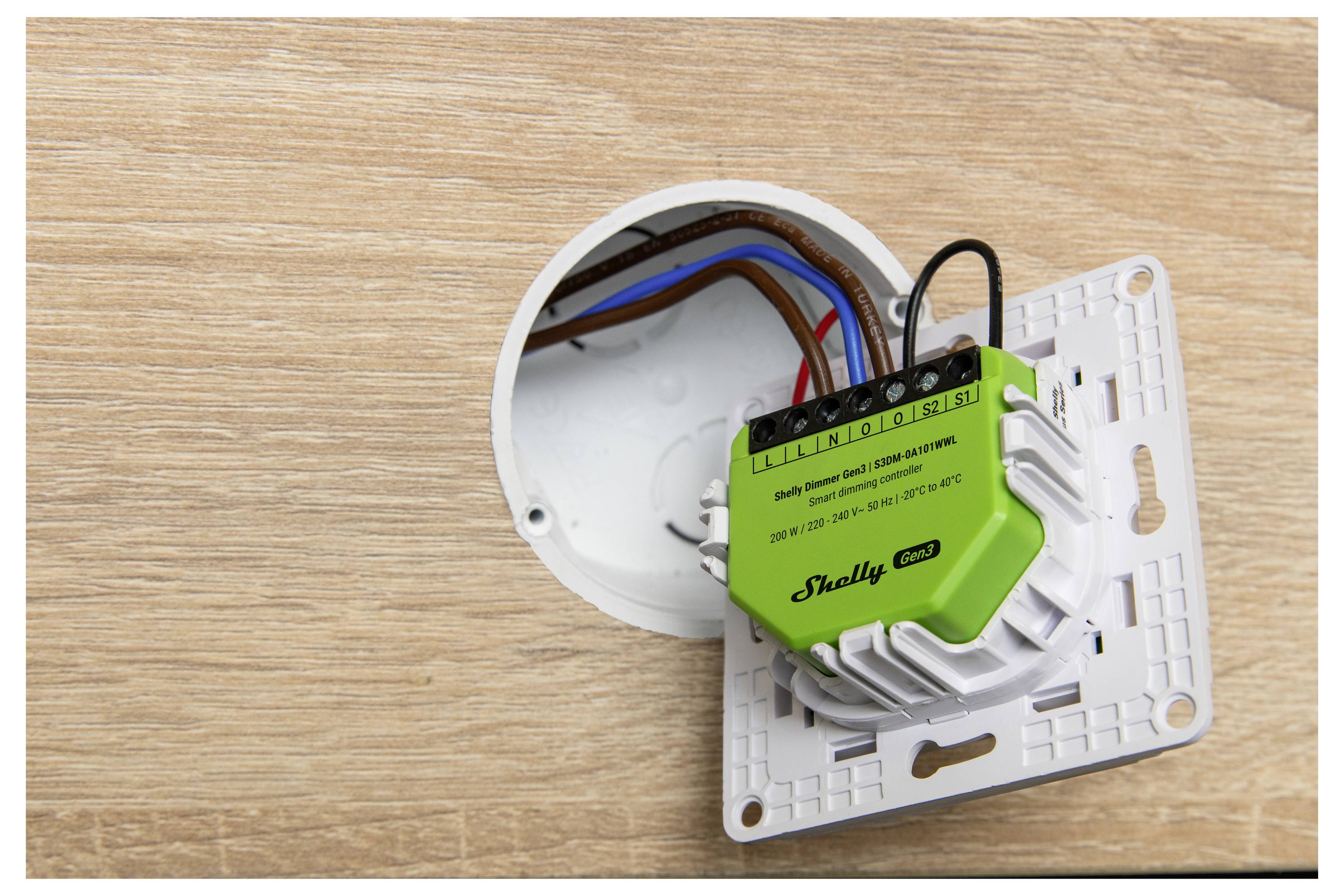

A green smart switch with wires is partially inserted into a wall socket against a wooden surface, demonstrating a home automation installation.

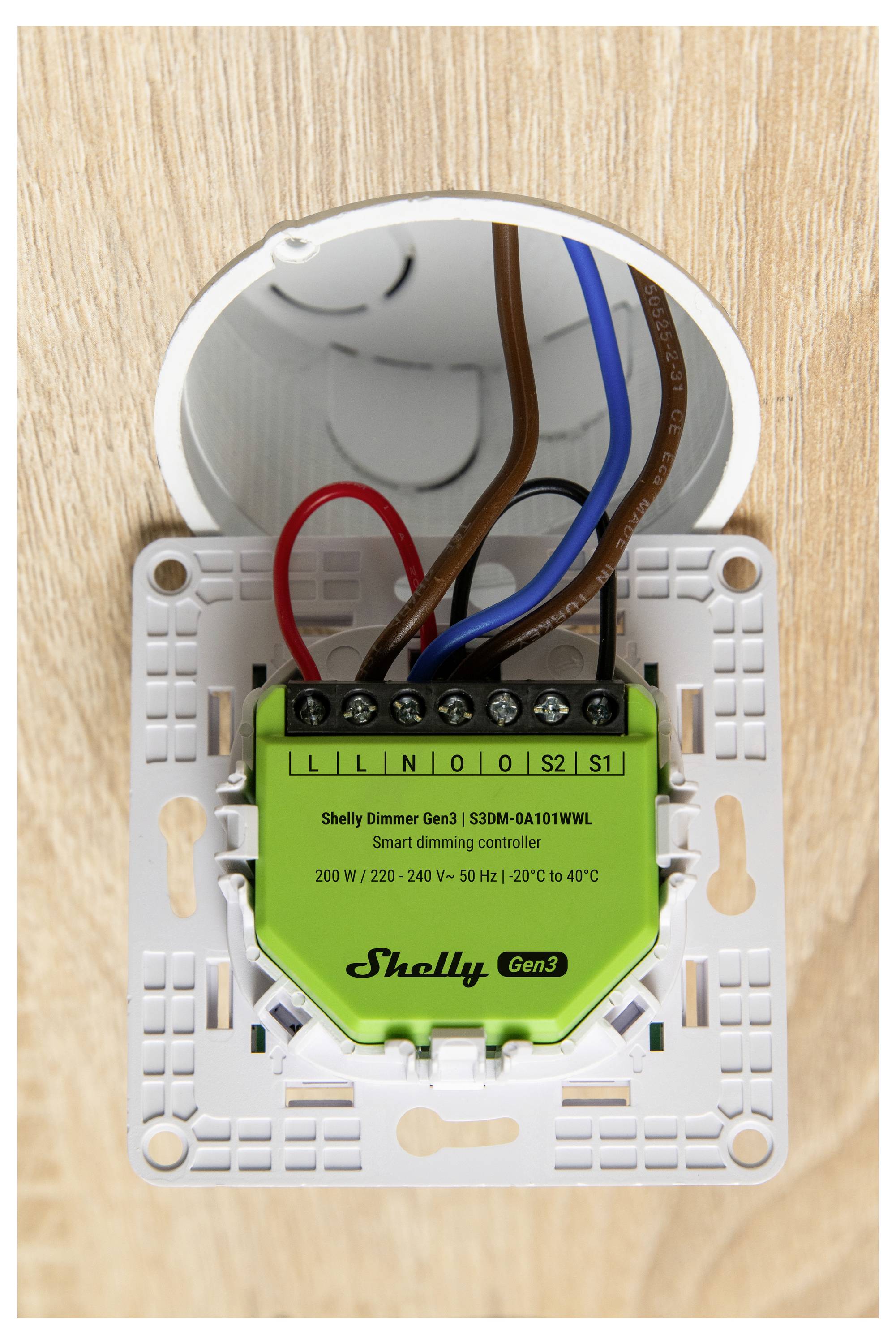

A smart dimmer controller installed in a round electrical box. It is labeled 'Shelly Dimmer Gen3' and connected with red, blue, and brown wires.

A close-up of a mounted green electrical device with wiring, labeled 'Shelly 2.5'.

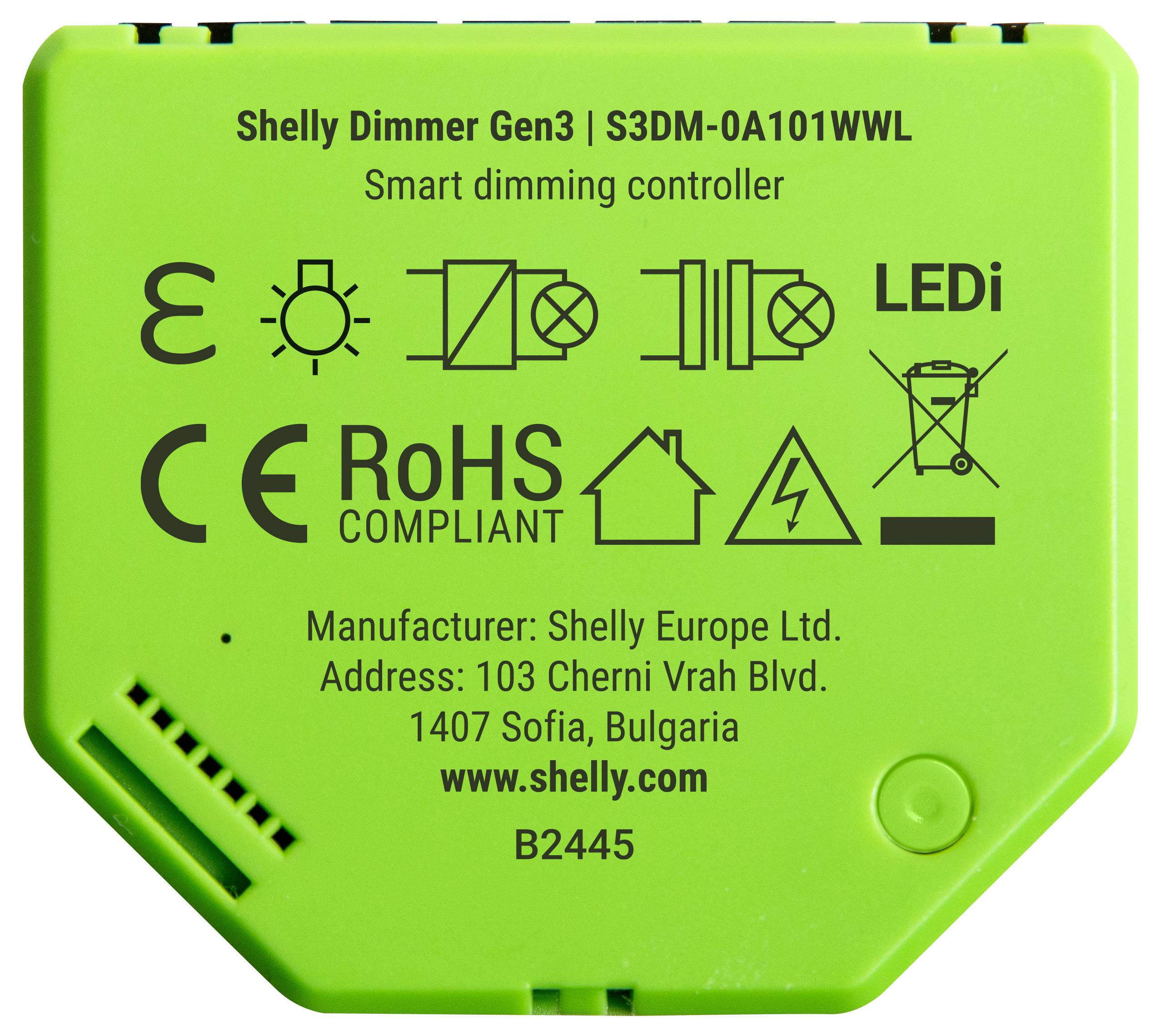

'Green Shelly Dimmer Gen3 S3DM-0A101WWL device with compliance symbols, LEDi mark, and manufacturers' information including address.'

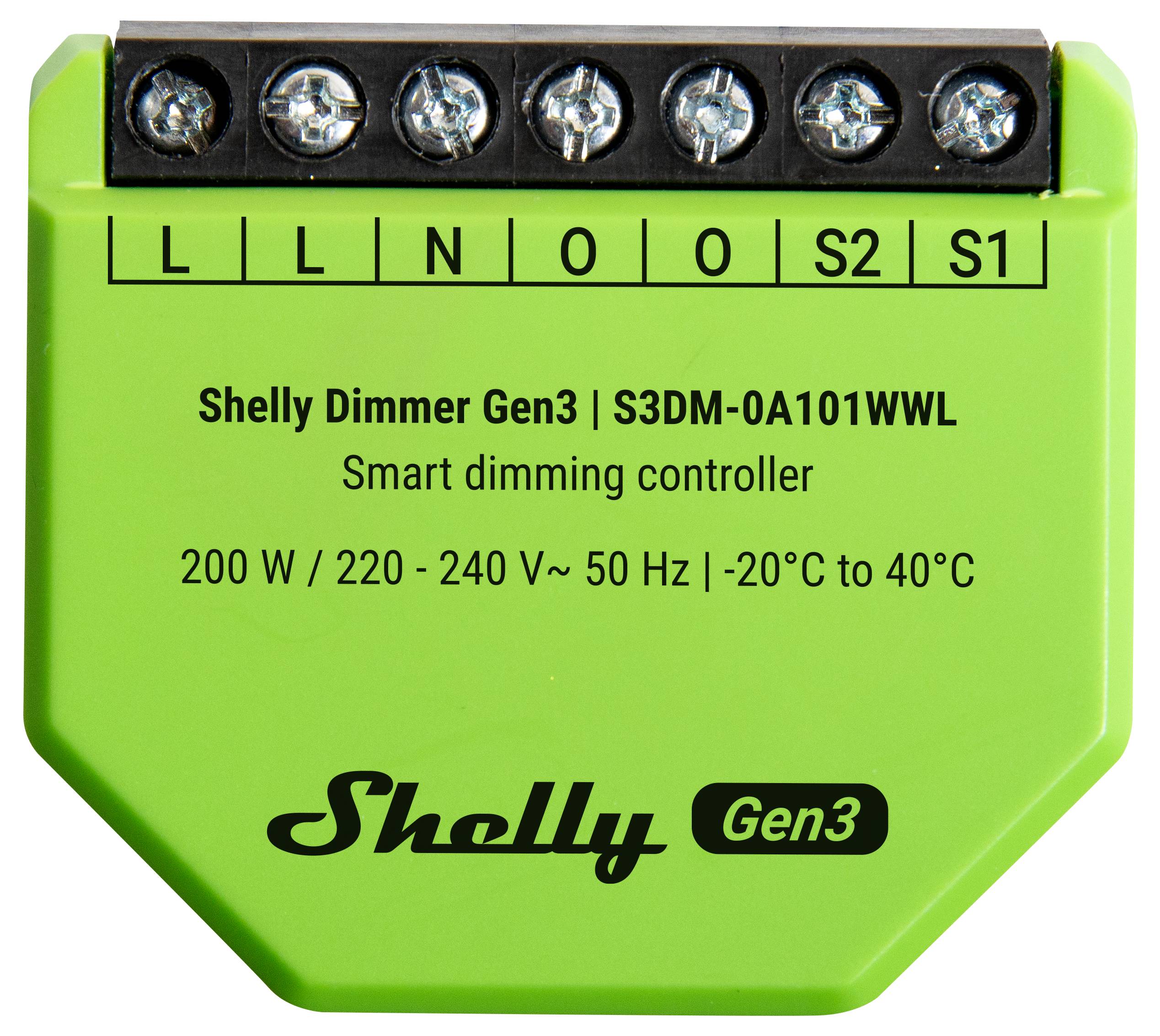

'Green smart dimming controller labeled Shelly Dimmer Gen3, model S3DM-0A101WWL. Input: 200W, 220-240V, 50Hz. Temp: -20°C to 40°C.'

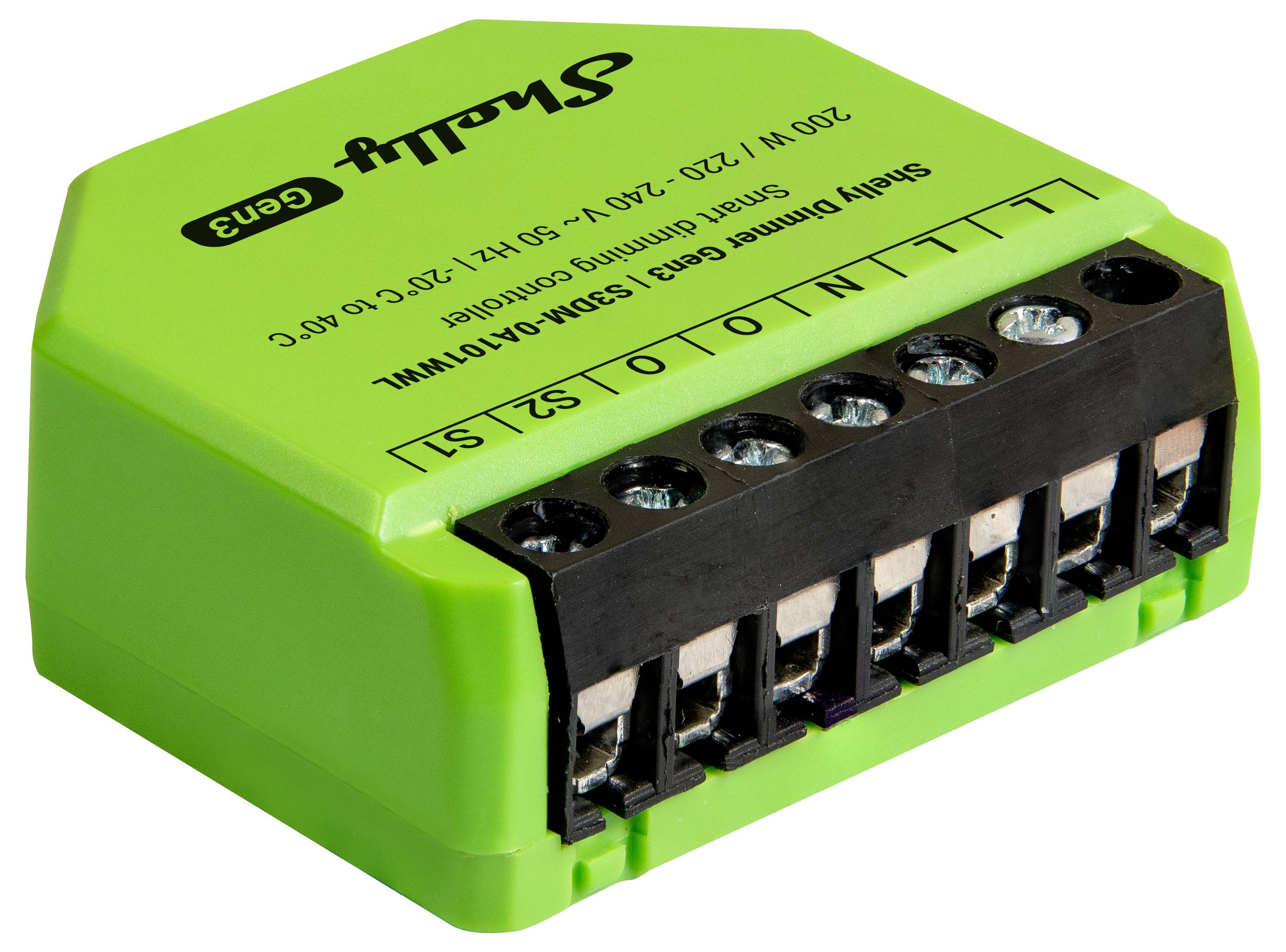

A small, green Shelly Gen3 electrical device with multiple connection terminals, used for smart home automation.

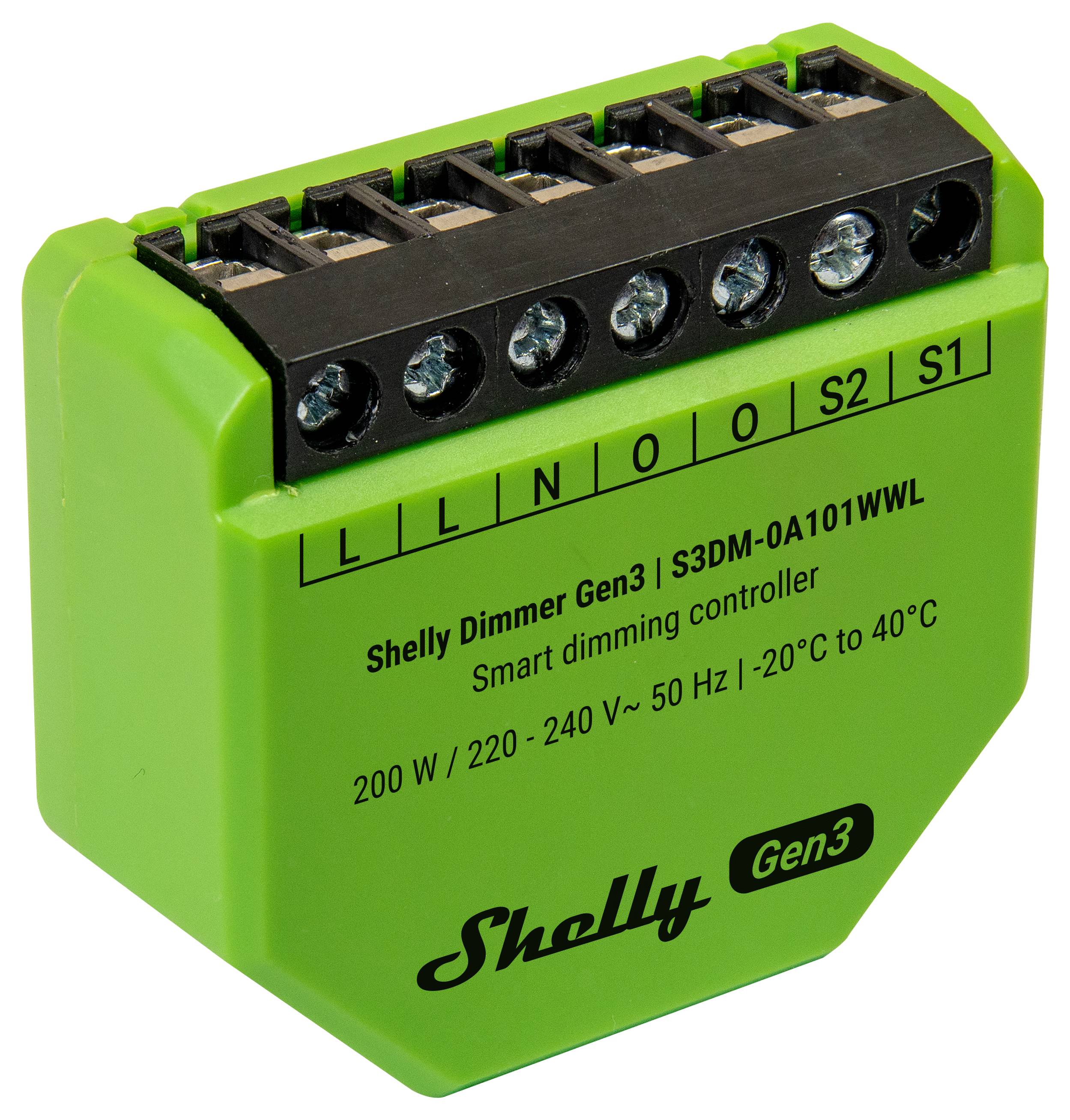

'Shelly Dimmer Gen3, smart dimming controller, 200W/220-240V~50Hz, -20°C to 40°C, green casing with connection terminals.'

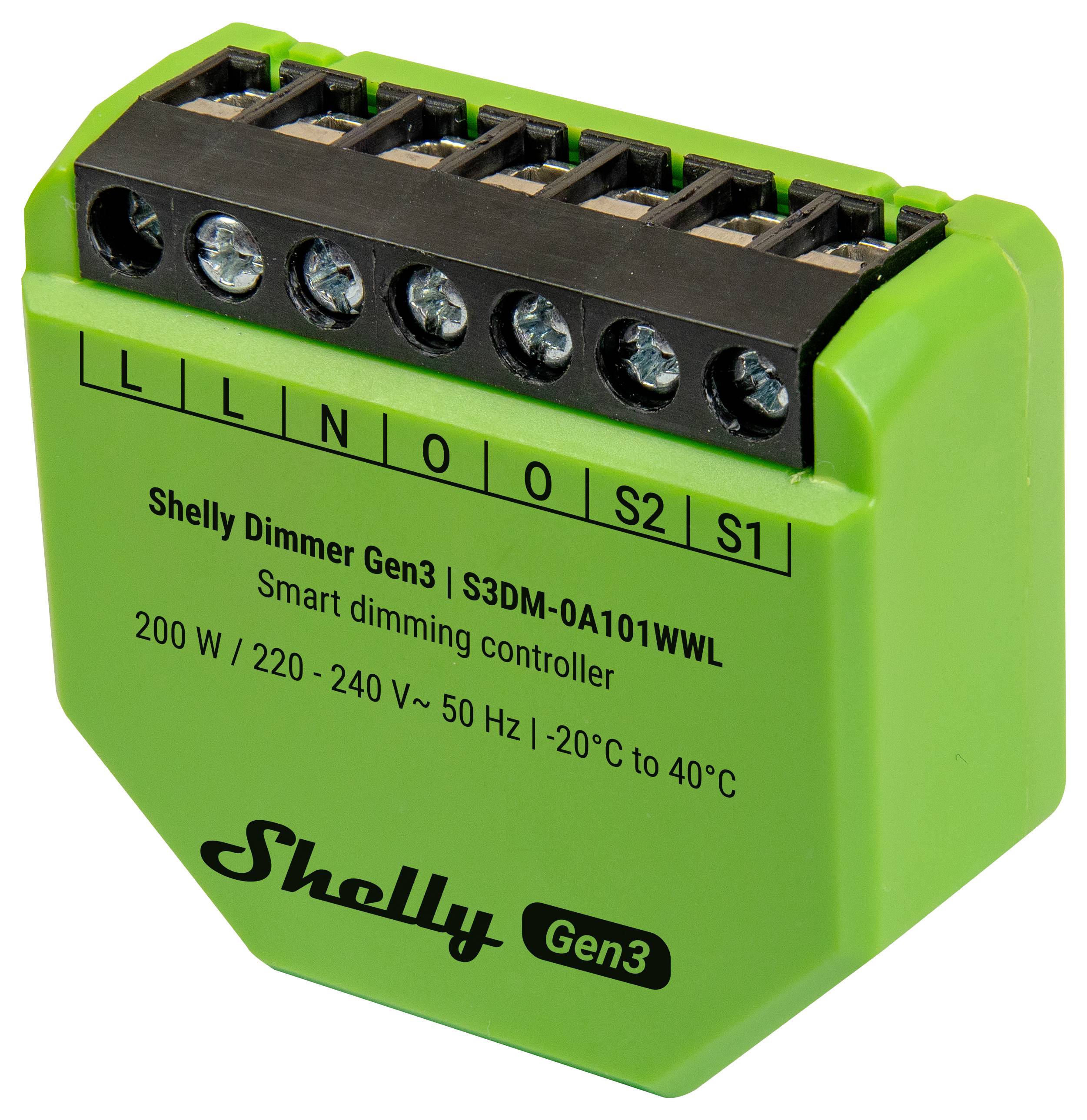

Green 'Shelly Dimmer Gen3' smart dimming controller, labeled 'S3DM-0A101WWL', for 200-240V, 50Hz, with six connection terminals.

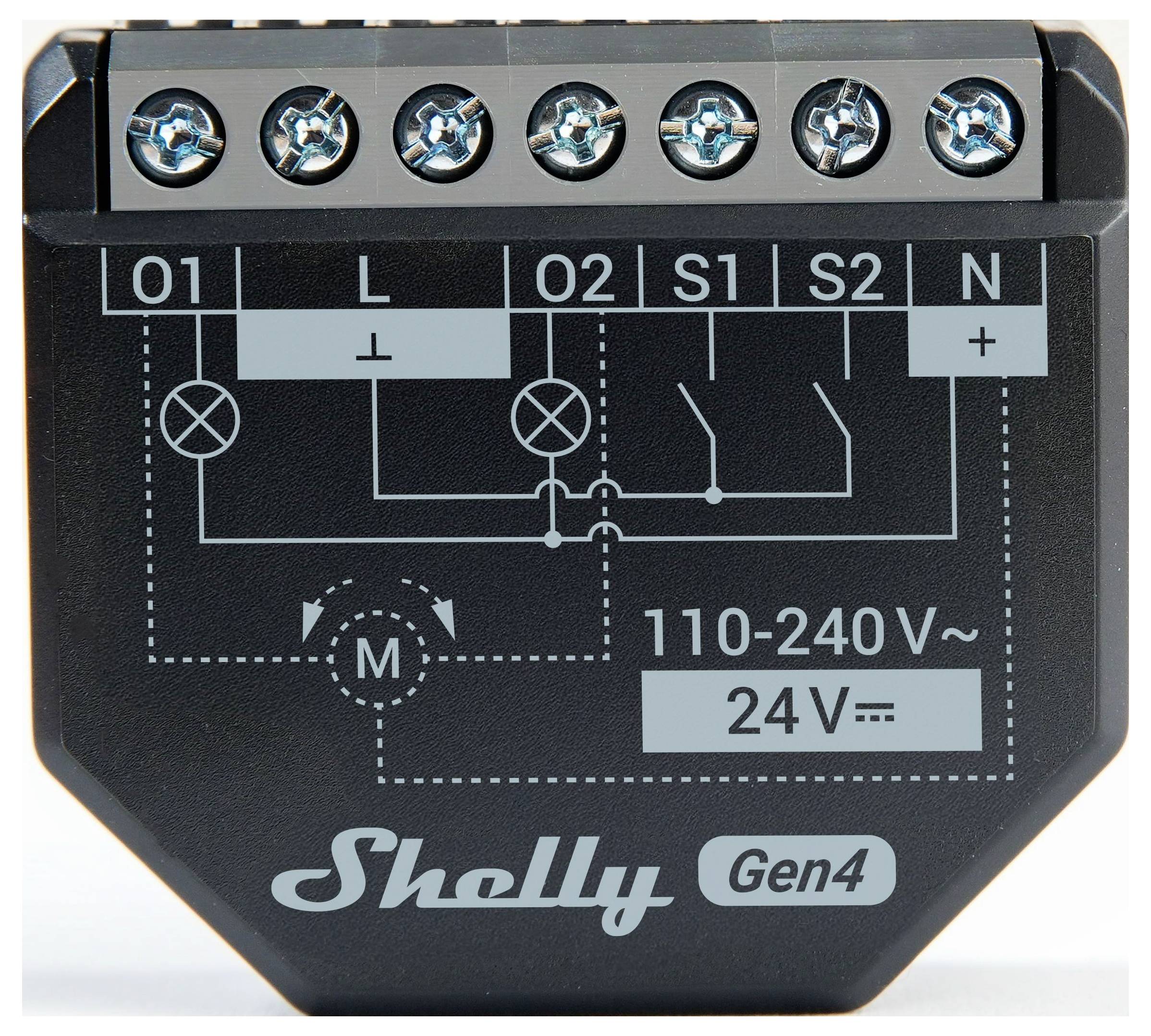

'Black Shelly Gen4 device with wiring diagram, labeled O1, O2, S1, S2, L, N, indicating 110-240V power compatibility.'

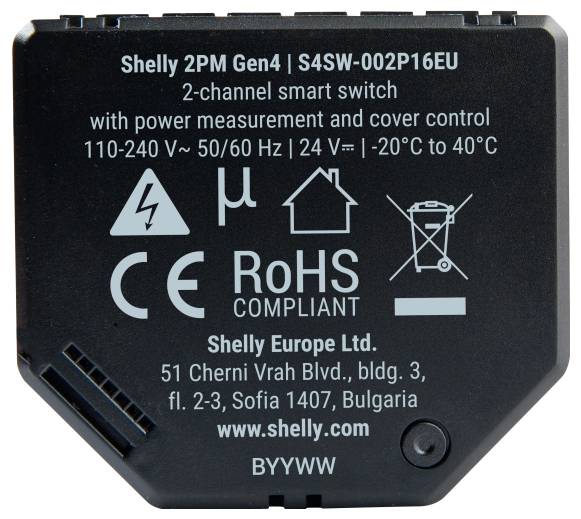

'Shelly 2PM Gen4' smart switch with power measurement, cover control. Compatible with 110-240 V, supports 50/60 Hz. RoHS compliant. Made by Shelly Europe Ltd, Bulgaria.

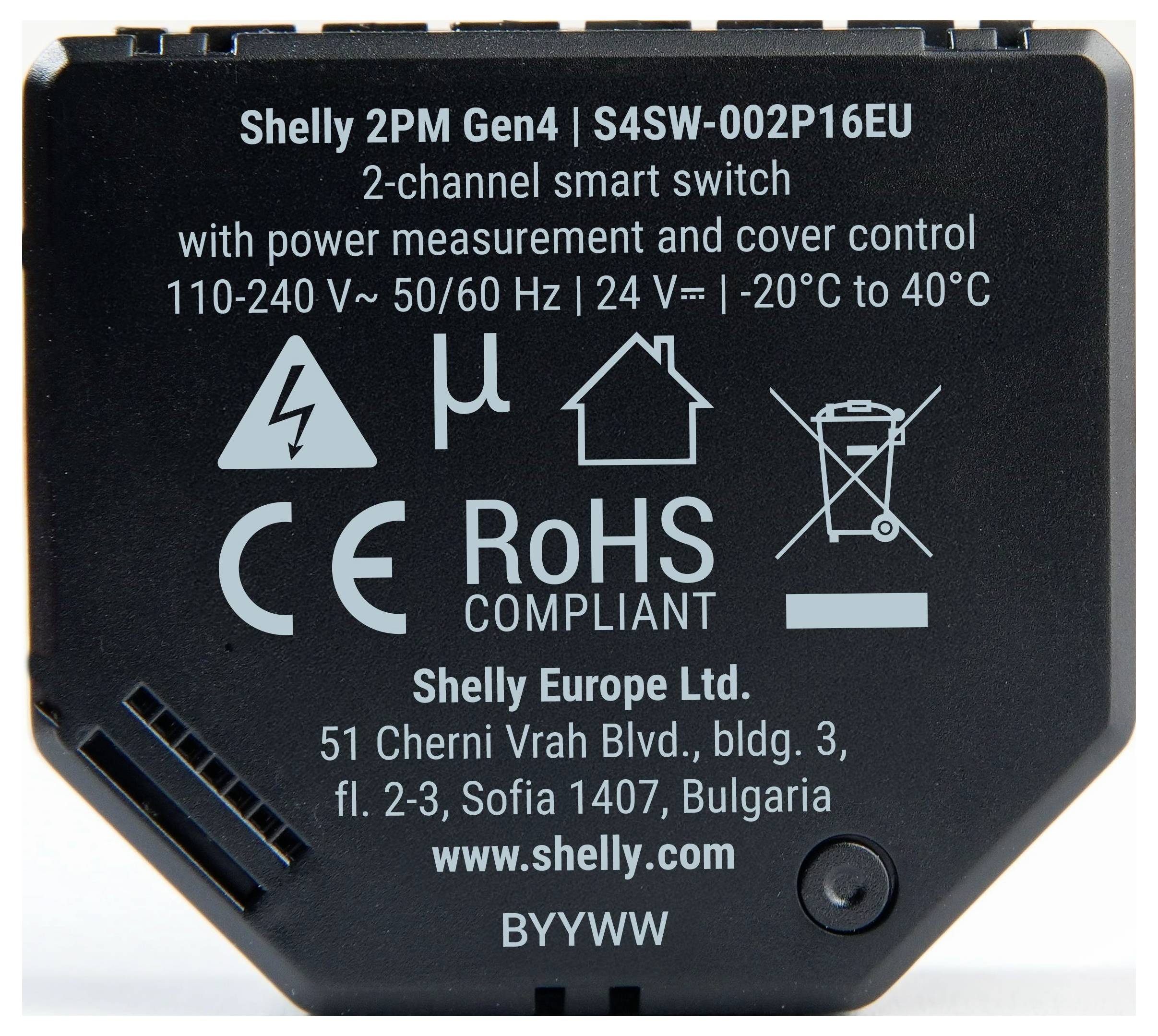

'Shelly 2PM Gen4' smart switch showing certifications, power specs, and contact info for Shelly Europe Ltd., including website.

'Black and gray terminal block with six connection points for electrical wiring.'

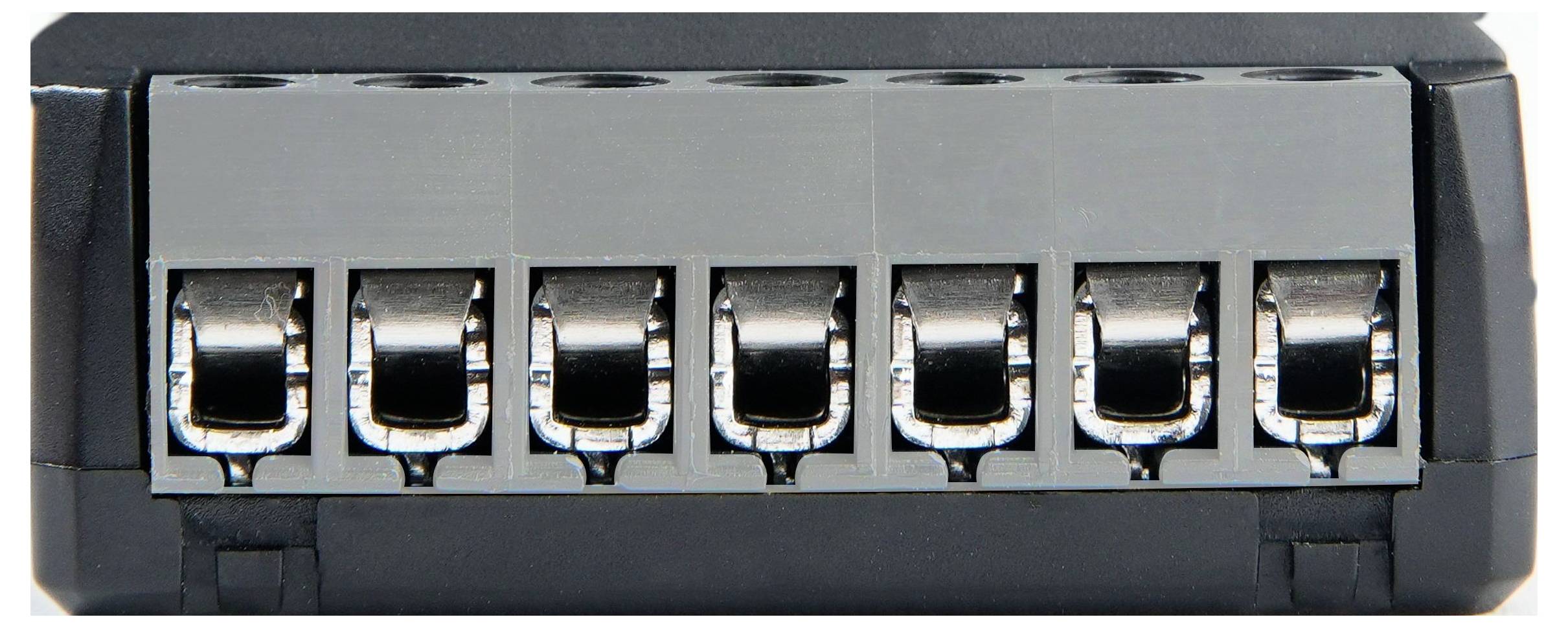

'Electrical terminal block with seven connection points for secure wire attachment, designed for distribution and grounding purposes.'

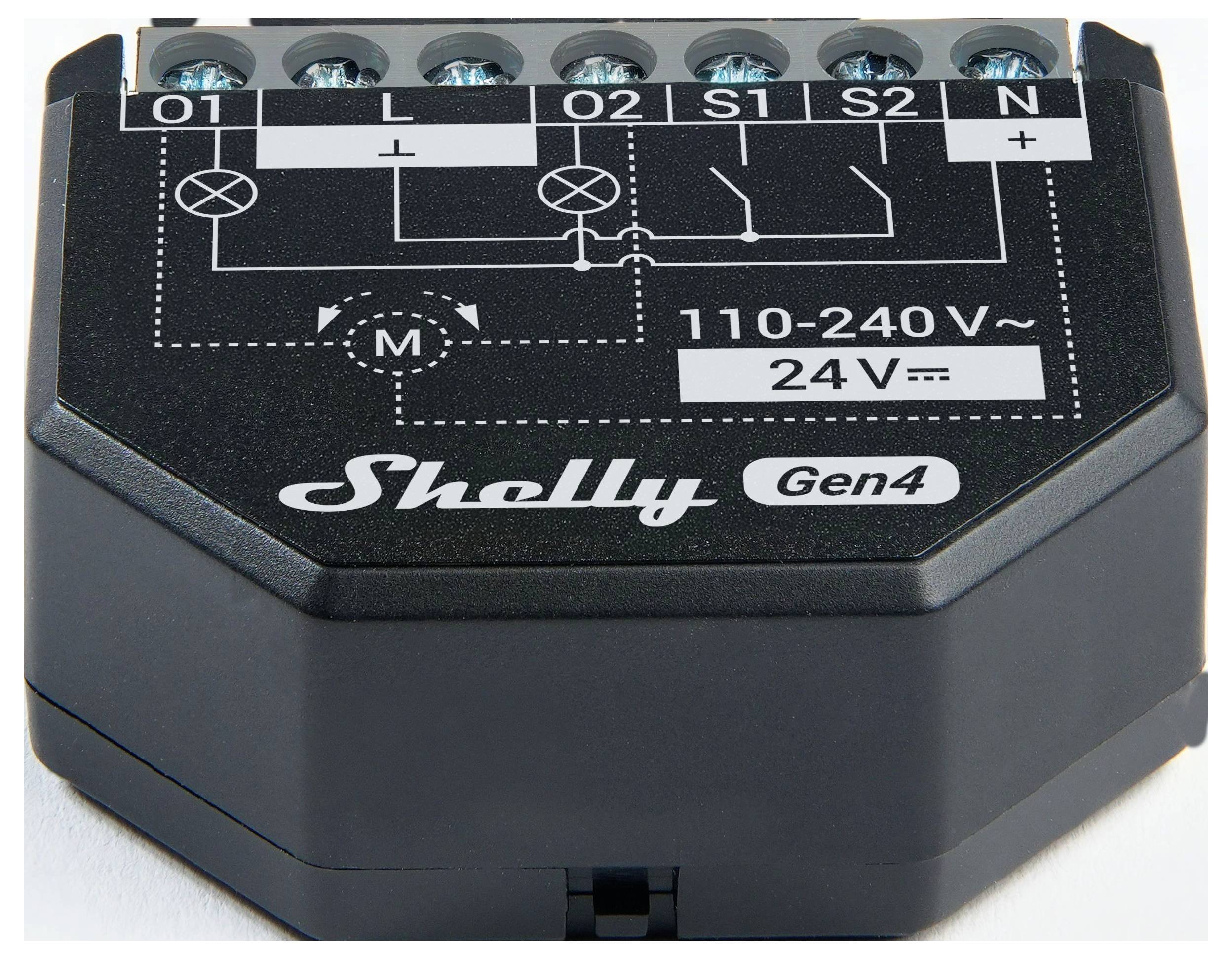

'A black electrical device labeled 'Shelly Gen4' shows wiring terminals marked L, O1, O2, S1, S2, N, with voltage ratings of 110-240V and 24V.'

A black rectangular battery pack with a smooth surface, viewed from the side, suitable for electronic devices.

A black, rectangular plastic object with a slightly beveled corner, possibly a battery or electronic accessory component.

1/29

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 42.99 / piece)

€ 42.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shelly DALI Dimmer Gen3 Smarter DIMM controller

Wi-Fi powered Bluetooth integration or use as a Bluetooth gateway
No neutral conductor required: Can be used without neutral conductor. A bypass is required if the device is used without a neutral conductor and the load is below 20 W.
Supported bulb types: Dimmable LED lamps: Up to 150 W, light bulbs: Up to 200 W, halogen lamps: Up to 200 W, iron core transformer with low-voltage light bulbs: Up to 200 VA, dimmable electronic transformers: Up to 200 W.
Overload and temperature protection
Equipped with a new processor & extended flash memory - ESP Shelly
Designed for installation in confined spaces, such as wall mounting, electrical control boxes, etc.
Simple control via the Shelly APP as well as various protocols, platforms and voice wizards

Technical specifications

Permissible operating temperature -20 °C to 40 °C.
Max. Operating height 2000 m

Product type: Dimmer actuator

Series: Shelly

: Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi
Bluetooth

Max. switching capacity: 200 W

Used at: Indoors

Power supply (LOV): mains-powered

Operating voltage: 230 V

: 200 W

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 2.4 GHz

: 50 m

Mounting type: Flush mount

Factory colour: Lime

Width: 42.5 mm

Height: 38 mm

Depth: 16.5 mm

Weight: 24.3 g

: n.rel.

Dim: (W x H x D) 42.5 x 38 x 16.5 mm

Hub: Not required

Features: Dimmer function

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730868 Shelly Dimmer Gen3 Shelly Dimmer actuator Wi-Fi, Bluetooth

Description

Intelligent dimmer-controller for a seamless remote control of dimmable lights and drivers. It can be used with or without neutral. Equipped with our own Shelly chip.
*A bypass is required if the unit is used without a neutral conductor and the load is less than 20 W.

Common usage types:
LED strip
-Dim
-Lights
