Name: Shelly Shelly PM Mini Gen3 Actuator Wi-Fi, Bluetooth
Brand: Shelly
SKU: 3028459
Availability: InStock

A Shelly PM Mini Gen3 device with terminals for wired connections. Label shows voltage and current rating: '110-240 VAC, 50/60 Hz, max. 16 A / 3840 W @ 240 VAC'.

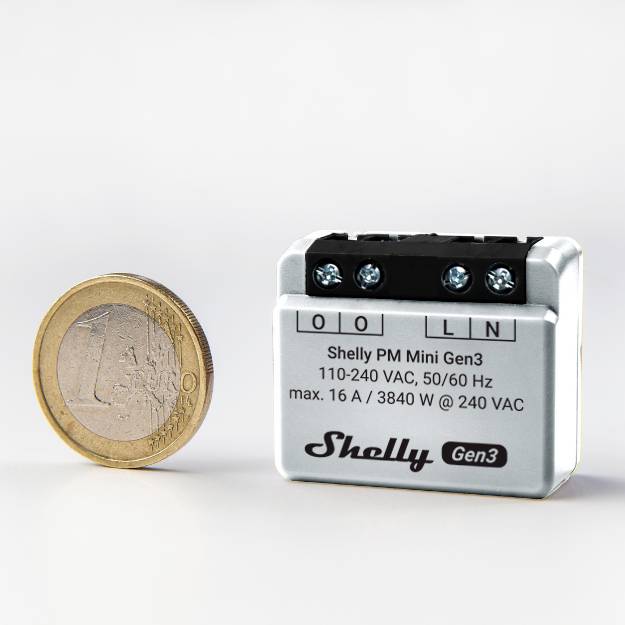

A Shelly PM Mini Gen3 device next to a 1-euro coin for size comparison. Device with technical specifications on the front side.

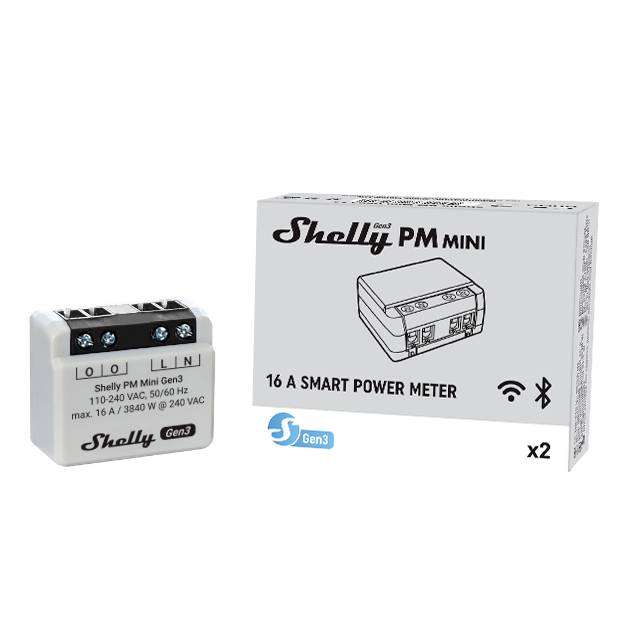

'Smart Power Metre 16A' and Packaging. Product image of a Shelly 16A Smart Power Metre with technical specification on the packaging.

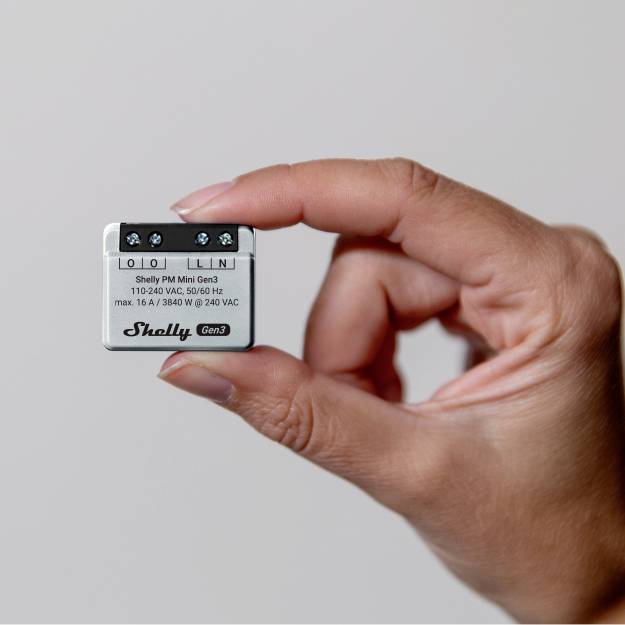

A hand holding a Shelly Plus relay, with white labelling for connection information, providing a limited view of the device.

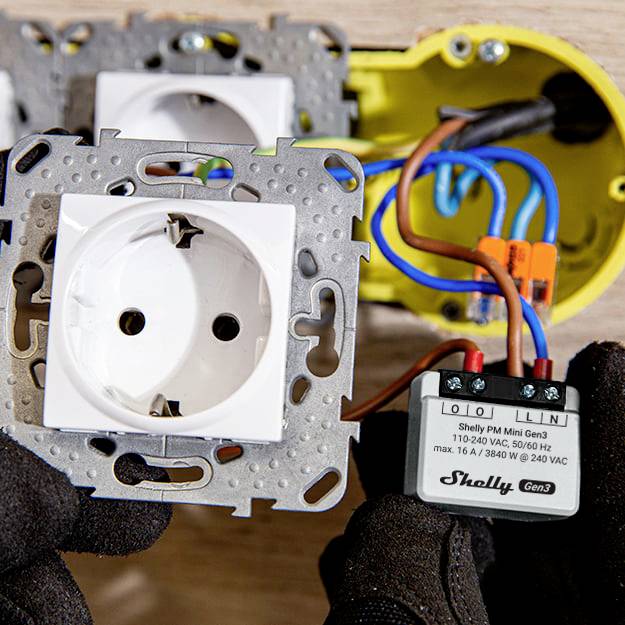

Two socket modules and an open housing with a Shelly PM Mini Gen3. A person is holding the module and preparing the installation.

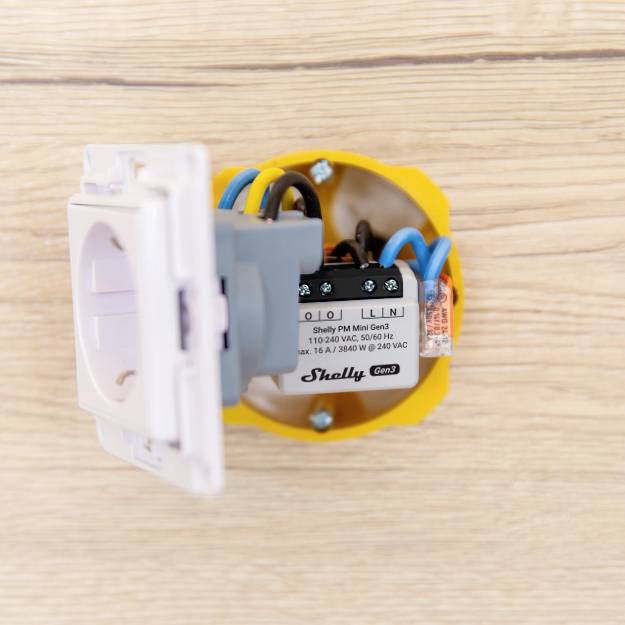

An intelligent light switch, partially recessed, shows its rear side with electrical connections and coloured cables.

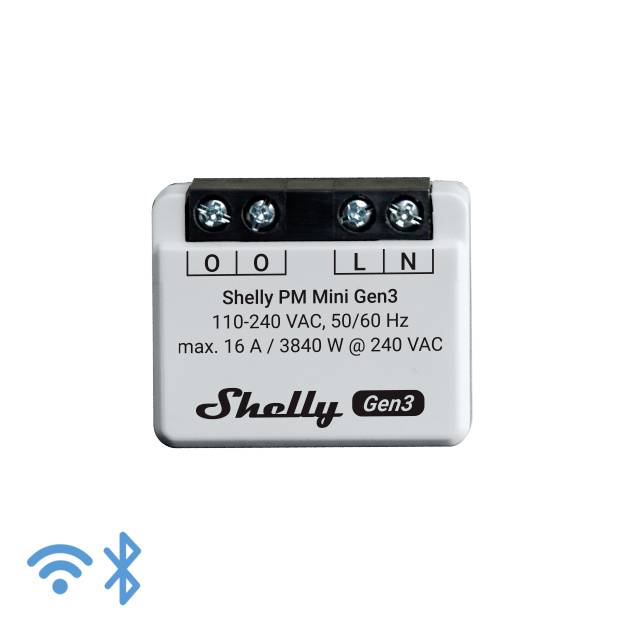

A white electric module with three terminal connectors, labelled 'Shelly PM Mini Gen3'. Supports Wi-Fi and Bluetooth.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

118 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shelly UP "Plus PM Mini Gen. 3" WLAN, BT, measuring function

For remote monitoring of the power consumption of electrical devices
WLAN and Bluetooth®
Integrated web interface
With measuring function

Technical specifications

Max. Measuring voltage 240 VAC
Max. Measuring current 16 A
Max. Measuring output 3840 W
Max. RF Power <20 dBm
WLAN protocol 802.11 b/g/n
WLAN range (depending on local conditions): Up to 50 m in the open, up to 30 m in indoor areas
Bluetooth protocol: 4.2
Bluetooth range (depending on local conditions): Up to 30 m outdoors, up to 10 m indoors
CPU ESP-SHELLY-C38F
Flash 8 MB
Webhooks (URL Actions): 20 with 5 URLs per hook

Product type: Actuator

: Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi
Bluetooth

Used at: Indoors

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Frequency: 2.4 GHz

: 50 m

Mounting type: Flush mount
Wall

Factory colour: White

Width: 34 mm

Height: 29 mm

Depth: 16 mm

Weight: 0.024

: n.rel.

Dim: (W x H x D) 34 x 29 x 16 mm

Hub: Not required

Features: Test function

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3028459 Shelly Shelly PM Mini Gen3 Actuator Wi-Fi, Bluetooth

User & Safety Instructions

User & Safety Instructions 3028459 Shelly Shelly PM Mini Gen3 Actuator Wi-Fi, Bluetooth

Description

Shelly PM Mini Gen3 (the device) is a smart, small form factor power meter that allows remote monitoring of the power consumption of electrical appliances. It can be retrofitted into standard-flush sockets, behind sockets and light switches or at other places with restricted space.
The device can be accessed from any location where the user has an Internet connection, it can be controlled and monitored as long as the device is connected to a Wi-Fi router and the Internet. The device has a built-in web interface that allows you to monitor, control and adjust your device settings.
