Shelly LinkedGo smartes HVAC-Thermostat Underfloor heating controller, Room thermostat Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Highlights & Details

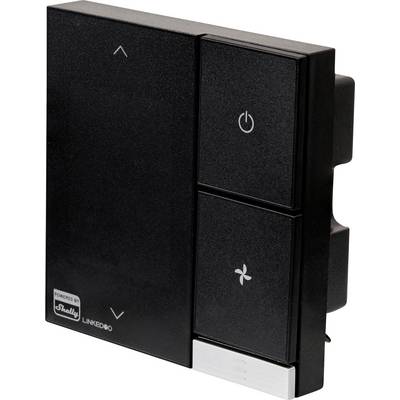

LinkedGo smart HVAC thermostat
- Control of the underfloor heating valves
- Fan convector control
- Ventilation control
- Heat source control
- Compatibility with electrical floor heating
- RS485/MODBUS-Control
- Compatibility with external temperature sensors
Technical specifications
- Product type
Underfloor heating controller
Alexa
Google Home
Manufacturer-specific
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
- Mounting type
Wall
- Factory colour
Black
- Width
86.8 mm
- Height
86.8 mm
- Depth
39.5 mm
n.rel.
- Dim
(W x H x D) 86.8 x 86.8 x 39.5 mm
- Hub
Not required
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3404836 Shelly LinkedGo smartes HVAC-Thermostat Underfloor heating controller, Room thermostat Bluetooth, Wi-Fi
Description
A thermostat for comprehensive HVAC control
Manage your entire HVAC system with just one device – from fan convectors to underfloor heating to ventilation and cooling. With WLAN, you have easy remote access, or use RS485 to integrate the thermostat into larger HVAC systems. With intelligent timetables, frost protection and all the Shelly-functions, this thermostat is the ideal solution for an efficient climate regulation.
WLAN controlled
Establish a direct connection to your WLAN network HER - without the need for a hub!
Complete HVAC control
Managed floor heating, fan-coil systems, ventilation and heat sources such as gas or pellet boilers with only one thermostat.
Integration with larger HVAC systems
Connect the thermostat via the RS485/MODBUS-interface with extensive HVAC-systems.
Compatibility with external temperature sensors
You can connect external sensors for more precise measurements in large rooms.
Simple and user-friendly operation
The user-friendly design of the thermostat focuses on the essentials: Setting the target temperature in the room.
Smart schedules
Create customized schedules that are according to your daily schedule or adjust to the sunrise and sunset in order to automatically adjust the temperature.
This text is machine translated.
Features
- Ventilation Control – Supports both AC and DC fans, including control of 10 V DC fans via an analog output
- Heat source control – Uses a relay with potential-free contact to control heat sources such as gas or pellet burners
- Electrical Floor Compatibility – The thermostat can control a Shelly relay to automatically switch the heater on or off based on temperature settings
- Frost-proof function – protects heat pipes against damages caused by low temperatures
- Built-in humidity sensor
- Temperature and humidity correction – Adjusts the values of the thermostat to get even more accurate results
- No hub required! – Wi-Fi and Bluetooth connectivity for easy integration
- WLAN-range amplifier & BLE gateway
- 'Powered by Shelly' - Equipped with a Shelly chip that supports all Shelly functions
- Smart Schedules – create schedules based on time or sunrise and sunset
- High compatibility - Control the system easily with the Shelly Smart Control APP, on most platforms and protocols, and with voice wizards. Compatible with Alexa, Home Assistant and other automation systems.
Hints
The thermostat can be mounted in square thermostat consoles with a minimum internal dimension of 70 mm x 70 mm.
