Buy Shelly TopAC Portable EV Charger 11kW Shelly Voltage supply Wi-Fi, Bluetooth

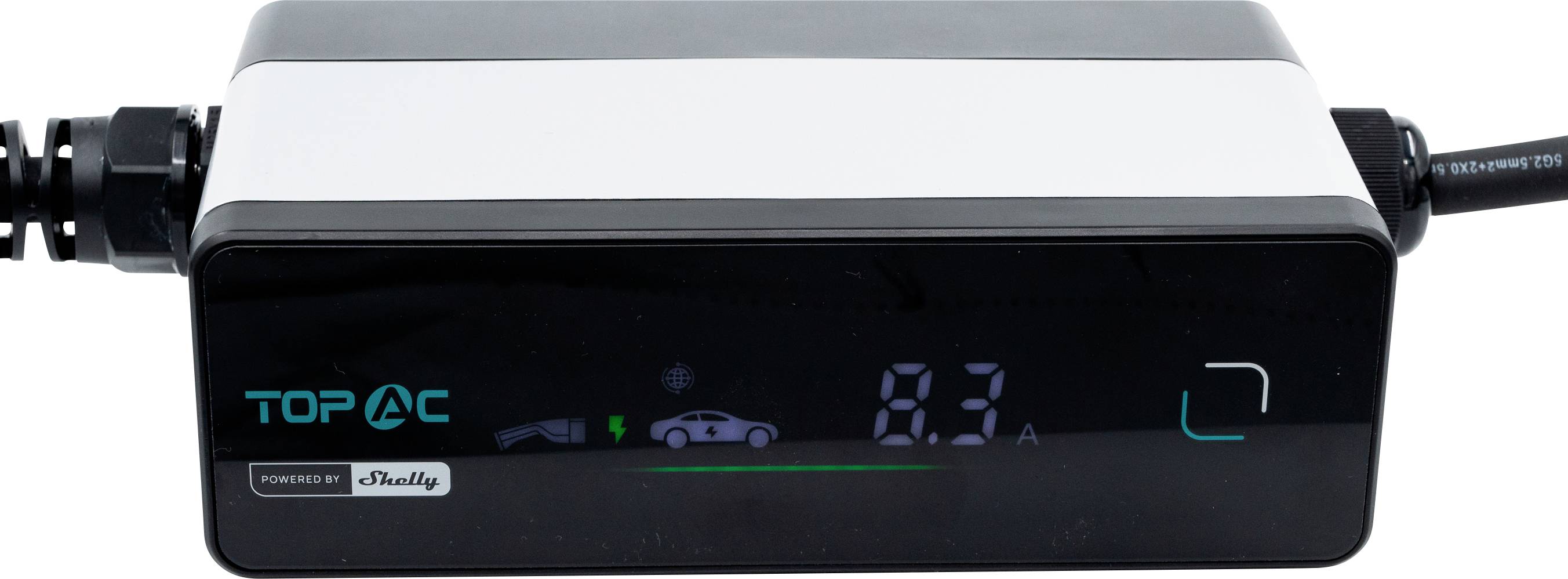

'TOP AC' black and white electronic device with digital display showing '8.3'. Possible indicators for power and connectivity are visible.

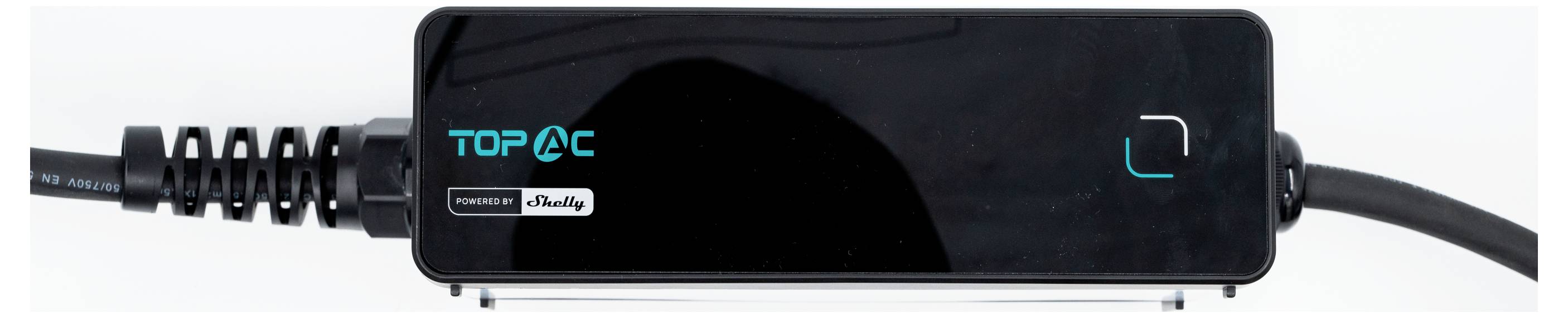

A close-up of a black 'TOP AC' device with cables attached, featuring a small screen and branding.

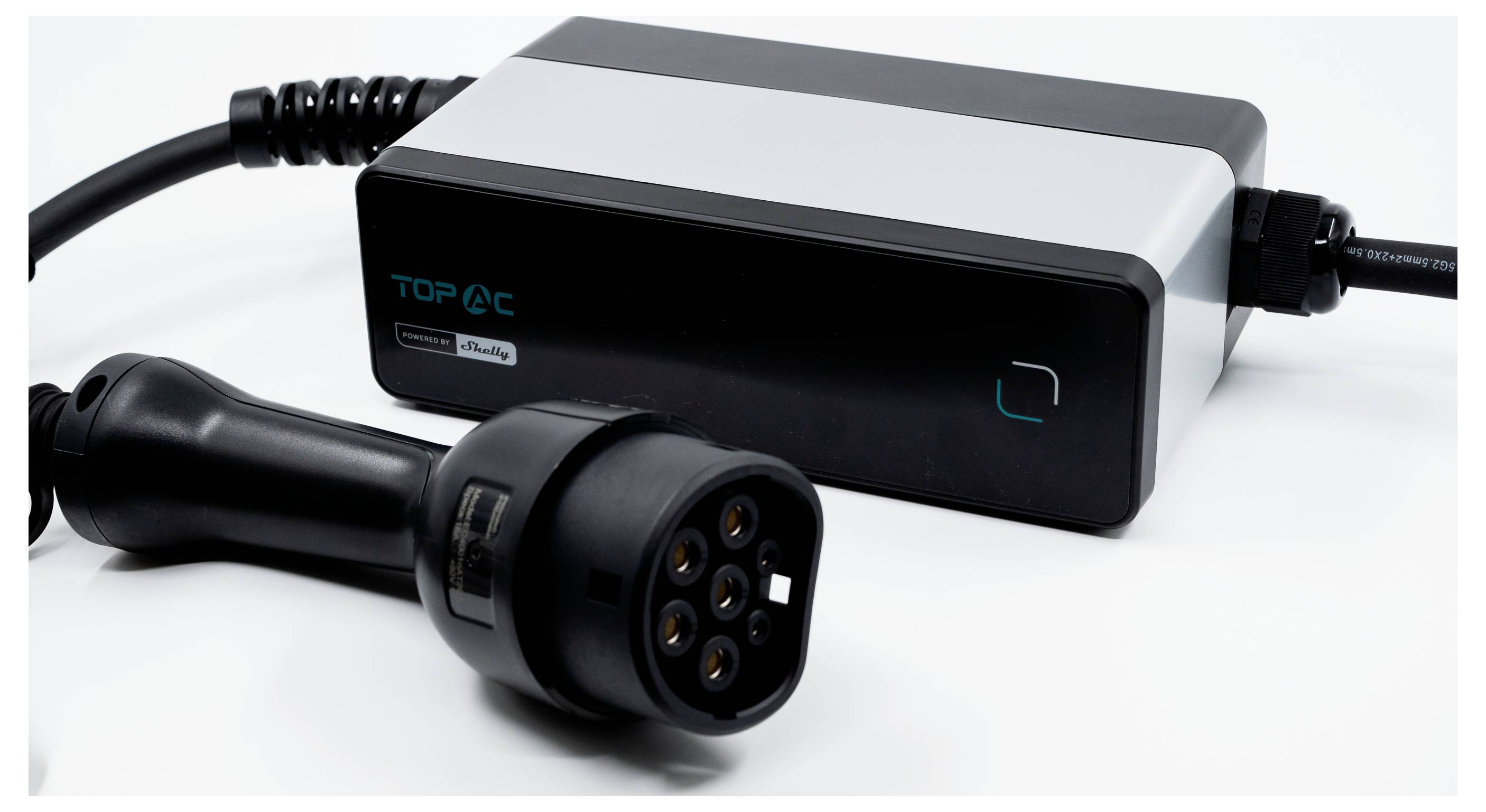

An electric vehicle charging adapter with a black and silver rectangular casing labeled 'TOP AC', featuring a multi-pin plug.

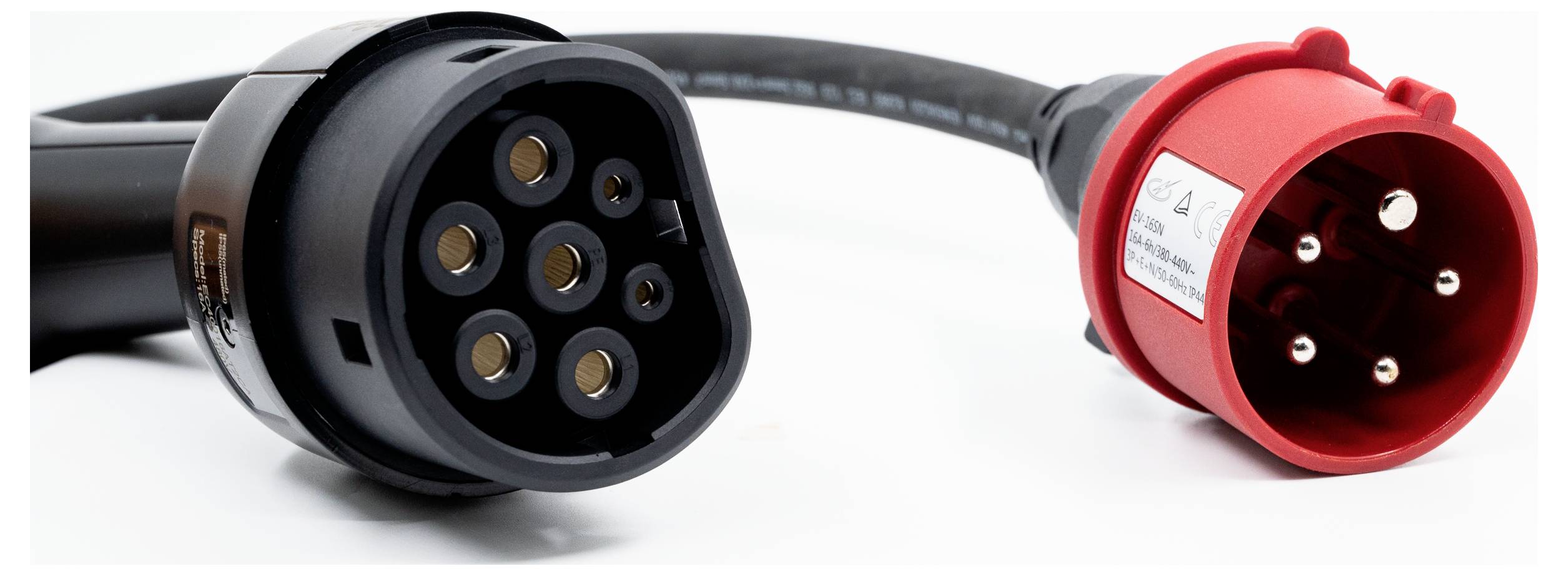

A black electric vehicle charging plug and a red industrial power plug are shown side by side against a white background.

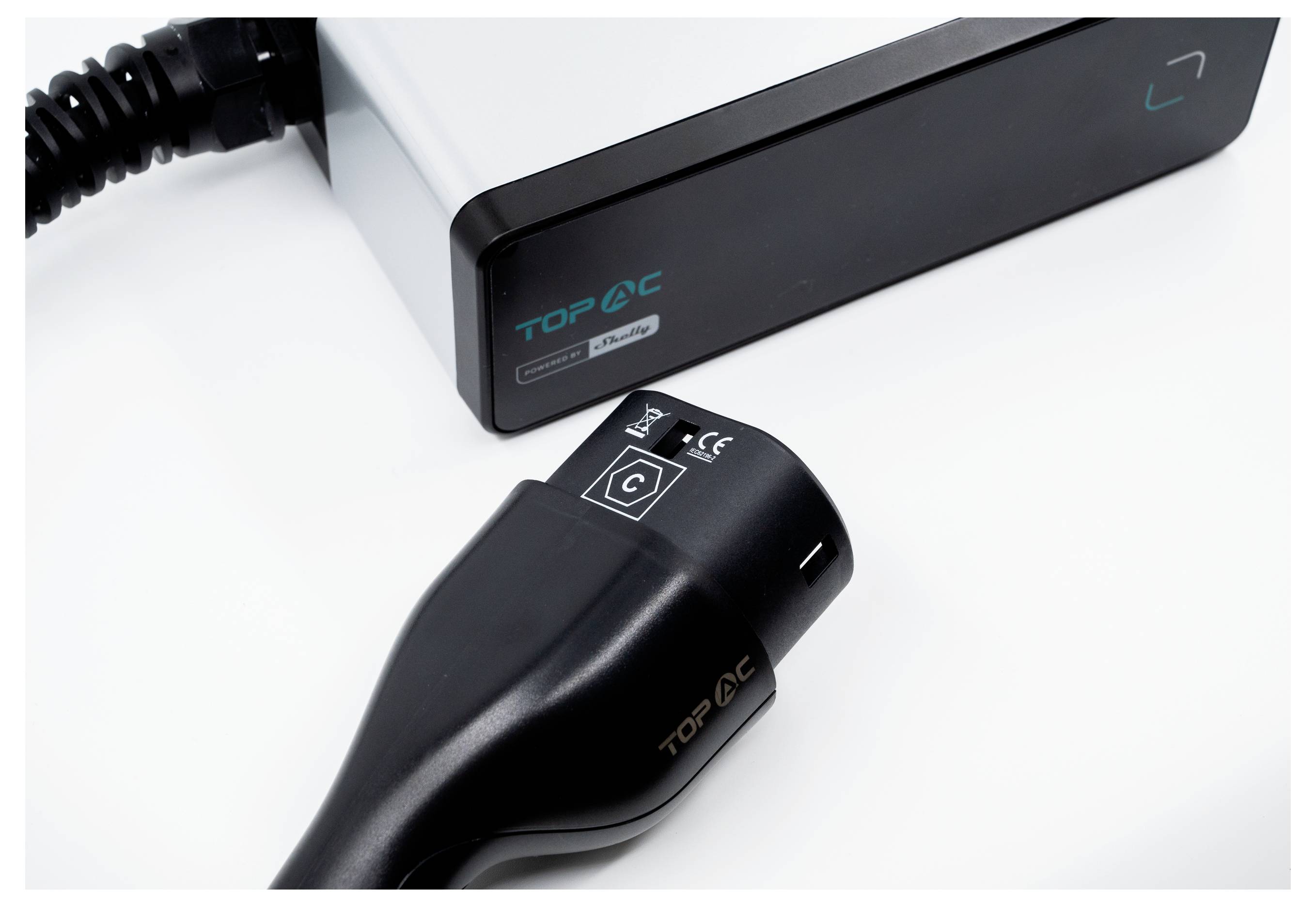

Electric vehicle charging plug and box labeled 'TOP AC'. Black plug connected to a metallic charging unit, showing CE markings.

1/5

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 222.69 / piece)

€ 222.69

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Topac Portable EV Charger 11 kW

Adjustable charging current (6–16 A)
Button at the device and display indicators
Support for Auto Balance
WLAN- and Bluetooth-connectivity
Type 2 connector with five meter cable
Local smart operation

Technical specifications

Power supply: CEE 16A plug (3-phase)
Mounting type: Portable/mobile (wall bracket often available as an option)

Product type: Voltage supply

Series: Shelly

: Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi
Bluetooth

Max. switching capacity: 11000 W

Used at: Indoors
Outdoors

: IP65
IP54

Operating voltage: 400 V AC

Channels: 1

: 30 m

Factory colour: Silver
Black

Width: 250 mm

Height: 100 mm

Depth: 70 mm

Weight: 4 kg

: n.rel.

Dim: (W x H x D) 250 x 100 x 70 mm

Hub: Not required

Data exchange: Bidirectional (bi)

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3594357 Shelly TopAC Portable EV Charger 11kW Shelly Voltage supply Wi-Fi, Bluetooth

User & Safety Instructions

User & Safety Instructions 3594357 Shelly TopAC Portable EV Charger 11kW Shelly Voltage supply Wi-Fi, Bluetooth

Description

A portable 11kW charger for electric vehicles, flexible and powerful. It can be plugged directly into a standard CEE 16A three-phase outlet. No matter whether at home, at work or while traveling - it offers a fast, reliable and uncomplicated charging experience.

This text is machine translated.

Features

Dynamic load management (auto balance)
For home and while traveling
Built-in electrical protection
Protection class IP65 for the control box
Cloud management via the Shelly Smart Control APP
No hub required
WLAN-range amplifier and BLE-gateway
Local web interface for direct device access
All standard features of Shelly devices
