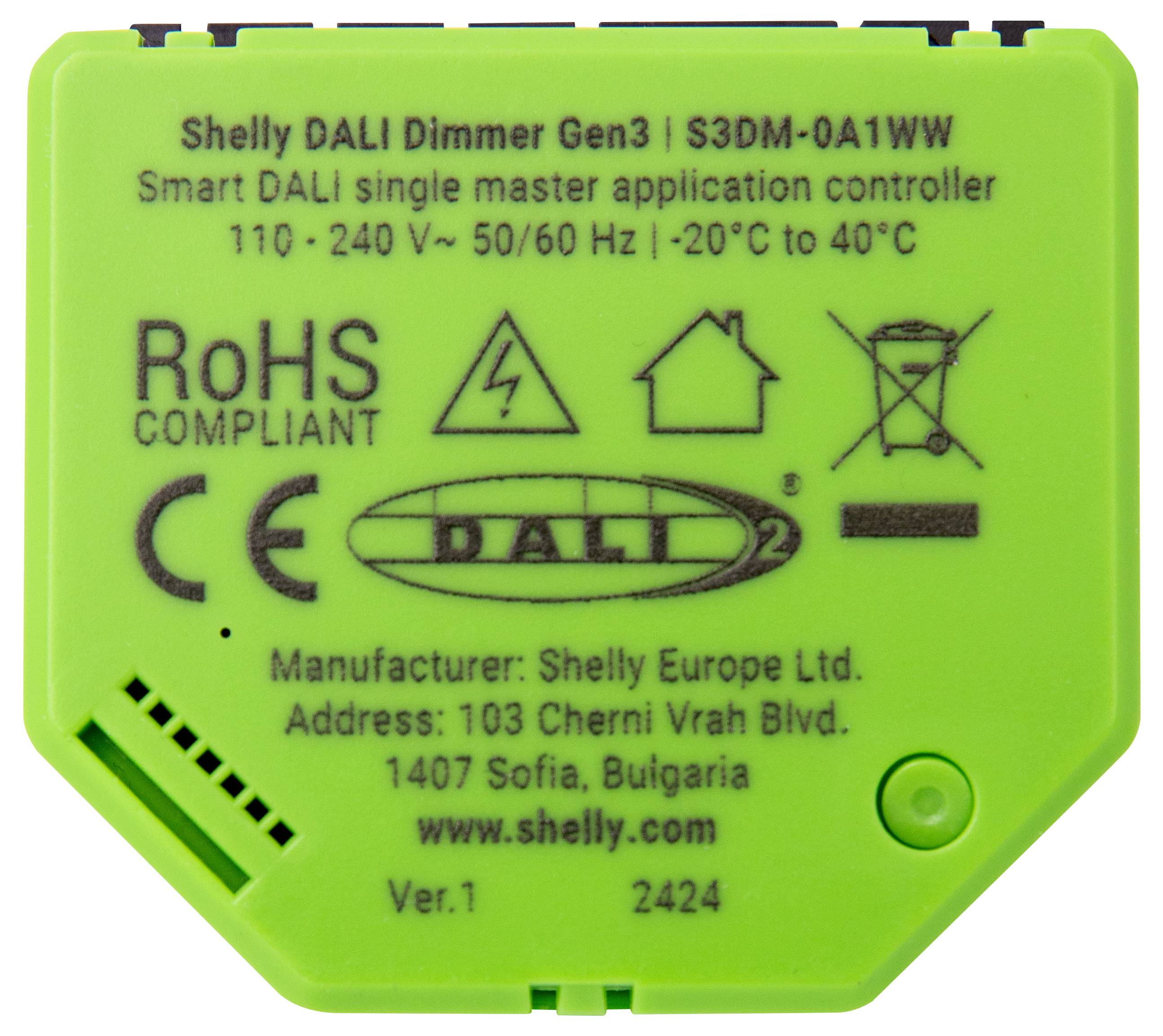

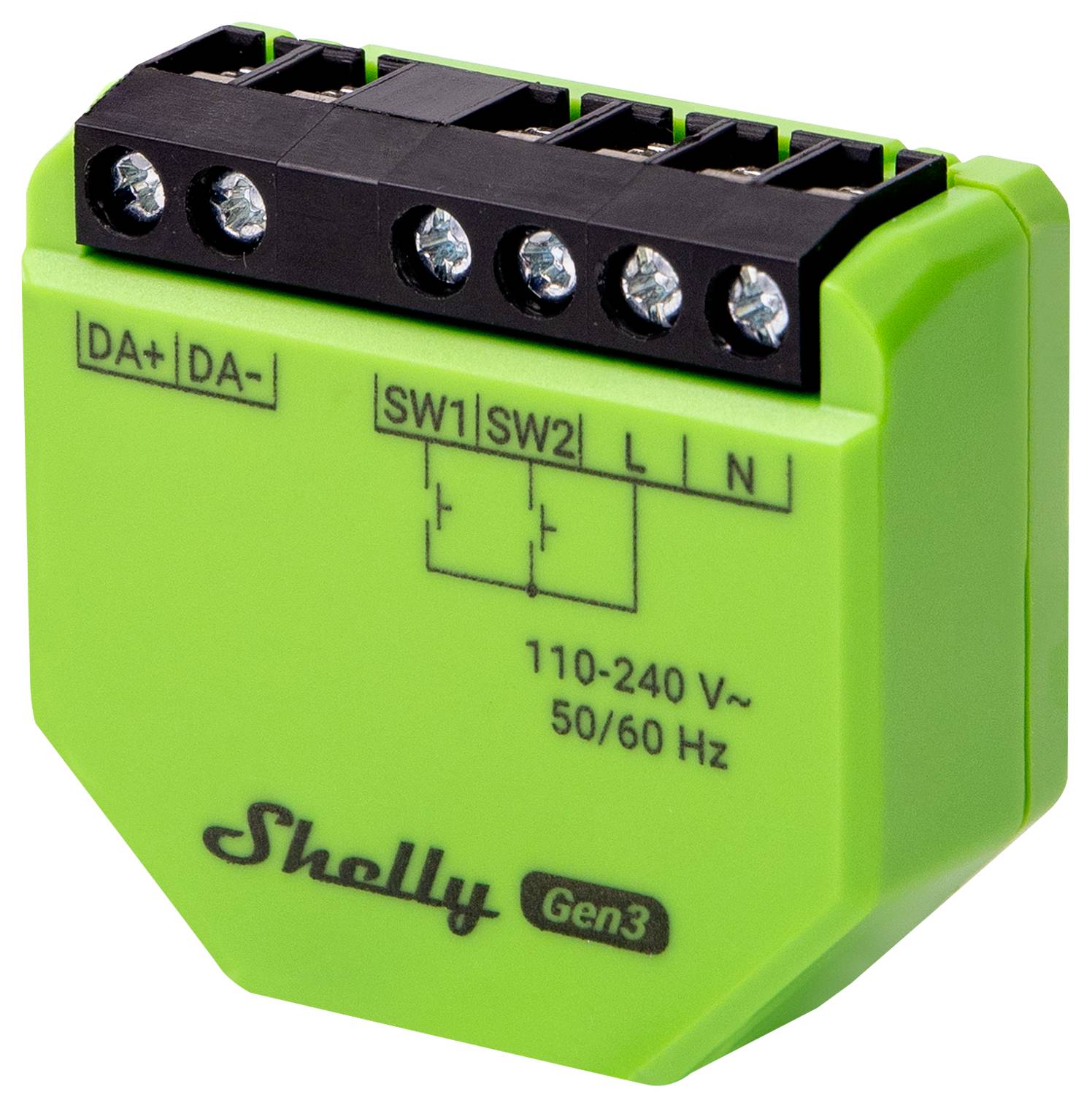

Shelly Shelly DALI Dimmer Gen3 Dimmer actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Highlights & Details
Shelly relay · LED light controller
- For brightness control for DALI lights
- Smart schedules
- WLAN/BT
Technical specifications
- Power supply AC 110-240 V ±10%, 50/60 Hz
- Bus power supply: Up to 10 mA (up to 5 DALI ballasts)
- Short circuit current 35 mA
- Bus voltage: 16 V nominal
- Internal temperature sensor: Yes 802.11 b/g/n
- CPU ESP-SHELLY-C38F
- Flash 8 MB
- Schedules: 20
- WebHooks (URL Actions): 20 with five URLs per hook
- Product type
Dimmer actuator
Alexa
Google Home
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
50 m
- Mounting type
Flush mount
- Factory colour
Green
- Width
42 mm
- Height
37 mm
- Depth
16 mm
n.rel.
- Dim
(W x H x D) 42 x 37 x 16 mm
- Hub
Not required
- Features
Dimmer function
Documents & Downloads
Datasheet
Datasheet 3340286 Shelly Shelly DALI Dimmer Gen3 Dimmer actuator Bluetooth, Wi-Fi
User & Safety Instructions
User & Safety Instructions 3340286 Shelly Shelly DALI Dimmer Gen3 Dimmer actuator Bluetooth, Wi-Fi
Description
The Shelly DALI Dimmer Gen3 is an advanced device for brightness control for high quality DALI lamps. It acts as a bridge between a DALI network of lights and your Shelly ecosystem, making it a simple solution for managing your sophisticated lighting system.
This text is machine translated.
This text is machine translated.
Features
- WLAN and Bluetooth connectivity (BLE gateway and WLAN range extender)
- DALI Single Master application controller
- Supports LED operating devices (DALI Part 207)
- Bus power supply with guaranteed 10 mA (up to 5 DALI operating devices)
- Smart schedules
- Night mode: Allows you to adjust a certain brightness of the input lights during the night
- Min/max brightness: Changes the range of the dimming signal to achieve a more precise brightness control.
- Cross-fade speed: Controls how fast the brightness changes when you hold down the button(s).
- Transition Duration: Controls the time for dimming from 0 to 100%. Supports scripting, web hooks, MQTT and local actions
- High compatibility with third-party home automation systems
- Supports KNXnet/IP communication
- No HUB required! Simple control via the Shelly Smart Control APP, different house automation protocols, platforms and voice wizards
- Compatibility: Alexa, Google home, home automation system such as home assistant, IObroker, etc.
- Scripting
- MQTT
- Encryption: Yes, TLS 1.2.
System requirements
- Z-wave, iOS, Android, HUAWEI, MQTT
