Buy Shelly Shelly Qubino Wave 2PM Actuator Z-Wave, Z-Wave+

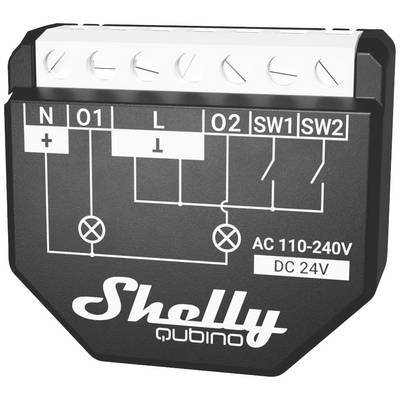

Black device with the inscription 'Shelly Qubino', showing electrical connection terminals and labels for AC 110-240V DC 24V.

Electrical module 'Shelly Wave 2PM', showing connections for L, N, O1, O2, SW1, SW2, with packaging in the background, EU 868.4 MHz.

A Shelly electrical switch displays connection diagrams. Cables are connected, voltage 110-240V AC, 24V DC.

A person is installing a Shelly switch on a wall, with several cables being connected.

1/4

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 31.08 / piece)

€ 31.08

plus VAT.

Report legal concerns

Highlights & Details

Shelly Wave 2PM UP relay max. 16A, 2 channels, measuring function, Z-Wave

Z-Wave powered
Create Smart Schedules
Intelligent scenes
With performance measurement

Technical specifications

Max. Switching voltage AC 240 V
Max. Switching current AC: 10 A per channel, 16 A total, 18 A total peak
Max. Switching voltage DC 30 V
Max. Switching current DC 10 A

Product type: Actuator

: Alexa
Google Home

Transfer Standard (Smart Home): Z-Wave
Z-Wave+

Used at: Indoors

Power supply (LOV): mains-powered

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Channels: 2

Frequency: 868.4 MHz

Mounting type: Flush mount

Factory colour: Black

Width: 42 mm

Height: 37 mm

Depth: 16 mm

Weight: 0.05

: n.rel.

Dim: (W x H x D) 42 x 37 x 16 mm

Hub: Not required

Features: Test function

Documents & Downloads

Datasheet

Datasheet 2924223 Shelly Shelly Qubino Wave 2PM Actuator Z-Wave, Z-Wave+

User & Safety Instructions

User & Safety Instructions 2924223 Shelly Shelly Qubino Wave 2PM Actuator Z-Wave, Z-Wave+

Description

Z-Wave™ Smart switch, 2 channels 16 A total current (18 A peak), with power measurement
Remote control of two independent electrical devices (e.g. lamps) and monitoring their power consumption, both separately and together.

This text is machine translated.

Features

2 channels (2 x 10 A, 16 A total)
Power measurement on each channel and total channel and in total
Extremely low device consumption: 0.3 W
868.4 MHZ Z wave frequency band (CEPT countries)
Latest technology: Z-Wave 800 series
Automatic setup with SmartStart
Two-factor authentication for maximum security
Supports over-the-air firmware updates
Easy installation in most of the standard sockets and switches
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices.

System requirements

Z-Wave enabled gateway
